Page 1

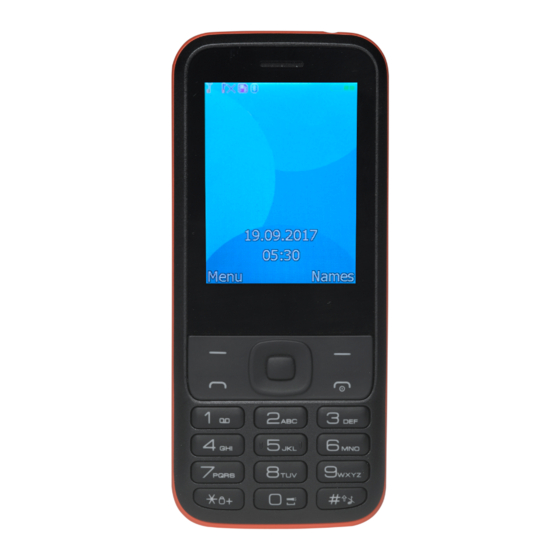

Mobile Phone FAS-24100M www.facebook.com/denverelectronics User Guide English, Deutsch, Dansk, Suomalainen, Svenska, Français, Nederlands, Español, Italiano, Polski,Português,Norwegian ENG-1...
Page 2
Start to Use Put in/Take out battery Put in battery 1.Open the battery cover 2. Put battery into the battery slot. Keep three metal points of battery facing downward and matching with the three metal connection points on phone. ENG-2...
Page 3
3. Close the cover. Make sure that cover is completely matched and the cover matching sound could be heard. open Remark:Shut down all devices and cut theconnection with charger when removing battery. Please use battery which is matched with this phone only. ENG-3...
Page 4
Insert/Take out SIM card 1. Insert SIM card:Remove battery cover; Insert and slide the SIM card with the metal part facing downward by following below arrow direction at battery slot until SIM card is completely inserted in right position. 2. Take out SIM card:Hold the notch of SIM card and lift it slightly up by the other hand to take card out.
Page 5
SIM card and the contact point will be easily damaged due to scratch and bending. Please be careful when inserting andtaking out the SIM card. Battery Charging Phone could be charged when phone is power off or power Make sure that battery is inserted in phone before charging.
Page 6
Remark:Battery indication will bedisplayed after several minutes ifbattery is over-discharged. Not enough battery alert Phone will give alert when battery is not enough and display a message of low battery on screen. Please charge battery. Please charge battery when you receive the alert of low battery during calling in order to keep the calling.
Page 7
red end call key. Press and hold *button to lock keypad Stand by Mode When phone is ready to use but no operation is done on phone, then phone is under stand by modeIcons on Screen Icons might be displayed on screen. Battery status Signal status Alarm...
Page 8
Key Functions Key Name Functions Standby mode:press Navigation to enter message Left key Operating:press to move cursor left Standby mode:press Navigation to enter profiles Operating :press to Right key move cursor right Standby mode:press Navigation to enter main menu Operating :press to Up key move cursor up Press to make outgoing...
Page 9
Standby mode:press Navigation to enter phonebook Down Operating : press to move cursor down Phone Off:Long press to switch on; End Key Phone On:Long press (Red to switch off; Key) Operating:Press to go back to idle screen Numeric Press to input numbers or letters Standby mode:Long press to lock the...
Page 10
Standby mode:Long press to set phone silent mode, short press to type in #. Editing mode :Press to switch typing method. Voice Dial Make an International Call 1. Press 0 key for twice times and sign “+ ” will come out. Then enter country code, area code and phone number (without a zero in front of mobile phone number) Press Send key to enter voice dial to call out.
Page 11
extension number, this phone willdial the extension number automatically. Follow below method to make a symbol P: short press * key for three times. Then it will display a P symbol on screen. Shortcuts: Menu > Settings > Phone Setting > Shortcut setting.
Page 12
Tools: with Calendar, Calculator, Alarm, STK.. - Profiles: to activate the mode, and to customize General, indoor, outdoor mode. Answer an incoming call: respond to an incoming call simply by pressing the green button. To set up the answer mode select Settings >...
Page 13
Scroll with UP/Down keys and press the green call button when you find the number you want to call. Add contacts to the Contacts: Select Menu > Contacts > Options > New, and choose to save the number on the SIM or the Phone. Enter the name and the new number, then press Save.
Page 14
numeric keypad or Insert contacts to select from the Contacts the contact you want to text. Read SMS: when you receive a new text message, the phone displays an envelope icon on the top bar(until the message is read/for as long as the message is unread) and a notification pop up appears on the main screen.
Settings >Phone settings, you have/will have access to various settings such as Date and Time, Language, and Display. Select Restore to reset the factory settings of FAS-24100M: enter the phone password 1234 to confirm the restoring. Radio frequency (RF) exposure and SAR...
Page 16
The exposure standard for mobile devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit stated in the international guidelines is 2.0 watts/kilogram (W/kg)*. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified well below the maximum value.
Page 17
different SAR values. The SAR limit for mobile devices used by the public is 2.0 W/kg averaged over 10 grams ofbody tissue. The guidelines incorporate a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.
Page 18
Additional information is available at the technical department of your city ALL RIGHTS RESERVED DENVER ELECTRONICS A/S ENG-18...
Page 19
Omega 5A, Soeften 8382 Hinnerup,DENMARK Hereby, Inter Sales A/S, declares that this mobile phone DENVER FAS-24100M is in compliance with the essential requirements andother relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity may be obtained at...
