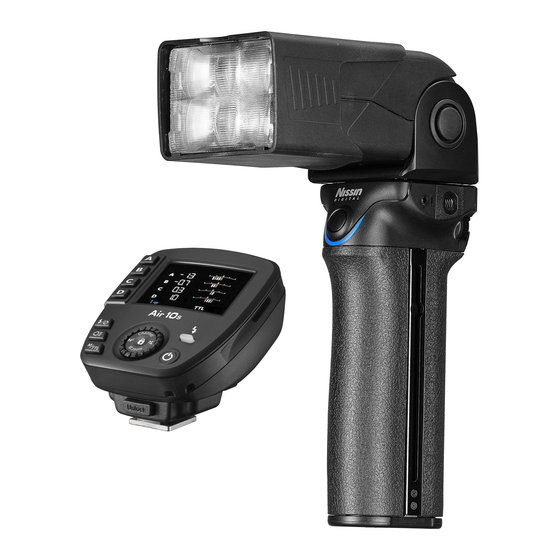

Nissin NDMG10 Instruction Manual
  1. Manuals
  2. Brands
  3. Nissin Manuals
  4. Camera Flash
  5. NDMG10
  6. Instruction manual

Nissin NDMG10 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDMG10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nissin NDMG10

Summary of Contents for Nissin NDMG10

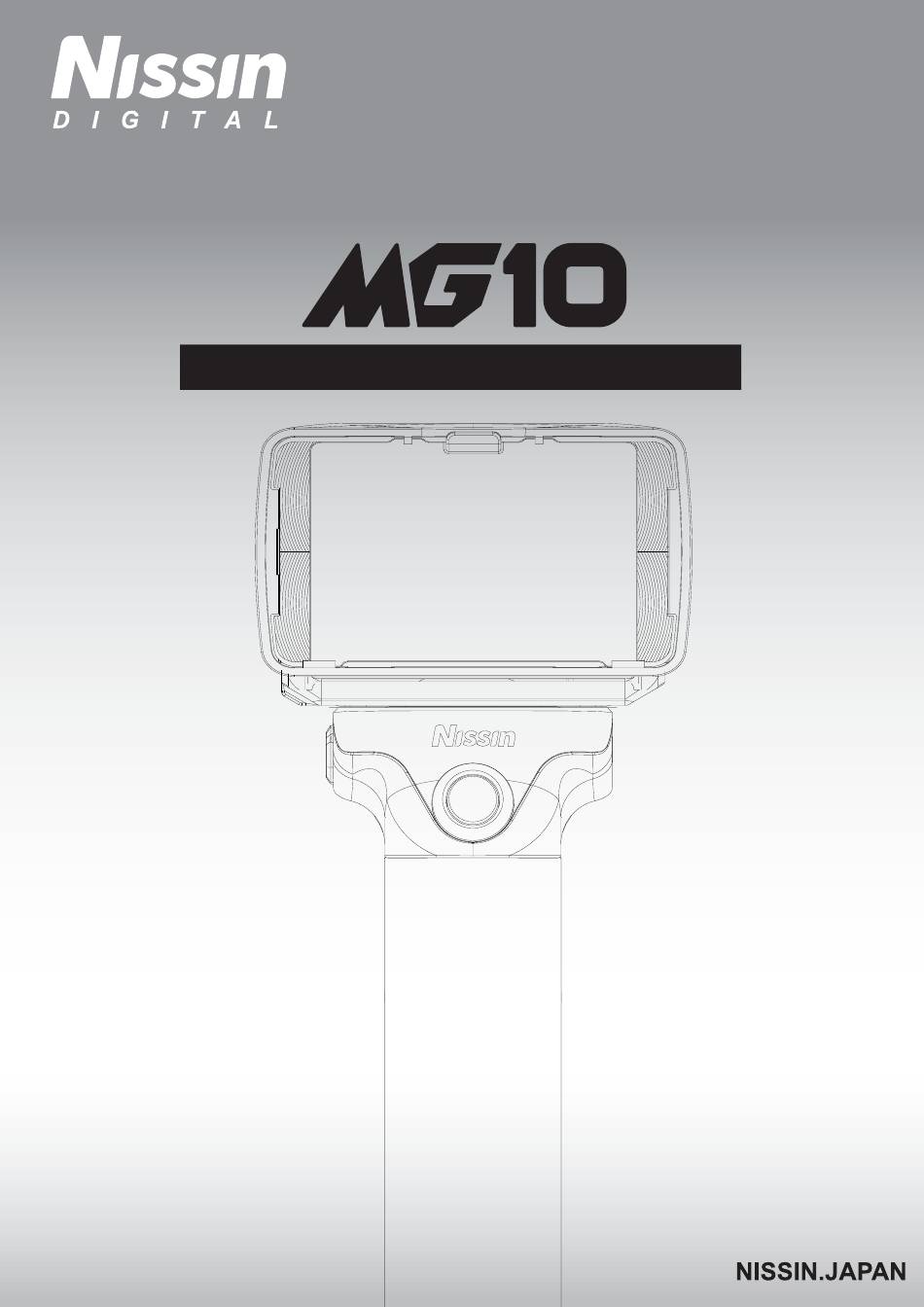

  • Page 1 INSTRUCTION MANUAL...
  • Page 2 Thank you for purchasing a Nissin product Before using this flash unit, please read this instruction manual and refer to the manual of camera owner carefully to get a better...
  • Page 3 Nissin Air System (NAS) is a Nissin wirelessly remote control flash light system, designed by Nissin. It consists of a Nissin radio commander (NAS commander) and the Nissin wireless flash (NAS flash) and Nissin radio receiver (NAS receiver) as remote slave units.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS These safety instructions refer to important information on how to use this product safely and properly. Please read the following instructions before using the product. WARNING This symbol refers to the possibility of personal injury, death or property damage if not followed as described.

  • Page 5: Names Of The Components

    Names of the Components X-terminal NAS connection light Micro SD card slot Channel Dial (for firmware update) Pilot button (Test flash button) Wireless remote shutter Power On/Off button Bounce lock Open Mode button Tripod Screw Power Pack socket Shutter cable socket (2.5mm) Group Dial Rail Battery compartment door...
  • Page 6 Preparation before use. Before starting wireless flash shooting. Inserting batteries Applicable Battery Type - Alkaline batteries, Lithium batteries or NiMH batteries. 1. Open the battery compartment door. 2. Insert 8 x size AA batteries in battery case as shown in the picture. 3.

  • Page 7: Basic Operation

    Basic Operation Mounting MG10 on the camera Turn off MG10. Insert the short side of bracket into the side rail of the MG10 and tighten the wheel. Put the camera on the bracket and tighten the mounting screw. Slide the mounting foot of Air 10s into the hotshoe on the camera Removing MG10 from the camera Turn off MG10.
  • Page 8 Zoom head and light diffusing panel Using light diffuser / filter holder with zoom head Turn off MG10. Insert the flash gel between zoom head & filter holder. Insert the diffuser / filter holder in & put the diffuser / Filter holder lid on Zoom head Turn off MG10.

  • Page 9: Wireless Flash Shooting

    Wireless Flash Shooting Pairing Setting To perform wireless shooting, set the Nissin Air 10s commander and NAS slave unit with the following procedure. After pairing is completed, both of them will memorize the data and there will be no need to pair again after the units are switched on and off.

  • Page 10: Group Setting

    Basic Groups and Advanced groups There are basic groups and advance groups for controlling the Nissin Air10s. They allow the user to pair an unlimited amount of slave units. They mainly divided into two kinds of groups: TTL mode M mode...
  • Page 11 NAS strobes will not be affected by other commanders when- ever they are using the same channel in the same location. A slave unit of Nissin flash or Nissin receiver can only be controlled by one and only one NAS commander with pairing in default setting.
  • Page 12 Wireless remote shutter MG10 with Air 10s provide wireless remote shutter. User allow to use remote shutter to control camera on MG10. Using with Air 10s Slide the mounting foot of Air 10s into the hotshoe of the camera. Connect the shutter cable between Air 10s &...

  • Page 13: Flash Power Control

    (the same procedure works with groups B, C, and D). 2. After completing the exposure setting, press the Group Selection button again to stop the blinking. CAUTIONS TTL auto flash exposure mode of Nissin Air 10s supports cameras which walked through the compatibility test.
  • Page 14 1. Press the Group Selection button, the group letters blink. 2. Rotate the Operation Dial to increase or decrease the TTL flash exposure compensation. The settings of TTL auto exposure compensation on Nissin Air 10s starts from -2EV to + 2EV and controlled by 1 / 3EV step interval.
  • Page 15 ( * ) . M mode 3. When the M mode setting is completed, press the group selection button again. (*) The integer step values of Nissin Air 10s are 1/1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 and 1/256 CAUTIONS...

  • Page 16: Power Control

    Flash power control (X-Sync) Connecting with X-Sync cable Turn off MG10 and camera. Plug the cable into X-terminal on camera & MG10. Power control Turn Group Dial to for using x-sync. Use Channel Dial to control the flash power: Full 1/16 1/32 1/64...
  • Page 17 Zoom head setting Nissin MG10 offers "A" auto zoom mode and manual zoom mode. 1. Hold the on Air 10s for 2 seconds. 2. Press the group selection button until the the desired letter(s) blink. Rotate the Operation Dial to change the Zoom head position setting.
  • Page 18 Which means that the smaller focal length lens with larger angle in the view, the flash area coverage will be larger. Nissin MG10 Guide No. at manual exposure mode (ISO 100 in meters) Flash Power Level (Guide No.) Zooming...

  • Page 19: Modeling Light

    Modeling light Normal flashguns have a very short flash duration. In order to estimate and control the flash more efficiently, the modeling light on slave unit can be used. It is a constant light for the user to estimate and preview the light before shooting(flash emitting).
  • Page 20 High Speed Synchronize ( HSS / FP ) Flashgun supports shutter speed limitation on X-Sync (maximum speed synchronize to flash) on SLR / DSLR /Mirrorless Cameras in general. If it does not support HSS function of the camera, faster shutter speed settings than the maximum synchronize speed will block the flash gun.
  • Page 21 Buzz (Beep sound) on strobes All settings of strobes are controlled by the commander wirelessly after the pairing is completed. If the strobes buzzer is on, a “Beep” sound will be heard when the Strobe is charging and not ready to flash. The “Beep” sound will be heard everytime when there is any change made through the commander.

  • Page 22: Connecting The Power Pack

    External Power Pack Socket (sell separately) Make sure to switch o� f f both the Power Pack and the flash unit before use. Connecting the Power Pack Use the compatible flash power supply cable for MG10. Hold the connector of the flash power supply cable in front of the socket with both guide marks on the connector and on the socket coinciding and insert it into the socket straightly.

  • Page 23: Firmware Update Procedure

    Firmware update procedure To start the firmware update procedure, you need to have: The computer (Windows or Mac) connected to the Internet A Micro SD/SDHC card (recommend 4GB-32GB) and Micro SD card reader. MG10 with 8pcs of full re-charged AA batteries or 2pcs of full recharged 26650 Lithium ion battery.

  • Page 24: Specifications

    Open mode on/off, Power switch Wireless mode 2.4GHz with Nissin NAS system EV compensation on flash None (1/256 - 1/1 with 1/3 steps set by Nissin commander) Bounce position -7 ~ 90 degree Vertical, +/- 180 degree Horizontal. Manual mode power ratio...

  • Page 25: Warranty

    Warranty In case of the following reason of the defect, it may void the warranty. 1. The product is not used in accordance with the instruction of the owner’s manual. 2. The product is repaired or modified by the one who is not an authorized repair service.
  • Page 26 Nissin Japan Ltd., Tokyo http://www.nissin-japan.com Nissin Marketing Ltd., Hong Kong http://www.nissindigital.com Design and Specifications are subject to change without prior notice. MG10.Rev.1029v .6.0...
