86BDL3012T
V1.01
www.philips.com/welcome
User Manual (English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 86BDL3012T/00 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips 86BDL3012T/00

Summary of Contents for Philips 86BDL3012T/00

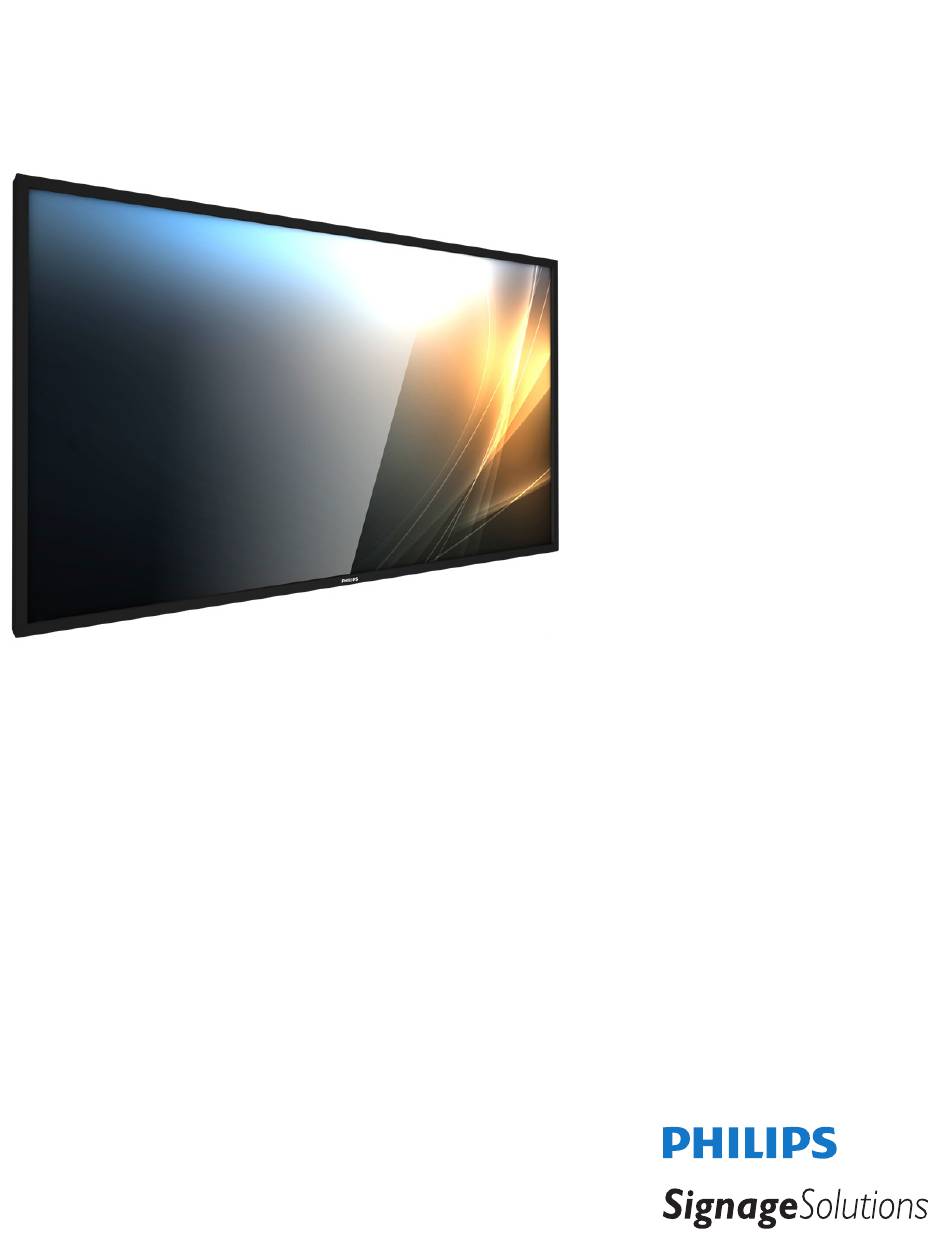

  • Page 1 86BDL3012T V1.01 www.philips.com/welcome User Manual (English)
  • Page 2 Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. • The eye bolt is for usage in short-time maintenance and installation. We suggest not to use the eye bolt for more than 1 hour. Prolong usage is prohibited. Please keep a clear safety area under the display while using the eye bolt. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel.
  • Page 3 86BDL3012T Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture. • When turning off the display by detaching the power cable or DC power cord, wait for 6 seconds before re-attaching the power cable or DC power cord for normal operation..
  • Page 4 86BDL3012T Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible. A protection mark “B” confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/ E-06251. Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.
  • Page 5 86BDL3012T Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type. 3. Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A. NOTE: T he severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere.
  • Page 6 86BDL3012T China RoHS 根据中国大陆《电子电气产品有害物质限制使用标识要求》，以下部分列出了本产品中可能包含的有害 物质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 ○ ○ ○ ○ ○ ○ 液晶显示屏 × ○ ○ ○ ○ ○ 电路板组件* × ○ ○ ○ ○ ○...
  • Page 7 86BDL3012T 《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品 回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○ ○ ○ ○ ○ 液晶面板 － ○ ○ ○ ○ ○ 電路板組件 － ○...
  • Page 8 86BDL3012T End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
  • Page 9 86BDL3012T Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes. For Switzerland: The used battery is to be returned to the selling point. For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery. According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service. Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou...

  • Page 10: Table Of Contents

    86BDL3012T Table Of Contents Cleaning and Troubleshooting ..........34 9.1. Cleaning ..................34 9.2. Troubleshooting .................35 Unpacking and Installation ............1 10. Technical Specifications ............37 1.1. Transportation and Unpacking..........1 1.2. Package Contents ................4 1.3. Installation Notes .................4 1.4. Mounting on a Wall ..............5 Parts and Functions ..............6 2.1.

  • Page 11: Unpacking And Installation

    86BDL3012T Unpacking and Installation 1.1. Transportation and Unpacking Notice for transportation • Always keep the carton in a vertical direction. Do NOT place the carton in any other direction. • Do NOT place any object on the carton. • Do NOT apply shock/vibration to the product. • Move the carton by stacker. • Do NOT drop the product. Strong impacts may damage the components inside. • Move single carton with small pallet by stacker. Carton Small Pallet Big Pallet...
  • Page 12 86BDL3012T Notice for transportation 1. Remove the strap around the carton. 2. Use a blade to cut the tape on the top and open the carton. 3. Take out the cushions carefully. 4. Remove the plastic carton lockers and remove the top carton.
  • Page 13 86BDL3012T 5. Move the display from the carton by two adults with both hands. • Do not touch the screen of display to avoid possible • Keep the display vertically when moving it. scratches. Move the display by holding the handles. 90° 90° • Place the display vertically and its weight should spread evenly on the surface.

  • Page 14: Package Contents

    86BDL3012T Before installing the display • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Move the display by at least two (2) adults. • After opening the carton, ensure that the contents are complete and in good condition. 1.2. Package Contents Please verify that you received the following items with your package content: • LCD display NORMAL • Quick start guide SOURCE FORMAT LIST INFO • Remote control and AAA batteries ADJUST OPTIONS • Power cord • RS232 cable ID SET ENTER • RS232 daisy chain cable • IR sensor cable...

  • Page 15: Mounting On A Wall

    86BDL3012T 1.4. Mounting on a Wall To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use a mounting interface that complied with TUV-GS and/or UL1678 standard in North America. Protective Sheet VESA Grid Table Carrying handle 1. Prepare a flat and horizontal surface that is larger than the display and spread a thick protective sheet on it to facilitate your operation without scratching the screen. 2. Ensure you have all accessories for all types of mounting (wall mount, ceiling mount, table stand, etc). 3. Follow the instructions that came with the base mounting kit. Failure to follow the correct mounting procedures could result in damage to the equipment, or injury to the user or installer. The product warranty does not cover the damage caused by improper installation. 4.

  • Page 16: Parts And Functions

    86BDL3012T Parts and Functions 2.1. Control Panel MUTE INPUT MENU [ ] button Remote control sensor and power status indicator Turn the display On or turn the display to standby mode. • Receive command signals from the remote control. • Indicate the operating status of the display without OPS: [MUTE] button - Light green when the display is turned On Mute the sound or reactivate sound. - Light red when the display is in the standby mode [INPUT] button - When {SCHEDULE} is enabled, the light blinks green and red Select an input source. - If the light blinks red, it indicates that a failure has been [ ] button detected - Lights off when the main power of the display is turned off...

  • Page 17: Input/Output Terminals

    86BDL3012T 2.2. Input/Output Terminals TOUCH Service Port EXT. SPK TERMINAL SPEAKER SWITCH AUDIO OUT AUDIO IN SPDIF IR-OUT IR-IN VGA IN DP OUT DP IN RS232 RS232 Y/CVBS AUDIO L AUDIO R 100-240V DVI IN RJ45 HDMI1 IN HDMI2 IN HDMI3 IN 50-60Hz 2.5A 9 10 11...
  • Page 18 86BDL3012T 2.2.1. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace the batteries: 1. Press and then slide the cover to open it. 2. Insert the batteries with the correct polarity (+) and (–). 3. Replace the cover. Caution: Incorrect use of batteries may cause leakage or explosion. Be sure to follow the instructions below: • Insert “AAA” batteries with the correct polarity (+ and -). • Do not mix battery types. • Do not use a new battery with a used one together. Otherwise, it may cause leakage or shorten the life of the batteries. • Remove the dead batteries immediately to avoid battery leakage in the battery compartment. Do not touch exposed battery acid, as it may cause injury to your skin.

  • Page 19: Remote Control

    86BDL3012T 2.3. Remote Control ] LIST button Reserved. 2.3.1. General functions NAVIGATION buttons Root Menu: Go to the OSD of Smart picture. Main Menu: Move the selected item up to make adjustment. IR Daisy Chain Menu: Increase the controlled Group ID number. Root Menu: Go to the OSD of Audio source. Main Menu: Move the selected item bar down to make adjustment. IR Daisy Chain Menu: Decrease the controlled Group ID number. Main Menu: Go to the previous level of menu.
  • Page 20 86BDL3012T 2.3.2. ID Remote Control Press the [ID] button and the red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the ID Set remote control ID number when using several displays. Mode. The red LED lights up. Pressing the [ID SET] button again will exit from the ID Mode. The red LED lights off. Press the digit numbers [0] ~ [9] to select the display to be controlled. For example: press [0] and [1] for display No.1, press [1] and [1] for display No.11. The numbers available are [01] ~ [255]. 2. If no button is pressed within 10 seconds, it will exit from the ID mode. 3. If a wrong button is pressed, wait for 1 second until the red LED lights off and then turns on again, then press the correct digits. 4. Press [ENTER] button to confirm your selection. The red LED blinks twice and then lights off.

  • Page 21: Rubber Cover

    86BDL3012T 2.4. Rubber Cover ■ The rubber covers should always be attached to the display unless the display is mounted on the wall. ■ Please keep the rubber covers and thumb screws properly and use them to protect the display when the display is not mounted on the wall.

  • Page 22: Connecting External Equipment

    86BDL3012T Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input DVD / VCR / VCD HDMI Out HDMI1 IN HDMI2 IN HDMI3 IN [HDMI IN] 3.2. Connecting a PC 3.2.1. Using VGA input [VGA AUDIO IN] Audio Out AUDIO OUT AUDIO IN...

  • Page 23: Connecting Audio Equipment

    86BDL3012T 3.2.3. Using HDMI input HDMI1 IN HDMI2 IN HDMI3 IN HDMI Out [HDMI IN] 3.2.4. Using DisplayPort input DisplayPort Out [DisplayPort IN] DP IN 3.3. Connecting Audio Equipment 3.3.1. Connecting external speakers EXT. SPK TERMINAL External speakers...

  • Page 24: Connecting Multiple Displays In A Daisy-Chain Configuration

    86BDL3012T 3.3.2. Connecting an external audio device Audio In [AUDIO OUT] SPEAKER SWITCH AUDIO OUT Stereo Amplifier AUDIO IN SPDIF [SPDIF OUT] 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 3.4.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [RS-232C] [RS-232C IN] [RS-232C OUT]...

  • Page 25: Ir Connection

    86BDL3012T 3.5. IR connection External IR Receiver DISPLAY 1 DISPLAY 2 [IR IN] [IR IN] [IR OUT] NOTE: The remote control sensor of this sensor will stop working if the [IR IN] is connected. 3.6. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] (DVD / VCR / VCD) Remote Control 3.7.

  • Page 26: Touch Operation

    86BDL3012T 3.8. Touch Operation Zoom in This display is equipped with a touch-sensitive screen and supports Touch the target on the screen with two fingertips held together and the Windows Touch features either by singletouch or multitouch move them apart to zoom in (magnify) the screen image. operation. You can touch the pictures or words on the display gently with your fingers, and your computer will react. The following illustrations show some typical touch operation behavior. For further detail on how to run the touch operation, please refer to the Windows operation instruction. Single Tap Touch the target on the screen with one fingertip for one quick tap, then release. Zoom out Touch the target on the screen with two fingertips stretched apart and move them closer to zoom out (shrink) the screen image. Please note that a touch screen will respond to a light touch from your fingertip when tapping within 4mm above touch screen. Double Tap Touch the target on the screen with one fingertip for two quick taps, then release. Touch and Hold Touch and hold the target on the screen with one fingertip for a while to display a context menu or options page for an item.
  • Page 27 Service Port EXT. SPK TERMINAL SPEAKER SWITCH AUDIO OUT AUDIO IN SPDIF IR-OUT IR-IN VGA IN DP OUT DP IN 5. SDK is available on the website www.philips.com/signagesolutions-support, for 20-point touch application development on Windows and Linux. 6. For Mac OS 10.10, it is recommended that you use the tool “TouchService” to re-define the touch position and simulate mouse operation(single touch). First, install the tool “TouchService” to Mac OS, then follow the instruction of Touch Service Manual in the software package “TouchService” which is available on the website www.philips.com/signagesolutions-support. 7. Please visit the website www.philips.com/signagesolutions-support for the latest information about Mac OSX mode support.

  • Page 28: Operation

    86BDL3012T Operation 4.3. Play options NOTE: T he control button described in this section is mainly on the 4.3.1. Playing music files remote control unless specified otherwise. Music 1. Select from the top menu bar. 4.1. Watch the Connected Video Source Music See page 13 for external equipments connection. ] button. 2. Select one music track, and press [ 1. Press the [ ] SOURCE button. • To play all tracks in a folder, select one music file.
  • Page 29 86BDL3012T Internet Web Address： http:// History www.google.com Bookmark . , @ ‘ Done w x y z Hide p q r s ? ! - < 123 www Backspace 3. Move the cursor to “  ” icon and press [ ] button. Internet Web Address： http://www.google.com History www.google.com Bookmark...

  • Page 30: Osd Menu

    86BDL3012T OSD Menu 5.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is shown 5.2.1. Picture menu below. You can use it as a reference for further adjustment of your display. Brightness Picture 5.1. Navigating the OSD Menu Contrast Sharpness Screen Black level 5.1.1. Navigating the OSD menu using the Tint remote control Audio Color SOURCE FORMAT Noise reduction Medium...
  • Page 31 86BDL3012T Color control V position You can adjust the color tones of the image precisely by changing the Press the [ ] button to move the image up, or [ ] to move the image User-R (Red), User-G (Green) and User-B (Blue) settings independently down. under the following condition: NOTES: {Picture} - {Color temperature} - {User} setting to [User 1] • V position adjustment works with VGA input only. Or, you can adjust the color tones per 100K in the range of 2000K to • V position cannot be adjusted when {Pixel Shift} is activated. 10000K under the following condition: Clock {Picture} - {Color temperature} - {User} setting to [User 2] Adjust the width of the image. Smart picture NOTE: T his item works with VGA input only. The following smart picture modes are available for: Clock phase • PC mode: {Standard} / {Highbright} / {sRGB}.
  • Page 32 86BDL3012T 5.2.4. PIP menu V zoom Expands the vertical size of image only. Sub mode Picture PIP size Small H position PIP position Bottom-Left Screen Moves the horizontal position of image left or PIP change Cancel right. PIP reset Cancel Audio V position Moves the vertical position of image up or down. Configuration 1 Screen reset Reset all settings in the Screen menu to factory preset values. Sub mode Select the PIP (Picture-in-Picture) mode. 5.2.3.
  • Page 33 86BDL3012T Panel saving • The PIP function is available only for certain signal source combinations as shown in the table below. Enable or disable the panel saving functions and thus reduce the risk of “image persistence” or “ghost-imaging”. Main • {Cooling Fan} - Adjust the rotation speed of cooling fan. Select Sub {Auto}, the cooling fan will turn on/off according to the display’s temperature. The options are: {Auto} / {Off} / {Low} / {Medium} / {High}. HDMI1 NOTES: • The default {Auto} option will start running the cooling fan if HDMI2 the temperature of 45°C (113°F) is reached, and stop running HDMI3 the cooling fan if the temperature of 43°C (109°F) is reached. COMP VIDEO • A warning message will be shown on the screen if the temperature reaches 58°C (136°F). All key functions except BROWSER [ ] key will be disabled.
  • Page 34 86BDL3012T Logo Receive multimedia files from the connected device by your network. Enable or disable to show the logo when you turn on the display. Clear internet memory OSD rotation Clear all cookies, bookmarks, history list and text used for automatic filling. Rotate the OSD Menu. The options are: Configuration1 reset • {Landscape} (Default) Select the input source when booting. • {Portrait} Input: select input source when booting. Monitor ID Playlist: select playlist index for Media player, Browser and PDF player. 0: no play list. Same as switch source from OSD. 1~7: playlist number. Set the ID number for controlling the display via the RS232C connection.
  • Page 35 86BDL3012T IR control Monitor information Select the operation mode of the remote control when multiple displays are connected via an RS232C connection. • {Normal} - All displays can be operated normally by the remote Model name XXBDLXXXXX Serial no control unit. Operation hours XHXM SW Version VXXX • {Primary} - Designate this display as the primary display for remote control operation. Only this display can be operated by the remote control. DP Version • {Secondary} - Designate this display as the secondary display. This The option are: {DP 1.1} / {DP 1.2} / {DP multi}. The default setting is display can not be operated by the remote control, and will only {DP 1.1}.
  • Page 36 86BDL3012T Frame comp. - No Daylight saving time Daylight saving start date Sunday of Daylight saving stop date Sunday of Correction time Hour Daylight saving correction 5. Press [ ] or [ ] button to select an item, press [ ] or [ ] button to make adjustment. • {Daylight saving start date} - Select {1st / 2nd / 3rd / 4th / last} •...
  • Page 37 86BDL3012T HDMI with One Wire  CEC control. • {Off} - Disable CEC.(Default)             • {On} - Enable CEC.  Auto signal detection       ＿ ＿ ＿ ＿ ＿  This function allows the system to detect and display the available signal ...
  • Page 38 86BDL3012T 5.2.8. Input menu Video source Configuration 2 Sub 1 Sub 2 Advanced option Sub 3 Audio source Audio 1 Input PIP audio Main Card OPS audio Digital Input reset Cancel Video source Select a video input source. The options are: {Displayport} / {DVI-D} / {VGA} / {HDMI1} / {HDMI2} / {HDMI3} / {Component} / {USB} / {BROWSER} / {SmartCMS} / {Card OPS}.

  • Page 39: Supported Media Formats

    86BDL3012T Supported Media Formats USB Video Subtitle Formats (for language subtitles, etc.) File Max. Bit Rate Container Video codec Maximum resolution Max. Frame Rate (fps) Audio codec Extensions (Mbps) MPEG-1 1920x1080 25p,30p,50i,60i MPEG-1(L1&L2), .mpg MPEG-2 1920x1080 25p,30p,50i,60i MPEG-1,2,2.5 L3, mpeg MPEG-4 ASP 1920x1080 25p,30p,50i,60i AAC/HE-AAC(v1&v2), .vob DVD-PCM H.264 1920x1080...
  • Page 40 86BDL3012T USB Multimedia Formats Frequency Max.Bit Rate File Extensions Container Video codec Maximum resolution Audio codec (kHz) (Mbps) .mp3 MPEG-1,2,2.5 L3 .wma .asf (V2 up to V9.2) .wma WMA Pro WMA,WMA Pro .wav(PC) LPCM LPCM .aif(mac) LPCM LPCM .aiff(mac) .aac .mp4 1024 AAC,HE-AAC(v1&v2) .m4a .pls Playlists .m3u .m4a 1024 AAC,HE-AAC(v1&v2) USB Photo file format type: JPEG, BMP, PNG, GIF NOTES: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above.

  • Page 41: Input Mode

    86BDL3012T Input Mode UHD Preset Mode (DP/HDMI timing support): Item Resolution H.Freq. (KHz) V.Freq. (Hz) BW(MHz) FHD Preset Mode (VGA/DVI timing support): 3840x2160 53.946 23.900 296.703 3840x2160 24.000 297.000 Item Resolution H.Freq. (KHz) V.Freq. (Hz) BW(MHz) 3840x2160 56.25 25.000...

  • Page 42: Pixel Defect Policy

    We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 8.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue.

  • Page 43: Dark Dot Defects

    Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 8.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 8.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table.

  • Page 44: Cleaning And Troubleshooting

    86BDL3012T Cleaning and Troubleshooting 9.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself. • Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. • If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution.

  • Page 45: Troubleshooting

    86BDL3012T 9.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure that the power switch is switched display is not switched on. 3. The selected input has no connection. 3. Connect a signal connection to the display. 4. The display is in the standby mode. Interference displayed on the display or an Caused by surrounding electrical appliances or Move the display to another location to see if the audible noise is heard...
  • Page 46 86BDL3012T How to setup the settings in the menu to Daisy chained by RS232 and no IR cable 1. The first display sets as “Primary” on OSD control all the monitors at the same time and (Advanced option/IR control item), others set as individually via RC? “Secondary”. 2. The setup OSD will show on top left side of the display.(Toggle MENU will show again if it disappears) 3. Default setting: ID NO: 0, GP NO: 0, this setting can control all displays by IR.

  • Page 47: Technical Specifications

    86BDL3012T Technical Specifications Display: Item Specifications Screen Size (Active Area) 217.4 cm / 85.6 inches Aspect Ratio 16:9 Number of pixels 3840 (H) x 2160 (V) Pixel pitch 0.4935 (H) x 0.4935 (V) [mm] Displayable colors 1.07 Billion colors Brightness (typical) 410 cd/m Contrast ratio (typical) 1200:1 Viewing angle 178 degrees In/Out Terminals: Item Specifications Speaker Output Internal Speakers 10W (L) + 10W (R) [RMS]/8Ω External Speakers 82 dB/W/M/160 Hz ~ 13 KHz SPDIF Output SPDIF Port Serial digital audio output when input is HDMI Audio Output 3.5 mm Stereo x 1 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input RCA Jack x 2 0.5V [rms] (Normal) / 2 Channel (L+R) 3.5 mm Stereo x 1 RS232C 2.5mm Phone jack x 2...
  • Page 48 86BDL3012T General: Item Specifications Power Input 100 - 240V~, 50 - 60Hz, 7.5A Power Output 100 - 240V~, 50 - 60Hz, 2.5A Power Consumption (Max) 471 W Power Consumption (typ.) 317 W Power Consumption (Standby & Off) <0.5 W Dimensions (Without Stand) [W x H x D] 1957 x 1128 x 104.9 mm Weight (Without Stand) 96.21 Kg Gross Weight (Without Stand) 121.5 Kg (Include the weight of small pallet) Energy Efficiency Class Visible Screen Size 217.4 cm / 85.6 inches On Mode Power Consumption (W) 317 W Annual Energy Consumption (kWh) 463 kWh Standby Power Consumption (W) 0.50 W Off Mode Power Consumption (W) 0.50 W Display Resolution (Pixels) 3840 x 2160 Network Standby (W) Environmental Condition:...
  • Page 49 2018 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
