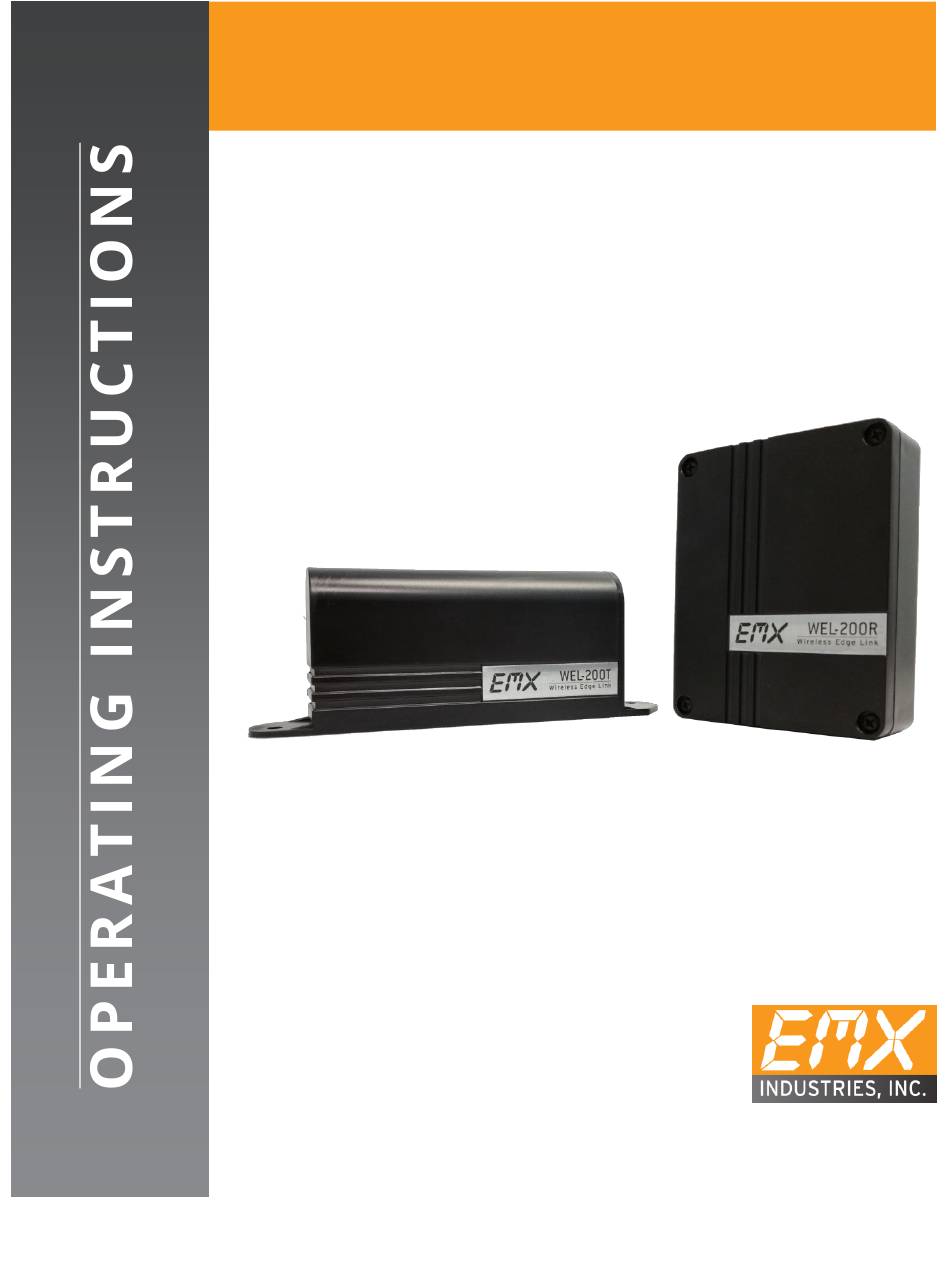

- Page 1 WEL-200 W I R E L E S S E D G E L I N K 4564 Johnston Parkway, Cleveland, Ohio 44128 P. 800 426 9912 F. 216 518 9884 Sales Inquiries: salessupport@emxinc.com Technical Support: technical@emxinc.com www.emxinc.com...
-
Page 2: Table Of Contents
Cautions and Warnings Contents Specifications Product Overview Controls and Indicators Connections Installation and Operation Troubleshooting Ordering Information WEL-200™ Operating Instructions Document no. 10320104 Revision 2.0 3-1-19... -
Page 3: Cautions And Warnings
Copyright Notice All rights reserved. Unless otherwise stated, the material within this document is copyright of EMX Industries Inc. No part may be reproduced, in whole or in part, without the specific written permission of EMX Industries Inc. Cautions and Warnings 1. -
Page 4: Specifications
Specifications WEL-200R WEL-200T Operating Range Up to 200 ft. (line of sight) Operating Frequency 915MHz Response Time 100ms Red power LED/green Power/Fault Indicator Green transmit/status LED channel LED Channel Status Indicator Green LED Assign each channel to Channel mode selection switch OPEN/CLOSE function OPEN direction relay: ... -
Page 5: Product Overview
Figure 1 - WEL-200T (transmitter) Figure 2 - WEL-200R (receiver) The EMX WEL-200 system provides a complete wireless solution for interfacing sensing edges with gate and door operators, while ensuring compliance with 2018 UL325 monitoring standards. Each transmitter can run for up to two years on two AA lithium batteries. -
Page 6: Controls And Indicators
Controls and Indicators Receiver 1. Channel assignment switches - Assigns a wireless transmitter to the specified channel 2. Channel status indicators - Indicates current status of each channel 3. Wireless transceiver module - Wireless radio used to communicate with transmitters 4. - Page 7 Transmitter 1. Batteries - Use two AA lithium batteries, 1.5V (ANSI 15-LF, IEC-FR14505 (FR6)) for the best performance and longest life. Observe polarity indication on the battery holder. 2. Transmitter status LED - Blinks twice every two seconds if not connected, once if connected - Blinks once every second when edge is activated...
-
Page 8: Connections
Connections Table 1: RECEIVER CONNECTIONS Terminal Function Description Signal common connection for OPEN PLS OPEN COM direction Pulsed output for OPEN direction (300/0 PLS OPEN OUT Signal common connection for CLOSE PLS CLOSE COM direction Pulsed output for CLOSE direction (300/0 PLS CLOSE OUT Normally closed connection for OPEN RELAY OPEN NC... -
Page 9: Installation And Operation
Installation and Operation 1. Receiver Installation The receiver enclosure can be mounted to the exterior of an operator using four (4) #8 machine screws, washers, lock washers, and nuts. Ideally, it should be placed in direct line-of-sight with the transmitters, with no obstructions between the WEL-200R and the WEL-200T. 1. - Page 10 CABLE GRIP INSTALLATION for both transmitter and receiver The cable grip provides a NEMA 4X rating. To maintain a watertight seal follow these instructions: a. Cable must be 0.181 – 0.312 (4.6 – 7.9mm) diameter for proper seal using the cable grip insert as supplied.
- Page 11 2. Connecting Connecting is a two step process. First, on the receiver, press and hold the channel assignment switch until the green status LED begins rapidly flashing, then release; this will clear any existing assignment for that particular channel. Hold down the connection switch on the transmitter. If it is not currently connected to a receiver, it will begin flashing rapidly until successfully connecting.
- Page 12 2.7. Testing 2.7.1. Without activating the edge, observe the channel status LED, it should be OFF. 2.7.2. When the edge is activated, the receiver channel status LED will turn on and the corresponding OPEN/CLOSE direction output will activate. The transmitter status LED will blink once every second when the edge is activated.
-
Page 13: Troubleshooting
Troubleshooting Under normal operation, the WEL-200R STATUS indicator LED will flash once every two seconds. This is referred to as a cycle (one second on/one second off). Any fault that occurs will cause the associated open/close output to change state. Output state refers to the output assigned to the channel via the OPEN/CLOSE switch on the receiver. - Page 14 When channel assignment mode is entered, the active channel’s LED will turn on for 0.25 seconds, once per cycle. Pending channel connection 0.25s 0.5s 0.75s 1.25s 1.5s 1.75s If the edge resistance is above normal, due to lack of/improper termination or cable damage, the offending channel’s LED will turn on for 0.25 seconds, 2x per cycle.
- Page 15 Transmitter is inactive 0.25s 0.5s 0.75s 1.25s 1.5s 1.75s Dimensional Outline: Receiver WEL-200™ Operating Instructions Document no. 10320104 Revision 2.0 3-1-19...
- Page 16 Dimensional Outline: Transmitter WEL-200™ Operating Instructions Document no. 10320104 Revision 2.0 3-1-19...
-
Page 17: Ordering Information
EMX Industries option of a part or parts found not conforming to the warranty. In no event shall EMX Industries Inc. be liable for damages, including but not limited to damages resulting from non-conformity, defect in material or workmanship. - Page 18 BLANK PAGE WEL-200™ Operating Instructions Document no. 10320104 Revision 2.0 3-1-19...
- Page 19 BLANK PAGE WEL-200™ Operating Instructions Document no. 10320104 Revision 2.0 3-1-19...
- Page 20 4564 Johnston Parkway Cleveland, Ohio 44128 United States of America www.emxinc.com Technical Support: (216) 834-0761 technical@emxinc.com Sales: (216) 518-9888 Fax: (216) 518-9884 salessupport@emxinc.com Revision 2.0 3-1-19 WEL-200™ Operating Instructions Document no. 10320104 Revision 2.0 3-1-19...
