Summary of Contents for Vision & Control R-CLR-100x73-G523-SL

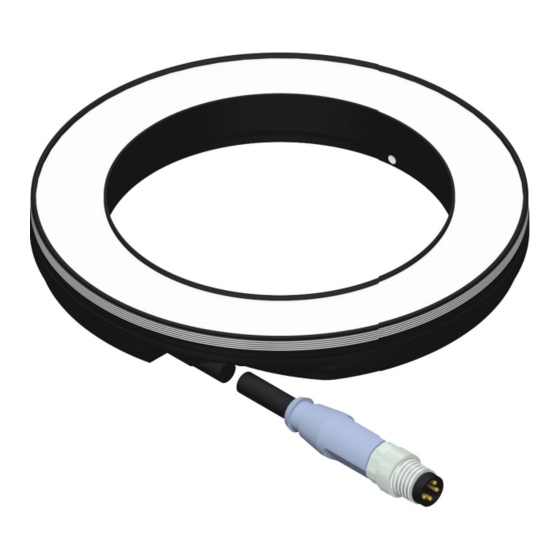

- Page 1 Installation and Operating Instructions R-CLR-100x73-G523-SL Coaxial LED ring light, vicolux® smart light 999.994.744.10-en-1.0.1 © Vision & Control GmbH 2017...
- Page 2 R-CLR-100x73-G523-SL Publisher & distributor Vision & Control GmbH Mittelbergstraße 16 98527 Suhl, Germany Telephone: +49 (0) 3681 7974-0 Telefax: +49 (0) 3681 7974-33 www.vision-control.com Name of the document 999.994.744.10-en-1.0.1 Version: 1.0.1 Date of first issue 01.08.2016 Date Modified Copyright Transmittal and reproduction of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited.
-
Page 3: Table Of Contents
R-CLR-100x73-G523-SL Table of Contents TABLE OF CONTENTS Table of Contents ..................3 1 About these Instructions ................4 2 Safety ....................... 5 Representation of Warning Notices ..........5 Safety Instructions ................. 6 Qualified Personnel ................ 6 3 Product Description .................. 7 Intended Use ................. -
Page 4: About These Instructions
R-CLR-100x73-G523-SL About these Instructions ABOUT THESE INSTRUCTIONS These instructions contain important information required to operate the device safely, appropriately and economically. These instructions must be read completely and carefully in order to avoid hazards and the need for repairs, and to reduce downtimes and lengthen the service life of the device. -
Page 5: Safety
R-CLR-100x73-G523-SL Safety SAFETY 2.1 Representation of Warning Notices Warning instructions appear at the relevant places in the document to warn of impending hazards. Each warning instruction is introduced by a key word and colour highlighted. The key word indicates the degree of danger. -
Page 6: Safety Instructions
R-CLR-100x73-G523-SL Safety 2.2 Safety Instructions Safety instructions warn of general hazards. Knowledge of the basic safety instructions is the basic prerequisite for the safe handling and fault-free operation of the device. • It is forbidden to modify the device in any way without prior consultation with and the agreement of the manufacturer. -
Page 7: Product Description
R-CLR-100x73-G523-SL Product Description PRODUCT DESCRIPTION ® vicolux smart light ® vicolux smart light is a new type of lighting technology, with which Vision & Control GmbH has revolutionized industrial image processing. ® vicolux smart light technology does much more than the traditional approach, in which a lighting controller only adjusts the brightness of a lighting unit. -
Page 8: Foreseeable Misuse
R-CLR-100x73-G523-SL Product Description 3.2 Foreseeable Misuse Dangers may arise from the device if it is used improperly or for other than its intended purpose. The device is not designed for use in potentially explosive atmospheres. They include the EU directives 1999/92/EC (ATEX 137) and 2014/34/EU (ATEX 95), but are not limited to them. -
Page 9: Display And Operating Elements
R-CLR-100x73-G523-SL Product Description Rating plate Figure 1: Rating plate Rating plate with product name, serial number and CE mark 3.4 Display and Operating Elements The device does not have any display or operating elements. © Vision & Control GmbH 2017... -
Page 10: Structure Of The Device
R-CLR-100x73-G523-SL Product Description 3.5 Structure of the Device Figure 2: Structure of the device Luminous field Housing 4-pin M8 plug 3 x M2.5 threaded pins External thread for mounting the accessories © Vision & Control GmbH 2017... -
Page 11: Dimensional Drawing
R-CLR-100x73-G523-SL Product Description 3.6 Dimensional Drawing luminous field = I/O-diameter 103.35 h6 3× M2.5 grub screw to clamp adapter ring M103x0.5 (for attachment ring) M8 connector 4× M3 depth 4.5 Figure 3: Dimensional drawing (all dimensions in mm) © Vision & Control GmbH 2017... -
Page 12: Packaging And Transportation
R-CLR-100x73-G523-SL Packaging and Transportation PACKAGING AND TRANSPORTATION NOTICE The ambient conditions specified in the data sheet must be observed during storage and transport (see chapter 8.4 “Ambient Conditions” on page 23). • Do not expose the device to strong variations in temperature. -
Page 13: Installation And Mounting
R-CLR-100x73-G523-SL Installation and Mounting INSTALLATION AND MOUNTING NOTICE Electronic components and modules are sensitive to electrostatic discharges. • Appropriate ESD protection measures must be taken before the device is mounted. • The device may only be connected when it is electrically dead. -
Page 14: Mounting The Device
R-CLR-100x73-G523-SL Installation and Mounting 5.1 Mounting the Device To mount the device four M3 tapped holes (2) are located on the rear of the device. There are also three threaded pins (1) attached to the side for mounting accessories. A 1.5 mm-allen key is needed to mount the accessories (not part of the scope of delivery). -
Page 15: Mounting The Accessories
R-CLR-100x73-G523-SL Installation and Mounting 5.2 Mounting the Accessories 5.2.1 Lens Adapter Figure 5: Installation by means of an adapter ring (general display) Adapter ring Lens barrel Lighting M2.5 threaded pin (3 x, lateral) 1. According to whether the objective is endocentric or telecentric, screw an appropriate adapter ring (1) (see chapter 8.5 "Accessories"... -
Page 16: Mounting The Optical Accessories
R-CLR-100x73-G523-SL Installation and Mounting 5.2.2 Mounting the Optical Accessories Figure 6: Mounting the optical accessories Optical head Attachment ring 1. Place the optical head (1) on the lamp surface. 2. Mount the attachment ring (2) directly on the lighting unit. -
Page 17: Operation
R-CLR-100x73-G523-SL Operation OPERATION 6.1 Connecting the Device Connect the device according to the pin assignment. NOTICE • Operate the device only using suitable power sources (LED or flash controllers). Observe the admissible parameters (see chapter 8 “Technical Data” on page 21). -
Page 18: Commissioning
R-CLR-100x73-G523-SL Operation Wire colour Signal Description LED anode, positive current input Data-Channel for ® vicolux smart light lighting LED cathode, negative current input Data-Channel for ® vicolux smart light lighting ® Only use with vicolux smart light lighting controllers. 6.2 Commissioning Personal injuries caused by flicker, dazzle or radiation "... -
Page 19: Operating Modes
R-CLR-100x73-G523-SL Operation Danger of burns due to hot surface " CAUTION The housing of the device can reach temperatures exceeding 55 °C during operation. • Do not touch the device during operation. • Allow the device to cool before touching it. -
Page 20: Maintenance And Technical Support
R-CLR-100x73-G523-SL Maintenance and Technical Support MAINTENANCE AND TECHNICAL SUPPORT 7.1 Maintenance The device is maintenance-free. Depending on the operating environment, soiling may have to be cleaned off the device in order to generate the maximum intensity of illumination and homogeneity. The device may only be cleaned when it is electrically dead. -
Page 21: Technical Data
R-CLR-100x73-G523-SL Technical Data TECHNICAL DATA 8.1 General Parameters Parameters Properties Casing material Aluminium, anodised Optical material LED, potted Casing dimensions Ø outside: 103.35 mm Ø inside: 71.5 mm Height: 12.6 mm Dimension of luminous field Ø outside: 100 mm Ø inside: 73 mm Ring width: 13.5 mm... -
Page 22: Electrical Parameters
R-CLR-100x73-G523-SL Technical Data 8.2 Electrical Parameters Parameters Continuous mode LED current I 62 A Forward voltage U 11.5 V 15.0 V Power consumption P 8.5 W total Flash mode / Pulse operation LED current I 9.6 A Forward voltage U 17.0 V... -
Page 23: Radiation Parameters
R-CLR-100x73-G523-SL Technical Data 8.3 Radiation Parameters Parameters Beam angle 30 ° Peak wavelength 523 nm Centroid wavelength 528 nm Continuous mode Irradiance 23 W/m² Working distance = 200 mm, measured in the optical axis at maximum parameters Flash mode / Pulse operation Irradiance 150 W/m²... - Page 24 R-CLR-100x73-G523-SL Technical Data Pulse load Figure 8: Pulse load at ambient temperature = 25 °C © Vision & Control GmbH 2017...
-
Page 25: Accessories
Figure 9: Spectral emission 8.5 Accessories A wide range of accessories are available for the R-CLR-100x73-G523-SL lighting unit, for example optical heads, diffusers and adapter rings. You will find more detailed technical information about the accessories in the product catalogue under www.vision-control.com. -
Page 26: Disposal
R-CLR-100x73-G523-SL Disposal DISPOSAL The device is RoHS-compliant. Packaging and ancillary packaging material can and should be recycled. The product itself must not be disposed of in the household waste. Instructions for the proper disposal of old devices can be obtained from the manufacturer, local sales partner or relevant national authority. -
Page 27: Declaration Of Conformity
R-CLR-100x73-G523-SL Declaration of Conformity 10 DECLARATION OF CONFORMITY EU Declaration of Conformity In accordance with Directive 2014/30/EU (electromagnetic compatibility) dated 26 February 2014 We herewith declare that the device described below, by virtue of its design and construction and moreover in the type brought onto the market by us, conforms to the relevant safety and health requirements of the EC Directive 2014/30/EU. -
Page 28: List Of Changes
R-CLR-100x73-G523-SL List of Changes 11 LIST OF CHANGES Version Date Contents/Chapter © Vision & Control GmbH 2017... -
Page 29: Notes
R-CLR-100x73-G523-SL Notes 12 NOTES © Vision & Control GmbH 2017... - Page 30 R-CLR-100x73-G523-SL Notes © Vision & Control GmbH 2017...
- Page 31 R-CLR-100x73-G523-SL © Vision & Control GmbH 2017...
- Page 32 R-CLR-100x73-G523-SL Vision & Control GmbH Mittelbergstraße 16 98527 Suhl Germany Telephon: +49 (0) 3681 7974-0 Telefax: +49 (0) 3681 7974-33 www.vision-control.com 170126_999.994.744.10-en-1.0.1 © Vision & Control GmbH 2017...
