MANUAL DE USUARIO REFRIGERADOR DE DOS PUERTAS Lea detenidamente este manual antes de empezar a utilizar el refrigerador y guárdelo como referencia para el futuro. Model Name/Nombre de Modelo **color number/número de color LSC27914** P/No. MFL63719703 www.lg.com...
Visit our web site http://www.lg.com LG Electronics will repair or at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use during the warranty period listed below from the date of original purchase.
Page 3
Visite nuestro sitio web http://www.lg.com LG Electronics reparará o en su defecto reemplazará sin cargo, el producto defectuoso en material o mano de obra bajo uso normal durante el período de garantía que se menciona a continuación desde la fecha original de compra.
Warranty (USA) Important Safety Instructions Grounding Requirements Refrigerator Installation Unpacking your Refrigerator Installation Base Grille Installation Handle Removal Removing and Replacing Refrigerator Doors Door Alignment Connecting the water line Before you begin What you will need Installation Instructions Refrigerator Features Using Your Refrigerator Ensuring Proper Air Circulation Prior to Use...
IMPORTANT SAFETY INSTRUCTIONS This guide contains many important safety messages. Always read and obey. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION.
GROUNDING REQUIREMENTS REPLACING ELECTRICAL CABLE If the power cord is damaged, it must be replaced by our service center of qualified LG technician to avoid any risk. RECOMMENDED GROUNDING METHOD The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 V ~ 60 Hz only and fused at 15 or 20 amperes.
WARNING EXCESSIVE WEIGHT HAZARD Use two or more people to move and install the refrigerator. Failure to do so can result in back or other injury. UNPACKING YOUR REFRIGERATOR Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning type labels, the model and serial number label.
CAUTION: It could be damaged and broken when you hit with hammer while you remove and attach the handle. CAUTION: When Screws mounted you assemble or on door disassemble handle, you must push and pull with moment force. WARNING ELECTRIC SHOCK HAZARD •...
1. Place the door onto the lower hinge pin. 2. Fit top hinge (4) over hinge lever latch (5) into place. Rotate lever (3) counterclockwise to secure hinge. NOTE: Regardless of hinge lever type, reinstallation process is the same. 3. Hook tab on switch side of corner under edge of wire opening in cabinet top.
CONNECTING THE WATER LINE NOTE: Water line installation is needed when the Automatic Icemaker and/or Water Dispenser features are available on your product. BEFORE YOU BEGIN This water line installation is not warranted by the refrigerator or icemaker manufacturer or seller. Follow these instructions carefully to minimize the risk of expensive water damage.
Page 11
3. DRILL THE HOLE FOR THE VALVE Drill a 1/4” (6,35 mm) hole in the water pipe using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill.
Page 12
Back of refrigerator ¼” (6,35 mm) Tubing Tubing Clamp ¼” (6,35 mm) Compression Ferrule (sleeve) Refrigerator Figure 1 Fasten the tubing into the tubing clamp attached to the back of the refrigerator. First, loosen the screw fastening the clamp. Next, insert the tubing in the groove.

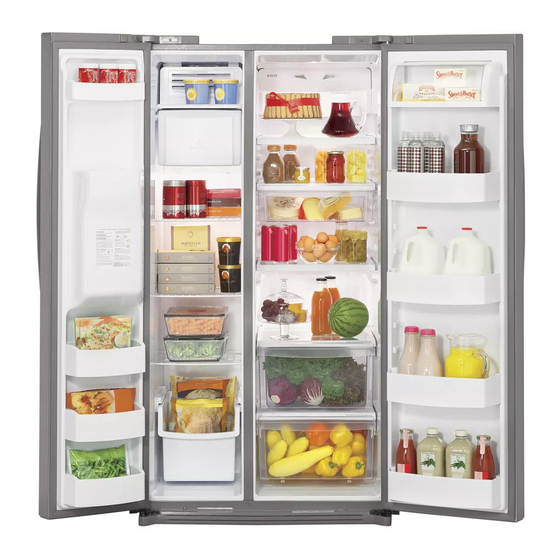

Use this page to become more familiar with the parts and features. NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model. Freezer Door Rack Automatic Icemaker The ice is produced in the icemaker...
ENSURING PROPER AIR CIRCULATION In order to ensure proper temperatures, air MUST flow between the refrigerator and freezer sections. • Cool air enters the freezer through the vents located at the top of the compartment and exits through the vents located behind the freezer drawers. •...
ICE TYPE You can select water or ice. • Select Water, Crushed Ice or Cubed Ice by pressing the ICE TYPE button to the selection desired. The Water, Crushed Ice or Cubed Ice icon will light up to indicate selection. Light up the cubed ice lamp by pressing the CUBE selection button.
ICEMAKER OPERATION WARNING PERSONAL INJURY HAZARD Avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. DO NOT place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in. A newly-installed refrigerator may take 12 to 24 hours to begin making ice.
STORING FROZEN FOOD NOTE: For further information about preparing food for freezing or food storage times, check a freezer guide or a reliable cookbook. Packaging Successful freezing depends on correct packaging. When you close and seal the package, it must not allow air or moisture in or out.
ICE STORAGE BIN The ice bin stores the ice cubes made by the icemaker. If you need to remove the ice storage bin, do so as follows: NOTE: Use both hands to remove the ice bin to avoid dropping it. If the ice bin does not slide into place easily, twist the drive device slightly.
You can control the amount of humidity in the moisture sealed crispers. Adjust the control to any setting between “HIGH” and “LOW”. “HIGH”: Keeps moist air in the crisper for best storage of fresh, leafy vegetables. “LOW”: Keeps moist air out of the crisper for best storage of fruits or vegetables with skins.
WATER FILTER Filter Reset: When the filter icon turns on, you have to change the water filter. Press the Filter button for 3 seconds to turn the icon off. Before removing or installing water filter: 1. IMPORTANT: Turn off household water supply. 2.Take out the top shelf and move it to the lowest level.
Use with replacement cartridge 5231JA2002A This system has been tested according to NSF/ANSI Standards 42 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI 42. System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor and Nominal Particulate Class III.
WARNING EXPLOSION HAZARD Use non-flammable cleaner. Failure to do so can result in death, explosion, or fire. Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to prevent odors. Wipe up spills immediately GENERAL CLEANING TIPS •...
b) Place 2 lbs. (1 kg) of dry ice in the freezer for every cubic foot (28 L) of freezer space. This will keep the food frozen for two to four days. While handling dry ice, wear gloves to protect your hands from frostbite.
UNDERSTANDING SOUNDS YOU MAY HEAR Your new refrigerator may make sounds that your old one did not make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they actually are.
Page 25
Problem Possible causes COMPRESSOR • The refrigerator that was replaced was MOTOR SEEMS TO an older model. RUN TOO MUCH • The room temperature is hotter than normal. • The refrigerator was recently plugged in and the refrigerator control was set correctly.
Page 26
Problem Possible causes TEMPERATURE IS • The doors are opened often. TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP • The control is not set correctly for the surrounding conditions. • A large amount of food has just been added to the refrigerator or freezer. •...
Page 27
Problem Possible causes THE ICEMAKER IS • The freezer temperature is cold enough NOT PRODUCING to produce ice. ICE OR ICE CUBES ARE FREEZING • Door left open. TOO SLOWLY AUTOMATIC • Icemaker power switch on OFF (O) ICEMAKER DOES position.
Page 28
LG Customer Information Center 1-800-243-0000 USA, Consumer User 1-888-865-3026 USA, Commercial User 1-888-542-2623 CANADA Register your Product Online! www.lg.com...
