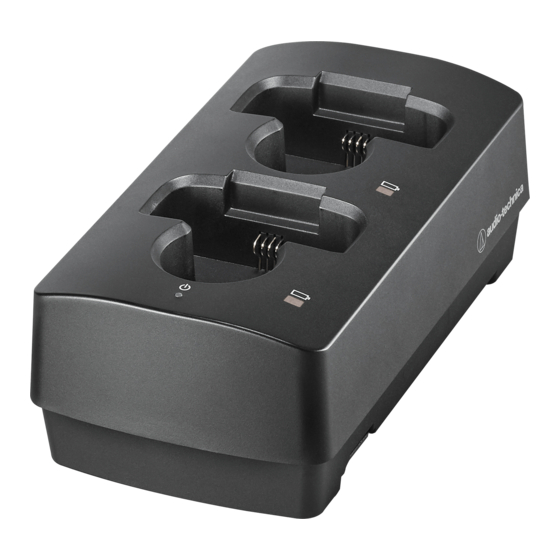

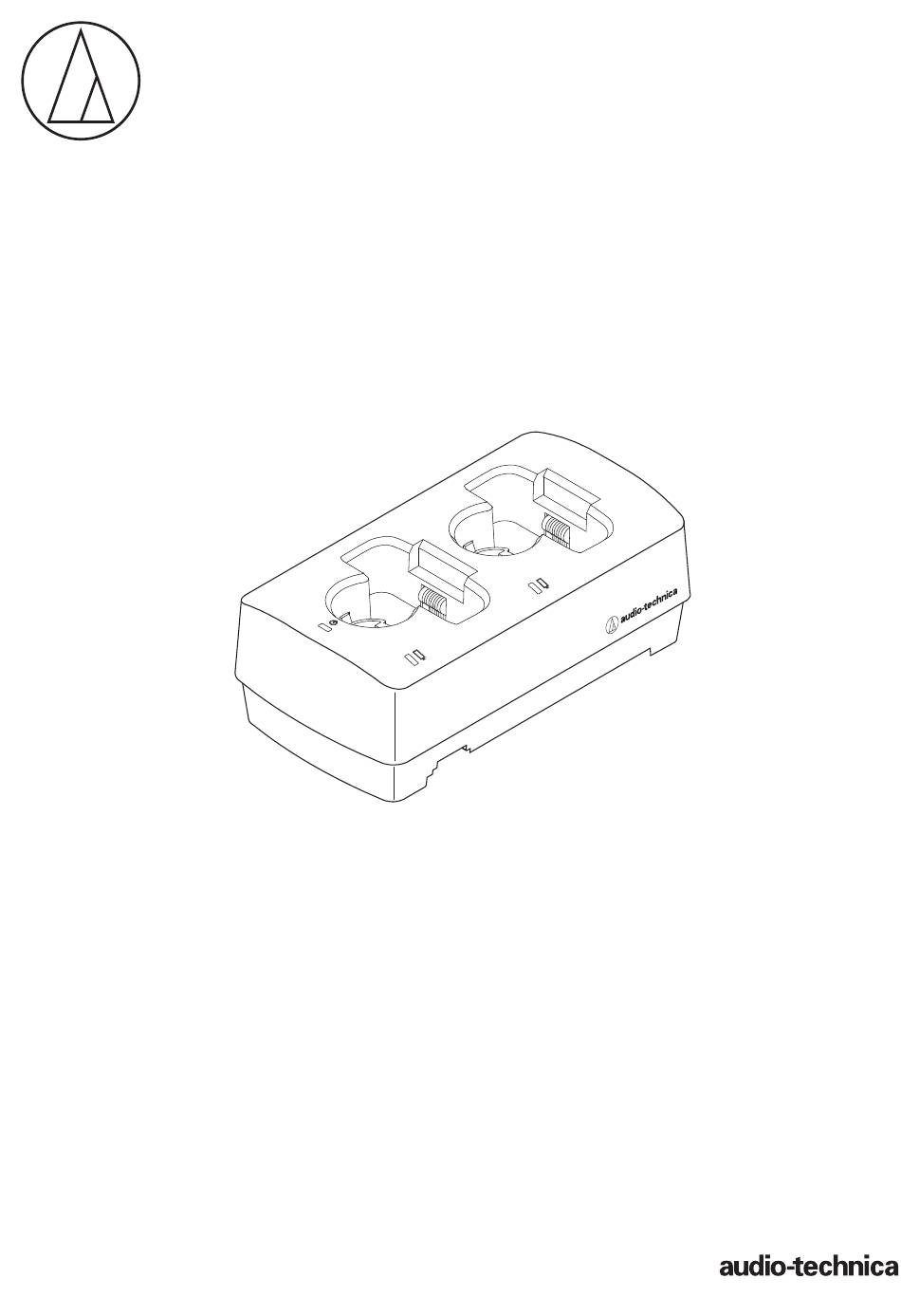

- Page 1 ATW-CHG3 / ATW-CHG3N User Manual TWO-BAY CHARGING STATION...
-
Page 2: Supported Models
Introduction Thank you for purchasing this Audio-Technica product. Before using the product, read through this user manual to ensure that you will use the product correctly. Please keep this manual for future reference. Supported models This product supports the following models. * •... -
Page 3: Notes On Use
Notes on use • Be sure to read the user manual for any device that you attach to the product. • Disconnect the AC adapter from the outlet when this product is not in use. • Be sure to use this product in combination with components specified by our company. •... -
Page 4: Part Names And Functions
Part names and functions ATW-CHG3 ❸ ❹ ❸ ❹ ❶ ❷ ❶ Power indicator Lights up when the AC adapter is connected and the power is on. ❷ Status indicator Shows the charging status. ❸ Charging port (for handheld transmitters) ❹... - Page 5 Part names and functions ATW-CHG3 Bottom ❶ ❷ ❹ ❺ ❶ ❸ ❹ ❶ ❸ Cap for DC jack ID selector switch Removed when linking multiple units of this product (see below). Used for switching when linking multiple units and configuring network settings.
- Page 6 Part names and functions ATW-CHG3N ❸ ❹ ❸ ❹ ❶ ❷ ❶ Power indicator Lights up when the AC adapter is connected and the power is on. ❷ Status indicator Shows the charging status. ❸ Charging port (for handheld transmitters) ❹...
- Page 7 Part names and functions ATW-CHG3N Bottom ❶ ❷ ❷ ❻ ❼ ❸ ❹ ❺ ❶ ❺ Blind cap Reset button Resets network settings. ❷ DC input jack ❻ Network port Connects the AC adapter. Used when connecting a network cable (Type: RJ45) to use the ❸...
-
Page 8: Using The Product
Using the product Connect the AC adapter. The status indicator lights up and the charging status is displayed. • Pass the cord along the groove on the product and bring it out from the cord outlet. • For more about indicators' lighting sequences, refer to “Indicators” (p.9). -
Page 9: Example System Configuration
Fasten the link plate with link plate screws. Set of link plate screws • Link cable Link plate • Link plate • Set of link plate screws *1 Sold separately. *2 Used when connecting to a network. Only ATW-CHG3N can be connected. Set of link plate screws... - Page 10 Indicators The indicators of the product flash and shine continuously to indicate the following operation statuses. Power indicator Operation status Indicator display pattern Blue Network cable connected Blue changes to green. Power on Lights solid blue Auto (automatic IP address Flashes twice, then changes to the indicator display for power on.
-
Page 11: Network Settings
Network settings You can use the Charger IP Tool dedicated application or the Wireless Manager software to monitor and control the status of ATW-CHG3N and linked chargers via Windows PC or Mac. Setting the ID (ATW-CHG3) Confirming the mode (ATW-CHG3N) When linking chargers, you can use the dedicated application Charger You can confirm whether the mode is set to “Auto”... -
Page 12: Setting Screen
Mode Select You can select Auto or Static for the mode. ❻ Setting Opens the setting screen of the selected ATW-CHG3N when clicked. ❸ Network Properties ❼ If Static is selected, you can set the IP address, subnet mask, and Refresh Refreshes the device list when clicked. -
Page 13: Troubleshooting
Troubleshooting Issue Cause/Solution Reference The product does not turn on. Check if the AC adapter is connected properly. The device does not charge. Check if the charging terminals are dirty. Check if batteries are inserted in the device or if the batteries are alkaline batteries. Check if there is a charging defect. -
Page 14: Specifications
185 mm (7.28") × 99 mm (3.90") × 68.5 mm (2.70") (W × D × H) 400 g (14.1 oz) (ATW-CHG3) Weight 410 g (14.5 oz) (ATW-CHG3N) Sold separately AC adapter (AD-SA1230XA), ATW-CHG3 Link kit (AT8687) *The time may vary depending on usage conditions. - Page 15 Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan ©2019 Audio-Technica Corporation ver.1 2018.09.01 Global Support Contact: www.at-globalsupport.com ver.2 2019.04.01 232900910-02-02...
