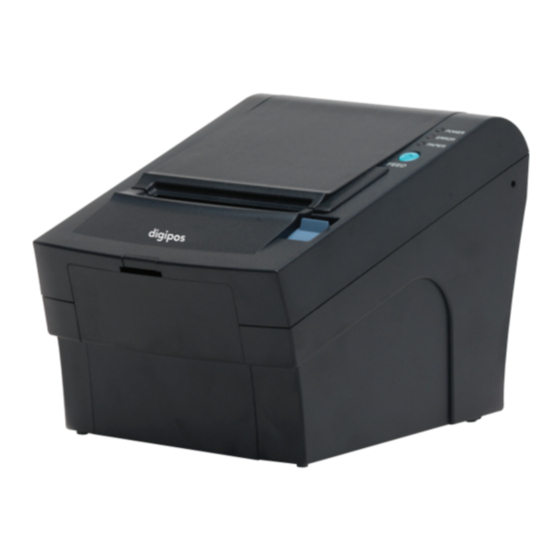

MODEL : SLK-TE20X Series
Receipt Printer User's Manual
TE20X Series Rev.F 03/16
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLK-TE20X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DigiPos SLK-TE20X Series

  • Page 1 MODEL : SLK-TE20X Series Receipt Printer User’s Manual TE20X Series Rev.F 03/16 All specifications are subject to change without notice...
  • Page 3: Table Of Contents

    Table of Contents 1. Parts Identifications CONTROL PANEL 1. Parts Identifications Features LED indicators 2. Setting up the printer to indicate printer status and switches to operate 2.1 Unpacking PRINTER COVER the printer. Open this cover to 2.2 Connecting the cables load or replace paper.
  • Page 4: Setting Up The Printer

    2. Setting Up the Printer 2-1. Unpacking 2-2. Connecting the Cables Your printer box should include these items. If any items are damaged or missing, please contact your You can connect up the cables required for printing to the printer. dealer for assistance.
  • Page 5 2-2-1. Interface Connector Centronics Parallel Interface SIGNAL DESCRIPTION STROBE- Input Synchronize signal Data received DATA0~7 Input/Output Data bit Transmitted 0~7 ACK- Output Data receiving completed. BUSY Output Impossible to print of data receiving. Output Paper empty SELECT Output Printer status for ON/OFF line AUTO FEED- Input Paper auto feed signal...
  • Page 6: Loading The Roll Paper

    2-3. Loading the Roll Paper 2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the The driver is capable of supplying a maximum current of 1.0A for 510ms or less when not printing.
  • Page 7 5. Be sure to note the correct direction that the paper comes off the roll. ♣CAUTION: When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the papers from jamming. 1.
  • Page 8: Adjustment Of Paper Width

    3. Control panel and other functions 3-1. Control panel 2-4. Adjustment of paper width You can control the basic paper feeding operations of the printer with the button on the control panel. 1. Please adjust the Paper Guide to fit to the paper width as the direction of arrow. The indicator lights help you to monitor the printer’...
  • Page 9: Self Test

    4. Self Test 5. ASCII Print The self-test result indicated whether the printer is operating properly. Also with this, user can check ASCII PRINT is printing a test page constructed ASCII code. You can able to check the printer works following options or status of the printer.
  • Page 10: Hexadecimal Dump

    7. Hexadecimal Dump 8. Printer cleaning This feature allows experienced users to see exactly what data is coming to the printer. This can be If the interior of the printer is dusty, printing quality can be lowered. useful in finding software problems. In this case, follow the instructions below to clean the printer.
  • Page 11: Specifications

    9. Specifications Appendix A : Specifications (8) Overall dimension 9-1. General Specifications (1) Printing Method Direct line thermal printing. (2) Print speed SLK-TE201 SLK-TE202 SLK-TE202Ⅱ SLK-TE203 160mm/sec 200mm/sec 220mm/sec 300mm/sec (3) Dot density 180 DPI (Hor / Ver) 180 / 180 (0.141mm / 0.141mm dot) (4) Printing Width 180 DPI Max 72mm (512 dots)
  • Page 12: Auto Cutter Specifications

    ♣Important! 9-2. Auto Cutter Specifications When connecting or disconnecting the power supply from the printer, be sure that the (1) Cutting Frequency Max. 30 cuts per minute following cautions are observed. (1) Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. (2) Thickness of paper 0.06 ~ 0.09 mm (2) Be careful about installing the printer in an area where there is noise.
  • Page 13: Command List

    10. Command List Command Function REMARKS Command Function REMARKS Horizontal tab ESC t Select character code table Print and line feed ESC { Turn upside-down printing mode on/off Print and carriage return FS p Print NV bit image Print and return to standard mode(in page mode) FS q Define NV bit image Cancel print data in page mode...
