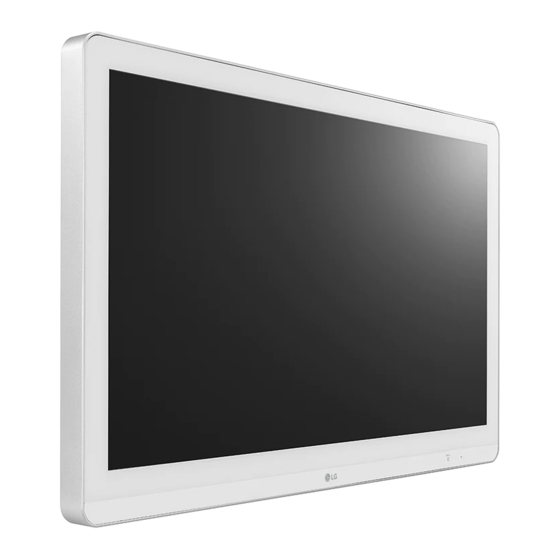

- Page 1 OWNER’S MANUAL MEDICAL MONITOR Please read this manual carefully before operating your set and retain it for future reference. 27HK510S www.lg.com Copyright 2019 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 3: Assembly And Preparing
ASSEMBLY AND PREPARING Product Composition Please check whether all the components are included in the box before using the product. If there are any missing components, contact the retailer where you purchased the product. Note that the product and related components may look different from those shown here. CD (Software/Owner's Manual)/Regulatory Power Cord DVI Cable... - Page 4 To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer • If you use generic cables not certified by LG, the screen may not display or there may be image noises. from which you purchased the product.
- Page 5 Product and LED Control buttons...
- Page 6 LED Control button Functions Selects the input mode. Displays the screens of two input modes on one monitor. Opens the [Hot key Settings] menu. Adjusts the screen brightness. Selects and confirms menus or options * Automatically sets screen to optimal settings in analog video signal. Adjusts the screen contrast.
- Page 7 Connectors DC-IN RS-232C DVI / RGBS DVI OUT HDMI IN SERVICE ONLY COMPOSITE S-VIDEO SDI IN SDI OUT / COMPONENT IN (19 - 24 V 0.9 A RS-232C DC-IN DVI / RGBS DVI OUT HDMI IN SERVICE ONLY COMPOSITE S-VIDEO SDI IN SDI OUT / COMPONENT IN...
- Page 8 Potential Equalization Conductor SERVICE ONLY Port - Connect an equipotential plug. - This USB port is used only for services. RS-232C Port 0.9 A / (USB Connector) - Connect the RS-232C terminal with an external device to control the monitor. - This terminal is used for connecting a HW Calibrator (an optional accessory).
- Page 9 Installing the Monitor Cable connection and organize Before connecting the connectors, remove the back door as shown below.
- Page 10 Using screws longer than the standard length may damage the inside of the product. A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws.
- Page 11 Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead Wall Mount Plate (optional) RW120 to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. • Applying excessive force when tightening screws may damage the monitor. Such damage is not covered by the product warranty.
- Page 12 Precautions for Connecting the Power Cord 100-240 V ~ • Make sure to use the power cord that is provided in the product package. Connect the cord to a grounded power outlet. • If you need another power cord, please contact your local dealer or the nearest retail store.
-
Page 13: User Settings
USER SETTINGS Activating the Quick Menu Press to activate the LED Control Button. When the LED Control button is activated, press to show the OSD Quick Menu. Among the LED Control Button, press to move to the left or right or to move to the bottom or top. - Page 14 The applicable setting options are as shown below. Quick Menu Settings Explanation [Exit] Closes the Quick Menu. [Input] Selects the applicable input mode. [Picture Mode] Selects the [Picture Mode]. NOTE • If the [Picture Mode] is not the [Custom] mode, [Gamma] and [Color Temp] will be deactivated. [Gamma] Selects the screen's [Gamma].
- Page 15 Quick Settings Press to activate the LED Control Button. When the LED Control Button is activated, press and select [All Settings] to show the complete OSD Menu. Among the LED Control Button, press to move to the left or right or to move to the bottom or top to go to the [Quick Settings].
- Page 16 The applicable setting options are as shown below. [All Settings] > [Quick Explanation Settings] [Brightness] Adjusts screen brightness. NOTE • Press the button to toggle between [Turn on 'Brightness Stabilization']/[Turn off 'Brightness Stabilization']. • When [Brightness Stabilization] is [On] , the [Brightness] adjustment function is deactivated. •...
- Page 17 [All Settings] > [Quick Explanation Settings] [User Preset] User Preset allows the user to save or load up to 10 picture quality settings for multiple connected devices in each preset. NOTE • You can use User Preset to import or save items in [Picture Adjust] and [Color Adjust] of the [Picture] menu. [User Name] Allows the user to change and register a user name ([Preset 1] ~ [Preset 3], [User 1] ~ [User 7]) as the user wants.
- Page 18 Input Press to activate the LED Control Button. When the LED Control Button is activated, press and select [All Settings] to show the complete OSD Menu. Among the LED Control Button, press to move to the left or right or to move to the bottom or top to go to the [Input].
- Page 19 The applicable setting options are as shown below. [All Settings] > [Input] Explanation [Main Input List] Selects the input mode. [Sub Input List] PBP / PIP Connection Main [Aspect Ratio] Adjusts the aspect ratio of the screen. ([Full Wide], [Original], [Just Scan]) NOTE •...
- Page 20 [All Settings] > [Input] Explanation [PBP / PIP] Displays screens of two input modes on a single monitor at the same time. [PIP Size] Adjusts the size of PIP. ([Small], [Medium], [Large]) [Main/Sub Screen Change] Converts between the Main and the Sub in the [PBP / PIP] mode. [Failover Input Switch] [Main Input] is changed to [Failover Input] when there is no signal at the [Main Input].
- Page 21 Picture Press to activate the LED Control Button. When the LED Control Button is activated, press and select [All Settings] to show the complete OSD Menu. Among the LED Control Button, press to move to the left or right or to move to the bottom or top to go to the [Picture].
- Page 22 The applicable setting options are as shown below. [All Settings] > [Picture] Explanation [Custom] Allows the user to adjust each element. The colour mode of the main menu can be adjusted. [Picture Mode] [Mono] Mono (black and white) colour mode. [sRGB] The standard RGB colour mode for monitors and printers.
- Page 23 [All Settings] > [Picture] Explanation [Picture Adjust] [Brightness] Adjusts screen brightness. NOTE • Press the button to toggle between [Turn on 'Brightness Stabilization']/[Turn off 'Brightness Stabilization']. • When [Brightness Stabilization] is [On] , the [Brightness] adjustment function is deactivated. • When [Brightness Stabilization] is [On], [SMART ENERGY SAVING] and [DFC] functions are deactivated.
- Page 24 [All Settings] > [Picture] Explanation [Picture Adjust] [DFC] [On] Automatically adjusts brightness depending on the screen. [Off] Deactivates the [DFC] function. [Response Time] Sets a response time for displayed pictures based on the movement of the picture on the screen. In a normal environment, it is recommended that you set [Fast].
- Page 25 [All Settings] > [Picture] Explanation [Color Adjust] [Gamma] Set your own gamma value. ([Gamma 1.8], [Gamma 2.0], [Gamma 2.2], [Gamma 2.4], [Gamma 2.6], [DICOM Gamma Curve]) Higher gamma settings mean a darker image is displayed or vice versa. [Color Temp] Set your own colour temperature.
- Page 26 [All Settings] > [Picture] Explanation [Resolution] A user can set the desired resolution. This option is available only when the screen resolution of the computer is set as below (only for the D-SUB). NOTE • When the resolution selected by a user is different from the resolution outputted by the PC per computer, the function will be deactivated. [1024 x 768], [1280 x 768], [1360 x 768], [1366 x 768], [Off] [1280 x 960], [1600 x 900], [Off] [1440 x 900], [1600 x 900], [Off]...
- Page 27 General Press to activate the LED Control Button. When the LED Control Button is activated, press and select [All Settings] to show the complete OSD Menu. Among the LED Control Button, press to move to the left or right or to move to the bottom or top to go to the [General].
- Page 28 The applicable setting options are as shown below. [All Settings] > [General] Explanation [Language] Sets the menu screen to the desired language. [SMART ENERGY SAVING] Conserve energy by using luminance compensation algorithm. [High] Saves energy using the high-efficiency [SMART ENERGY SAVING] feature. [Low] Saves energy using the low-efficiency [SMART ENERGY SAVING] feature.
- Page 29 [All Settings] > [General] Explanation [User Preset] User Preset allows the user to save or load up to 10 picture quality settings for multiple connected devices in each preset. NOTE • You can use User Preset to import or save items in [Picture Adjust] and [Color Adjust] of the [Picture] menu. [User Name] Allows the user to change and register a user name ([Preset 1] ~ [Preset 3], [User 1] ~ [User 7]) as the user wants.
- Page 30 [All Settings] > [General] Explanation A function for restricting menu configuration and adjustment. [OSD Lock] [On] Turns on [OSD Lock]. [Off] Turns off [OSD Lock]. NOTE • Deactivates all functions except the [Quick Settings] menu and [Input] menu's [Input List], [Aspect Ratio], [PBP / PIP] functions, [Failover Input Switch], and the [General] menu's [OSD Lock] and [Information] functions.
- Page 31 Auto Configuration Press to activate the LED Control Button. When the LED Control Button is activated, press and select [All Settings] to show the complete OSD Menu. Among the LED Control Button, press to move to the left or right or to move to the bottom or top to go to the [Auto Configuration].
-
Page 32: Troubleshooting
TROUBLESHOOTING Nothing is displayed on the screen. Is the monitor's power cord plugged in? • Check if the power cord is correctly plugged into the power outlet. Is the power indicator on? • Check the power cable connection and turn on the power switch. Is the power indicator displaying as green? •... - Page 33 The 'Unknown Monitor' message appears when the monitor is connected. Install the enclosed monitor driver which is provided with the monitor or go to LG Electronics homepage ( www.lg.com ) to download and install the monitor driver. Did you install the monitor driver? •...
-
Page 34: Product Specifications
PRODUCT SPECIFICATIONS In order to improve the product, specifications may change without notice. The ~ symbol means alternating current, and the symbol means direct current. LCD Screen Type TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Screen Pixel Pitch 0.3114 mm x 0.3114 mm Resolution Max Resolution 1920 x 1080 @ 60 Hz... - Page 35 Environmental Conditions Operating Conditions Temperature 0°C to 40°C Humidity 0% to 80% Pressure 700 hPa to 1060 hPa Storing Conditions Temperature -20°C to 60°C Humidity 0% to 85% Pressure 500 hPa to 1060 hPa Dimensions (mm) Monitor Size (Width x Height x Depth) 656.4 x 412.9 x 62.2 Weight (Without Packaging) (kg) Classification by protection type against...
- Page 36 IP35...
- Page 37 Preset Mode Input Timing (Video) D-SUB / DVI / HDMI Vertical Vertical HDMI Remarks dimensions Frequency (Hz) 480i 59.94/60 Horizontal Vertical Preset Mode Polarity (H/V) Remarks 480p 59.94/60 Frequency (kHz) Frequency (Hz) 576p 720 x 400 31.468 70.08 576i 640 x 480 31.469 59.94 720p...
- Page 38 Input Timing (Component) Power indicator Horizontal Vertical Mode LED Colour Resolution Frequency (kHz) Frequency (Hz) On Mode Green 720 x 480 15.730 59.940 720 x 480 15.750 60.000 720 x 480 31.470 59.940 720 x 480 31.500 60.000 720 x 576 15.625 50.000 720 x 576...
-
Page 39: External Controller Setup
EXTERNAL CONTROLLER SETUP Figure 1: RS-232C Connection Diagram The actual product may differ from the picture shown. Connect the RS-232C (serial connector) of the PC to the RS-232C IN connector at the back of the monitor. Purchase a cable to connect the RS-232C connectors, as the cable is not provided as an accessory. Use an RS-232C cable to remotely control the monitor (see Figure 1). - Page 40 Set ID Function This function allows you to assign a unique ID to the monitor to control it remotely from your PC. Please refer to the "Transmission/Reception Protocol". Press the button. Use the , , , buttons to select [General]. Then press the button.
- Page 41 Command Reference List Data Command Command1 Command2 (Hexadecimal) Data 21. [Gamma] 00 ~ 05 Command Command1 Command2 (Hexadecimal) 22. [Color Temp] 00 ~ 04 01. Power 00 ~ 01 23. Red Gain 00 ~ 64 02. Screen Mute 00 ~ 01 24.
- Page 42 Transmission/Reception Protocol Error Acknowledgment [Command2][ ][Set ID][ ][NG][Data][x] Transmission When the set receives an abnormal piece of Data for an unsupported function or there is a communication error, it [Command1][Command2][ ][Set ID][ ][Data][Cr] returns ACK in the format above. [Command 1]: j, k, m, x Data 00 : Illegal code [Command 2]: This command is used to control the monitor.
- Page 43 01. Power (Command: k a) 04. Input select ([Sub]) (Command: k y) ▶ Controls the On/Off of the power supply to the monitor. ▶ Controls the input mode of the Sub. Transmission [k][a][ ][Set ID][ ][Data][Cr] Transmission [k][y][ ][Set ID][ ][Data][Cr] Data 00: Power Off 01: Power On Data...
- Page 44 06. [Aspect Ratio] ([Sub]) (Command: k o) 09. [Main/Sub Screen Change] (Command: m a) ▶ Adjusts the Aspect Ratio of the Sub. ▶ Controls the Swap in the PBP mode. Transmission [k][o][ ][Set ID][ ][Data][Cr] Transmission [m][a][ ][Set ID][ ][Data][Cr] 00 : [Full Wide] 01 : [Original] Data 01 : Main/Sub Screen exchange...
- Page 45 12. [Contrast] (Command: k g) 15. [SUPER RESOLUTION+] (Command: m c) ▶ Adjusts the colour contrast of the screen. ▶ Controls the SUPER RESOLUTION+ function. Transmission [k][g][ ][Set ID][ ][Data][Cr] Transmission [m][c][ ][Set ID][ ][Data][Cr] Data Min : 00 - Max : 64 Data 00 : [High] 01 : [Middle] 02 : [Low]...
- Page 46 18. [Response Time] (Command: m g) 21. [Gamma] (Command: m j) ▶ Controls the Response Time. ▶ Adjusts the Gamma settings. Transmission [m][g][ ][Set ID][ ][Data][Cr] Transmission [m][j][ ][Set ID][ ][Data][Cr] Data 00 : [Faster] 01 : [Fast] Data 00 : [Gamma 1.8] 01 : [Gamma 2.0] 02 : [Normal] 03 : [Off]...
- Page 47 24. Green Gain (Command: j y) 27. [SMART ENERGY SAVING] (Command: m k) ▶ Adjusts the green. ▶ Adjusts the SMART ENERGY SAVING. Transmission [j][y][ ][Set ID][ ][Data][Cr] Transmission [m][k][ ][Set ID][ ][Data][Cr] Data Min : 00 - Max : 64 Data 00 : [High] 01 : [Low] 02 : [Off]...
- Page 48 30. [Auto Screen Off] (Command: m n) 33. [Auto Configuration] (Command: j u) ▶ Adjusts the time to automatically turn the screen off when there is no monitor signal for a set period of time. ▶ Performs the Auto Configuration. Transmission [m][n][ ][Set ID][ ][Data][Cr] Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 00 : [On]...
- Page 49 34. [Failover Input Switch] (Command: k z) 36. [Failover Input] (Command: k w) ▶ Controls the Failover Input Switch function. ▶ Controls the input of the Failover. Transmission [k][z][ ][Set ID][ ][Data][Cr] Transmission [k][w][ ][Set ID][ ][Data][Cr] Data Data 00: [Off] 01: [On] 00: [SDI] 01: [DVI]...
- Page 50 WARNING: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. Read the user manual (CD) carefully and keep it at hand. The product label contains necessary information for after- service.
