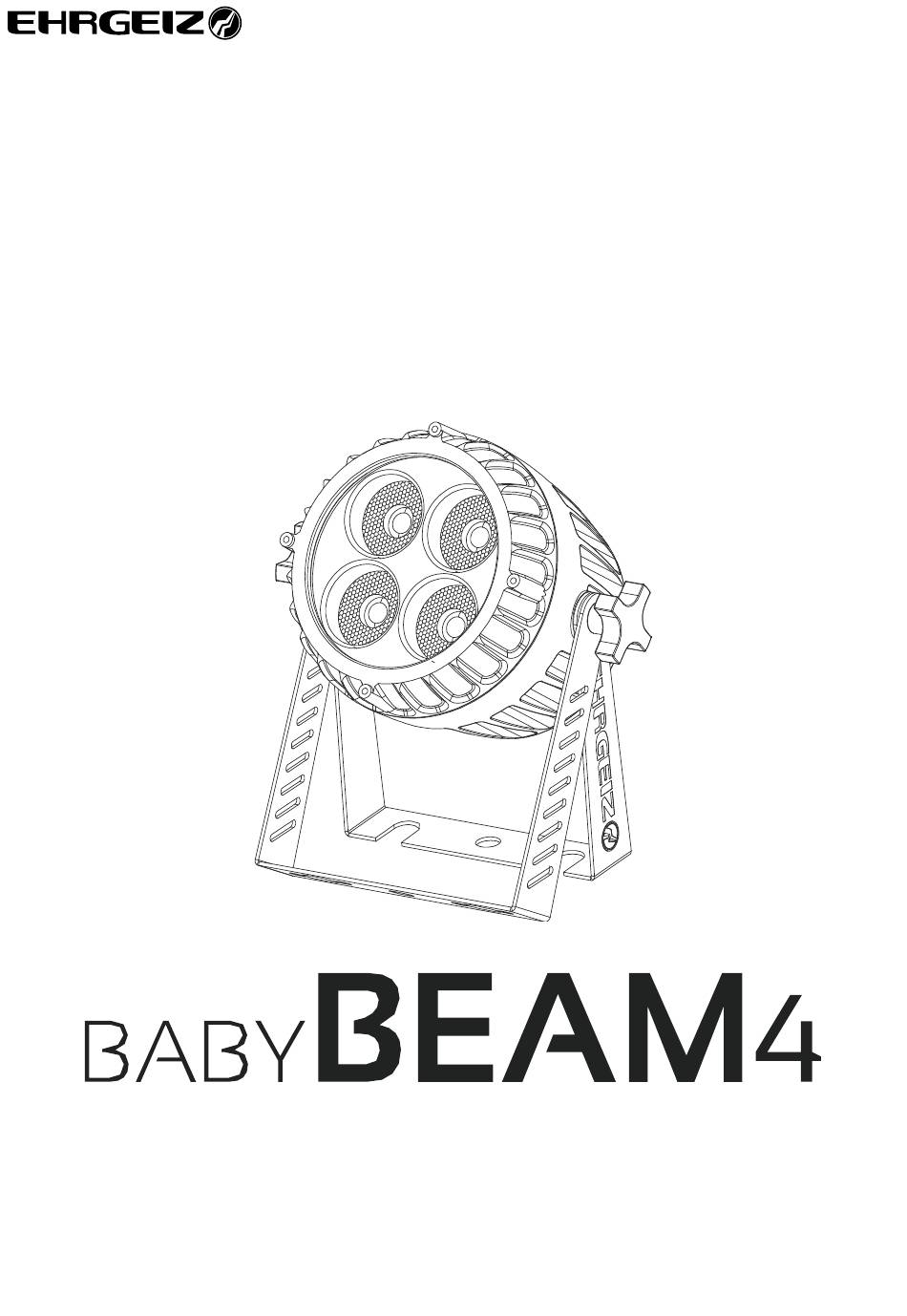

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
USER MANUAL CONTENTS Introduction ............1 Safety Instructions ..........1 Delivery Contents ..........3 Fixture Dimensions ..........3 Installations ............4 Installation on the floor ........4 Installation hanging ........... 4 Safety attachment ..........4 Omega Bracket ..........5 Connections ............6 Mains &... -
Page 3: Introduction
Every Ehrgeiz Product is checked before shipping to secure you are able to receive a great product without compromise. This is not a toy. Our ambitious aim is to get you a reliable working tool. - Page 4 Introduction Safety Instructions Maintenance: This fixture is for professional use only. It is not for household use. Always unplug the mains for any maintenance. Risk of eye injury: Do not stare directly into the light when it is switch on. Do not look at LEDs with magnifying glasses, telescopes, binoculars, or similar optical instruments that may concentrate the light output.
-
Page 5: Delivery Contents
Introduction Delivery Contents Delivery Contents You received your BabyBeam 4 with the following content BabyBeam 4 4x15W Osram LED Beamlight with 8° beam angle eventCON® Input cable Input cable with Neutrik XLR and Schuko merging to Eventcon Diffusor kit 18°/58°... -
Page 6: Installations
Installations Installation on the floor Installations Your BabyBeam 4 can be installed in every kind of following positions. Please see the explanations and rely to the Instructions for a safe operation and secure handling. Installation on the floor You could place the BabyBeam 4 on the floor. Please make sure the surface is plane and the reliability of the floor is sufficient. -
Page 7: Omega Bracket
Installations Omega Bracket Omega Bracket There are optional Omega Bracket fittings available for your BabyBeam 4. Attach them with the screws onto the suspension:... -
Page 8: Connections
DMX signal. You will only be in need for one cable. You are able to loop through to the next device, while the BabyBeam 4 offers you an input and output. The connection of the Power supply has to be done by qualified personnel only. Do not connect the BabyBeam 4 if you are not able to survey the consequences. -
Page 9: Dmx
Please notice that the USITT DMX Standard does allow the use a max of 32 DMX fixtures in one line. You should terminate the signal by a 120 Ω resistor. In the Standard mode the BabyBeam 4 uses 8 DMX channels. Connect the devices and increase the value of the DMX channel by 8 from one device to another... -
Page 10: Operations
Operations Menu control Operations Menu control Your BabyBeam 4 has an easy to read and setup display and Menu. It is programmed with a lot of built in functions as well as DMX Modes for different applications. display Input buttons The Menu of the BabyBeam 4 is mainly intuitive. -
Page 11: Menu Map
Operations Menu map Menu map ► Choose your DMX address Addr 1 - 512 ► 8 Channels with all features Std-8 ► 2 channels with colourwheel & dimmer Easy-2 ► 3 Channels with RGB rgb-3 Mode rgbw-4 ► 4 Channels with RGBW ►... - Page 12 Operations Menu map ► play a test sequence test ► stop the test sequence 0-255 green 0-255 blue 0-255 ► Set a colour, shutter & dimmer for the static stand alone white 0-255 static dimmer 0-255 macro 0-255 shuter 0-255 ►...
-
Page 13: Software Updates
Software updates Your BabyBeam 4 can be updated via the DMX connection, so no need to open it. If you experience an issue which could probably be solved by a Firmware Update, please contact your Ehrgeiz Dealer for further instructions. -
Page 14: Tl1-5 Mode
Operations DMX Modes tl1-5 Mode Function Dimmer Green Blue White tl2-6 Mode Function Dimmer Green Blue White Shutter (see Shutter effects chart / Appendix Page VII) RGBW-4 Mode Function Green Blue White RGB-3 Mode Function Green Blue White Easy-2 Mode Function Colour Wheel (see Colour Wheel chart / Appendix Page VI) Dimmer... -
Page 15: Services
Have fixtures serviced by an Ehrgeiz service technician Maintenance There are no serviceable Part inside your BabyBeam 4. If problems occur, contact your Ehrgeiz dealer or a qualified Ehrgeiz Service technician. Use a slightly moist and smooth cloth to clean the device. Do not use any aggressive detergents. - Page 16 Services Maintenance...
-
Page 17: Appendix
Appendix Specifications Appendix Specifications Light source Electrical Specifications • 4 x 15W Class RGBW LED • Electronic switching power supply with auto-sensing Rated lumen output: 1.100 lm Input voltage: 100–240V AC, 50/60 Hz • • LED Life Expectancy: approx. 50.000 hours Max. -
Page 18: Exploded Drawing
Appendix Exploded drawing Exploded drawing... -
Page 19: Spareparts
Appendix Spareparts Spareparts Description (EN) Fixture Housing Base 106270 Fixture Housing Top 106253 Front Lens 106255 Clamp 106256 Sealing Ring Fixture Housing 106260 LED Board Heat-Sink 106259 Babybeam4 LED Board 105711 8 Deg. LED Lens 106258 PSU Bracket 106263 Driver Board Bracket Sub Assy A 105712 Lens Holder... -
Page 20: Eventcon
Appendix eventCON® eventCON® The eventCON is a new, innovative cable connector system, which combines power and DMX signal in one cable and one plug. This is the revolution of connection in lighting. The plug is IP67 certified and can be assembled in the customers need without losing the IP certification. - Page 21 Appendix eventCON® Here is an extract of the available eventCON accessories:...
-
Page 22: Colourwheel Table
Appendix Colourwheel table Colourwheel table Value Function 0 - 5 No Function, RGBW Colour mixing 6 - 10 LEE 790-Moroccan Pink 11 - 15 LEE 157-Pink 16 - 20 LEE 332-Special Rose Pink 21 - 25 LEE 328-Follies Pink 26 - 30 LEE 345-Fuchsia Pink 31 - 35... -
Page 23: Shutter Channel Table
Appendix Shutter Channel Table Shutter Channel Table Value Function 0 – 15 Shutter Closed 16-47 Random Strobe (slow – fast) 48-79 Ramp Up (slow – fast) 80-111 Ramp Down (slow – fast) 112-143 Ramp UP & down (slow – fast) 144-199 Strobe Pause 5s –... - Page 24 Ehrgeiz Lichttechnik GmbH Im Stöckmädle 2 D- 76307 Karlsbad - Germany Tel.: +49 7248 947 90 10 Fax: +49 7248 947 90 12 Web: www.ehrgeiz.com...
