Summary of Contents for Ehrgeiz baby zoom 4

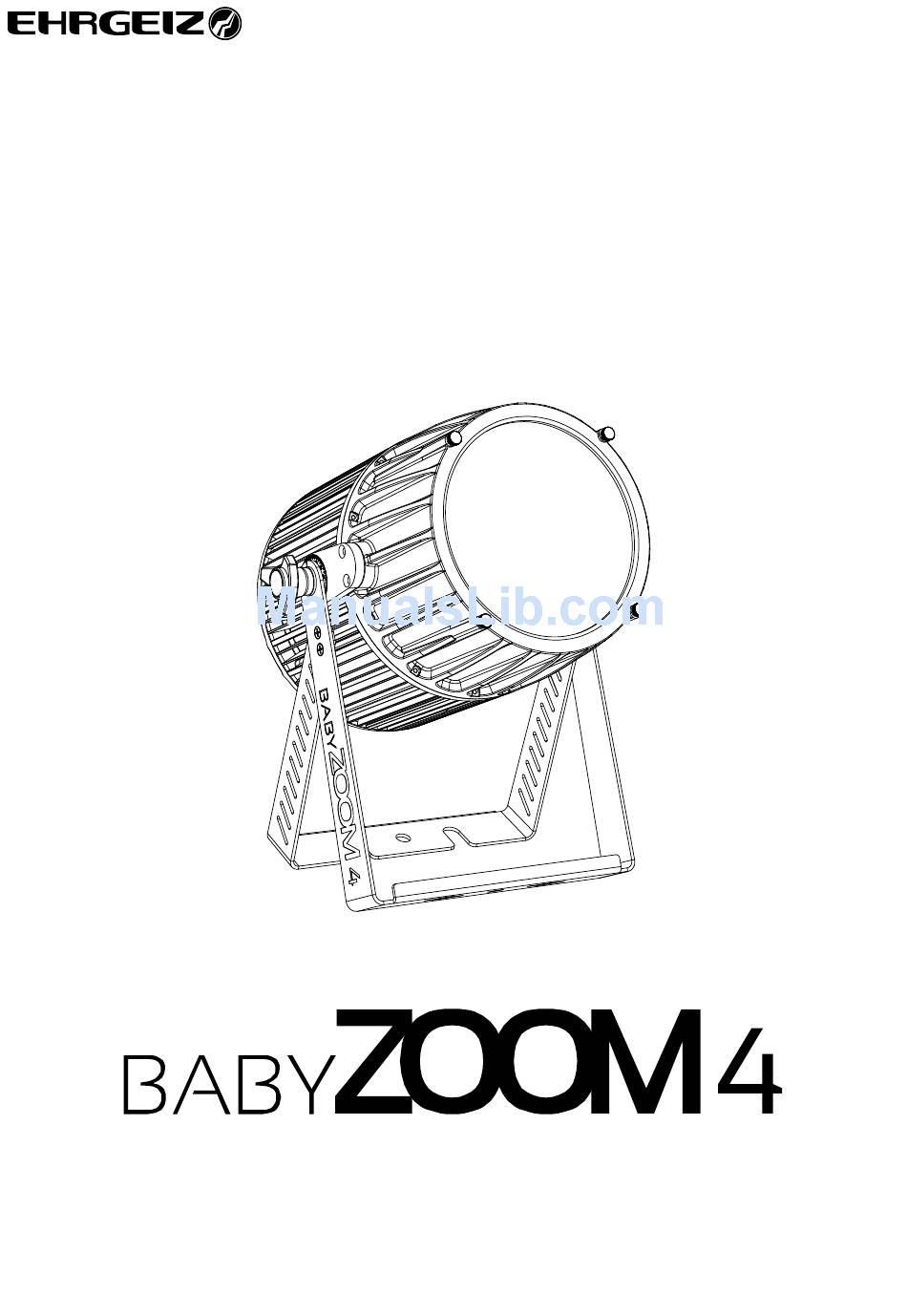

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
USER MANUAL CONTENTS Introduction ............1 Safety Instructions ..........1 Delivery Contents ..........3 Fixture Dimensions ..........3 Installations ............4 Installation on the floor ........4 Installation hanging ........... 4 Safety attachment ..........4 Omega Bracket ..........5 Connections ............6 Mains &... -
Page 3: Introduction
Every Ehrgeiz Product is checked before shipping to secure you are able to receive a great product without compromise. This is not a toy. Our ambitious aim is to get you a reliable working tool. - Page 4 Introduction Safety Instructions Positioning: The fixture must be positioned at least 0.2m minimum distance to illuminate objects. Keep all inflammable materials at least 0.2m from this fixture. Allow to place the fixture on an inflammable surface. The maximum ambient temperature of 45°C may not be exceeded. The exterior of this fixture can reach a very high temperature during operation.
-
Page 5: Delivery Contents
Introduction Delivery Contents Delivery Contents You received your BabyZoom 4 with the following content BabyZoom 4 4x60W Osram LED Beamlight with 6 – 40° beam angle eventCON® Input cable Input cable with Neutrik XLR and Schuko merging to Eventcon Diffusor Screws Set of 4 Screws Fixture Dimensions... -
Page 6: Installations
Installations Installation on the floor Installations Your BabyZoom 4 can be installed in every kind of following positions. Please see the explanations and rely to the instructions for a safe operation and secure handling. Installation on the floor You could place the BabyZoom 4 on the floor. Please make sure the surface is plane and the reliability of the floor is sufficient. -
Page 7: Omega Bracket
Installations Omega Bracket Omega Bracket There are optional Omega Bracket fittings available for your BabyZoom 4. Attach them with the screws onto the suspension:... -
Page 8: Connections
Connections Mains & DMX Connections Mains & DMX The eventCON® system is an innovative VDE certified connection system for professional use. It offers one connection for Power supply as well as the DMX signal. You will only be in need for one cable. You are able to loop through to the next device, while the BabyZoom 4 offers you an input and output. -
Page 9: Dmx
Connections DMX We recommend the use of High quality XLR connectors like original NEUTRIK. Please use real DMX cable with a surge impedance of 110 Ω. Please notice that the USITT DMX Standard does allow to use a max of 32 DMX fixtures in one line. You should terminate the signal by a 120 Ω... -
Page 10: Operations
Operations Menu control Operations Menu control Your BabyZoom 4 has an easy to read and setup OLED display and Menu. It is programmed with a lot of built in functions as well as DMX Modes for different applications. Please notice that the display will flip automatically while you turn the fixture (Can be disabled in the menu). -
Page 11: Menu Map
Operations Menu map Menu map Address 1-502 ► Choose your DMX address Standard* ► 11 Chanels with Standard Functions Advanced ► 17 Chanels with 16 bit for Colour, Dimmer, Zoom Mode Easy ► 3 Chanels with Colour Wheel RGBW ►... - Page 12 Operations Menu map Linear* Theatrical Dimmer Curve ► Choose the Dimmer Curve Square Law Inverse Square Fast* Dimmer ► Choose how fast the Dimmer is reacting Speed Smooth Fast* Zoom Speed Normal ► Choose the Speed of the Zoom Slow 600 Hz 1200 Hz*...
- Page 13 Operations Menu map Dynamic* Run / Cancel* ► Run a Test sequence incl. Zoom Test Sequence Static Run / Cancel* ► Run a Test sequence without Zoom Alone* ► device runs Static or Program alone Master ► device sends the signal for further devices for stand alone Master / Slave Slave 1* ►...
- Page 14 Operations Menu map Reset / Fixture Reset ► Reset the internal processor Cancel* Reset Reset / Zoom Reset ► Reset the Zoom motor Cancel* Service Enable / Calibration ► disable colour calibration for higher light output Disable ► set all settings to factory default Factory Default Load No*/Yes...
-
Page 15: Software Updates
Software updates Your BabyZoom 4 can be updated via the DMX connection, so no need to open it. If you experience an issue which could probably be solved by a Firmware Update, please contact your Ehrgeiz Dealer for further instructions. -
Page 16: Standard Mode
Operations DMX Modes Standard Mode Function Colour Wheel (see Colour Wheel chart / Appendix Page VI) Green Blue White Shutter (see Shutter effects chart / Appendix Page VII) Dimmer Zoom Control (see Special Control channel / Appendix Page VII) Remote DMX Address Advanced Mode Function... -
Page 17: Easy Mode
Operations DMX Modes Easy Mode Function Colour Wheel (see Colour Wheel chart / Appendix Page VI) Dimmer Zoom RGBW Mode Function Green Blue White Zoom... -
Page 18: Services
Have fixtures serviced by an Ehrgeiz service technician Maintenance There are no serviceable Part inside your BabyZoom 4. If problems occur, contact your Ehrgeiz dealer or a qualified Ehrgeiz Service technician. Use a slightly moist and smooth cloth to clean the device. Do not use any aggressive detergents. -
Page 19: Appendix
Appendix Specifications Appendix Specifications Light source Control and programming 4 x 60 W Osram® RGBW LEDs Setting & addressing: 2x 16 characters • • average service life: 20.000 hours OLED display & 4 buttons • • Protocol: USITT DMX-512 •... -
Page 20: Exploded Drawing
Appendix Exploded drawing Exploded drawing... -
Page 21: Spareparts
Appendix Spareparts Spareparts To be updated…... -
Page 22: Eventcon
Appendix eventCON® eventCON® The eventCON is a new, innovative cable connector system, which combines power and DMX signal in one cable and one plug. This is the revolution of connection in lighting. The plug is IP67 certified and can be assembled in the customers need without losing the IP certification. - Page 23 Appendix eventCON® Here is an extract of the available eventCON accessories:...
-
Page 24: Colourwheel Table
Appendix Colourwheel table Colourwheel table Value Function 0 - 5 No Function, RGBW Colour mixing 6 - 10 LEE 790-Moroccan Pink 11 - 15 LEE 157-Pink 16 - 20 LEE 332-Special Rose Pink 21 - 25 LEE 328-Follies Pink 26 - 30 LEE 345-Fuchsia Pink 31 - 35... -
Page 25: Shutter Channel Table
Appendix Shutter Channel Table Shutter Channel Table Value Function 0 – 15 Shutter Closed 16 - 47 Random Strobe (slow – fast) 48 - 79 Ramp Up (slow – fast) 80 - 111 Ramp Down (slow – fast) 112 - 143 Ramp UP &... -
Page 26: Special Control Channel
Appendix Special control channel Special control channel Value Function 0 – 35 Reserved Remote DMX Address-Low (001-256) 36 - 40 Must work with "Remote DMX Add." channel to set with value for 1+ 41 - 45 Reserved Remote DMX Address-High (257-512) 46 - 50 Must work with "Remote DMX Add."... -
Page 27: Dimmer Curves
Appendix Dimmer Curves Dimmer Curves Linear Theatrical Square Inverse square... - Page 28 Ehrgeiz Lichttechnik GmbH Im Stöckmädle 27 D- 76307 Karlsbad - Germany Tel.: +49 7248 947 90 10 Fax: +49 7248 947 90 12 Web: www.ehrgeiz.com...
