Model IC503
Installation:
h
Use the provided template to mark and cut a 6½" hole in
drywall away from ceiling joists.
h
We recommend wiring with AWG 16 or larger, stranded
wire.
h
For proper phasing, both voice coils must be wired alike.
Connect red wires to red terminals on speaker and to red
or plus terminals on amplifier.
h
Install IC503 in the hole. Tighten the mounting screws.
The mounting dog ears will rotate outward and grip the
drywall.
h
To control the volume of the speaker locally, use an
impedance matching volume control, such as the
Channel Vision VC-302.
2

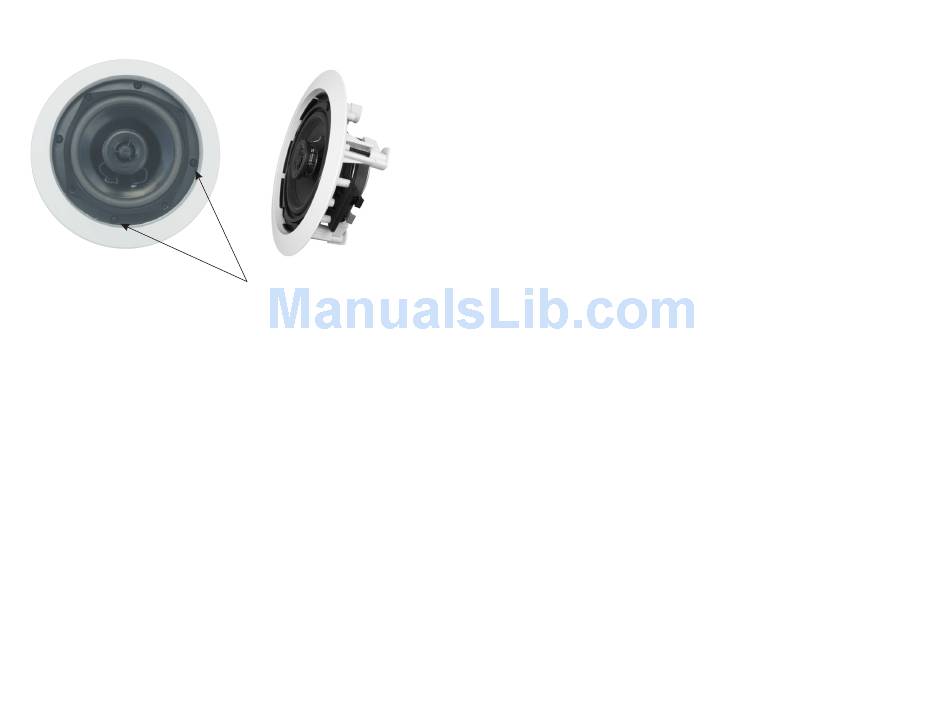

Mounting screws (4)
Features:
Cost Effective
Easy to install
5.25" High performance in-ceiling loudspeaker
Mica-filled polypropylene woofer with butyl rubber surround
Small perforated designer grille
Recommended power: 50W (peak)
Pre-construction brackets sold separately (model IC52B)
Specifications:
Frequency range:
55Hz - 20kHz ± 3dB
Power Handling:
50 Watts
Drivers:
1- .5" Mylar tweeter
1- 5.25" polypropylene woofer
Impedance:
8 ohms
Finish:
ABS plastic
Dimensions:
8" OD. 3
(Depth from surface of wall board)
Deep
"
Specifications subject to change without notice.
