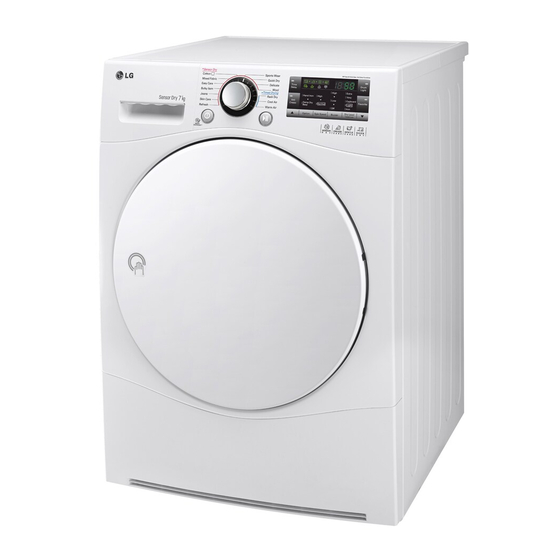

- Page 1 OWNER’S MANUAL LG DRYER Please read this manual carefully before operating your dryer and retain it for future reference. RC7066*** www.lg.com MFL67653051...
-
Page 2: Table Of Contents
Features Big Capacity Drum The Big Capacity drum on this LG Dryer allows you to dry your washing in larger loads than ever before. Lower Energy Consumption Energy LG dryers use less energy than conventional dryers due to the cutting- edge technology we have applied to the drying system and to the heat control mechanism. -
Page 3: Safety Instructions
• Serious injury or death may occur when not observing the following rules. • It is strictly forbidden to use the product for anything other than the manufacturer authorised usage. LG doesn't take full responsibility for the damage by inaccurate and improper usages. - Page 4 Safety Instructions • Do not touch the plug or switch on with wet hands. May cause electric shock. • Disconnect the power cord by grasping the plug, not the cord. May cause damage of cord resulting in fire or electric shock. •...
- Page 5 Safety Instructions • Items made of foam, rubber, plastic, or other heat-sensitive fabrics (such as bathroom rugs, nonslip mats or raincoats) should not be dried in a tumble dryer on a heat setting. Items such as foam rubber (latex foam), shower caps, waterproof •...
-
Page 6: Installation Instructions
■ Stacking Installation Instructions Your LG dryer can be placed on top of a front loading washing machine and securely fixed with a stacking kit (see following page for instructions). This installation must be conducted by an experienced installer to ensure it has been installed correctly. - Page 7 Installation Instructions Stacking Kit WARNING In order to stack this dryer an LG stacking • Incorrect installation can cause serious kit is required. accidents. • The weight of the dryer and the height of installation makes the stacking procedure too risky for one person.
- Page 8 Installation Instructions Earthing Instructions NOTE This appliance must be earthed. In the - For better drying performance, event of malfunction or breakdown, earthing please keep the rear of product will reduce the risk of electric shock by away from the walls. providing a path of least resistance for the - Do not install the dryer where there electric current.
- Page 9 Installation Instructions ■ Level the Dryer 1. Levelling the dryer prevents undesirable noise and vibration. Place your dryer on a solid, level floor. Place the dryer in an area free from flammable materials, condensation and not liable to freezing. 2. If the dryer is not properly level, adjust the front levelling legs as necessary.
-
Page 10: Appearance & Design
Appearance & Design ■ Product Layout - RC7066*** Control Panel Water Container Glass Opaque Door Door Condenser Cover Air Ventilation Grill ■ Control Panel SmartDiagnosis™ function is available only for the products with a SmartDiagnosis™ mark. Options • Time Delay •... -
Page 11: Operating Your Dryer
Operating Your Dryer ■ Cycle Selection Table Sensor Dry Cycle Drying Cycle Laundry Type Detail Level Towels, dressing gowns For thick and quilted fabrics Extra and bed linen Terry towels, tea towels, For thick and quilted fabrics that Very towels and bed linen do not need to be ironed Bath towels, tea towels, For fabrics that do not need to be... - Page 12 Operating Your Dryer Sensor Dry Cycle Drying Cycle Laundry Type Detail Level Bulky Item Bed clothes, sheets For bulky items Linen and towels, excluding fabrics applied to Delicate, For small loads of suitable fabrics Quick Dry Sports wear, Wool and Bulky with short drying times Item course.
- Page 13 After removing the packaging, please carry out the following checks to ensure the LG dryer is correctly installed and ready for use. (See installation instructions.) 1. Check the dryer is well balanced by using a spirit level. If not, adjust the feet of the LG dryer until the machine is balanced.
- Page 14 Operating Your Dryer 5. Close the door. Before you close the door, make sure fabrics are well placed inside and that foreign objects, especially flammable ones, are not caught around door. CAUTION Be careful not to trap laundry between the loading door and rubber seal. Glass Door Opaque Door 6.
- Page 15 Operating Your Dryer NOTE Clean the filter. The final part of a tumble dryer cycle (Replace occurs without heat (cool down the filter if it is cycle) to ensure that the items are left damaged.) at a temperature that will not damage them.
- Page 16 Operating Your Dryer ■ NOTE Rack Dry ( depending on the model ) Check the lint filter and remove any lint accumulated from items dried on the The drying rack is placed inside the dryer as rack. seen in the picture below. Remove and discard packing material before use.
-
Page 17: Additional Functions
Additional Functions - RC7066**** Option buttons Power Cycle Start/Pause Additional program selector buttons Power Additional program • Press the Power button to turn power on • Use these buttons to select the desired and off. options for the selected cycle. •... - Page 18 1,200 rpm. - Normal : When washing dehydration proceeds from less than 1,000 rpm. ■ Buzzer Spin RPM is based on the LG Washing This is an option to enable you to adjust Machine. volume of beeper sound.
-
Page 19: Caring For Your Dryer
Caring for Your Dryer Care and Cleaning is Very Important Empty Water Container It’s not difficult to care for your dryer but it is Condensed water is collected in the water important that you do care for it. Follow the container. - Page 20 Caring for Your Dryer Condenser The condenser is also a very important part for efficient drying performance result so it needs special care from you. It is recommended that the condenser be cleaned three or four times a year or when the condenser clean lamp blinks. 1.
- Page 21 Caring for Your Dryer ■ 3. Connect Ventilation Grill and Cool Air drain hose Inlet Grill to the kit. Vacuum the front ventilation grill 3-4 times a year to make sure there is no build up of lint or dirt that could cause improper air flow. ■...
-
Page 22: Additional Tips For Smart Use
Additional Tips for Smart Use ■ Drying Guide & Energy consumption Display Drying Time (Including Cooling Time) Capacity of CYCLE dryer Normal High Extra 7 kg 125 min 115 min Very 7 kg 120 min 110 min Cotton Cupboard 7 kg 115 min 105 min Light... - Page 23 Additional Tips for Smart Use Woollens Below are fabric care labels. Dry woollens on “wool’’ cycle. Be sure to Symbols Instructions follow fabric care label symbols, first. Wool is not completely dried from the program so don't repeat drying. Pull woollens to their Tumble dry original shape and dry them flat.
- Page 24 Additional Tips for Smart Use ■ Product Specification LG AUTOMATIC CLOTHES DRYER Manufacturer LG Electronics Model RC7066*** Rated Capacity Dryer Type Condenser Household Tumble Dryer Energy Efficiency Class Annual Energy Consumption (AEc) kWh/yr Automatic Tumble Dryer EU Ecolabel Award Edry 4.24...
- Page 25 Additional Tips for Smart Use Estimated Performance Program/ Spin Energy Drying Left-on Load Content Capacity Dry Level Speed Efficiency Time mode mode (Po) (W) (kWh) (min) (PI)(W) Cotton 100% 4.24 Cotton / Normal Cupboard Cotton 100% 3.5kg 2.31 NOTE • Tested in accordance with EN61121 and Directive 932/2012 •...
- Page 26 5. Date of Purchase • The stacking kit can be used for washer top plate size 550mm and 600mm for both. If stacking is needed, you must stack the dryer upon an LG washing machine. A stacking kit is sold separately.
-
Page 27: Troubleshooting Guidelines
Troubleshooting Guidelines ■ Troubleshooting Tips To save you time and money, the following page will help answer your questions before a service call. Issue What to do Dryer won’t run 1. Check dryer is plugged in. 2. Check "Start" button is pressed. 3. - Page 28 Troubleshooting Guidelines ■ Error Mode • : The door must be closed and the Start/Pause button must be pressed for re-operation.If error message continues to occur, unplug the power cord and call the service centre for advice. • : If error message continues to occur, unplug the power cord and call the service centre for advice.
-
Page 29: Using Smartdiagnosis
Accordingly, LG does not guarantee that Smart Diagnosis would accurately troubleshoot any given issue.”... -
Page 30: Technical Data
Technical Data 3” (8cm) 60 in. (387 cm 850 mm 60 in. 3” (387 cm (8cm) 24” 640 mm 1” 1” (61.0 cm) Closet Door Vent (2.5 cm) (2.5 cm) Requirements 600 mm Weight : 43.7kg, Opaque Door 45.1kg, Glass(Cr) Door ■... -
Page 31: Warranty
Warranty Disposal of your old appliance 1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 2. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. - Page 32 For U.K. Customer CUSTOMER SERVICE Tel : +44- (0) 844 847 5454 Fax. : +44- (0) 844 847 1413 LGEUK SERVICE WEB-SITE : http://uk.lge.com...
