AVI-AV ANI-162V Instruction Manual

DIGITAL OUTDOOR ANTENNA

INTRODUCTION:

This new concept digital outdoor antenna with analog and terrestrial HDTV broadcasting reception with an anti-UV water
proof housing. It is a great solution for home or portable digital TV reception. Wall or pole mounting and table top stand
accessories are included.

TECHNICAL DATA:

• Frequency Range: VHF 54-230MHz; UHF 470-862MHz; FM 88-107MHz
• Channels: 2-69 + FM
• Antenna Gain: VHF: 32dB / UHF: 35dB
• Range: ~150 miles (Based on open and clear terrain. Individual results will vary.)
• Max Output Level: 100dBμV
• Impedance: 75Ω
• Noise Figure: <3.5dB
• Power Supply: DC 12V/50mA Output

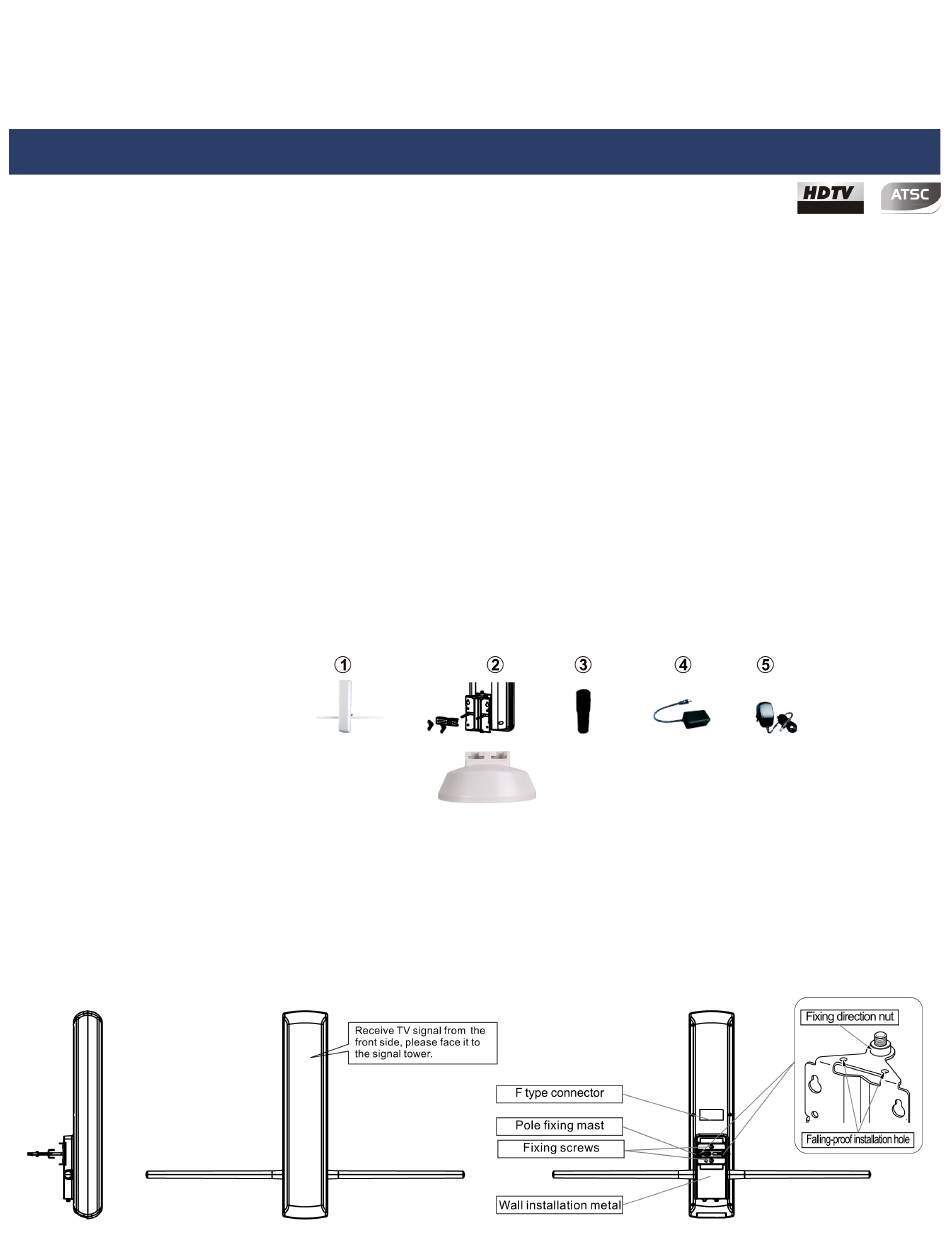

INCLUDED IN PACKAGE:

Before start your installation, please check the contents:
1. Antenna Main Unit
2. Mounting Accessories
A. Pole Mounting Bracket
B. Table Top Stand
3. 32 ft (10M) RJ-6 coax
4. Waterproof coax boot
5. Power Inserter
6. Power Adapter

PRODUCT FEATURES:

• Anti-UV coating and waterproof design
• Built-in high gain and low noise preamplifier
• Lightweight, compact size and easy installation
• For both analog & digital TV signal reception
• With dipole built in for excellent UHF and VHF band signal reception
• Compatible with HDTV for various digital terrestrial signals
ANI-162V
A.
B.
Page 1 of 5, ANI-162V v1.5 10/2020
Instruction Manual
