DIGITAL OUTDOOR ANTENNA
FEATURES:
• ~150-Mile-Long Range and Dual TV Outputs
• Easy-to-follow user manual for perfect and Easy Installation
• Built-in Low-Noise and High Gain Amplifier
• Built-in motor turns the antenna 360 degrees
SPECIFICATIONS:
• Frequency Range: VHF 54-230MHz; UHF 470-862MHz; FM 88-107MHz
• Noise Figure: < =2.5dB
• Antenna Gain: VHF 32dB | UHF 36dB
• Range: ~150 miles (Based on open and clear terrain. Individual results will vary.)
• Channels: 2 through 69 + FM
• Impedance: 75Ohm
• Max Output Level: 105dB uV
• Main Voltage: AC120V±10%/60Hz
• Operation Temperature: 14° F - 122° F (-10° C ~ 50° C)
• Coaxial Cable Length: 40 FT RG-6
PACKAGE CONTENTS:
• HDTV Outdoor antenna w/built-in amplifier
• 40 Feet RG-6 Coaxial cable
• 6 Foot White Coaxial Cable
• "F" Barrel
• 3x Black Cable TIes
• Wireless Remote Control (Requires 2x AA Batteries - Not Included)
• Power Supply
• J-Mounting Pole (with hardware)
ANI-13UVR
Page 1 of 4, ANI-13UVR v1.4 08/2019
Instruction Manual

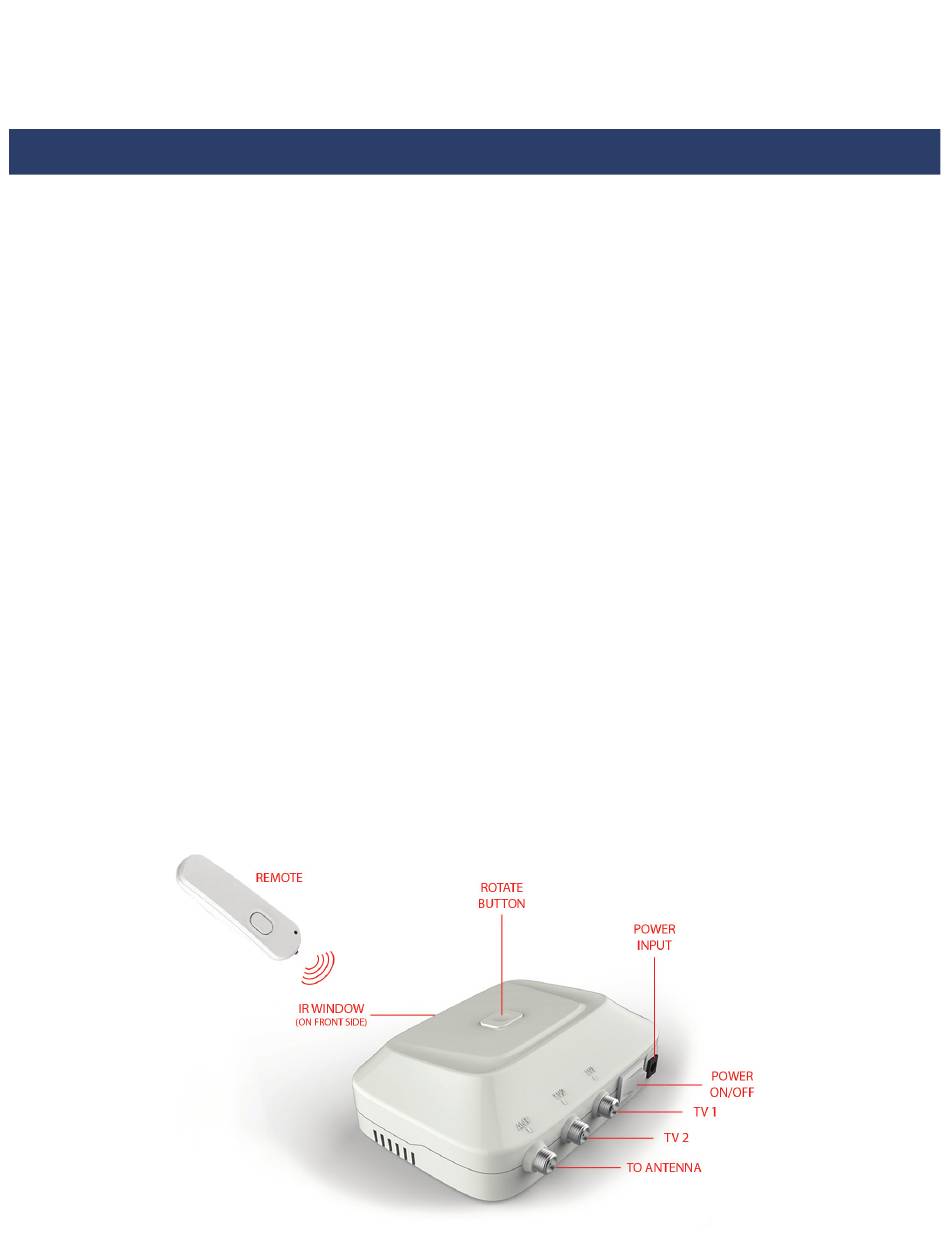

• Wireless remote controller
• Control Box with Dual TV Outputs
• Recommended to be mounted 30 feet above ground
Advertisement
Table of Contents
Related Manuals for AVI-AV ANI-13UVR
Summary of Contents for AVI-AV ANI-13UVR
- Page 1 • 6 Foot White Coaxial Cable • “F” Barrel • 3x Black Cable TIes • Wireless Remote Control (Requires 2x AA Batteries - Not Included) • Power Supply • J-Mounting Pole (with hardware) Page 1 of 4, ANI-13UVR v1.4 08/2019...
- Page 2 ANI-13UVR DIGITAL OUTDOOR ANTENNA ANTENNA CONNECTION: The cable that connects between the control box and antenna must be CONTINUOUS. You CANNOT have any splitters on this line. CONTINUOUS, UNINTERRUPTED CABLE REQUIRED NO SPLITTERS Page 2 of 4, ANI-13UVR v1.4 08/2019...
- Page 3 23. Wall or Pole Mounting - The product should be mounted to a wall or pole only as recommended by the manufacturer. 24. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. Page 3 of 4, ANI-13UVR v1.4 08/2019...
- Page 4 PROPER GROUNDING AND, IN PARTICULAR SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL. 122 Rose Ln., Suite 303 | Frisco, Texas 75036 www.ANI-AV.com Page 4 of 4, ANI-13UVR v1.4 08/2019...
