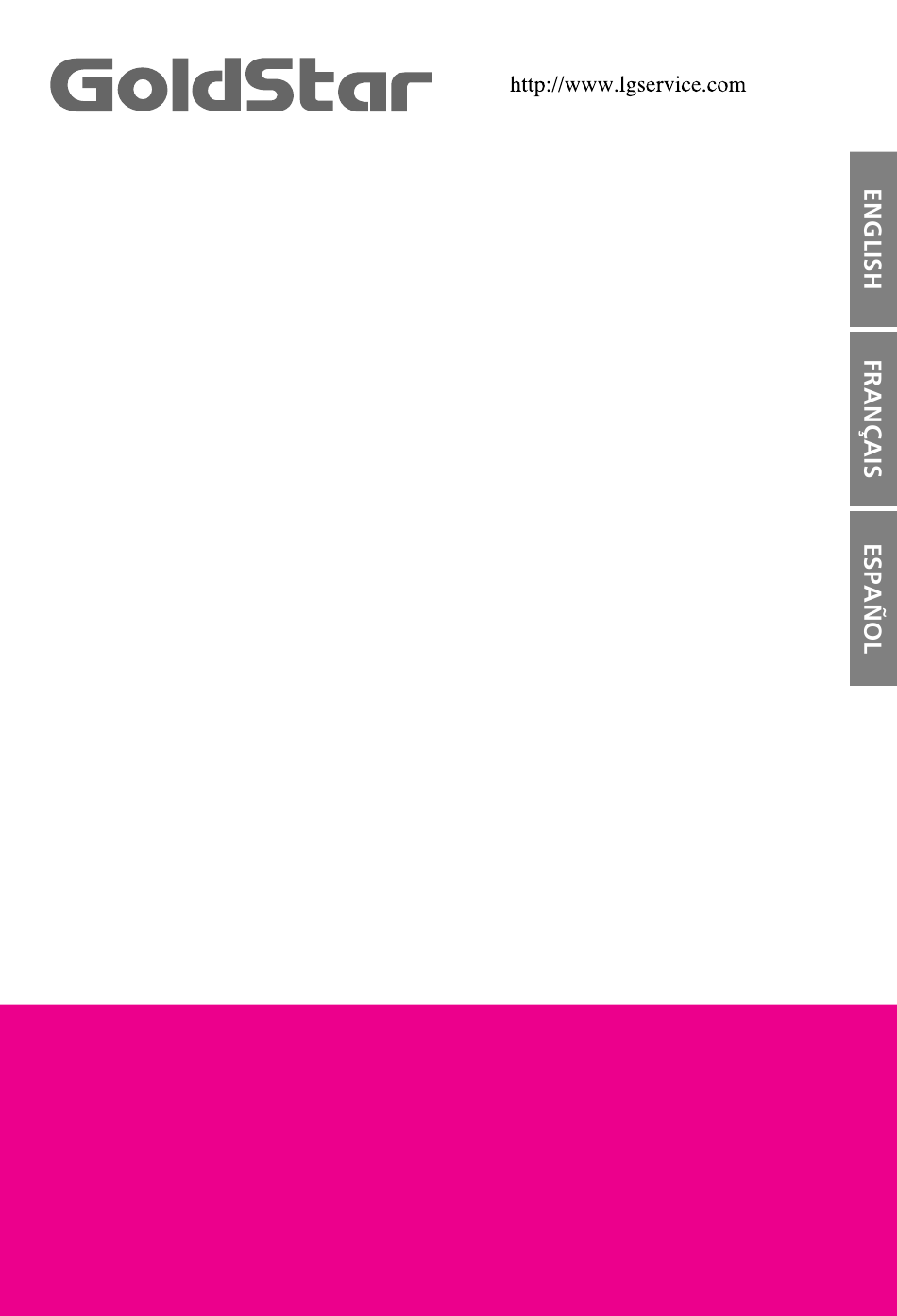

- Page 1 Ductless-Split Air Conditioners and Heat Pumps OWNER'S MANUAL Please read the operating instructions and safety precautions carefully and thoroughly before installing and operating your ductless split system.
-
Page 2: Table Of Contents
Room Air Conditioner Owner’s Manual ############## TABLE OF CONTENTS FOR YOUR RECORDS Safety Precautions......3 Write the model and serial numbers here: Model # Serial # Prior to Operation ......9 You can find them on a label on the side of each unit. Dealer's Name Date Purchased Introduction ........10... -
Page 3: Safety Precautions
Safety Precautions Safety Precautions To prevent the injury of the user or other people and property damage, the following instructions must be followed. I Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications. - Page 4 Safety Precautions Be cautious when unpacking For installation, always Do not install the product on and installing the product. contact the dealer or an a defective installation stand. Authorized Service Center. • Shape edges could cause injury. • There is risk of fire, electric shock, •...
- Page 5 Safety Precautions Do not place a heater or other Do not let the air conditioner Do not store of use appliances near the power run for a long time when the flammable gas or cable. humidity is very high and a combustibles near the air door or a window is left open.
- Page 6 Safety Precautions Ventilate the product from Unplug the appliance before When the product is not be time to time when operating it performing cleaning or used for a long time together with a stove, etc. maintenance. disconnect the power supply plug or turn off the breaker.
- Page 7 Safety Precautions I Operation Use two or more people to lift Do not install the product Do not direct airflow at room and transport the air where it will be exposed to occupants. conditioner. sea wind (salt spray) directly. • Avoid personal injury. •...
- Page 8 Safety Precautions Do not drink the water Use a firm stool or ladder Replace all the batteries in drained from the unit. when cleaning or maintaining the remote. the air conditioner. • It is not sanitary and could cause • There is risk of fire or explosion. •...
-
Page 9: Prior To Operation
Prior to operation Prior To Operation Usage 1. Being exposed to direct airflow for a long time may be hazardous to your health. Do not expose occupants, pets, or plants to direct airflow for a long time. 2. Ventilate the room when the air conditioner is used with other heating devices. Otherwise the oxygen supply may be inadequate. -
Page 10: Introduction
Introduction Introduction Symbols Used In This Manual This symbol alerts you to the risk of electric shock. This symbol alerts you to hazards that may cause harm to the air conditioner. This symbol indicates special notes. NOTICE Features • This appliance should be installed in accordance with national wiring regulations. This guide acts as a guide to help to explain product features. -
Page 11: Electrical Safety
Electrical Safety Electrical Safety • This appliance must be properly grounded. To minimize the risk of electric shock, you must alway plug into a grounded oulet • If you have any doubt whether the air conditioner is properly grounded, have the wall receptacle and circuit checked by a qualified electrician. -
Page 12: Operating Instructions
Operating Instruction Operating Instruction How To Insert The Batteries Remove the battery cover by pulling it according to the arrow direction. Insert new batteries making sure that the (+) and (-) of battery are installed correctly. Reattach the cover by sliding it back into position. Use 2 AAA(1.5volt) batteries. - Page 13 Operating Instruction Remote Control Operations 1. START/STOP BUTTON Controls Operation starts when this button is pressed and stops when the button is pressed again. Signal transmitter 2. OPERATION MODE SELECTION BUTTON Used to select the operation mode. 3. ROOM TEMPERATURE SETTING BUTTONS Used to select the room temperature.
- Page 14 Operating Instruction Cooling operation Press the Start/Stop button. The unit will respond with a beep. Open the door of the remote controller. To select Cooling Operation, press the Operation Mode Selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow.
- Page 15 Operating Instruction Auto operation (Optional) Press the Start/Stop button. The unit will respond with a beep. Open the door of the remote controller. To select Auto Operation, press the operation mode selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow.
- Page 16 Operating Instruction Auto changeover operation(Optional) Press the Start/Stop button. The unit will respond with a beep. Open the door of the remote controller. To select Auto Changeover Operation, press the Operation Mode Selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow.
- Page 17 Operating Instruction Healthy dehumidification operation Press the Start/Stop button. The unit will respond with a beep. Open the door of the remote controller. To select Healthy Dehumidification Operation, press the Operation Mode Selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow.
- Page 18 Operating Instruction Heating operation (Heat pump model only) Press the Start/Stop button. The unit will respond with a beep. Open the door of the remote controller. To select Heating Operation, press the Operation Mode Selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow.
- Page 19 Operating Instruction Jet cool operation Press the Start/Stop button. The unit will respond with a beep. Press the Jet Cool button to operate the speed cooling mode and the unit will operate at super high fan speed on cooling mode for 30 minutes. To cancel the Jet Cool mode, press the Jet Cool button, the fan speed button or the room temperature setting button again and the unit will operate at high fan speed on cooling...
- Page 20 Operating Instruction NEO PLASMA purification operation(Optional) Press the Start/Stop button. The unit will respond with a beep. Open the door of the remote controller. Press the PLASMA button. Operation will start when the button is pressed and stop when the button is pressed again.
- Page 21 Operating Instruction 2nd F operation Press the Start/Stop button. The unit will respond with a beep. Open the door of the remote controller and press the 2nd Function button to operate functions printed blue color under buttons. (Check the indication of 2nd function on the display of the remote controller.) CANCEL AUTO CLEAN...
- Page 22 Operating Instruction Additional Features Sleep mode 1. Press the Sleep Mode Auto button to set the time you want the unit to stop automatically. 2. The Timer is programmed in one-hour increments by pressing the Sleep Mode Auto button 1 to 7 times. The sleep mode is available for 1 to 7 times.
- Page 23 Operating Instruction Vertical Airflow Direction Control The up/down airflow (Vertical Airflow) can be NOTICE adjusted by using the remote control. ❏ If you press the CHAOS swing button, the vertical airflow direction is changed automatically based on the CHAOS algorithm to distribute the air in the room evenly and at the same time to make the human body feel most comfortable, as if enjoying a natural breeze.
- Page 24 Operating Instruction Auto clean (Optional) 1. Whenever you press the AUTO CLEAN button, Auto Clean Function will be AUTO CLEAN reserved and cancelled. 2. Auto Clean function works before and after cooling or dehumidification mode. For details, refer to the below points. 3.
- Page 25 Operating Instruction Auto restart In case the power comes on again after a power failure, Auto Restarting Operation is the function to operate procedures automatically to the previous operating conditions. So there is no need of activating this function by pressing any key or button. In the initial mode, the fan operates at a low speed and the compressor starts 2.5~3 minutes later.
-
Page 26: Maintenance And Service
Maintenance and Service Maintenance And Service Before performing any maintenance, turn off the main power to the system. Indoor Unit Grille, Case, and Remote Control Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. NOTICE Air inlet vent Air outlet vent... - Page 27 Maintenance and Service Outdoor Unit The heat exchanger coils and panel vents of the outdoor unit should be checked regularly. (Rear) (Side) If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned. Air intake vents Piping Air outlet...
- Page 28 Maintenance and Service Troubleshooting The air conditioner may be operating abnormally when: Problem Possible Causes What To Do I The air conditioner is • Make sure the air conditioner plug is unplugged. pushed completely into the outlet. I The fuse is blown/circuit •...
- Page 29 • Après l’avoir lu au complet, veuillez conserver ce manuel du propriétaire pour une référence ultérieure. • Por favor, conserve el manual del propietario para referencias futuras tras su lectura a fondo. CANADA Service call Number # : (888) LG Canada, (888) 542-2623 P/No.: 3828A20434N Printed in Korea...
