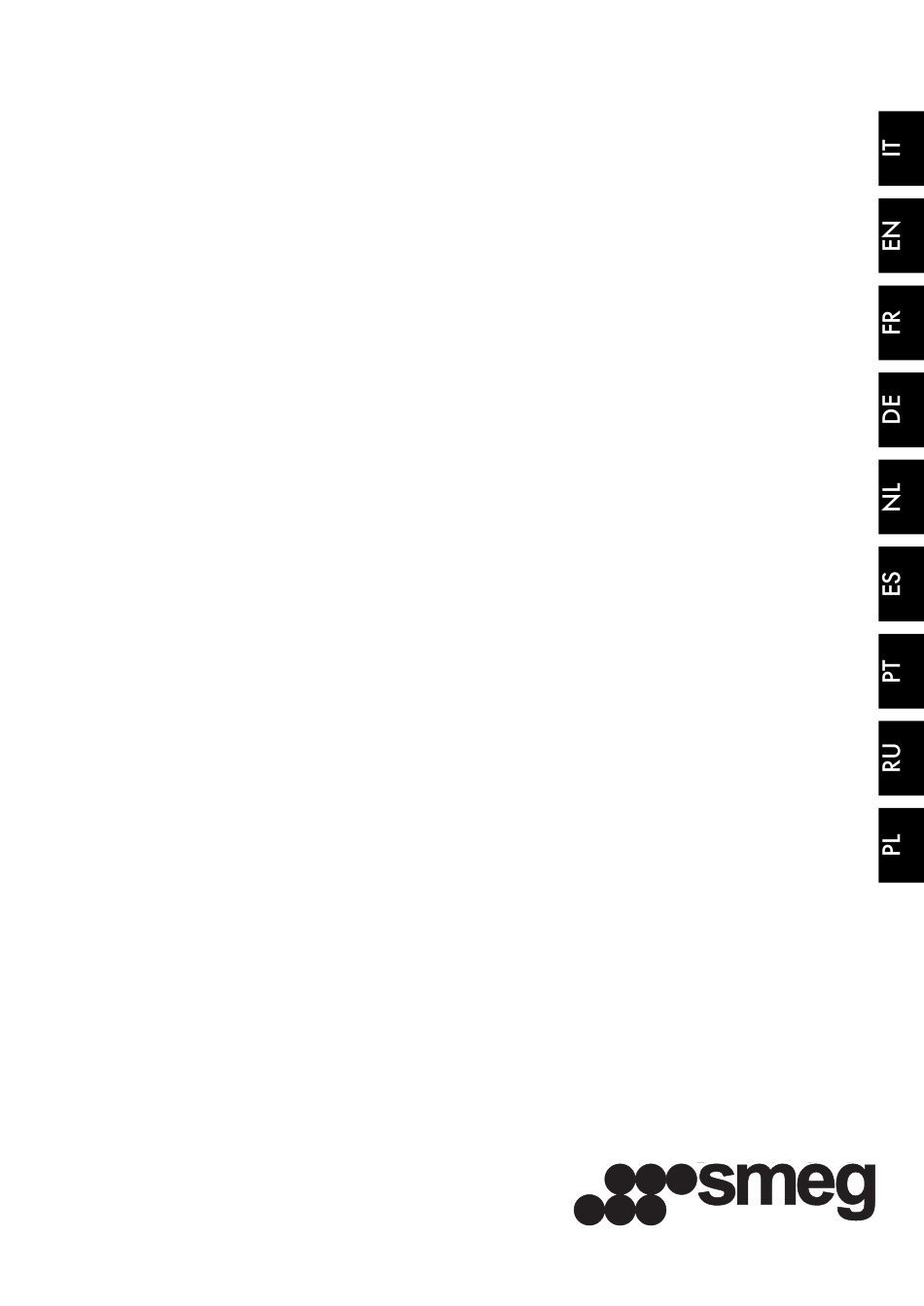

MANUALE D'USO
FORNO DA INCASSO
INSTRUCTION MANUAL
BUILT-IN OVEN
MANUEL D'UTILISATION
FOUR ENCASTRABLE
GEBRAUCHSANWEISUNG
EINBAUBACKOFEN
GEBRUIKSAANWIJZING
INBOUWOVEN
MANUAL DE USO
HORNO EMPOTRADO
MANUAL DE UTILIZAÇÃO
FORNO DE ENCASTRAR
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
ВСТРАИВАЕМЫЙ ДУХОВОЙ ШКАФ
INSTRUKCJA UŻYTKOWNIKA
PIEKARNIK DO ZABUDOWY
FMI020X

Advertisement

Table of Contents
loading

Related Manuals for Smeg FMI020X

Summary of Contents for Smeg FMI020X

  • Page 1 MANUALE D’USO FORNO DA INCASSO INSTRUCTION MANUAL BUILT-IN OVEN MANUEL D’UTILISATION FOUR ENCASTRABLE GEBRAUCHSANWEISUNG EINBAUBACKOFEN GEBRUIKSAANWIJZING INBOUWOVEN MANUAL DE USO HORNO EMPOTRADO MANUAL DE UTILIZAÇÃO FORNO DE ENCASTRAR РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ ВСТРАИВАЕМЫЙ ДУХОВОЙ ШКАФ INSTRUKCJA UŻYTKOWNIKA PIEKARNIK DO ZABUDOWY FMI020X...
  • Page 2 ITALIANO Gentile Cliente, desideriamo ringraziarLa per la fiducia accordataci. Scegliendo un nostro prodotto, Lei ha optato per soluzioni in cui la ricerca estetica, abbinata ad una progettazione tecnica innovativa, offre oggetti unici che diventano elementi d’arredo. AugurandoLe di apprezzare appieno le funzionalità del Suo elettrodomestico, Le porgiamo i nostri più cordiali saluti.

  • Page 3: Table Of Contents

    3.4 Materials to be avoided in microwave oven 3.5 Operation Instructions 4 Cleaning and maintenance 4.1 Instructions 5 Installation We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com...

  • Page 4: Instructions

    Instructions 1 Instructions IMPORTANT SAFETY INSTRUCTIONS PLEASE READ CAREFULLY AND RETAIN FOR FUTURE USE. 1.1 General safety instructions appliances, as long they are supervised or instructed by adults Risk of personal injury who are responsible for their • WARNING: If the door or the safety.

  • Page 5: Instructions For Using Microwaves

    Instructions Risk of damaging the appliance 1.2 Instructions for using microwaves • Do not use abrasive or corrosive • Check the appliance visually detergents on glass parts (e.g. during the cooking of foods in powder products, stain removers plastic or paper containers. and metallic sponges).
  • Page 6 Instructions • Do not heat eggs in their shells or The instructions for use for fixed whole hard boiled eggs; they appliances and built-in appliances may explode even after the being used equal or higher than 900 heating process has completed. mm above the floor and having detachable turntables shall state that •...

  • Page 7: To Reduce The Risk Of Injury To Persons Grounding Installation

    Instructions 1.3 To Reduce the Risk of Injury to • The extension cord must be a grounding- type 3-wire cord. Persons Grounding Installation • The long cord should be arranged so Power voltage that it will not drape over the counter top Danger of electrocution or tabletop where it can be pulled on by children or tripped over unintentionally.

  • Page 8: Appliance Purpose

    Instructions 1.5 Appliance purpose 1.7 Disposal • This appliance is intended for cooking This appliance must be disposed of food in the home environment. Every separately from other waste other use is considered inappropriate. It (Directives 2002/95/EC, 2002/ cannot be used: 96/EC, 2003/108/EC).

  • Page 9: This User Manual

    Instructions 1.8 This user manual 1.9 How to read the user manual This user manual is an integral part of the This user manual uses the following reading appliance and must therefore be kept in its conventions: entirety and within the user’s reach for the Instructions whole working life of the appliance.

  • Page 10: Description

    Description 2 Description 2.1 Names of Oven Parts and Accessories 1 Control panel 5 Observation window 2 Turntable shaft 6 Door assembly 3 Turntable ring assembly 7 Safety interlock system 4 Glass tray 8 Grill Rack (only for Grill series)

  • Page 11: Specifications

    Description 2.2 Specifications Model: FMI020X. Rated Voltage: 230V~50 Hz Rated Input Power (Microwave): 1250 W Rated Output Power (Microwave): 800 W Rated Input Power (Grill): 1000 W Oven Capacity: 20 L Turntable Diameter: Ø 245 mm External Dimensions: 595x344x388mm Net Weight:...

  • Page 12: Use

    3 Use • If glass tray or turntable ring assembly cracks or breaks, contact your nearest Remove the oven and all materials from the authorized service center. carton and oven cavity. 3.2 Utensils Your oven comes with the following accessories: Caution •...

  • Page 13: Materials You Can Use In Microwave Oven

    3.3 Materials you can use in microwave oven Utensils Remarks Follow manufacturer's instructions. The bottom of browning dish must be at least Browning dish 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or Dinnerware chipped dishes.

  • Page 14: Materials To Be Avoided In Microwave Oven

    3.4 Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish Food carton with metal May cause arcing. Transfer food into microwave-safe dish. handle Metal or metal- trimmed Metal shields the food from microwave energy. Metal trim may cause arcing. utensils Metal twist ties May cause arcing and could cause a fire in the oven.
  • Page 15 Microwave Cooking 1. Press once, the LED will display The step quantities for the “P100“. adjustment time of the coding switch are as follow: 2. Press for times or turn to choose • 0-1 min: 5 seconds the power you want, and “P100”, •...
  • Page 16 “ ” Pad instructions Order Display Microwave Power Grill Power P100 100% 100% Grill or Combi. Cooking 2. Press times or turn to choose 1. Press once, the LED will display combi 1 mode. “P100“. 3. Press to confirm, and the screen 2.
  • Page 17 Quick Start Kitchen Timer 1. Press once, the screen will display 1. In waiting state, press to start 00:00. cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes. 2. Turn to enter the correct time.(The maximum cooking time is 95 minutes.) 2.
  • Page 18 Multi-section cooking Auto Menu At most 2 sections can be set for cooking. In multi-section cooking, if one section is 1. Turn right to choose the menu, and defrosting, then defrosting shall be placed “A-1” to “A-8” will display, which means in the first section.
  • Page 19 The automatic menu procedure: Menu Weight Display 200g 400g PIZZA 250g 350g MEAT 450g 200g 300g VEGETABLE 400g 50g (with 450ml cold water) 100g (with 800ml cold water) PASTA 200g 400g POTATO 600g 250g 350g FISH 450g 1 cup (120ml) 2 cup (240ml) BEVERAGE 3 cup (360ml)
  • Page 20 Inquiring Function 1. In states of microwave, grill and combination cooking, press , the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state. 2. In cooking state, press to inquire the time and the time will display for 3 seconds.
  • Page 21 Cleaning and maintenance Troubleshooting Normal Radio and TV reception may be interfered when microwave oven Microwave oven interfering TV operating. It is similar the interference of small electrical appliances, like reception mixer, vacuum cleaner, and electric fan. It is normal In low power microwave cooking, oven light may become dim.

  • Page 22: Cleaning And Maintenance

    Cleaning and maintenance 4 Cleaning and maintenance 4.1 Instructions Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water.

  • Page 23: Installation

    Installation 5 Installation 1. This appliance is only intended for domestic use. 2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard. 3. Please observe the special installation instructions.
  • Page 24 Installation Appliance overall dimensions (mm)
  • Page 25 Installation B. Install the oven 1 Screw 2 Trim-kit plastic cover 2. Open the door. 1. Install the oven into the cabinet. 3. Fix the oven to cabinet with screw (1) at Do not trap or bend the power installation hole (A) of Trim-Kit. cable.
  • Page 26 Il costruttore si riserva di apportare senza preavviso tutte le modifiche che riterrà utili al miglioramento dei propri prodotti. Le illustrazioni e le descrizioni contenute in questo manuale non sono quindi impegnative ed hanno solo valore indicativo. The manufacturer reserves the right to make any changes deemed useful for improvement of its products without prior notice.
  • Page 27 SMEG S.p.A. Via Leonardo Da Vinci, 4 42016 San Girolamo di Guastalla (RE) ITALY www.smeg.com...
