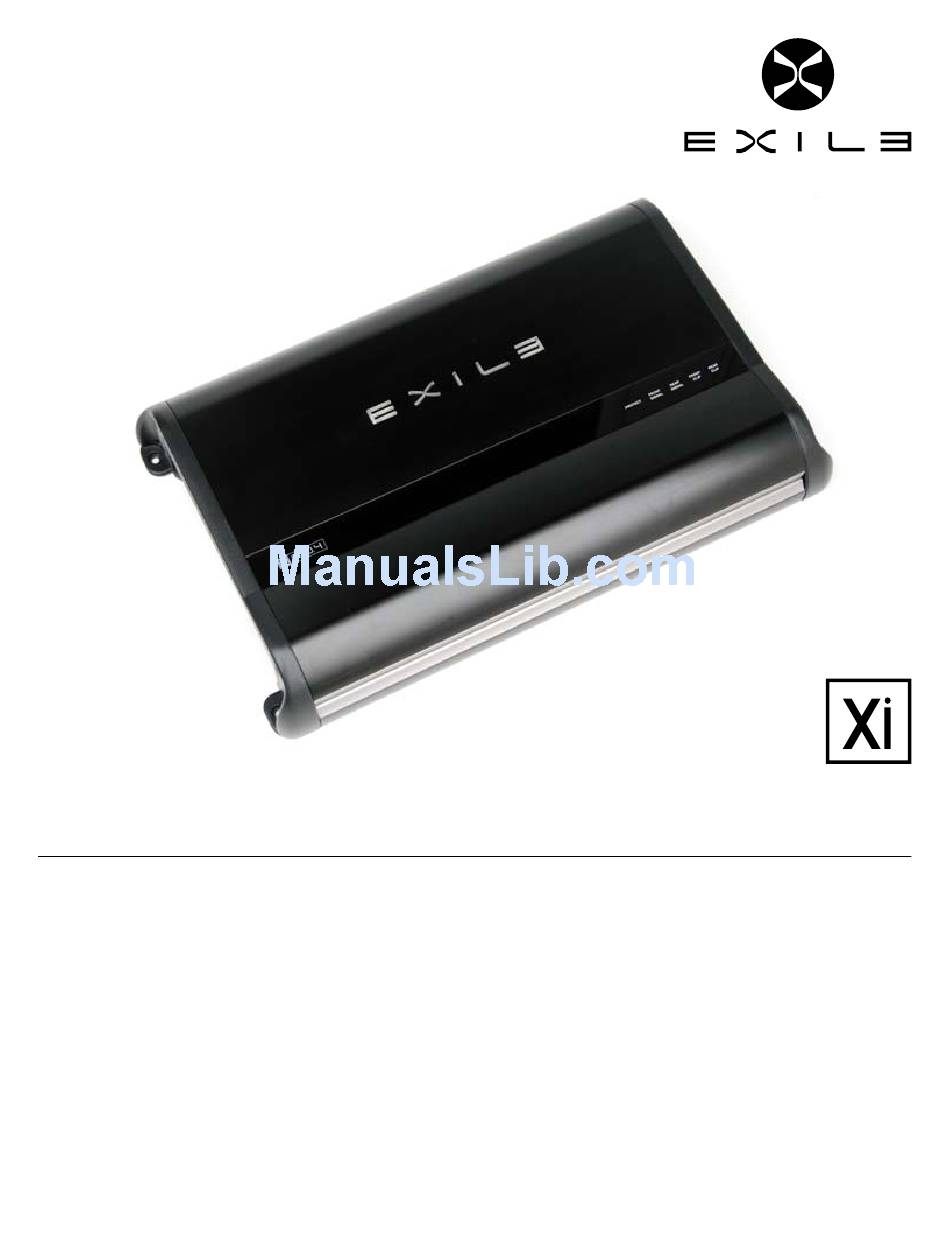

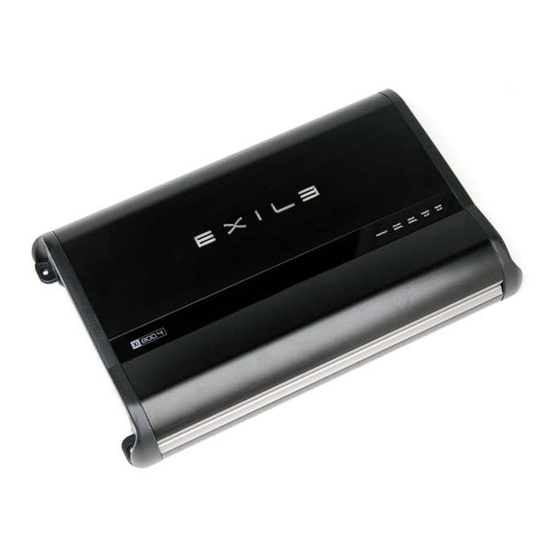

Amplifier Manual
Models: Xi1500.1, Xi2500.1, Xi800.4
ISD MONITORING SYSTEM
Every amplifier has a built in backlit display that shows the end user what is
happening inside the amplifier. The ISD circuit is constantly monitoring the
signal, power output and protection conditions of the amplifier.
ICE COOLING SYSTEM
High density aluminum heatsink, internal heatsink fins and vented die cast
endcaps are all carefully engineered to work in sync to keep the amplifier
running cool and impossible to overheat.
EASY CLICK CROSSOVER SYSTEM
All crossover frequency potentiometers have 41 detents or "clicks" so the end
user can set the exact crossover frequency desired.
BLUE OR WHITE SELECTABLE LOGO COLOR
Flip the switch to choose blue or white logo color. When the amplifier turns
on, the color will be the opposite for a few seconds as it slowly changes/fades
to the color selected by the switch.
HIGH LEVEL INPUT WITH SIGNAL SENSING AUTO TURN ON
Perfect to make factory or OEM system integration simple.
Amplifier Manual
© 2009 Exile Car Audio • www.exileaudio.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Xi Series Xi1500.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Exile Xi Series Xi1500.1

Summary of Contents for Exile Xi Series Xi1500.1

  • Page 1 Amplifier Manual Models: Xi1500.1, Xi2500.1, Xi800.4 ISD MONITORING SYSTEM Every amplifier has a built in backlit display that shows the end user what is happening inside the amplifier. The ISD circuit is constantly monitoring the signal, power output and protection conditions of the amplifier. ICE COOLING SYSTEM High density aluminum heatsink, internal heatsink fins and vented die cast endcaps are all carefully engineered to work in sync to keep the amplifier...
  • Page 2 MONOBLOCK SPECIFICATIONS Frequency Response: ± 1dB from 20Hz to 300Hz Signal to Noise Ratio: >90dB Subsonic and Low Pass Crossovers: Linkwitz-Riley 24dB per octave Low Pass Crossover Range: 30Hz to 300Hz Subsonic Crossover Range: 10Hz to 55Hz Bass Boost @ 45Hz: 0 to +18dB Input Sensitivity: 200 millivolts to 8 volts...
  • Page 3 Amplifier Owner’s Manual INTEGRATED STATUS DISPLAY In simple terms, ISD is the brain of your amplifier and a smart one at that. In tech terms, it’s a complex microprocessor circuit that constantly monitors the signal, power output and protection conditions of the amplifier. Each amplifier has a built in backlit display that shows the end user what is happening inside the amplifier.
  • Page 4 Xi800.4 4 Channel Power Amplifiers INPUT Connect preamp signal cables from the head unit to these terminals. OUTPUT Provides a full range signal for an additional amplifier. There is no signal loss if using this output. LP and HP CROSSOVER FREQUENCY Controls the crossover point for the speaker outputs.
  • Page 5 Amplifier Owner’s Manual INPUT Connect preamp signal cables from the head unit to these terminals. OUTPUT Provides a full range signal for an additional amplifier. There is no signal loss if using this output. LP CROSSOVER FREQUENCY Controls the lowpass crossover point for the speaker outputs. The crossover is always on with a 24dB per octave slope.

  • Page 6: System Tuning

    System Tuning Install all system fuses. Set the amplifier’s input sensitivity controls to their minimum positions (full counterclockwise). Set all amplifier signal routing switches according to your system’s design. Make preliminary adjustments to the crossover frequency, usually 80Hz is good starting point for high and low pass. It may be necessary to fine tune the crossover frequency later for the best overall sound quality.

  • Page 7: Crossover Settings

    Amplifier Owner’s Manual EASY CLICK TECHNOLOGY Easy Click technology is our commitment to making our products easy to use and ultra accurate for the professional or DIY installer. All crossover frequency potentiometers have 41 detents or “clicks” so the end user can set the exact cross over frequency desired.
  • Page 8 EXILE CAR AUDIO PORTLAND, OR USA WWW.EXILECARAUDIO.COM Exile warrants this product to be free from defects in material and workmanship under normal use for a period of two years from date of original purchase when purchased from an Authorized Exile Dealer. If the product is labeled B Stock/Refurbished and purchased from an Authorized Exile Dealer, it is warranted for 90 days from date of purchase, regardless of place of installation.
