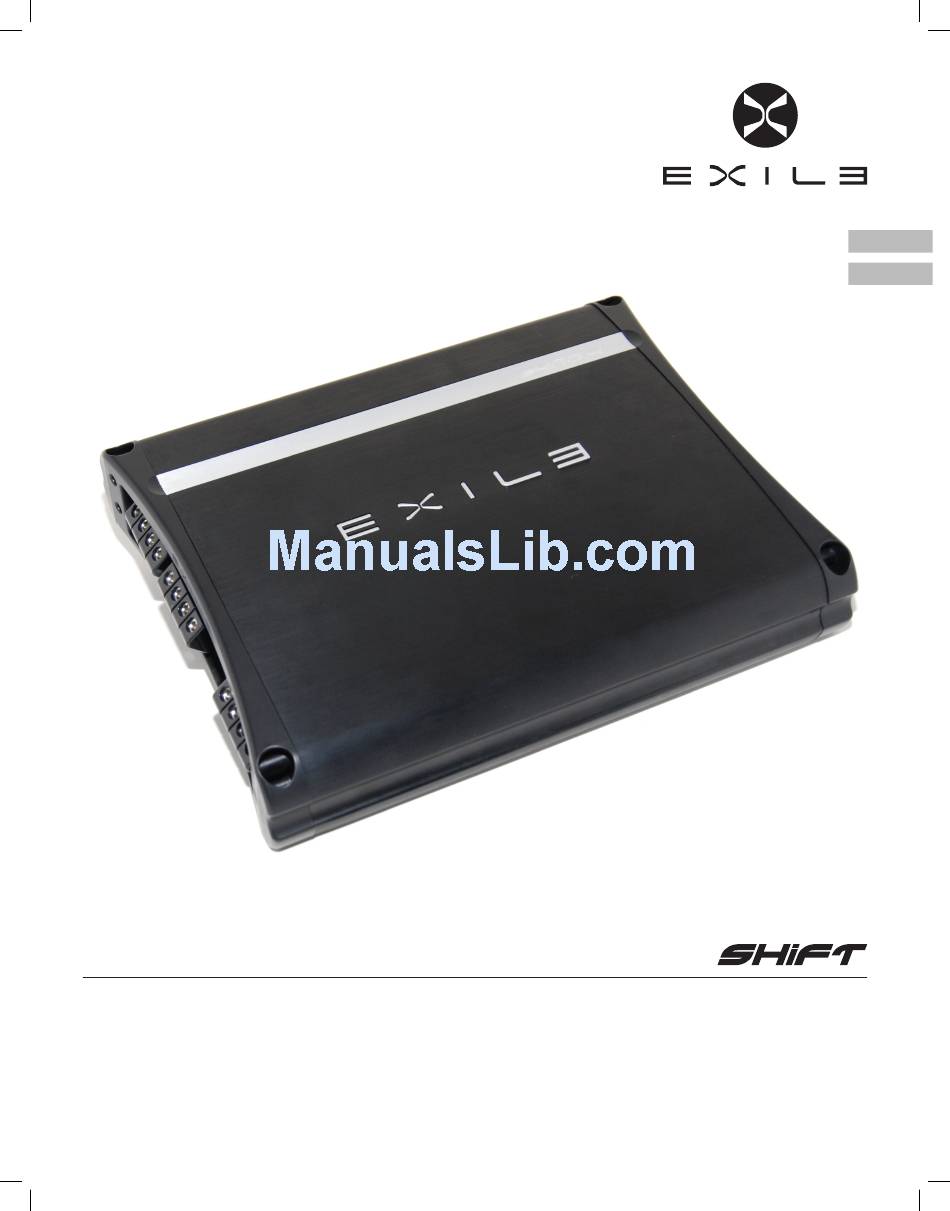

- Page 1 Models: S250.1, S500.1, S400.4 Amplifier Manual Amplifier Manual Manuel de l’amplificateur © 2008 Exile Car Audio • www.exileaudio.com...
- Page 2 MONOBLOCK SPECIFICATIONS Frequency Response: ± 1dB from 20Hz to 20kHz Signal to Noise Ratio: >110dB Subsonic and Low Pass Crossovers: 12dB per octave Low Pass Crossover Range: 50Hz to 250Hz Subsonic Crossover Range: 20Hz to 55Hz Bass Boost @ 45Hz: 0 to +12dB Input Sensitivity: 200 millivolts to 8 volts Lowest Recommend Load: 2 ohm Typical Efficiency: Damping Factor Greater than 200 S250.1 Max Power @ 4 ohm 250 x 1 Max Power @ 2 ohm 500 x 1 RMS Power @ 4 ohm 125 x 1 RMS Power @ 2 ohm 250 x 1 Recommended Fuse Size: Power/Ground Wire Size: 8 Gauge Dimensions: 10.1”L x 9.1”W x 2.1”H S500.1 Max Power @ 4 ohm 500 x 1 Max Power @ 2 ohm 1000 x 1 RMS Power @ 4 ohm 250 x 1 RMS Power @ 2 ohm...
- Page 3 Amplifier Owner’s Manual S250.1 - S500.1 Monoblock Power Amplifier INPUT Connect preamp signal cables from the head unit to these terminals. OUTPUT Provides a full range signal for an additional amplifier. There is no signal loss if using this output. CROSSOVER FREQUENCY Controls the lowpass crossover point for the speaker outputs.
- Page 4 S400.4 4 Channel Power Amplifier INPUT Connect preamp signal cables from the head unit to these terminals. HIGH LEVEL INPUT Connect factory stereo to the corresponding terminals OUTPUT Provides a full range signal for an additional amplifier. There is no signal loss if using this output.
- Page 5 Manuel de l’amplificateur CARACTÉRISTIQUES TECHNIQUES MONOBLOC Réponse en fréquence : ± 1 dB de 20 Hz à 20kHz Rapport signal/bruit : >110dB Filtres passifs subsoniques et passe-bas: 12dB par octave Plage du filtre passif passe-bas: 50Hz à 250Hz Plage du filtre passif subsonique: 20Hz à 55Hz Amplification des basses à 45 Hz : 0 à +12dB Sensibilité de l’entrée: 200 millivolts à 8 volts Charge minimale recommandée: 2 ohm Efficacité type: Taux d’amortissement: Supérieur à 200 S250.1 Puissance de Maximum @ 4 ohm: 250 x 1 Puissance de Maximum @ 2 ohm: 500 x 1 Puissance de RMS @ 4 ohm: 125 x 1 Puissance de RMS @ 2 ohm: 250 x 1 Taille de fusible: Taille du fil d’alimentation/de masse: calibre 8 Dimensions: 10,1 po L x 9,1 po W x 2,1 po H S500.1 Puissance de Maximum @ 4 ohm: 500 x 1 Puissance de Maximum @ 2 ohm:...
- Page 6 S250.1 - S500.1 Monoblock Power Amplifier ENTRÉE Reliez les câbles de signal préampli de l’unité principale sur ces bornes. SORTIE Fournit un signal pleine gamme pour un amplificateur supplémentaire. Il n’y a pas de perte de signal en cas d’utilisation de cette sortie. FRÉQUENCE DU FILTRE PASSIF PASSE-BAS Contrôle le point de filtre passe-bas pour les sorties du haut-parleur.
- Page 7 Manuel de l’amplificateur ENTRÉE Reliez les câbles de signal préampli de l’unité principale sur ces bornes. DONNEES DE NIVEAU SUPERIEUR Connecter la stéréo d’usine aux terminaux correspondants. SORTIE Fournit un signal pleine gamme pour un amplificateur supplémentaire. Il n’y a pas de perte de signal en cas d’utilisation de cette sortie.
- Page 8 EXILE CAR AUDIO PORTLAND, OR USA WWW.EXILECARAUDIO.COM Exile warrants this product to be free from defects in material and workmanship under normal use for a period of two years from date of original purchase when purchased from an Authorized Exile Dealer. If the product is labeled B Stock/Refurbished and purchased from an Authorized Exile Dealer, it is warranted for 90 days from date of purchase, regardless of place of installation. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, Exile will replace or repair (at its discretion) the defective merchandise with equivalent merchandise at no charge. Warranty replacements on B-Stock merchandise may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent Perturbateur de quiétude dans le monde entier... to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties, therefore these exclusions may not apply to you. This warranty gives you specific legal rights; however you may have other rights that vary from state to state. This warranty is only valid within the USA, for warranties outside of the USA consult the appropriate international distributor. © 2008 Exile Car Audio • www.exileaudio.com Exile Car Audio Portland, Oregon USA www.exilecaraudio.com Designed and Engineered in the USA Disturbing the peace all over the world... LIMITED WARRANTY Conçu et fabriqué aux É.-U. Amplifier Owner’s Manual DESIGNED AND ENGINEERED IN THE USA Amplifier Manual...
