Channel Vision IR Reciever IR-2005 User Manual

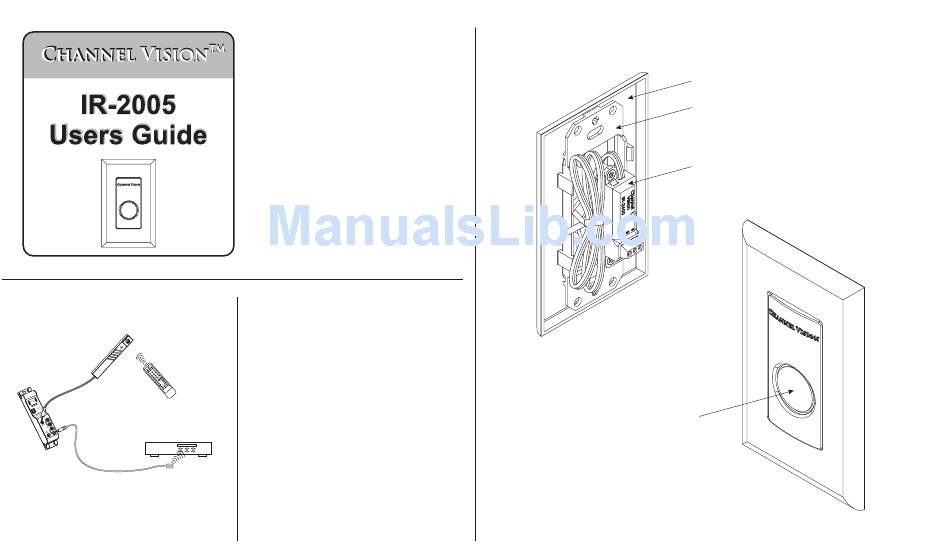

How IR repeating works

The IR receiver is wired to
the IR hub which routes the
signal to IR emitters
Point an
IR remote control
at the IR receiver
And the emitter CD player
repeats the IR signal
in the other room.
Be sure the emitter is attached directly over the
component's IR receiver. To locate the IR receiver, shine a
flashlight into the unit and look for the sensor.
CHANNEL VISION

Limited Warranty

Channel Vision Technology will repair or replace any defect in material or
workmanship which occurs during normal use of this product with new or rebuilt
parts, free of charge in the USA, for two years from the date of original purchase.
This is a no hassle warranty with no mail in warranty card needed. This warranty
does not cover damages in shipment, failures caused by other products not
supplied by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only to the
original purchaser, and a purchase receipt, invoice, or other proof of original
purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-
0288 toll free. A Return Authorization number must be obtained in advance and
can be marked on the outside of the shipping carton.
This warranty gives you specific legal rights and you may have other rights
(which vary from state to state). If a problem with this product develops during or
after the warranty period, please contact Channel Vision Technology, your dealer
or any factory-authorized service center.

Specifications (typical)

Voltage requirements: 8 - 12 VDC
IR Freq. range supported: 30 kHz - 60 kHz
IR pickup range: 40 ft. @ 38kHz, 25 ft. @ 56kHz
Mounting requirements: Single-gang box or ring
Color: White
Specifications subject to change without notice.
IR-2005
(rear view)
500-181 rev A

Features:

!
Plasma Proof IR receiver
!
Status LEDs for IR signal indication
!
Mounts in a single-gang box or low-voltage ring

The IR-2005 includes these items:

Screwless decorator style trim ring
Single-gang decorator style IR wall plate
IR-2400 Plasma proof IR receiver
IR receiver window
IR-2005
(front view)
