Model IC512
Installation:
h
Use the included template to mark and cut a 6" hole in
drywall away from ceiling joists.
h
We recommend wiring with AWG 16 or larger, stranded
wire.
h
For proper phasing, both voice coils must be wired alike.
Connect red wires to red terminals on speaker and to red
or plus terminals on amplifier.
h
Install IC512 in hole. Tighten the mounting screws. The
mounting dog ears will rotate outward and grip the
drywall.
h
Aim tweeter
h
To control the volume of the speaker locally, use an
impedance matching volume control, such as the
Channel Vision VC-302.
2

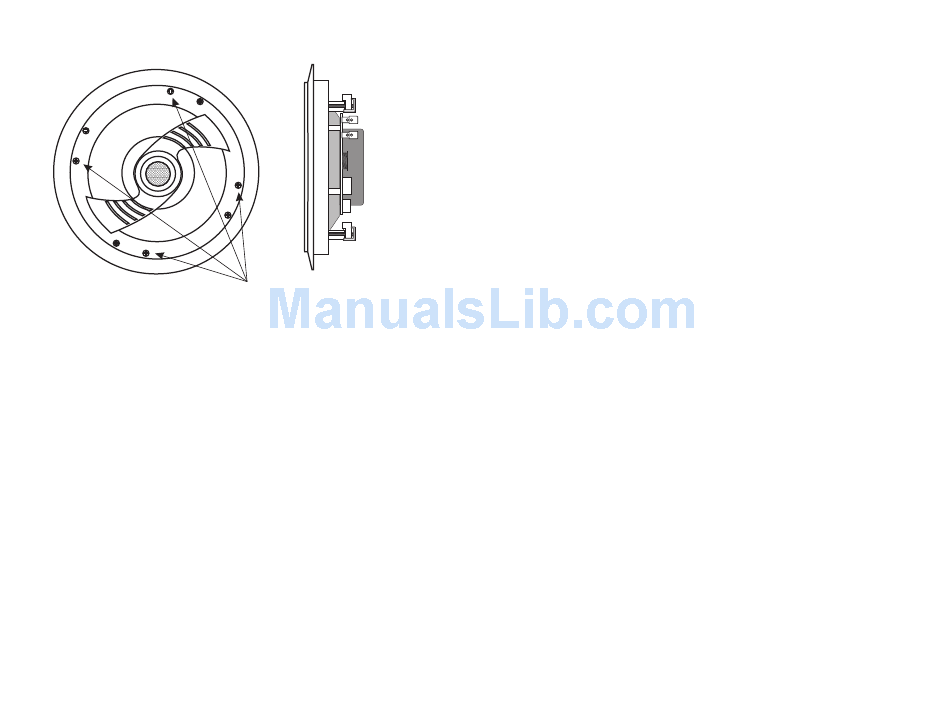

Mounting screws (4)
Features:
5
¼
" High performance in-ceiling loudspeaker
High power handling capacity
Gold speaker terminals
Proprietary pivoting "Pole Piece" technology with 1" voice
coil, neodymium magnet, and silk soft dome
Mica-filled polypropylene woofer with butyl rubber surround
and a 18 oz magnet
Small perforated designer grille
Recommended power: 20W to 100W (peak)
Specifications:
Frequency range:
50Hz - 20kHz ± 3dB
Sensitivity:
88dB (1W/1m)
Power Handling:
100 Watts peak
Drivers:
1- 1" Soft dome tweeter
1- 5
Impedance:
8 ohms
Finish:
ABS plastic
Dimensions:
8" OD. 4.21 height
(from surface of wall board)
Weight:
2.25 Lbs as shipped
¼
" polypropylene woofer
"
Specifications subject to change without notice.
3
