- Page 1 ™ NCSP3 RV CONTROL AND MONITORING SYSTEM Installation and Operation Manual Patent # (D776,068) Patent # (D762,644) Patent # US 9,679,735...
- Page 3 Important Safety Information Read the iN-Command Manual, and these warnings and instructions carefully before using this product. Failure to follow the use instructions in this owner’s manual, or improper use of the Mobile Application, Display Commander and/or Body Control Module, could result in personal injury, including death.
-
Page 4: Table Of Contents
NCSP3 • TABLE OF CONTENTS TABLE OF CONTENTS ............3 MOBILE DEVICES: ..............18 INTRODUCTION ..............4 Pairing iOS Mobile Device to DC ........... 19 Thank You! ................4 Pairing Android Mobile Device to DC ........22 Features ................4 Loading the DC Floor Plan ............ 24 Precautions ................4... -
Page 5: Introduction
• Thank You! • Avoid Cleaning Products. Thank you for choosing a iN-Command product. We hope you will find The front of this unit should only be cleaned with a slightly damp cloth. the instructions in this owner’s manual clear and easy to follow. If you Do not use cleaning products. -
Page 6: Installation
USB drive • Tools and Supplies • Route power wires through the hole and connect You will need these tools and supplies to install your iN-Command: • Check and ensure correct operation • Phillips screwdriver •... -
Page 7: Wiring
• WIRING The Wiring Diagram Depicts All The Wiring Connections Required For Proper Operation Of The Unit. Body Control Module (BCM) Connections 61 - +12V WATER HEATER FAULT IN (GREEN) 60 - WATER HEATER ELECTRIC +12V 1A OUT (YELLOW) 59 - WATER HEATER GAS +12V 1A OUT(ORANGE) 58 - WATER HEATER GND (RED) Reset Button 57 - TRAVEL LOCK IN 12V (BROWN) -
Page 8: Rv-C System Layout
• RV-C SYSTEM LAYOUT... -
Page 9: Setup Menu List
NCSP3 Settings • SETUP MENU LIST Bluetooth Scan Awnings Wi-Fi On, Off, Scan, Add Awning Light No, Yes Date & time Edit Awning 1 In, Out Edit Awning 2 In, Out Passcode Setting Brightness Up, Down HVAC (Zone1, Zone2, Zone3) -
Page 10: Travel Lockout (Safety)
NCSP3 • TRAVEL LOCKOUT (Safety) iN-Command is equipped with a Travel Lockout feature to ensure certain system functions are unavailable during transit. When the Brake Signal (Towable) or Ignition (Motorized) is activated, the iN-Command will lock down all motorized functions. The Display Commander (DC) and mobile devices will also display “Travel Lock... -
Page 11: Override Switches
NCSP3 • OVERRIDE SWITCHES* • DISPLAY COMMANDER BUTTONS The Body Control Module has a bank of override switches. The DC (Display Commander) has 3 buttons on the front of it. The rotary switches below each rocker switch correspond to an From left to right, they are: electric function* made by the Display Commander. -

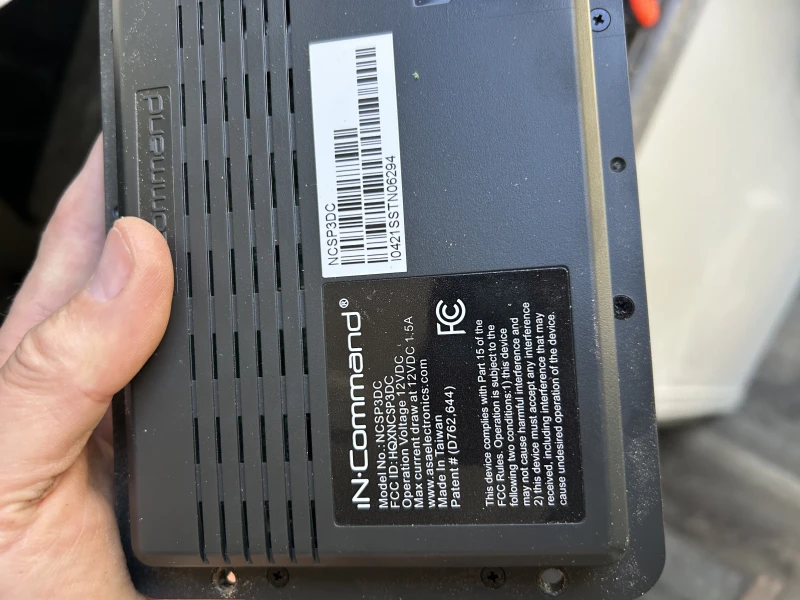

Page 12: Specifications
To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide NCSP3 System a separation distance of at least 20 cm from all persons and must EPROM Non-Volatile Memory ..... . YES not be co-located or operating in conjunction with any other Bluetooth Version . -
Page 13: Passcode Protection
• Change the passcode • Reset the floor plan • Control the brightness of the DC screen • View iN-Command’s Legal documents and customer support information. The Administration page is used by the manufacturer. • Text Editing* • PANIC WARNING 1. - Page 14 NCSP3 2. Press “Edit” to enter Edit page. 4. Long press the intended text, e.g., "Light Group 3". 5. Use the keyboard to edit the name, then press "Ok". 3. Select the function to edit. Note: Editing the text on the DC will not change the text on...
-
Page 15: Scroll List Editing
NCSP3 • Scroll List Editing 1. Select “Settings”. 3. Select the function to edit. 4. Use the Up and Down arrows next to the function to move 2. Press “Edit” to enter “Edit” page. the item in the list. -
Page 16: Triggers
NCSP3 • Triggers • Alarm Inputs Triggers can be added to the system. “Momentary” or “Latch” can Alarm inputs can added to the system. be selected for each Trigger. Note: Desired devices need to be Note: Desired devices need to be correctly wired to the BCM to function. -
Page 17: Set Passcode Timer
NCSP3 2. Press “Passcode” to enter passcode setup. 3. The passcode setup window will open. • Set Passcode Timer 2.1 Enter the correct passcode to proceed. Press “Set Timer” select the idle time to activate the passcode protection. -
Page 18: Change Passcode
NCSP3 • Change Passcode • Clear Passcode Press the “Clear Passcode” to clear the passcode. 1. Press the “Change Passcode” button to change to a new passcode. This will restart the App, take the user to the End-User License 2. Enter the new passcode. -
Page 19: Mobile Devices
Visit the Google Play and Apple App stores on your mobile device to download and use the iN-Command App. Seven mobile devices are able to be paired to iN-Command at one time, but only 1 iOS and 3 Android devices are able to be actively paired;... -
Page 20: Pairing Ios Mobile Device To Dc
NCSP3 • Pairing iOS Mobile Device to DC 1. Enable "Bluetooth" in the system settings of the mobile device. 2.1 Select the "Bluetooth" tab. 2.2 Select "Pairing" to pair devices and view current paired devices. 2. From the DC Home page, select "Settings". - Page 21 NCSP3 2.3 Press Scan to start scanning for Unpaired devices. 2.5 A Bluetooth Pairing request will appear on the DC and mobile device. Locate the mobile device in the Unpaired Device list. 2.6 Press "PAIR" on the DC. Select the device by pressing it.
- Page 22 NCSP3 2.8 The mobile device will be displayed in the "Paired devices" 2.10 The mobile device now shows that the DC is connected. list on the DC. 2.9 The DC will be displayed on the mobile device list in the format "...
-
Page 23: Pairing Android Mobile Device To Dc
NCSP3 • Pairing Android Mobile Device to DC 3. Press Scan to start scanning for Unpaired devices. Locate the DC in the Unpaired Device 1. From the App Home Page select Settings. 2. Select the "Bluetooth" tab. list. Select the device by pressing it. - Page 24 NCSP3 4. A Bluetooth pairing request will appear on 5. The mobile device will be displayed in the the DC and mobile device. "Paired devices" list on the mobile App. 4.1 Press "OK" on the mobile device.
-
Page 25: Loading The Dc Floor Plan
NCSP3 • Loading the DC Floor Plan 1. Press the Floor Plan button in the 2. Press DC Sync to Load the floor plan settings menu page. configuration from the DC. The current settings will be lost/replaced upon doing this. -
Page 26: Checking Active Bluetooth Session
NCSP3 • CHECKING ACTIVE BLUETOOTH SESSION* * To disconnect a handheld device, press “Disconnect”, or 1. Select “Connected devices”. simply shut down the device’s App. This function is used to disconnect a device that is not actively being used, and to allow another device to be connected. -
Page 27: Hvac
From the HVAC page, you can control the Heating, Ventilation and Air conditioning functions in the RV. With iN-Command, you can control up to 4 HVAC zones and schedule times for the HVAC function to be active. • Vent Fans The Vent fans for each zone can be opened, closed and the fan speed can be switched between low, medium and high. -
Page 28: Heating
NCSP3 • Heating • Auto Auto Mode will automatically switch between Cool and Heat modes to 1. Select the desired Zone. Press the "Mode" button to switch to reach the desired Set temperature. "Heat" mode. (Heat Mode is only available in Zones with Heat Mode selected on Floor Plan). -
Page 29: Date & Time
NCSP3 • Date & Time 3. In the Date & Time page, press the "Edit" tab to adjust the date and The Date & Time feature is used for the Generator and HVAC time. scheduling functions. 1. Select "Settings". 4. Use the Calendar to select the Date and the Clock to change the time. -
Page 30: Hvac Schedule
NCSP3 • HVAC Schedule • AUTO GENERATOR START The Schedule function allows you to set a temperature and choose a start and stop for when you want the HVAC function to operate. 1. Press the "Generator" icon. 1. Press the "Clock" icon at the bottom right corner of the HVAC home screen to enter the Schedule page. -
Page 31: Generator Schedule
NCSP3 5. The system wil attempt to start the generator 3 times. If it fails 3. If the battery voltage is less than 11.8 volts for 3 minutes, to start after the third attempt, the system will turn off the Auto the system will start the generator. -
Page 32: Software Update
DC. 2. Select "Settings". The system will look for specific file names for software updates. - File name: “NCSP3-DC VXXXX.zip” > DC OS update 3. In the Settings page, select the "Software" tab. (xxxx is the version number) - File name: “ncspdcap_vxxxx.apk”... - Page 33 NCSP3 5. Press the DC Version to update the DC OS sytem. 7. Press "Confirm" to continue. Press "Update". 6. Framework Update. 8. Press the BCM Version to update the BCM system. Press"Update".
- Page 34 NCSP3 11. Press Floor Plan to select a floor plan. 9. Press the App version to update the DC App. Press "Load" to select the floor plan. Press "Update". 12. Press "Dismiss" to confirm selection. 10. Waiting for Update. * If a software update is needed, go to http://www.asaelectronics.com//in-command...
-
Page 35: Global Connect
* Requires Wi-Fi services for this feature. ** Motorized functions are not available through the Global Connect feature. To setup a cloud account, the device app first needs to be paired with the iN-Command via Bluetooth. (Follow Bluetooth pairing instructions for your device). - Page 36 NCSP3 6. Press on the white bar next to “Account:” and 4. From the App Home Page, select Use the device keypad to enter a valid email 5. Select the “Account” tab. Settings.Select the “Global Connect” tab. address.
- Page 37 8. On the device, turn Bluetooth off. As long as you have internet keypad to enter a passcode for the account, then press the available through your device and iN-Command, the device app “Register” button. After the account is registered, a notification will connect to iN-Command through Global Connect.
-
Page 38: Reset: Floor Plan
NCSP3 3. Select one of the two options (Floor Plan or Factory) to restore • RESET: FLOOR PLAN to a previous state. a. Floor Plan: restores to previous floor plan settings from Reset to Floor Plan to remove customization, or reset to factory settings. -
Page 39: Touch Screen Calibration
NCSP3 • TOUCH SCREEN CALIBRATION 3. To calibrate the Touch Screen, select "Set". Follow the instructions.The DC will restart after calibration. 1. Select “Settings”. 2. Select “Calibration”. 4. Touch the center of the cross. -
Page 40: System Calibration
NCSP3 • SYSTEM CALIBRATION* From the Administration page, the App Data can be deleted, the Generator Hour Meter can be set, and the Water Tanks can be calibrated. 3. Make Selection. 1. From the Settings page, press "Administration". 2. Enter Administrator passcode to proceed.**... - Page 41 NCSP3 5. Press the Generator Hour Meter "Set" button to set the meter time. 6. Press the App Data "Delete" button to clear current App data. Note: This will remove the floor plan settings from the RV Manufacturer. * The system is calibrated by the manufacturer and should only be accessed for troubleshooting.
-
Page 42: Troubleshooting
See label on BCM cover for relay identification. DC shows 0V and no functions Check for shorts in RV-C cable and for loose pins in the connection. activate from DC For additional troubleshooting, call ASA Electronics Technical Support at 1-877-845-8750, email info@asaelectronics.com or visit our website http://www.asaelectronics.com//in-command. - Page 44 www.jensenrvdirect.com ©2016 ASA Electronics LLC. MA-1705001A-1R...
