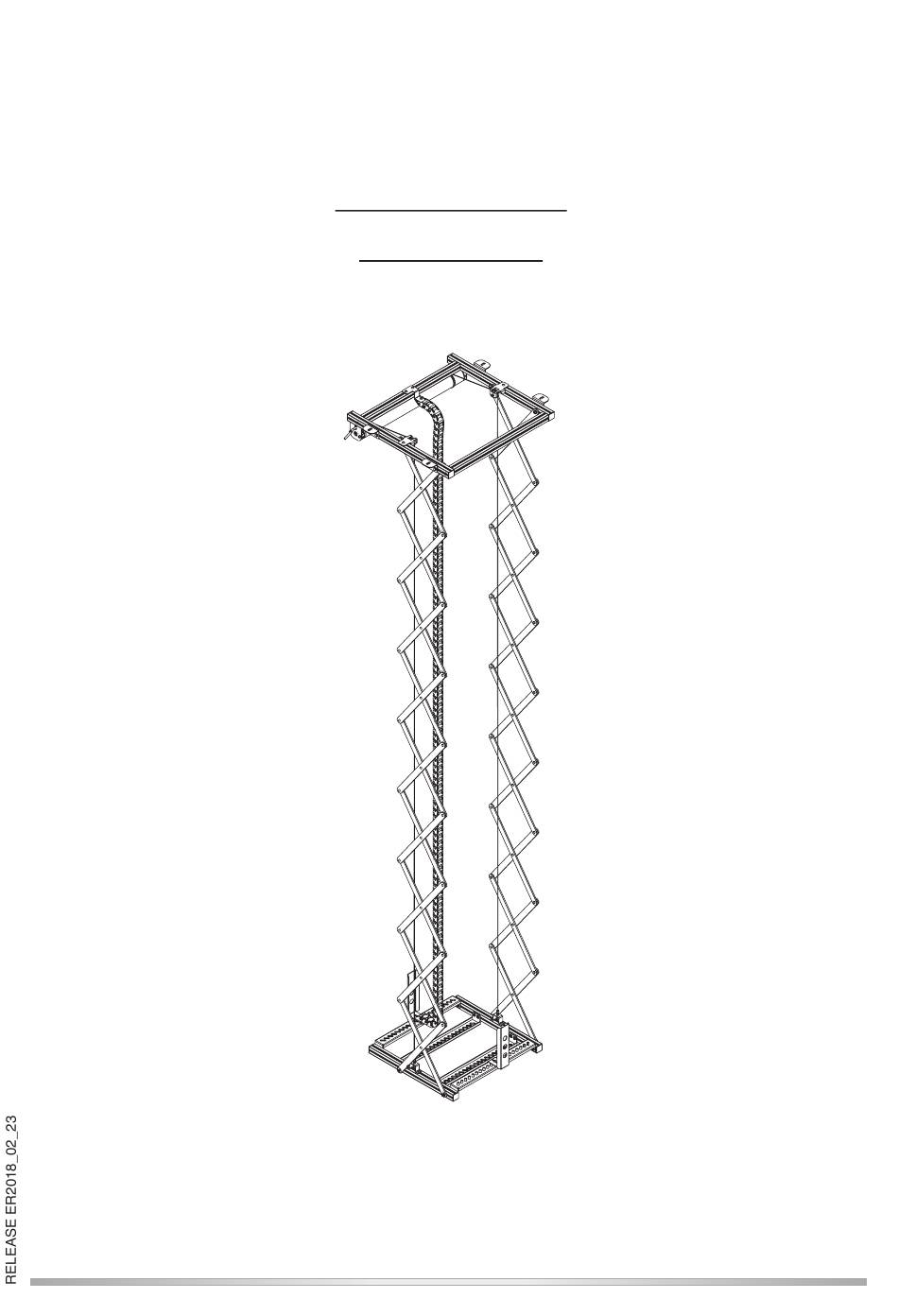

INSTALLATION AND
MAINTANANCE MANUAL
PROJECTOR LIFT
SI-H L 300
ORIGINAL INSTRUCTIONS IN ITALIAN LANGUAGE
Translation into English language
This document is property of Euroscreen Srl.
Any distribution, reproduction, copying or publication of this document is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SI-HL300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Euroscreen SI-HL300

Summary of Contents for Euroscreen SI-HL300

  • Page 1 INSTALLATION AND MAINTANANCE MANUAL PROJECTOR LIFT SI-H L 300 ORIGINAL INSTRUCTIONS IN ITALIAN LANGUAGE Translation into English language This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 2 Ceiling mounting of the projector lift Mounting of the videoprojector Electrical connection End-stops settings 4.7 Use of components for fixing the false ceiling tile OUT OF ORDER Waste of projector lift CHECK REGISTER Half-yearly check This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 3: General Information

    The installation manual is composed from: General information Projector lift description Safety and residual risks Installation Out of order Check register This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 4: Symbols Legend

    The symbol can also be used to indicate situations that can damage the lift. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 5: Technical Assistance

    -parts damaged due to insufficient, wrong or non-made maintenance; -parts damaged due to misuse, poor, wrong or non-authorized use; -parts damaged due to product modification, non-authorized repairing or tampering; -parts damaged due to maintenance for alleged faults. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 6 All violations are punishable by law and subject to compensation for damages under the protection of commercial rights. It is allowed to keep one copy only for archive purposes. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 7 C) Serial number D) Year of manufacturing E) Motor power F) Operating Frequency G) Phases H) Power consumption Position Product identification label n. 01 This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 8 Near the lift scissors, there is danger of cutting and crushing while the lift is operating. WARNING Position Warning label n. 01 This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 9 Warning label n. 02 This label reports the following information: A) Maximum load allowed (projector + tile of the false ceiling) READ THE INSTRUCTIONS CAREFULLY MAX LOAD __ KG Position Warning label n. 02 This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 10 Specifically, it is forbidden to: -Connect the lift to a different AC-tension than the one specified on the product identification label n. 01. -Use the product to move up and down animals or objects which are different from videoprojectors. -Lift loads heavier than maximum load specified. -Use the lift outdoor. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 11: General Description

    Left stabilizing scissors Right stabilizing scissors Cable regulator Left structural profile 30x30 (mm) Safety screw Plate for fixing the projector Right structural profile 30x30 (mm) Brass guide shoe This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 12: Mechanical Specifications

    The drawings here under 2.3.a - 2.3.b indicate maximum dimensions of the open lift. Power supply 2.3.a - side view 2.3.b - rear view This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 13: Technical Specifications

    SPEED 17 rpm 16 rpm MAXIMUM CONSUMPTION 184 W ABSORPTION 1.10 A 0.80 A MAXIMUM ROTATIONS OF THE MOTOR DUTY RATING 1minON/1minOFF This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 14: Safety Standards

    -Take care to carry out maintenance program describe in chapter 6.0. -Do not remove or alter product identification labels affixed on the lift by the manufacturer. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 15: Description Of Safety Devices

    After having set the bottom end stop, FIX TIGHTLY WITH PROPER ALLEN KEY both safety screws at a distance of 10 mm. from the brass skater. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 16 The drawing here under identifies the residual risk area above the plate for fixing the projector. CEILING Projector Projector L=1,00 ml L=1,00 ml FLOOR This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 17 All these information will allow the user to better evaluate danger and risk using this product. The noise of the projector lift is LESS than 70 dBa. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 18 In case of continuous unusual noises and vibrations, the lift is probably damaged. In this case, do not use the lift and proceed with an accurate and complete maintenance. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 19: Installation

    01 Packaging carton box Polystyrene sheet Adesive tape COMPONENTS OF THE Adesive PACKAGING CARTON BOX Projector tape lift Polystyrene edges bottom This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 20 4 pcs. 4 Blind screws M6 ø8 (L1) Hex head screws M6x10 Bushes M6 ø10 (L2) This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 21 The drawing below indicates the recommended position where to mount the “L” form metal brackets. In this installation manual, we suppose an installation to a flat and horizontal ceiling made of concrete. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 22 90° 90° 90° 90° Now drill the holes in the ceiling in order to fix the brackets. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 23 After having fixed the lift to the ceiling, please remove the polystyrene cubes from the lift structure. Remove adesive tape Remove adesive tape This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 24 Cables that cannot be properly bended are not allowed. Insert and fix the cables only when the lift is completely in open position. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 25 TO INTERFERE NEITHER cable WITH MOTOR TUBE NOR WITH STEEL CABLES COVERED WITH PVC. Projector power and signal cable inside cable management system. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 26: Electrical Connection

    Fig. 1 Fig. 2 Turn the upper tile of the switcher in order to remove it from the bottom tile. The up/down switcher supplied gives the possibility to be fixed to the wall in two different ways: with the bottom tile (A) or without the bottom tile (B). This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 27 1) SWITCH OFF THE MACHINE. 2) DISCONNECT THE MAINS BY THE GENERAL SWITCH. 3) DISCONNECT THE LIFT FROM THE MAINS. 4) MAKE THE NECESSARY MAINTENANCE OPERATIONS This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 28 Turn the screw on the motor, as shown on the picture, anticlockwise END STOP POSITION” to increase the bottom stop point and clockwise to reduce it. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 29 These components are suitable to fix a false ceiling plate under the projector in order to hide the lift inside a false ceiling. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 30 Threaded bars support the false M6x25cm ceiling plate fig. fig. Hex head screws Blind screws M6x10 M6x10 fig. fig. Nuts M6 Bushes This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 31 This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.

  • Page 32: Out Of Order

    -dangers for water, air, soil, fauna and flora; -noises and smells; -damages to landscape and to cultural places based on the norms in force. This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 33 Esito positivo Positive result Esito negativo Negative result Firma/Signature DATA/DATE Osservazioni/Notes a.y. Esito positivo Positive result Esito negativo Negative result Firma/Signature This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 34 Esito positivo Positive result Esito negativo Negative result Firma/Signature DATA/DATE Osservazioni/Notes a.y. Esito positivo Positive result Esito negativo Negative result Firma/Signature This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 35 Esito positivo Positive result Esito negativo Negative result Firma/Signature Firma/Signature DATA/DATE Osservazioni/Notes a.y. Esito positivo Positive result Esito negativo Negative result Firma/Signature This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 36 Esito positivo Positive result Esito negativo Negative result Firma/Signature DATA/DATE Osservazioni/Notes a.y. Esito positivo Positive result Esito negativo Negative result Firma/Signature This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 37 Esito positivo Positive result Esito negativo Negative result Firma/Signature DATA/DATE Osservazioni/Notes a.y. Esito positivo Positive result Esito negativo Negative result Firma/Signature This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 38 Esito positivo Positive result Esito negativo Negative result Firma/Signature DATA/DATE Osservazioni/Notes a.y. Esito positivo Positive result Esito negativo Negative result Firma/Signature This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 39 Esito positivo Positive result Esito negativo Negative result Firma/Signature DATA/DATE Osservazioni/Notes a.y. Esito positivo Positive result Esito negativo Negative result Firma/Signature This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
