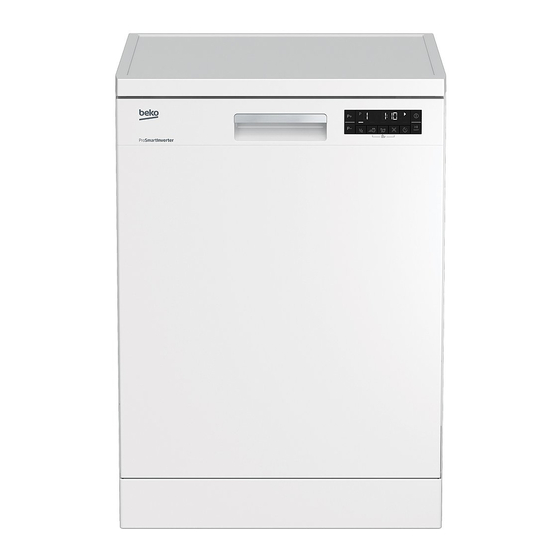

- Page 1 Dishwasher User’s Manual Document Number : 15 9537 0100_AA_BEKO_D1_EN/ 23-01-18.(10:09)
- Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
- Page 3 Dishwasher User’s Manual Document Number : 15 9537 0100_AA_BEKO_D1_EN/ 23-01-18.(10:09)
- Page 4 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 5: Table Of Contents
CONTENTS 1 INSTRUCTIONS FOR SAFETY Lower basket multipurpose / height adjustable service rack ..... 23 AND ENVIRONMENT Lower basket bottle wire ....24 General safety ........4 Upper basket height adjustable rack 24 Intended use ..........4 Upper basket multipurpose service Children’s safety ........5 rack ............ -
Page 6: Instructions For Safety And Environment
instructions for safety and environment This section contains safety Never touch the plug with • instructions that will help to get wet hands! Never unplug by protected from risk of personal pulling on the cable, always injury or property damage. Failure pull out by grabbing the plug. -
Page 7: Children's Safety
instructions for safety and environment Children’s safety This appliance is intended • to be used in household and Electrical products are • similar applications such as: dangerous for the children. - Staff kitchen areas in shops, Keep children away from the offices and other working product when it is in use. -
Page 8: Compliance With Weee Directive And Disposing Of The Waste Product
instructions for safety and environment Package information 1. Unplug the product before transporting it. Packaging materials of the 2. Remove water drainage and product are manufactured water supply connections. from recyclable materials in accordance with our National 3. Drain the remaining water in Environment Regulations. -
Page 9: Dishwasher Overview
Dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Silverware basket 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. Upper cutlery basket (depends on model) 14. -
Page 10: Fan Drying System
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 11: Installation
Installation Appropriate installation Refer to the nearest Authorised Service Agent for installation of your product. To location make the product ready for use, make sure Place the product on a solid and flat • that the electricity, tap water supply and floor that has sufficient load carrying water drainage systems are appropriate capacity! The product must be... -
Page 12: Connection To The Drain
Installation Permitted water temperature: up the floor. A discharge hose longer than 4 to 25°C meters causes dirty washing. The dishwasher may not be connected to Attach the water discharge hose to the open warm water devices or flow-through drainpipe without bending it. Tightly fix water heaters. -
Page 13: Aquasafe
Installation Aquasafe+ The voltage and allowed fuse or breaker • protection are specified in the “Technical (depends on model) specifications” section. If the current The Aquasafe+ system protects against value of the fuse or breaker in the house water leaks that may occur at the hose is less than 16 Amps, have a qualified inlet.Water contact with the valve box of electrician install a 16 Amp fuse. -
Page 14: Preparation Tips For Energy Saving
Preparation Tips for energy saving Adjusting the water softening system Following information will help you use the product in an ecological and energy- Cleaning, rinsing and drying performance of efficient manner. your dishwasher will increase when water Wipe away any coarse food remnants on softening system is adjusted properly. - Page 15 Preparation Remove the test Turn on the tap and Hold the test strip in Remove the test Wait for 1 minute. The test strip shows strip from the let the water run for the water for about strip from the water you the hardness packet.
-
Page 16: Adding Salt
Preparation If the hardness level of the supply water Salt reservoir will be filled is above 90 °dF or if you are using well with water when you start water, then it is recommended to use water the product. For this reason, purification devices and special filters. -
Page 17: Detergent
Preparation Put the detergent into the detergent You need to add salt right before dispenser just before operating the starting the machine. Thus, the machine as illustrated below. overflowing salty water will be Push the latch to right to open the flushed immediately, preventing detergent dispenser lid (A). -
Page 18: Tablet Detergents
Preparation together with the detergent if the water 3. Push the lid of the detergent dispenser hardness level is above the mentioned level. to close it. A "click" will be heard when the lid is closed. The best washing performance in dishwashers is obtained by using detergent, rinse aid and water softening salt individually. -
Page 19: Rinse Aid
Preparation Rinse aid 4. If there are stains on tableware items after washing, level must be increased The rinse aid used in and if there is a blue trace after wiping dishwashers is a special them by hand, it must be decreased. combination that aims to This is set to position 3 as factory increase drying efficiency and... -
Page 20: Placing The Dishes Into The Dishwasher
Preparation Placing the dishes into the dishwasher You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way. Wipe away any coarse food remnants •... - Page 21 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware Dishwasher / User’s Manual 19 / 45 EN...
-
Page 22: Cutlery Basket
Preparation Cutlery basket Cutlery basket (depends on model) (depends on model) Cutlery basket is designed to wash your Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an dishes such as knife, fork, spoon, etc. in an efficient manner. -
Page 23: Collapsible Lower Basket Tines
Preparation Collapsible lower basket Bringing the tines to the tines horizontal position by holding them from the tips may cause (depends on model) them to bend. Therefore, it There are foldable tines (A) located at the will be appropriate to bring the tines in the middle to horizontal lower basket of the machine are designed or vertical position by holding... -
Page 24: Tray Wash Supports
Preparation SoftTouch Accessory (depends on model) The SoftTouch Accessory found in the lower basket of your machine enables a safe washing for your fragile glasses. Bringing the tines to the horizontal position by holding them from the tips may cause them to bend. -
Page 25: Lower Basket Multipurpose / Height Adjustable Service Rack
Preparation Lower basket multipurpose Make sure that the impeller / height adjustable service does not touch the dishes you rack placed on the racks. (depends on model) To close the racks: This accessory located at the lower basket Fold the rack (A). of your machine allows you to easily wash 2. -
Page 26: Lower Basket Bottle Wire
Preparation Lower basket bottle wire (depends on model) The bottle wire is designed for easier washing of long pieces with wide mouths. You may take out the bottle wire from the basket when not in use by pulling it out from both sides (H). -
Page 27: Adjusting The Height Of The Upper Basket
Preparation Adjusting the height of the To lower the basket, while it is in the uppermost position; upper basket Hold the upper basket wires with both (depends on model) hands, slightly lift up the basket and The upper basket height adjustment simultaneously push and release the mechanism has been designed for you to latches shown in the figure (B). -
Page 28: Collapsible Upper Basket Wires
Preparation Collapsible upper basket Pull out the basket out completely. Place the basket back into the tracks at the wires desired height (depends on model) Push the latches back into the correct You can use collapsible wires when you position. need a larger space for your dishes in the upper basket of your machine. -
Page 29: Ceiling Cutlery Basket
Preparation Ceiling cutlery basket (depends on model) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket. When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc. -
Page 30: Operating The Product
Operating the product Display 5. Function keys 2. On/Off key Half Load function 3. Start/Pause/Cancel key Fast+ Function 4. Time Delay key SteamGloss Function AquaIntense Function 6. Programme Selection keys 7. Programme indicator 12. End of Programme indicator 8. Salt ( ) indicator 13. -
Page 31: Keys
Operating the product Keys 3. Press Programme Selection keys until the number of the programme you On / Off key selected appears on the Programme It is used to turn on or off the machine. indicator. Use P+ to switch to the next Press On / Off Key to switch ON. - Page 32 Operating the product /45 EN Dishwasher / User’s Manual...
-
Page 33: Auxiliary Functions
Operating the product Auxiliary functions AquaIntense Function AquaIntense impeller Washing programmes of your dishwasher located under the are designed to obtain the best cleaning lower impeller helps effect, considering the type of the soil, washing your heavily soiling degree and properties of the dishes soiled dishes places in to be washed. - Page 34 Operating the product Auto Tablet Feature Interior Lighting Auto Tablet is a feature which detects (Depends on the model) the use of combined tablet detergents Some models have interior lighting to automatically. illuminate the interior when the door is opened. Drying performance of these Changing the interior lighting type of detergents is improved...
-
Page 35: Programming The Washing Time
Operating the product To cancel the Time Delay function Programming the washing Press and hold Start / Pause / Cancel time key for 3 seconds. Time Delay 2. When the Start / Pause / Cancel key If an economical electricity tariff is applied is pressed and hold, "3", "2", "1"... -
Page 36: Cancelling The Programme
Operating the product Pay attention not to open the If you turn your machine off door of the machine when it is by using On/Off key at the running. Stop the machine by end of the programme, the pressing Start / Pause / Cancel Child Lock will be deactivated key if you have to open the automatically. -
Page 37: End Of Programme
Operating the product 3. Unplug the machine from the socket. Adjusting the water hardness level is explained in Water For energy saving, the product Softening System section. is automatically turned off following the completion of the Rinse Aid indicator ( ) programme or if the programme Please check the rinse aid indicator on the is not started. -
Page 38: Innerclean
Operating the product InnerClean This programme is recommended to be operated on each 1-2 months for machine cleaning and necessary hygiene. The programme should be operated while the machine is empty. In order to achieve an efficient result, it is recommended to use together with special machine cleaning agents. -
Page 39: Maintenance And Cleaning
Maintenance and cleaning Cleaning the filters Service life of the product extends and frequently faced problems decrease if it is Clean the filters at least once a week in cleaned at regular intervals. order for the machine operates efficiently. Unplug the product and turn off Check if food residues are left on the filters. -
Page 40: Cleaning The Hose Filter
Maintenance and cleaning Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. -
Page 41: Cleaning The Impellers
Maintenance and cleaning Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to Lower impeller remove the upper impeller. -
Page 42: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 43 Troubleshooting • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 44 Troubleshooting the filling process. Run the prewash programme to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme. There is a different odour in the machine A new machine has a peculiar odour.
- Page 45 Troubleshooting Detergent remains in detergent dispenser. • Detergent dispenser was damp when adding detergent. >>> Make sure that the detergent dispenser is dried well prior to filling it with detergent. • Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing.
- Page 46 Troubleshooting A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light. • Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
