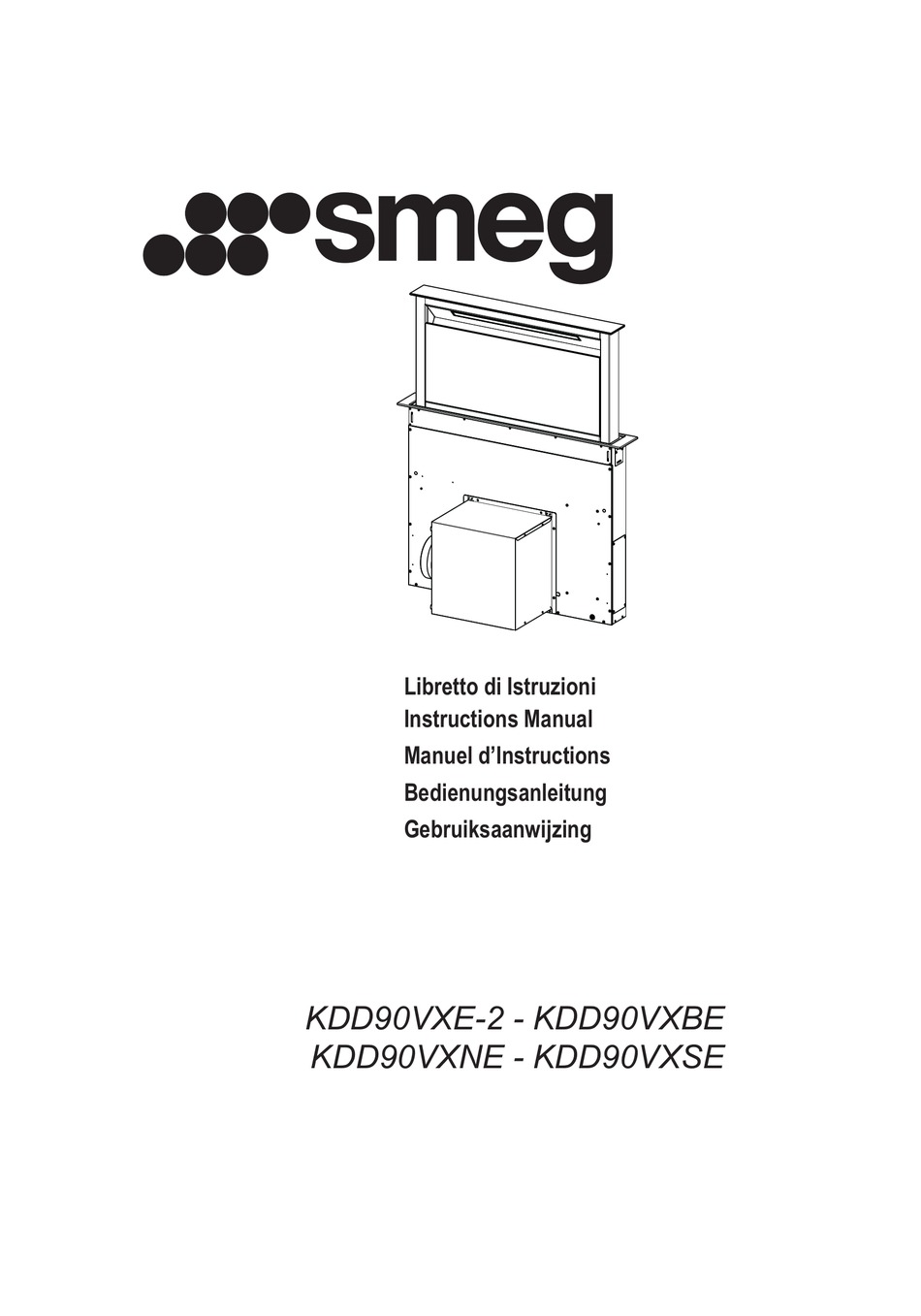

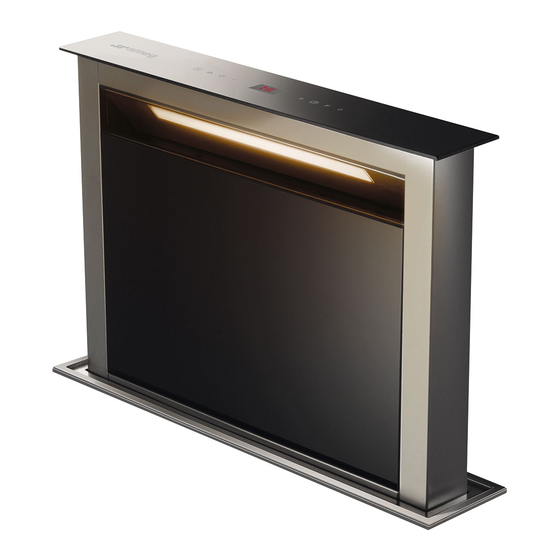

- Page 1 Libretto di Istruzioni Instructions Manual Manuel d’Instructions Bedienungsanleitung Gebruiksaanwijzing KDD90VXE-2 .'' 9;%( .'' 9;1( .'' 9;6(...
- Page 2 INDICE CONSIGLI E SUGGERIMENTI.............................. 3 CARATTERISTICHE................................6 INSTALLAZIONE ................................... 8 USO...................................... 18 MANUTENZIONE ................................20 INDEX RECOMMENDATIONS AND SUGGESTIONS ........................22 CHARACTERISTICS ................................25 INSTALLATION..................................27 USE ...................................... 37 MAINTENANCE ................................... 39 SOMMAIRE CONSEILS ET SUGGESTIONS............................41 CARACTERISTIQUES................................. 44 INSTALLATION..................................46 UTILISATION ..................................
-
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 4 • If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled. • Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
-
Page 5: Maintenance
• “CAUTION: Accessible parts may become hot when used with cooking appliances.” MAINTENANCE • Switch off or unplug the appliance from the mains supply before carrying out any maintenance work. • Clean and/or replace the Filters after the specified time period (Fire hazard). •... - Page 6 CHARACTERISTICS Components Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Filters Motor unit Electric unit Front Frame Ref. Q.ty Installation Components Splashback Fixing Bracket Hob Fixing Bracket Side Bracket Screws 3.5 x 9.5 Screws M4 x 8 Screws 4 x 15 Q.ty Documentation Instruction Manual...
- Page 7 Dimensions 537 - 880 512 - 794 520 - 802...
- Page 8 INSTALLATION This Hood is set up to be fitted inside the kitchen unit in: • Ducting version: Evacuation to the outside. • Recirculation version: Internal recirculation. Sequence of operations - Installation • Drilling the Support Surface and Fitting the Hood •...
- Page 9 Inserting the Hood Canopy into the support surface from below • The Hood is built ready for front installation of the Mo- tor Unit. • If the kitchen unit is arranged differently and the Motor Unit has to be fitted on the back, the Plug already fitted on the back of the Hood Can- opy must be removed and replaced at the front, and the Cable with cable raceway for connection of the Motor must also be repositioned using the slot provided on each side (A).
- Page 10 Inserting the Hood Canopy into the support surface from above • Insert the Brackets 7.2, as indi- cated in the figure, into the slots provided and fix them with the screws 12a provided. • The Hood is built ready for front in- stallation of the Motor Unit.
- Page 11 Fixing the Lower Brackets • Screw the brackets 7.1 to the front of the Hood Canopy using the screws 12a provided. • Before tightening the Brackets completely, make all the adjustments to allow them to rest on the lower base of the worktop to avoid deformation of the upper brackets 7.2 (Only for KDD90VXE-2) as shown in the figure.
- Page 12 Fixing the Squaring Brackets • Screw the brackets 7.3 to the Hood Canopy using the screws 12b provided, without tightening completely. • Using the screws 12c provided, fasten the other part of the brackets 7.3 either to the side walls of the unit or to the lower part of the cooker top. •...
- Page 13 Fixing the Motor Unit • Installation of the Motor Unit (1) at the front or rear must be de- cided according to the position of the Kitchen unit, making sure that the plug is properly positioned. • Subsequently, according to where the air outlet opening has been created on the unit, the Motor Unit can be turned by 90°...
- Page 14 Fixing the Electric Unit • Connect the Electric cables that come out of the lower right hand part of the Hood Canopy to the Connectors on the Electric unit. • Each cable connector has a corresponding connector on the Electric Unit, so take care not to make mistakes when connecting up.
-
Page 15: Ducted Version Air Exhaust System
Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 120 mm, the choice of which is left to the installer. • To install a ø 120 mm air exhaust connection, insert the re- ø... - Page 16 Fitting the Front element • Lift the mobile hood canopy (see paragraph on Use) by just a few centimetres. • To stop movement, simply press down on the mobile canopy as it lifts up. Warning: Never block the Warning..: sliding door when it is opening Handle or closing, except during the with care...
- Page 17 Surround Suction Panel • Open the Hood Door (see USE). • Remove the 2 strips of adhesive tape fastening the panel during transport.
-
Page 18: Control Panel
Control panel Function LED button The button only works when the door is open. Turns the motor On/Off at speed one. Press and hold the button for approximately 5 seconds, with IR+Dot (Flashes twice)-Remote control On. all the loads turned off (Motor and Lights), to turn the IR+Dot (Flashes once)–Remote control Off. -
Page 19: Remote Control (Optional)
REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included). • Do not place the remote control near to heat sources. • Used batteries must be disposed of in the proper manner. -
Page 20: Cleaning The Comfort Panels
MAINTENANCE Cleaning the Comfort Panels • Open the Comfort Panel by pulling it at the top. • Unhook the security chain by opening the spring catch. • Disconnect the panel from the hood canopy. • The comfort panel must never be washed in the dishwasher. •... -
Page 21: Lighting Unit
Activated Charcoal Filter (Recirculation Version) Can be washed in the dishwasher. It must be washed when is displayed or at least once every 4 months, or more frequently if use is particularly intense. Guaranteed to operate after washing for up to a maximum of 5 times before requiring replacement. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.
