Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
CAUTION
!
Unit can NOT be installed behind a closed cabinet
door.

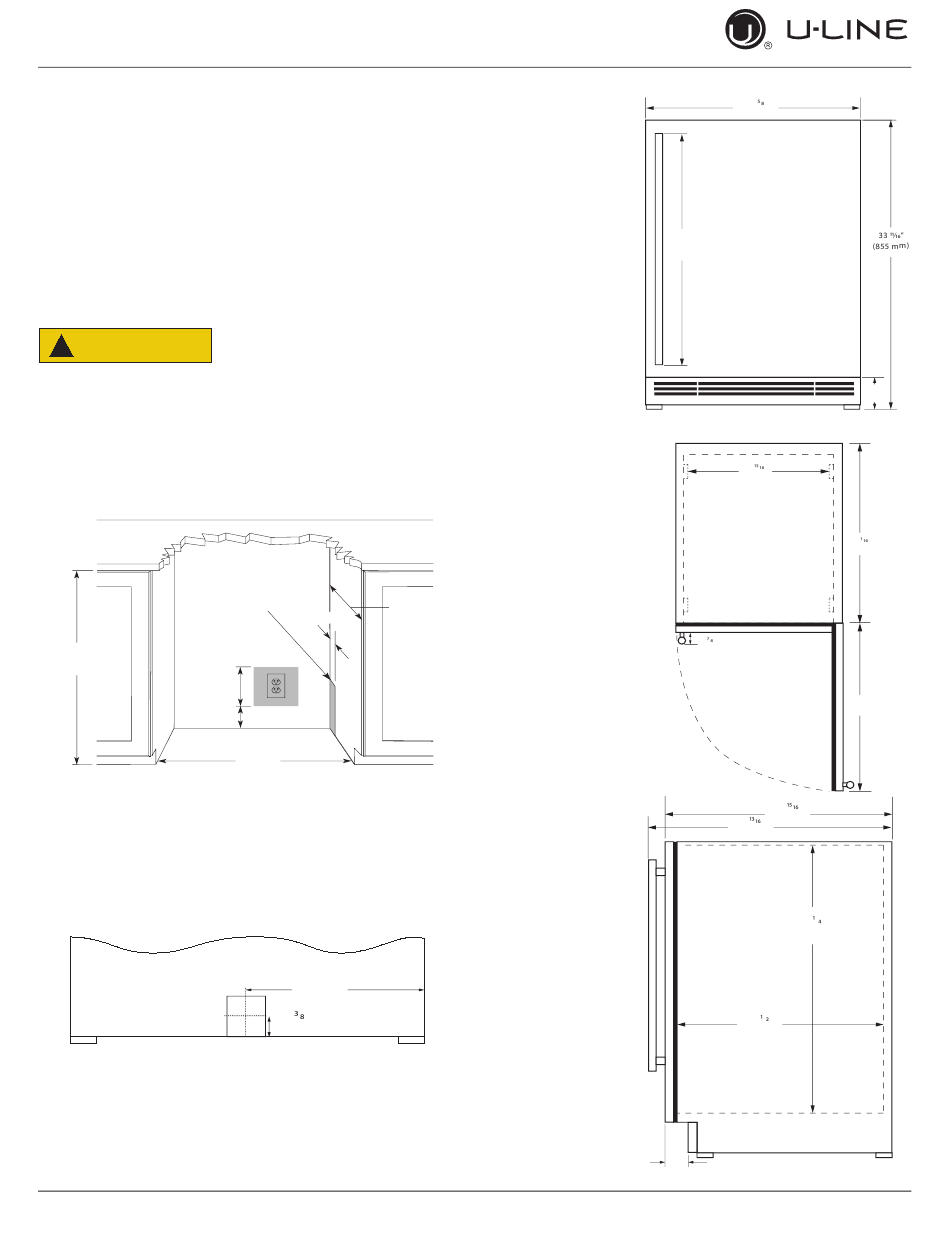

CUTOUT DIMENSIONS
Preferred location
for electrical outlet
is in adjacent
cabinet.
34"
(864 mm)
7"
(178 mm)
4"
(102 mm)
PRODUCT DIMENSIONS
REAR
Power Cord
6 ft (183 cm)
Cutout & Product Dimensions
5/8" 24"
(16 mm) (610 mm)
23 7/8"
(607 mm)
11 ¾"
(222 mm)
1 ⁄ "
(35 mm)
FRONT
28"
(711 mm)
TOP
SIDE
8
u-line.com
23 ⁄ "
(600 mm)
3 ½"
(89 mm)
18 ⁄ "
(481 mm)
21 ⁄ "
(535 mm)
1 ⁄ "
(48 mm)
24 ¾"
(629 mm)
22 ⁄ "
(583 mm)
24 ⁄ "
(630 mm)
24 / "
(616 mm)
17 / "
(445 mm)
4" (102 mm)
