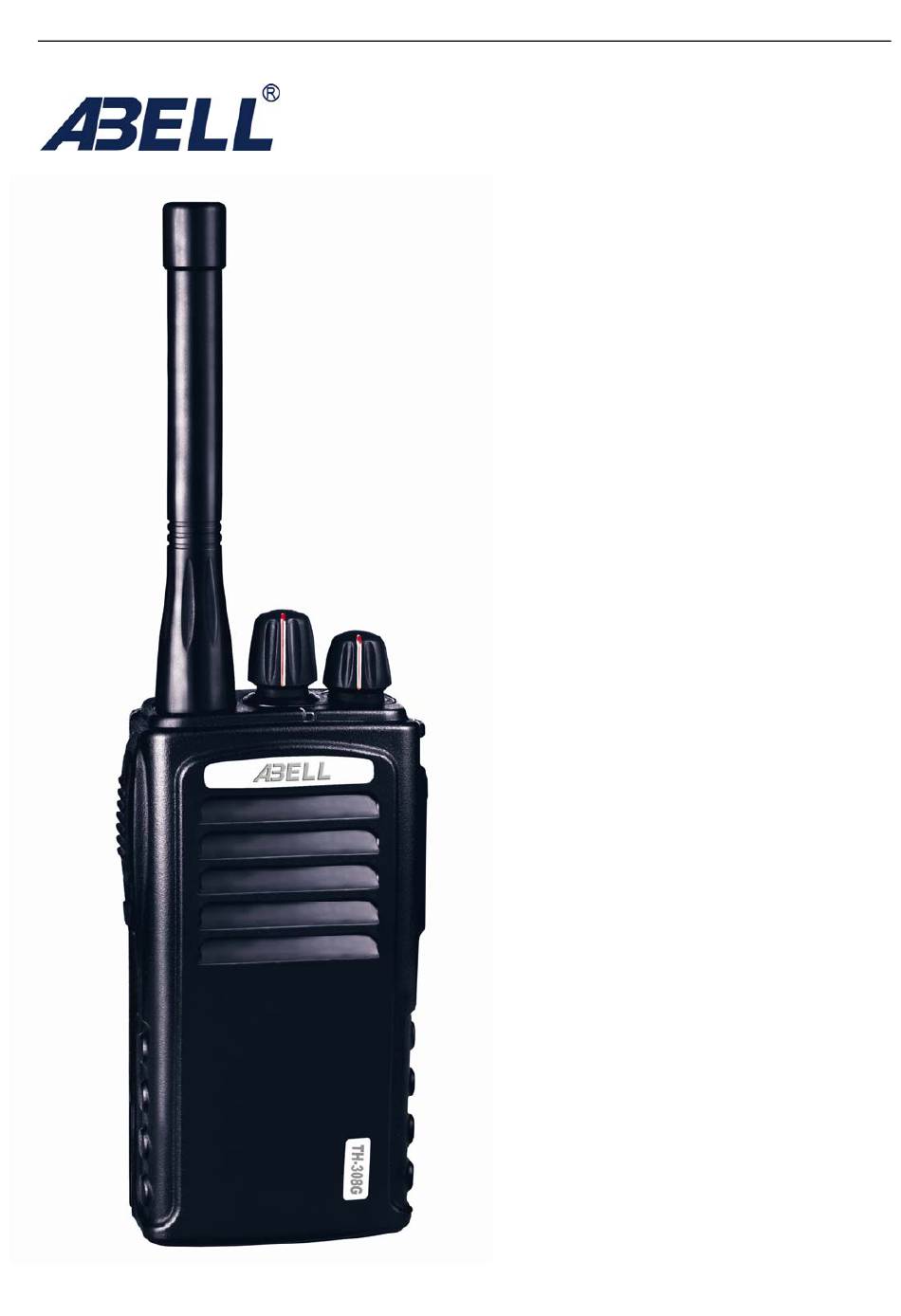

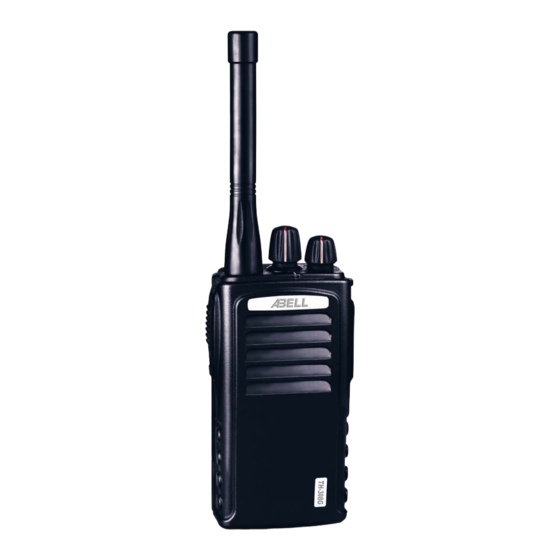

TH-308GB UHF SERVICE MANUAL
ABELL INDUSTRIES CO. LTD
TH308G
SERVICE MANUAL
V．1.0
Web:
www.abell.com.cn
Email:
sales@abell.com.cn
TEL: 86-755-26095567
FAX: 86-755-26404666
ADD: 2F,14BLDG, Zhongxing
Industries city, NanShan,
Shenzhen, China, 518054
- -
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH308G and is the answer not in the manual?

Questions and answers

Related Manuals for Abell TH308G

Summary of Contents for Abell TH308G

  • Page 1 TH-308GB UHF SERVICE MANUAL ABELL INDUSTRIES CO. LTD TH308G SERVICE MANUAL V．1.0 Web: www.abell.com.cn Email: sales@abell.com.cn TEL: 86-755-26095567 FAX: 86-755-26404666 ADD: 2F,14BLDG, Zhongxing Industries city, NanShan, Shenzhen, China, 518054...

  • Page 2: Table Of Contents

    TH-308GB UHF SERVICE MANUAL Abell Industries Co., Ltd TH-308GB UHF SERVICE MANUAL V1.0 Contents GENERAL………………………………………………………………………………1 REALIGNMENT ………………………………………………………………………2 DISASSEMBLY FOR REPAIR ………………………………………………………3 CIRCUIT DESCRIPTION ……………………………………………………………4 PARTS LIST……………………………………………………………………………5 EXPLODED VIEW ……………………………………………………………………6 PACKING………………………………………………………………………………7 ADJUSTMENT…………………………………………………………………………8 PC BOARD VIEWS TX-REX UNIT(X57-6030-XX)…………………………………………………9 SCHEMATIC DIAGRAM……………………………………………………………10 SPECIFICATIONS ………………………………………………………………… 11...

  • Page 3: General

    TH-308GB UHF SERVICE MANUAL GENERAL INTRODUCTION SCOPE OF THIS MANUAL This manual is intended for use by experienced technicians familiar with similar types of commercial grade communications equipment. It contains all required service information for the equipment and is current as of the publication data. Changes which may occur after publication are covered by either Service Bulletins or Manual Revisions.

  • Page 4: Realignment

    TH-308GB UHF SERVICE MANUAL REALIGNMENT 1 Modes User Mode PC Mode Manufacture Mode MODE FUNCTION User Mode Use this mode for normal operation Use this mode, to make various PC Mode settings by means of the FPU through the RS-232C port. Use this mode, to realign the various Manufacture settings through the RS-232C port...
  • Page 5 PC MODE Preface The transceiver is programmed by using a personal computer, programming interface (provided by ABELL) and programming software. Pic 1 shows how the devices work. Connection procedure 1． Connect the TH-308G to the personal computer with the interface cable(CNX-02).

  • Page 6: Disassembly For Repair

    If data is transferred to the transceiver from a personal computer with software provided by Abell, the destination data (basic radio information) for each set can be modified. Normally, it is not necessary to modify the destination data because their values are determined automatically when the frequency range (frequency type) is set.
  • Page 7 TH-308GB UHF SERVICE MANUAL remove it form the case assembly④. 4．Taking care not to cut the speaker lead⑤, open the chassis and case assembly. Seperating the chassis from the unit 1．Remove the eleven screws⑥. 2．Remove the solder from the antenna terminal using a soldering iron then lift the unit off⑦. 3．Remove the two screws⑧and remove the antenna connector.

  • Page 8: Circuit Description

    TH-308GB UHF SERVICE MANUAL CIRCUIT DESCRIPTION 1.Frequency configuration The receiver utilizes double conversion. The first IF is 21.70MHz and the second IF is 450KHz. The first local oscillator signal is supplied from the PLL circuit.
  • Page 9 TH-308GB UHF SERVICE MANUAL The PLL circuit in the transmitter generates the necessary frequencies. 2.Receiver The receiver is double conversion superheterodyne, designed to operate in the frequency range of 450-470MHz, 400-420MHz, 350-370MHz, 370-390MHz. 1） Front-end RF amplifier An incoming signal from the antenna is applied to an RF amplifier (Q4) after passing through a transmit/receive switch circuit (D19 off) and a band pass LC filter.
  • Page 10 TH-308GB UHF SERVICE MANUAL QT/DQT 300Hz and higher audio frequencies of the output signal from IF IC are cut by IC300A and IC300D. The resulting signal enters the microprocessor (IC2). IC2 determines whether the QT matches the preset value, and controls the AFCC and the speaker output sounds according to the squelch results.
  • Page 11 TH-308GB UHF SERVICE MANUAL 3） VCO and RF amplifier The transmit signal obtained from the VCO buffer amplifier Q45, is amplified by QY1. This amplified signal is passed to the power amplifier, QY4 and Q29, which consists of a 2 stage FET amplifier and is capable of producing up to 3W of RF power.
  • Page 12 TH-308GB UHF SERVICE MANUAL Spare parts list-Side A Item Specification Description Part Number Package Chip resistor 0603 ±5% R3 R42 R62 R64 R110 0603 ±5% R18 R113 R281 0402 270R ±5% R53 R54 100R 0603 ±5% R61 R167 470R 0603 ±5% R268 0603...
  • Page 13 TH-308GB UHF SERVICE MANUAL 0603 ±5% 0603 1.8M ±5% 0603 R02 R267 0402 R114 Resistor network 4×0603 YC164-JR-071K 1k*4 thermistor NCP18WB473J03R B(NEW) 0603 NTC Thermistor NTH5G16P40B473 J07TH Adjustable Resistor EVM2WSX80BQ4 Φ2 VR1 VR5 EVM2WSX80BE5 VR3 VR2 220K Φ2 Chip capacitance 0402 C166 COG，±0.1PF，16V...
  • Page 14 TH-308GB UHF SERVICE MANUAL 0402 R38 C17 C6 C365 R115 capacitance 4.7UF A Type ±20%，6.3V C112 6.8UF A Type ±20%，10V C310 10UF A Type ±20%，6.3V C61 C75 C328 Inductance BLM11A601S 0603 Bead 600R L11 L12 L13 L14 L43 BLM18AG601SN1D Air-core Coil， LQH32MN1R0M23 1210 Ferrite...
  • Page 15 TH-308GB UHF SERVICE MANUAL Item Specification Package Description Part Number Chip resistor 0603 ±5% R21 R37 R216 R217 0805 ±5% 0402 ±5% 0603 ±5% R247 R248 RY4 0603 ±5% R229 RY92 R212 0603 ±5% 100R 0603 ±5% R82 R89 R91 R92 R121 R124 R213 R11 R253 150R 0603...
  • Page 16 TH-308GB UHF SERVICE MANUAL Resistor network 1k*4 4×0603 YC164-JR-071K Chip capacitance 0.5PF 0402 C0G，±0.1pF，16V C23 C302 C304 C305 0.75PF 0603 C0G，±0.1pF，16V C348 0402 C0G，±0.1pF，16V C35 C38 C307 1.5PF 0402 C0G，±0.1pF，16V 0402 C0G，±0.1pF，16V C18 C20* C21 C41 0402 C0G，±0.1pF，16V C78 C143 C295 C306 3.6PF 0402 C0G，±0.1pF，16V...
  • Page 17 TH-308GB UHF SERVICE MANUAL C281 C366 0.047UF 0402 X5R，±10%，16V C108 0.1UF 0402 X5R，±10%，16V C3 C4 C27 C28 C114 C170 C184 C186 C187 C192 C193 C195 C196 C197 0.1UF 0603 X5R，±10%，16V C198 C204 C291 C339 0.47UF 0402 X5R，±10%，16V 0603 X5R，±10%，16V C266 C267 0402 C19 C42 C40 C225 C294 Adjustable...
  • Page 18 TH-308GB UHF SERVICE MANUAL High frequency LQN1A27NJ 1206 Multilaminated LQW31HN27NJ03L Induction High frequency MLK1005S47NJT00 0402 L51 LY2 Multilaminated LQG15HN47NJ02D Induction High frequency MLK1005SR12JT00 0402 Multilaminated LQG15HNR12J02D Induction High frequency NLV25T-1R0J-PF 2520 LY20 Multilaminated Induction High frequency NLV25T-R22J-PF 2520 Multilaminated Induction High frequency NLV25T-2R2J-PF 2520...
  • Page 19 TH-308GB UHF SERVICE MANUAL 2SC2714 SOT-23 TRANSISTOR 2SC4226 SOT-323 TRANSISTOR Q45 Q46 Q47 QY1 2SC4617 SOT-416 TRANSISTOR Q9 Q11 2SK3078 SOT-89-3L QY4(Remark 1) 2SK508NV SOT-23 BF998R SOT-143R Q4 Q24 AO3400 SOT-23 PD54008L Q29(Remark 1) DTA114EE SOT-416 TRANSISTOR DTA114YE SOT-416 TRANSISTOR DTC114EE SOT-416 TRANSISTOR...
  • Page 20 TH-308GB UHF SERVICE MANUAL TH308GB(D57) Part List Side A Item Specification Package Description Part Number Chip resistor 0603 ±5% R3 R36 R42 R62 R64 R110 0603 ±5% R18 R281 0402 270R ±5% R53 R54 100R 0603 ±5% R61 R167 470R 0603 ±5% R268...
  • Page 21 TH-308GB UHF SERVICE MANUAL 0603 750K ±5% R137 0603 ±5% 0603 1.8M ±5% 0402 R114 R115 0603 R02 R113 R267 Resistor Network 4×0603 YC164-JR-071K 1k*4 Adjustable resistor Φ2 EVM2WSX80BQ4 VR1 VR5 220K Φ2 EVM2WSX80BE5 VR3 VR2 Thermistor NCP18WB473J03RB (New type) 0603 NTC Thermistor NTH5G16P40B473J...
  • Page 22 TH-308GB UHF SERVICE MANUAL Y5V,＋80%－ 0805 C270 20%,25V 0402 R38 C17 C209 C331 C365 Tan Capacitance 4.7UF A Type ±20%，6.3V C112 6.8UF A Type ±20%，10V C310 A Type ±20%，6.3V C61 C75 C328 10UF Inductance BLM11A601S 0603 Bead 600R L11 L12 L13 L14 L43 BLM18AG601SN1D Aircore coil, LQH32MN1R0M23...
  • Page 23 TH-308GB UHF SERVICE MANUAL TH308GB(D57) Parts List Side B Item Specification Package Description Part Number Chip resistor ±5% 0603 R21 R37 R216 R217 ±5% 0805 ±5% 0402 0603 ±5% R247 R248 RY4 0603 ±5% R229 RY92 R212 ±5% 0603 ±5% 100R 0603 R82 R89 R91 R92 R121 R124 R213...
  • Page 24 TH-308GB UHF SERVICE MANUAL ±5% 1.8M 0603 R103 R30 R34 0603 Resistor Network 1K×4 4×0603 YC164-JR-071K Chip Capacitance C0G，±0.1pF，16V 0.3PF 0603 C0G，±0.1pF，16V 0.5PF 0402 C23 C38 C302 C304 C305 C0G，±0.1pF，16V C348 0.5PF 0603 0.75PF 0402 C0G，±0.1pF，16V 0402 C0G，±0.1pF，16V C41 C78* C307 1.5PF 0402 C0G，±0.1pF，16V...
  • Page 25 TH-308GB UHF SERVICE MANUAL X5R，±10%，16V 4700PF 0402 C16 C26 C33 C34 C87 C271 C272 X5R，±10%，16V 0.01UF 0402 C273 C275 C276 C277 C278 C279 C280 C281 C366 X5R，±10%，16V 0.047UF 0402 C108 X5R，±10%，16V 0.1UF 0402 C3 C4 C27 C28 C114 C170 C184 C186 X5R，±10%，16V 0.1UF 0603...
  • Page 26 TH-308GB UHF SERVICE MANUAL LQG15HN39NJ02D multilaminated Inductance High frequecny LQN1A23NJ 1206 aircore coil LQW31HN23NJ03L Inductance High frequecny MLK1005S47NJT00 0402 multilaminated L51 LY2 LQG15HN47NJ02D Inductance High frequecny MLK1005SR12JT00 0402 multilaminated LQG15HNR12J02D Inductance High frequecny NLV25T-1R0J-PF 2520 aircore coil Inductance High frequecny LY20 NLV25T-2R2J-PF 2520...
  • Page 27 TH-308GB UHF SERVICE MANUAL TRANSISTOR 2SC2714 SOT-23 TRANSISTOR 2SC4226 SOT-323 Q45 Q46 Q47 QY1 TRANSISTOR 2SC4617 SOT-416 Q9 Q11 2SK508NV SOT-23 BF998R SOT-143R Q4 Q24 AO3400 SOT-23 2SK3078 SOT-89-3L QY4（Remark 1） PD54008L Q29（Remark 1） TRANSISTOR DTA114EE SOT-416 DTA114YE SOT-416 TRANSISTOR DTC114EE SOT-416 TRANSISTOR...

  • Page 28: Parts List

    TH-308GB UHF SERVICE MANUAL TH308GB(D02、D57) Weld Parts List Item Part name Specification Package Part number Description Crystal 21.25MHz UM-5 Crystal Filter 21.7MHz(21T10B) UM-5 couple XF1 XF2 LTM450FW Ceramic Filter 4.5*4.5*4.8 Monitor key 180g 3*6mm Frequency JTBM450C24 Discriminator F0M6036P Φ6×3.6mm MIC(1.0K) PJ-208B Mic-jack （Silvered）、...
  • Page 29 Li-ion battery 1200mA 7.4v（P09308-003、P10308-003） B10308-001 pack A01D02-001 Antenna HN-400/420-SMAK900 Outside B05308-003 Input：220AC Output：DC12V/600mA transformer B09308-002 leash Blue B12308-002 Spring belt-clip TH308G（D02） B11308-001 Transceiver B01308-007 Instruction book Service card(1 B02308-003 year) B04307-002 Battery packing 160*85 Transceiver 160×85 B04307-001 packing B03308-001 Packing...

  • Page 30: Exploded View

    TH-308GB UHF SERVICE MANUAL Exploded View...

  • Page 31: Packing

    TH-308GB UHF SERVICE MANUAL Packing View...

  • Page 32: Adjustment

    TH-308GB UHF SERVICE MANUAL Adjustment Required test Equipment 1．Stability power supply 1．The supply voltage can be changed between 5V and 18V, and the current is 3A or more. 2．The standard voltage is 7.5V 2．DC Ammeter 1．Class 1 ammeter (17ranges and other features). 2．The full scare can be set to either 300mA or 3A.
  • Page 33 TH-308GB UHF SERVICE MANUAL 1．Measuring range：DC to 1GHz or more. 11．Standard Signal Generator (SSG) 1．Maximum frequency：500MHz or more. 2．Output：－133dBm/0.05μV to 7dBm/501mV 3．Output resistance：50Ω 12．Tracking Generator 1．Center frequency：50KHz to 500MHz 2．Frequency Deviation：±35MHz 3．Output voltage：100mV or more 13．Dummy Load 1．8Ω，3W or moer 14．Audio Generator (AG) 1．Frequency range：100Hz to 100KHz 2．Output：0.5mV to 1V...
  • Page 34 TH-308GB UHF SERVICE MANUAL Use the TH308GB programming software for adjustment the following item in the PC mode Squelch Level, Transmit frequency, RF power, QT deviation, Battery level Section common to the transmitter and receiver (VCO) Measurement Adjustment Item Condition Test Terminal Parts Method...
  • Page 35 TH-308GB UHF SERVICE MANUAL Receiver section Measurement Adjustment Specification Item Condition Test equipment Terminal Parts method Remark 1 ． Band Tra generator Adjust 1) CH：RX center pass-filter Spectrum Analyzer R194 frequency 2)Tra generator output that it becomes -40dBm spectrum Connect the spectrum waveform analyzer to TP2 terminal shown in fig1.
  • Page 36 TH-308GB UHF SERVICE MANUAL Transmitter section Measurement Adjustment Specification/ Item Condition Remark Test equipment Terminal Parts Method 1．Transmit 1)CH ： TX F. counter Antenna Adjust center Within ±100Hz (PC mode center frequency PTT：On 2. Power 1)CH: TX low Power meter Adjust to 3W ±0.1W (PC mode)
  • Page 37 TH-308GB UHF SERVICE MANUAL BPF-Wave Figure 1...
  • Page 38 TH-308GB UHF SERVICE MANUAL PCB circuit Power control circuit ANT SW DRIVE AMP FINAL AMP BATIN ANT SW 450KHz ANT SW IF SYST EM 21.7MHz OSC 21.25MHz TCXO 12.8MHz...
  • Page 39 TH-308GB UHF SERVICE MANUAL Receiver section M IX ER IF AM P RF AM P AF PA AMP XF1,X F2 L18,L59,L60 L6,L33,L34,L20 IC 11 IF,M IX,DET RF AMP Filter ANT S W IC 17 IC 300 B /C 1ST LOCAL OSC 2nd Local OSC (PLL) Unlocked detector circuit...
  • Page 40 TH-308GB UHF SERVICE MANUAL TH308GB PCB Circuit View Fin2 Fin1 V- vco V-vco lock Xout date AF OUT FILI QUAD FILO I FO RSSI I FI NDET NREC MIXO OSCO MI XI OSC1 AF IN R183 RF OU T P1.0 XI N P2.0 XOUT...
  • Page 41 TH-308GB UHF SERVICE MANUAL TH308GB Parts View Side A...
  • Page 42 TH-308GB UHF SERVICE MANUAL TH308GB Parts View Side B...
  • Page 43 TH-308GB UHF SERVICE MANUAL TH308GB PC Board View Side A...
  • Page 44 TH-308GB UHF SERVICE MANUAL TH308GB PC Board View Side B...

  • Page 45: Specifications

    TH-308GB UHF SERVICE MANUAL SPECIFICATIONS GENERAL Frequency Range…………………………………450-470MHz：D57 400-420MHz：D02 350-370 MHz：C57 370-390 MHz：C79 RF power output …………………………………4W Number of channels………………………………16CH Operating Voltage…………………………………7.5V DC ±20% Temperature Range ………………………………-30℃ to ±60℃(-22℉ to +140℉) With A-31A (7.4V 1200mAh Li-ion battery) ……50W X 100H X 25D mm 201g...
