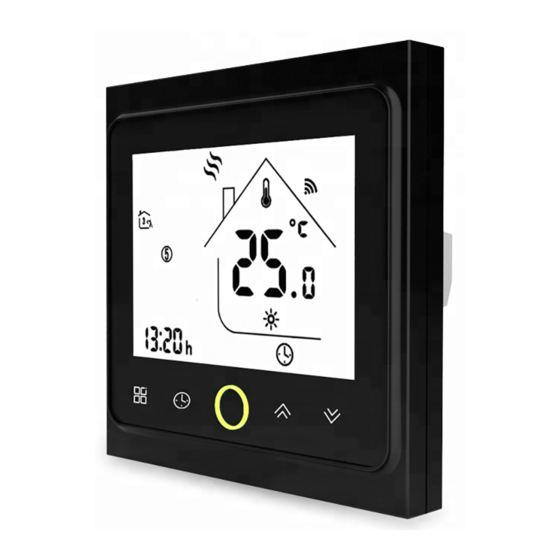

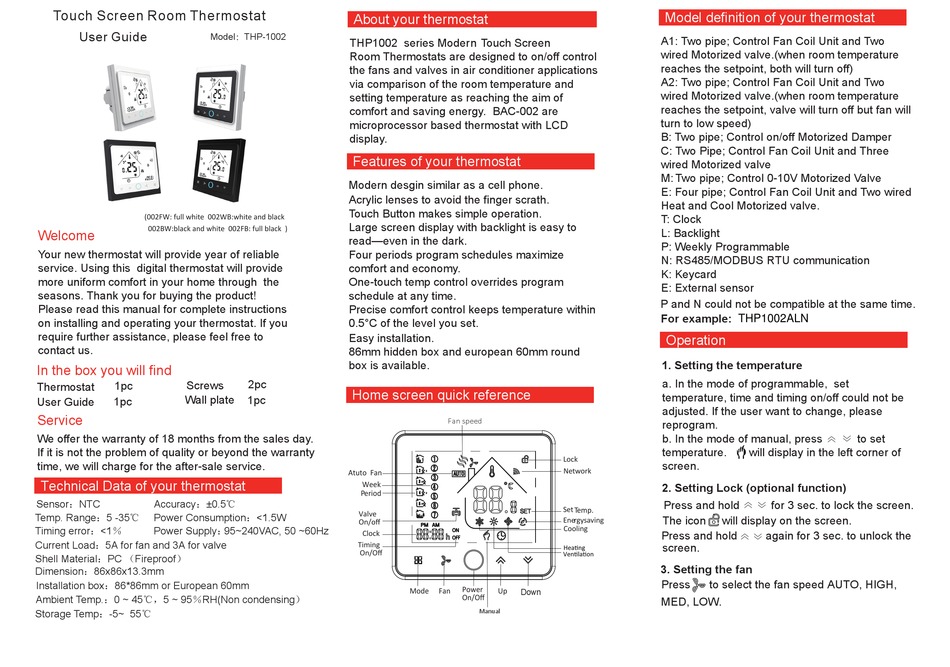

ELECHICO THP-1002 User Manual

Touch Screen Room Thermostat
User Guide
Model THP-1002
(002FW: full white 002WB:white and black
002BW:black and white 002FB: full black )
Welcome
Your new thermostat will provide year of reliable
service. Using this digital thermostat will provide
more uniform comfort in your home through the
seasons. Thank you for buying the product!
Please read this manual for complete instructions
on installing and operating your thermostat. If you
require further assistance, please feel free to
contact us.
In the box you will find
1pc Screws
Thermostat
Wall plate
User Guide 1pc
Service
We offer the warranty of 18 months from the sales day.
If it is not the problem of quality or beyond the warranty
time, we will charge for the after-sale service.

Technical Data of your thermostat

Sensor：NTC Accuracy：±0.5℃
Temp. Range：5 -35℃ Power Consumption：<1.5W
Timing error：<1％ Power Supply： 95~240VAC, 50 ~60Hz
Current Load：5A for fan and 3A for valve
Shell Material：PC （Fireproof）
Dimension：86x86x13.3mm
Installation box：86*86mm or European 60mm
Ambient Temp.：0 ~ 45℃，5 ~ 95％RH(Non condensing）
Storage Temp：-5~ 55℃

About your thermostat

：
THP1002 series Modern Touch Screen
Room Thermostats are designed to on/off control
the fans and valves in air conditioner applications
via comparison of the room temperature and
setting temperature as reaching the aim of
comfort and saving energy. BAC-002 are
microprocessor based thermostat with LCD
display.

Features of your thermostat

Modern desgin similar as a cell phone.
Acrylic lenses to avoid the finger scrath.
Touch Button makes simple operation.
Large screen display with backlight is easy to
read—even in the dark.
Four periods program schedules maximize
comfort and economy.
One-touch temp control overrides program
schedule at any time.
Precise comfort control keeps temperature within
0.5°C of the level you set.
Easy installation.
86mm hidden box and european 60mm round
box is available.
2pc
Home screen quick reference
1pc
Atuto Fan
Week
Period
Valve
On/off
Clock
Timing
On/Off
Mode
F an speed
Lock
Network
Set Temp.
Energysaving
Cooling
Power
Fan Up
Down
On/Off
Manual
Model definition of your thermostat
A1: Two pipe; Control Fan Coil Unit and Two
wired Motorized valve.(when room temperature
reaches the setpoint, both will turn off)
A2: Two pipe; Control Fan Coil Unit and Two
wired Motorized valve.(when room temperature
reaches the setpoint, valve will turn off but fan will
turn to low speed)
B: Two pipe; Control on/off Motorized Damper
C: Two Pipe; Control Fan Coil Unit and Three
wired Motorized valve
M: Two pipe; Control 0-10V Motorized Valve
E: Four pipe; Control Fan Coil Unit and Two wired
Heat and Cool Motorized valve.
T: Clock
L: Backlight
P: Weekly Programmable
N: RS485/MODBUS RTU communication
K: Keycard
E: External sensor
P and N could not be compatible at the same time.
For example: T H P T H P T
THP1002ALN

Operation

1. Setting the temperature
a. In the mode of programmable, set
temperature, time and timing on/off could not be
adjusted. If the user want to change, please
reprogram.
《 》
b. In the mode of manual, press
temperature. will display in the left corner of
screen.
2. Setting Lock (optional function)
《
Press and hold for 3 sec. to lock the screen.
》
The icon will display on the screen.
《 》
Press and hold again for 3 sec. to unlock the
screen.
3. Setting the fan
Press to select the fan speed AUTO, HIGH,
MED, LOW.
to set
