ELECHICO 1002 Series User Manual

Heating Room Thermostat
User Guide

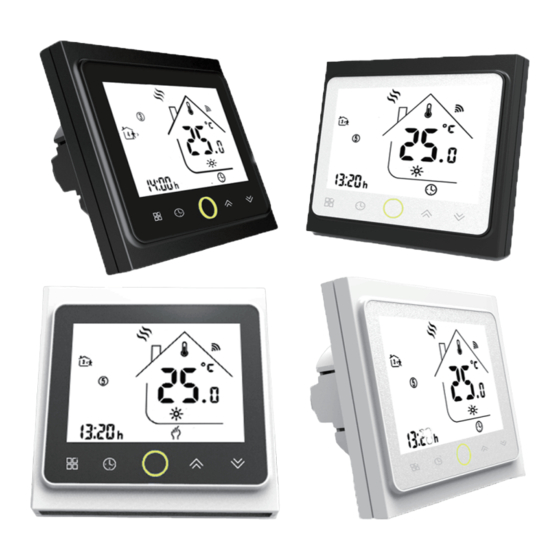

Model：THP1002
(002FB: full black
002 BW: black and white
002FW: full white
002WB:white and black
Welcome
Thank you for your purchase.
Your new thermostat will provide uniform and
comfortable temperature control throughout
every room in your property. We bring together
technology, craftsmanship and the highest quality
materials to provide you with a safe, reliable
product combined with sleek, contemporary design.
Please read this installation/programming manual
for comprehensive instructions on installing and
operating your thermostat. Please ensure a
suitably qualified person installs your thermostat
and complies with all local regulations.
Contents
Thermostat
Screws
Installation/programming manual
Wall plate
2.5m External (Floor) Sensor(optional)
Warranty
Your thermostat carries an 24 month warranty from
date of purchase. Service outwith the warranty
period may incur a charge.
Your thermostat
The THP1002 range has been developed to
control electric underfloor or water heating or
water/gas boiler system. These units are
designed for use in commercial, industrial, civil
and domestic properties.
Features
Simple installation
Acrylic face plate
Large, backlit display
Sleek, contemporary design
Elegant chrome frame
Feather touch control panel
5+2 six period per day programming
Simple, one-touch temperature control over-ride
Pre-set temperatures maintained within +/- 1°C
Internal and external sensors allow control of
)
both air and/or floor temperatures
Suitable for installation in a standard single pattress
box or European 60mm round box
RS485/MODBUS communication optional

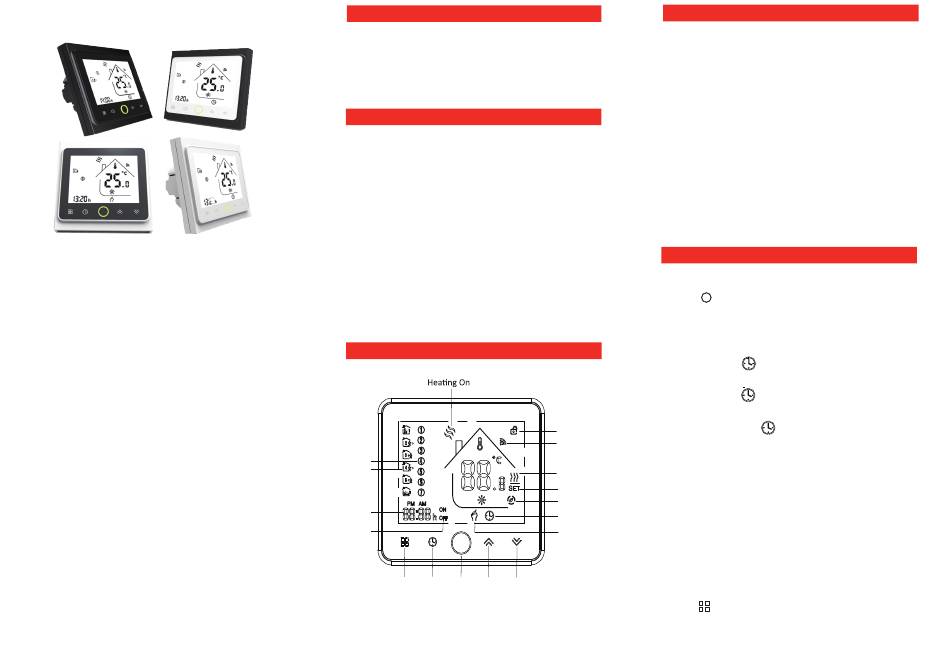

Home screen quick reference
Week
Period
1pc
Time
1pc
Timing
1pc
On/Off
1pc
1pc
Mode
.
Lock
Network
Floor Temp.
Set. Temp.
Energysaving
Programmable
Manual
Clock Power Up Down
Technical Data
Sensor：NTC
Accuracy：±1℃
Set Temp. Range：5-35℃
Room Temp. Range：5-99℃
Power Consumption：< 1.5W
Timing Error：<1％
Power Supply：95 ~ 240VAC, 50 ~60Hz
Current Load：3A（water heating, water/gas boiler),
16A（electric heating)
Shell material：PC+ABS (flame retardant)
Dimension：86x86x13.3mm
Ambient Temp.：0-45℃，5-95％RH
（Non-condensing）
Storage Temp.：-5-55℃
Installation Hole distance: 60mm
Operation/programming
1. Power on/off
Press to turn on/off.
2. Adjusting/setting the temperature
《
Press to set the desired temperature.
》
3. Adjusting/Setting the clock
Touch the icon to set minute, hour and weekday
(1 = Monday, 2 = Tuesday etc.) by using the
arrows. Press once more to confirm and exit.
4.Locking your thermostat
《
Press and hold the and arrows for 5 seconds
to lock/unlock your thermostat.
5.Adjusting/setting the program schedules
Your thermostat provides six scheduled heating
periods each day – three Comfort periods - 1, 3 & 5
(the temperature required when room is occupied)
and three Economy periods – 2, 4 & 6 (the
temperature required when room is unoccupied).
You can set both the time and temperature for each
of these six daily periods. Adjusting/setting the
schedules can only be carried out when in program
mode;
Touch (mode) to change between manual mode
and programme mode. In manual mode,
《 》
