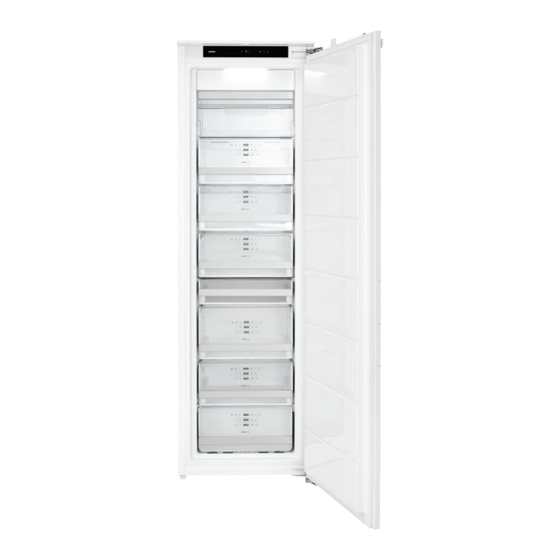

- Page 1 Instructions for use Freezer KD84178CD KD84178CDC...
-
Page 2: Table Of Contents
CONTENTS Your freezer Introduction Safety instructions Installation and connection Selecting the location Connecting the appliance Changing the side on which the door opens / building the appliance into a cupboard Before using the appliance for the first time Before you use the appliance for the first time Energy-saving advice Description of the appliance Appliance... - Page 3 CONTENTS Storing and freezing food Recommended distribution Avoid contamination of food Freezing and storing foods in the freezer Thawing frozen food Maintenance Defrosting the appliance Cleaning the appliance Faults Faults table Environmental aspects Disposal of packaging and appliance Pictograms used Important information EN 3...
-
Page 4: Your Freezer
YOUR FREEZER Introduction Congratulations on choosing this Atag freezer. This product is designed with simple operation and optimum comfort in mind. These instructions for use explain how you can make best use of this appliance. These instructions contain information about the operation of the appliance and background information that may be of help to you during its use. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Safety of children and vulnerable people •... - Page 6 SAFETY INSTRUCTIONS General safety • The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination. • WARNING! This appliance is intended to be used in household and similar applications such as: –...
- Page 7 SAFETY INSTRUCTIONS Installation • WARNING! This appliance should only be connected by a registered installer. • Remove all the packaging. • Do not install or use a damaged appliance. • Obey the installation instruction supplied with the appliance. • Always be careful when you move the appliance because it is heavy.
- Page 8 SAFETY INSTRUCTIONS Electrical connection • WARNING! Risk of fire and electrical shock. • The appliance must be earthed. • All electrical connections should be made by a qualified electrician. • Make sure that the electrical information on the rating plate agrees with the power supply.
- Page 9 SAFETY INSTRUCTIONS • WARNING! Risk of injury, burns, electrical shock or fire. • Do not change the specification of this appliance. • Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
- Page 10 SAFETY INSTRUCTIONS Disposal • WARNING! Risk of injury or suffocation • Disconnect the appliance from the mains supply. • Cut off the mains cable and discard it. • Remove the door to prevent children and pets to be closed inside of the appliance. •...
-
Page 11: Installation And Connection
INSTALLATION AND CONNECTION Selecting the location • Place the appliance in a dry and well aired room. The permitted ambient temperature range for the appliance depends on the appliance's climate class, which is shown on the type plate. • Do not place the appliance near a source of heat, such as a gas cooker, radiator or boiler, etc., and do not expose it to direct sunlight. -
Page 12: Connecting The Appliance
INSTALLATION AND CONNECTION • The appliance must be placed at a distance of about 5 cm from the wall, back and sides of a cupboard. A kitchen cupboard above the refrigerator must have a gap of at least 5 cm between the back of the cupboard and the wall. -
Page 13: Changing The Side On Which The Door Opens / Building The Appliance Into A Cupboard
INSTALLATION AND CONNECTION Freeze burn hazard To avoid freeze burn, never put frozen food in your mouth and do not touch frozen food. In the event of a defect or power cut, do not open the freezer compartment unless the appliance has been out of operation for more than the hours indicated on the appliance’s type plate (temperature rise time). -
Page 14: Before Using The Appliance For The First Time
BEFORE USING THE APPLIANCE FOR THE FIRST TIME Before you use the appliance for the first time Do not connect the appliance to the mains until you have carefully read the instructions for the correct and safe use of the appliance. As these instructions are for various types and models, it is possible that the instructions for use refer to settings or parts that are not available on your appliance. -
Page 15: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Appliance 1. Control panel 2. LED interior lighting 3. NoFrost freezer unit 4. Freezer compartment 5. Freezer drawers Best location for freezing fresh food. NoFrost With the NoFrost system, you no longer need to defrost the freezer. Door closure The door closes itself once the opening angle is less than 20°. - Page 16 DESCRIPTION OF THE APPLIANCE Drawers A number of drawers are mounted on fully extending telescopic rails and are fitted with a soft-close system. To remove a drawer from the rails, pull the drawer fully out. Lift the back of the drawer (1). Pull the drawer to you (2) and then lift the drawer from the rails.
-
Page 17: Control Panel
DESCRIPTION OF THE APPLIANCE Control panel For best results, touch the keys with as much of the fingertip as possible. A. Alarm key / WiFi key (see ‘Atag Connect Life’) B. Temperature adjustment keys C. Display of the set temperature D. -
Page 18: Operating The Appliance
OPERATING THE APPLIANCE Switching on the freezer and setting the temperature 1. Touch the On/Off key. The freezer turns on. ▷ 2. Use the adjustment keys to adjust the temperature. The temperature can be set to between -24 °C and -16 °C. The recommended temperature is -18 °C (factory setting). -
Page 19: Eco Function
OPERATING THE APPLIANCE 1. Touch the FastFreeze key. ‘FF’ is shown in the display to indicate that the FastFreeze ▷ function is activated. 2. Touch the FastFreeze key again to disable the function. ▷ The display once again shows the set temperature. Adjusting the temperature of the freezer compartment while the intensive freezing function is activated will immediately disable the intensive freezing function. -
Page 20: Child Lock
OPERATING THE APPLIANCE Child Lock This function can be used to prevent unintended adjustments of the appliance's settings. All keys other than the ECO/Child Lock key are disabled. Switching the Child Lock on or off 1. Touch the ECO/Child Lock key for three seconds. ‘LL’... -
Page 21: Power Failure Alarm
OPERATING THE APPLIANCE Every time the appliance is switched on again, it takes a while until the correct temperature is reached. For this reason, the alarm is disabled for the first 24 hours after the appliance is switched on to prevent the unnecessary activation of the alarm. Stopping the alarm 1. -
Page 22: Storing And Freezing Food
STORING AND FREEZING FOOD Recommended distribution The best location for freezing fresh food is marked with a Do not store lettuce, eggs, apples, pears, grapes, peaches, yoghurt, buttermilk, sour cream or mayonnaise in the freezer. Avoid contamination of food To avoid contamination of food, please respect the following instructions: •... -
Page 23: Freezing And Storing Foods In The Freezer
STORING AND FREEZING FOOD Freezing and storing foods in the freezer Important recommendations for freezing fresh food • The maximum quantity of food that you can put in the freezer in one go is stated on the type plate. Putting more than this maximum quantity of food into the freezer will slow the freezing process and reduce the quality. -
Page 24: Thawing Frozen Food
STORING AND FREEZING FOOD Recommended storage times of frozen food in the freezer Type of food Storage life Fruit, beef 10 to 12 months Vegetables, veal, poultry 8 to 10 months Venison 6 to 8 months Pork 4 to 6 months Finely chopped or minced meat 4 months Bread, pastas, cooked dishes, whitefish... -
Page 25: Maintenance
MAINTENANCE Defrosting the appliance Defrosting of the NoFrost freezer The NoFrost freezer defrosts automatically. Any frost deposits will then disappear. Any ice or frost deposits that nevertheless form in the freezer compartment can be caused by unusual use of the appliance (opening the door too often and too long or poorly sealing door, etc.). - Page 26 MAINTENANCE • Do not put parts of the appliance in a dishwasher: this could damage them. When you are not going to use the appliance for a longer period then switch it off with the appropriate key and disconnect it from the mains. Empty, defrost and clean the appliance, and leave the door ajar.
-
Page 27: Faults
FAULTS Faults table When you have any doubts about whether your appliance is working properly you should not immediately assume that it is defective. We recommend that you should in any case check the points in the following table. Problem Cause/Solution Appliance is Check that the socket is live and that the appliance is switched on. - Page 28 FAULTS Problem Cause/Solution Some or all of the Consult a service technician about LED lighting that is not working. You LED lighting does may not try to repair LED lighting. not work. Appliance makes a • The appliance is cooled by a refrigeration system with a compressor noise.
-
Page 29: Environmental Aspects
ENVIRONMENTAL ASPECTS Disposal of packaging and appliance This appliance is made from sustainable materials. This appliance must be disposed of in a responsible manner at the end of its service life. Contact the local authorities for information about the method. See also the chapter ‘Disposal’... - Page 30 EN 30...
- Page 31 EN 31...
- Page 32 *613814* 613814...
