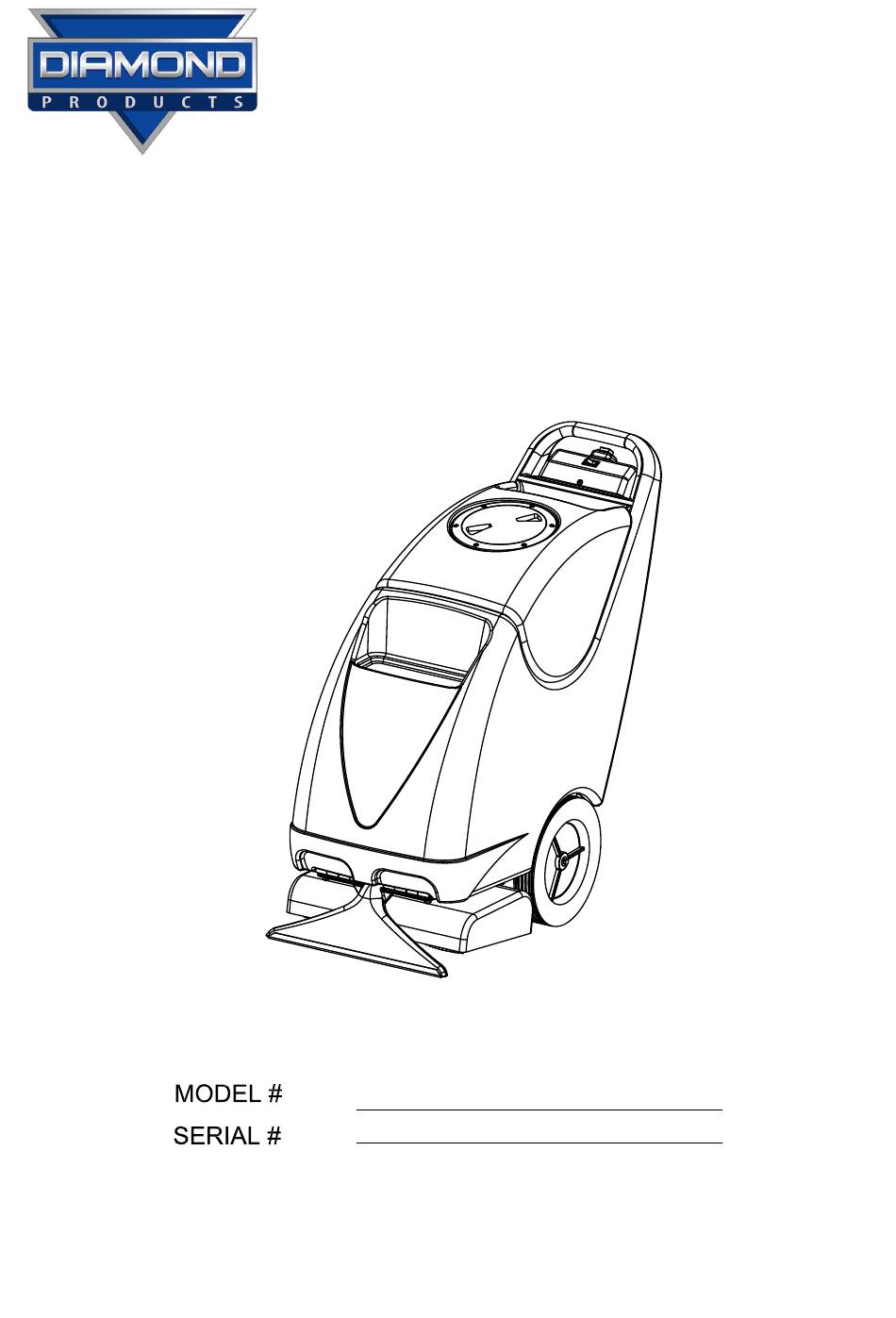

- Page 1 CARBON SC EXTRACTOR OPERATOR'S MANUAL IMPORTANT: READ OPERATOR'S MANUAL CAREFULLY Please fill out & return your warranty card! DP80410 Diamond Products www.diamondproductsus.com Printed in the U.S.A.
- Page 2 Diamond Products US. Warranty Information Thank you for purchasing a Diamond Products US product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product, email your warranty card information to: info@diamondproductsus.com...
-
Page 3: Machine Components
3) Brush / spray on/off button 9) Pickup hea d 4) Drain hose 10) Solution tank fill port 5) Accessory tool solution hookup 11) Recovery tank lid 6) B r ush raise and lower foot pedal Diamond Products Operator's Manual... - Page 4 Use only recommended - Unplug cord from outlet. accessories. - Use manufacturer supplied or approved replacement parts. All operators shall read, understand and - Avoid moving parts. Don’t wear exercise the following safety precautions: loose clothing. Diamond Products Operator's Manual...
-
Page 5: Machine Operation
CARPET EXTRACTING Check carton contents to ensure carton is complete. Contact your Diamond Products 1) Turn on vacuum / pump switch. distributor if anything is missing. NOTE: Solution will only spray when Contents: the brush / spray button is pushed. - Page 6 1) Disconnect vacuum hose from back of 3) Remove float shut-off (ping pong ball machine and connect the “bleeder” in cage) from recovery tank and clean vacuum hose (included with machine) with water. to the machine back. Diamond Products Operator's Manual...
-
Page 7: Machine Storage
Put machine head over floor drain and operate machine for 50 seconds. d) Shut machine down and allow remaining solution to sit in machine overnight. e) The following day, spray out remaining solution and flush Diamond Products Operator's Manual... -
Page 8: Basic Troubleshooting
SOLUTION PROBLEM Machine doesn't Not plugged in to power source Plug into a grounded outlet work Contact Diamond Products Distributor Faulty power cable Faulty extension power cable Replace with new extension power cable Building circuit breaker tripped Reset circuit breaker... - Page 9 Diamond Products Operator's Manual...
-
Page 10: Parts List
SWITCH ASSY VV67105 CONNECTOR GT13032 WASHER, PLAIN, Ø6XØ16X1.5 VV13607 WASHER, LOCK, SST Ø6 GT13056 SCREW, M6X16, PH VV80128 BARB, HOSE VV80115 ELBOW, STRECT 45° VV80125A NUT, COUPLING VV20667 WASHER, LOCK, INTERNAL TOOTH VV60509 GASKET, SOLUTION, INTAKE Diamond Products -10- Operator's Manual... - Page 11 VF81504 FLOAT, SHUT-OFF VV67305 BEND VV13664 WASHER，PLAIN，¢4¢12X1 VF13491 SCREW，M4X12，SST VV67162 RUBBER HINGE VF81403A ELBOW, 90º, BRASS VV67708 TUBING VF82090 CLAMP(16-20) VV67711 ELBOW, 90º, BRASS VV67118 LABEL, RIGHT VF80331 DECAL, WARNING VV67119 LABEL,LEFT VF99010C CIRCUIT BREAKER,17A Diamond Products -11- Operator's Manual...
- Page 12 Diamond Products -12- Operator's Manual...
- Page 13 WASHER,LOCK,Ø6 VF13551 WASHER,SST,PLAIN,Ø6XØ22X1.5 VF82028 CABLE VV67104 SPACER VF13512 SCREW,FH,M5X15,SST VV60406S HINGE,SST,4" GT13058 SCREW,FH,SST,M5X22 GT13056 SCREW,SST,PH,M6X16 VF13474A WASHER,SST,PLAIN,Ø5XØ15X1 VV13601 WASHER,LOCK,Ø5 VV13633 NUT,SST,M5 VV67140 CARPET PICK-UP TOOL VV67142 STAINLESS STEEL SHOES VV67407 SPRING VV67400 MOUNTING BASE ASSY,BRUSH Diamond Products -13- Operator's Manual...
- Page 14 VA13473 SCREW,RHM,M4X16,SST VV67405 STRAINER VV13635 SCREW,RHM,M5X20,SST GT13014 NUT,NYLON,INSERT,M4 VV67106 SPACER VA13478 SCREW,M6X35,HEX VV67103A FOOT STEP VF14127 SCREW,RHM,M6X20,SST VV67121 ANTISKID PLATE VV60113S WASHER,WHEEL,AL VA75004 WHEEL,10" VF13604 WASHER,Ø5 VV13634 SCREW,RHM,M5X30,SST VV67200 BOTTOM PLATE,ASSY VV67505 BUSHING,90º,CORD VF143001 SCREW,PH,M3X4,SST Diamond Products -14- Operator's Manual...
- Page 15 Diamond Products -15- Operator's Manual...
- Page 16 VV67413 AXLE,PULLEY VV67416 SPACER GT13059 SCREW,HEX,SOCKET VV67415 DRIVEN PULLEY VV67402 BELT VV67432 DRIVING PULLEY VV67424 NOZZLE BODY VV67436 MOUNTING BRACKET，MOTOR GT13032 WASHER,SST,PLAIN,Ø6XØ16X1.5 VV13607 WASHER,LOCK,Ø6 VF13521 NUT,SST,M6 VV67405 STRAIN RELIEF VV67408 POWER CORD VV67410 BRUSH ASSEMBLY Diamond Products -16- Operator's Manual...
- Page 17 Diamond Products -17- Operator's Manual...
- Page 18 VV40328 UPHOLSTERY TOOL VV40328-6 WINDOW,HAND TOOL VV20071 SCREW,5/16-18X5/8"L,HH VV20298 WASHER，LOCK，5/16“L，SST VV60531 GASKET VV80159 NOZZLE，SPRAY TIP，80º VV80105 BUSHING，BRASS VV80115 ELBOW，STREET，45 DEGREES VV10933 TRIGGER VALVE VV80128 BARB，HOSE VV10114 CLAMP，HOSE 3/8” VV85317 SOLUTION HOSE，3/8” VV80241 BARB，HOSE MAIL PLUG Diamond Products -18- Operator's Manual...
- Page 19 Diamond Products -19- Operator's Manual...
- Page 20 DIA NO DESCRIPTION NUMBER REQ'D VV60220 CUFF, 1 1/2" VV67703 HOSE，VACUUM VV20652 TIE，CABLE VV80241 HOSE BARB,MAIL PLUG，SST VV10114 CLAMP，HOSE，3/8”,SST VV67704 HOSE，SOLUTION，16'LONG VV80128 HOSE BARB RD80208 COUPLER，QUICK CONNECT VV67703A VACUUM HOSE ASSEMBLY VV67704A SOLUTION HOSE ASSEMBLY Diamond Products -20- Operator's Manual...
- Page 21 Diamond Products -21- Operator's Manual...
