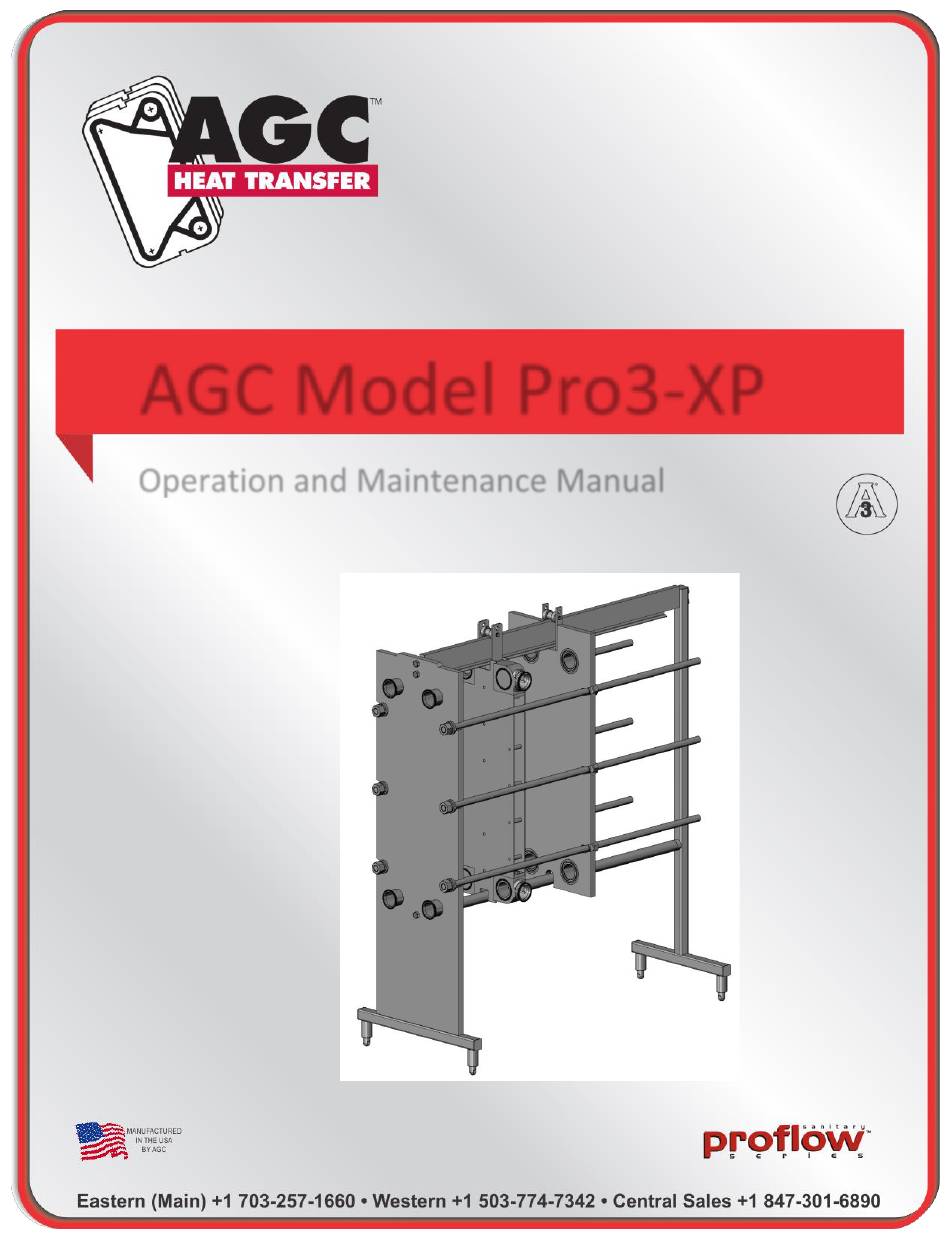

- Page 1 AGC Model Pro3-XP Operation and Maintenance Manual...
-
Page 3: Table Of Contents
Table of Contents Scope: ........................1 Receiving and Inspection: ..................1 Drawing Package: ...................... 2 Frame Placement: ...................... 3 Frame Connections: ....................5 Normal Operation: ...................... 6 Opening the Heat Exchanger: ..................7 Operator Maintenance: ....................8 Parts List: ........................9 Pro3-XP Frame Components ................ -
Page 5: Scope
Receiving and Inspection: Each AGC heat exchanger is assembled and fully tested at the factory prior to shipping. Once the unit has successfully passed all tests it is prepared for shipping. Every AGC heat exchanger is thoroughly inspected to ensure it is in perfect condition before leaving the factory. -
Page 6: Drawing Package
Every frame is shipped with a drawing package. This drawing package contains important information that is specific to your heat exchanger. If you cannot find the drawing package, contact AGC Heat Transfer or your local AGC distributor to obtain a replacement prior to installing the heat exchanger. -
Page 7: Frame Placement
The final document in the drawing package is the ProFlow manual. The ProFlow manual has information about the AGC Heat Transfer product line and a more in-depth discussion about plate heat exchangers in general. Frame Placement: Locate the Pro3-XP frame on a firm flat surface capable of supporting the press and all of its contents when full. - Page 8 Figure 4 Port Leveling Once the ports are level, the heat exchanger should be adjusted so it will drain properly. This is done by adjusting the ball feet to establish a slope from end to end. Figure 5 shows a press adjusted to drain forward to the fixed end.
-
Page 9: Frame Connections
Frame Connections: Careful planning during the installation of your new heat exchanger will help ensure years of trouble free operation. All piping connections should be well supported and carefully aligned with the ports on the heat exchanger. Misaligned pipes or pipes that are not properly supported can lead to connection failures or cracks in the welded joints. -
Page 10: Normal Operation
If your press is closed to the minimum dimension and leaks are noticed contact AGC Heat Transfer for technical assistance. Closing the press beyond the minimum dimension could cause permanent damage to the plates, frame, or both. When measuring the compressed dimension it is a good practice to take the measurement in several locations on the inside of the fixed end and follower as shown in figure 8. -
Page 11: Opening The Heat Exchanger
Figure 8 Tightening Location and Sequence Measure top and bottom as well as front and back. The heat exchanger is designed operate at its top efficiency when it is closed to a metal to metal condition. This means the rubber plate gaskets are fully compressed and the plates contact points are fully engaged with each adjacent plate. -
Page 12: Operator Maintenance
Operator Maintenance: All AGC Heat Transfer heat exchangers are designed to require minimal operator maintenance. As long as the unit is operated within the pressure and temperature limits the only maintenance required is routine cleaning, lubrication and inspection. We recommend the unit be leak checked annually using the PlateCheck field service provided by AGC Heat Transfer. -
Page 13: Parts List
Most of the field replaceable parts are listed in this manual. If the part you need is not listed on the following pages contact your local AGC distributor or the AGC Heat Transfer Factory. -
Page 14: Pro3-Xp Frame Components
Item Quantity Part Number Description 11012310 Pro3-XP Fixed End See Chart Pro3-XP Upper Rail See Chart Pro3-XP Bottom Rail 11012330 Pro3-XP Follower 11012340 Pro3-XPH End Support See Chart Pro3-XP Tie Bolt Assembly Pro3-XP Frame Components *Note: All rails shipped without bolts and washers unless specifically ordered. -
Page 15: Pro3-Xp Rail Size Chart
Rail Size Rail Length Upper Rail Part Number Lower Rail Part Number 1118 [44”] 11012365 11014700 1701 [67”] 11012366 11014703 2311 [92”] 11012367 11014704 2921 [115”] 11012368 11014705 Pro3-XP Rail Size Chart... -
Page 16: Pro3-Xp Tiebolt Assembly
Item Quantity Part Number Description See Chart Tie Bolt Base SG114C Bronze Nut 11013002 Thrust Washer EW203202 Thrust Bearing 11012377 Pro3-XP Tie Bolt Bushing Pro3-XP Tie Bolt Size Chart Tie Bolt Size Overall Length Tie Bolt Base Part Number Complete Assembly Number 1118 [44”] 11012374 11012370... -
Page 17: Pro3-Xp Terminal Assembly
Pro3-XP Terminal Parts Description Part Number Pro3-XP Terminal without Roller 11012350 Pro3-XP Terminal Roller with Pin 11012335 Pro3 Port Boss V Configuration 11018516 Pro3 Port Boss X Configuration 11018515 Pro3 Port Boss with 2” Pressure Switch 11018518 Pro3 Port Boss Blank 11018520 Pro3 Port Boss Thru 11018513... -
Page 18: Pro3 Plate And Frame Gaskets
Pro3 Plate and Frame Gaskets... - Page 20 "Building the best, servicing the rest"™ AGC Heat Transfer, Inc. is the leading supplier of sanitary plate heat exchangers in North America, manufacturing plate heat exchangers specifically designed for sanitary applications. AGC offers complete heat exchangers services including new frames as well as upgrade plate packs, gaskets and spares that fit other brands.
