ESTEAM CLEANING SYSTEMS

OWNER'S MANUAL

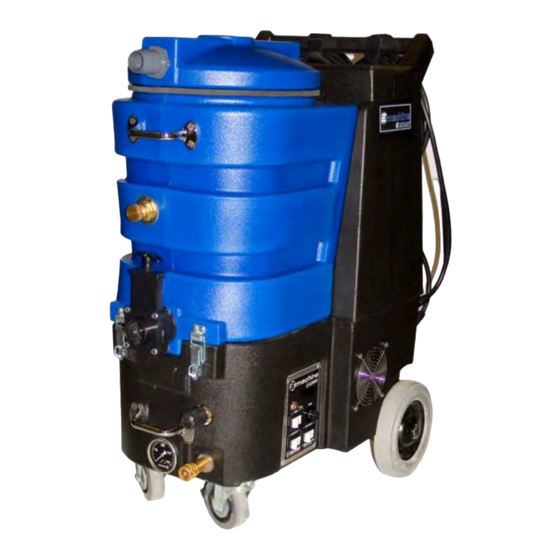

Congratulations on your selection of a new E1200 hard surface and soil

extractor built in Canada by "Esteam Cleaning Systems." Our goal has

been to produce the best high performance line of cleaning equipment on

the market today. Reading your owners manual will help to achieve

maximum benefit from your purchase.

(760-165)

Table of Contents

Need help?

Do you have a question about the E1200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Esteam Cleaning Systems E1200

Page 1 ESTEAM CLEANING SYSTEMS OWNER’S MANUAL Congratulations on your selection of a new E1200 hard surface and soil extractor built in Canada by “Esteam Cleaning Systems.” Our goal has been to produce the best high performance line of cleaning equipment on the market today.
Page 2: Table Of Contents
TABLE OF CONTENTS Page No. Introduction on the E1200 Specifications Maintenance Safety Information Operating Instructions Trouble Shooting Schematic Optional Circuit indicator Warranty Registration Warranty Pump-out Cleaning Procedure...
Page 3: Specifications
The E1200 is also available for hard surface and carpet cleaning with it’s adjustable 1000 PSI solution pumps. The E1200 ’s clean water solution tank and the dirty water recovery tank both have a 40 litre capacity. Built into the recovery the E1200 comes standard with a high water automatic shut off.
Page 4: Maintenance
MAINTENANCE DAILY: Clean high water level float screen inside the recovery tank. Ensure high level float ball is working properly. Rinse out recovery tank after use. Clean dirt and obstructions from the (recovery tank) drain valve rubber gaskets to prevent premature wear. Rinse out pump with clean water at conclusion of work day.
Page 5: Safety Information
SAFETY INFORMATION 1. Prior to inspection or repair of this machine, disconnect all electrical cords rendering the machine powerless. Failure to do so could result in serious or fatal injury. 2. Inspect unit daily for worn or damaged components. E.g. frayed cord, loose plug, or a plug with missing ground pin, etc.
Page 6: Operating Instructions
¼ cup of Esteam Liquid Defoamer into the end of the vacuum hose. 3. The E1200 is equipped with auto fill and drain, simply attach the supplied hoses to a water supply (BLUE) and the pump out hose (YELLOW) to a sanitary drain.
Page 7 handle on the front of the machine and emptying the contents into a pail for disposal. NOTE: Ensure that the high water level float screen inside the recovery tank is free from any obstructions. Be sure to close drain valve before resuming cleaning. 11.
Page 9: Trouble Shooting
TROUBLE SHOOTING WARNING: Prior to inspection or repair of this machine, disconnect all electrical cords rendering the machine powerless. Failure to do so could result in serious or fatal injury. PROBLEM CAUSE SOLUTION 1. Entire unit will not 1. Unit not plugged in 1.
Page 10 TROUBLE SHOOTING (CONTINUED) PROBLEM CAUSE SOLUTION 5. 1000 PSI Plunger 1. Pressure regulator valve 1. Adjust pressure using pump runs but has out of adjustment regulator located at the loss of pressure front of the machine 2. Partial kink in solution hose 2.
Page 11 TROUBLE SHOOTING (CONTINUED) PROBLEM CAUSE SOLUTION 8. Machine spits water 1. High level float not working 1. Check auto shut off float out of exhaust port properly cage and ball for proper operation 9. Machine blowing 1. Damaged (leaking) recov- 1.
Page 12 E1200...
Page 13 E1200 PARTS LIST PART NO. DESCRIPTION NOTES: 580-015 1/4 Quick Connect (for Priming Pump) 263-150 Supply Hose (Blue), 1/2” x 50’ (MXF) Not Shown 263-155 Discharge Hose (Yellow), 1/2” x 50’ (MXF) Not Shown 305-210 Switch, Toggle 110v / 220v...
Page 14 440-006 S.S. Hinge 2" x 2" 445-015 Latch, Machine 445-020 Latch, Striker 455-075 Caster, 4" Swivel 455-052 Wheel Cap Dome 455-057 Wheel, 8" Grey/Black Hub 465-065 Brace, Ninja Tank 470-051 Axel, Ninja HD 475-010 Gasket, Rubber - 1 1/2" Dump Valve 475-030 Gasket, Lid 3/8"...
Page 15 590-315 PVC Elbow 1” Threaded 90 590-320 PVC Close Nipple 1” 555-632 Tee 1/4 Extruded 590-330 PVC Coupling Threaded 3/4” 590-335 PVC Bushing 1 x 3/4” 590-340 PVC Close Nipple 3/4” 590-345 PVC Elbow 1” MPT x SWV 555-210 Elbow 90, 3/8 MPT x 1/4 MPT 590-405 PVC Hose Barb 1-1/2”...
Page 16 1000 PSI PUMP KITS...
Page 17 E1200 WIRING...
Page 19 CIRCUIT INDICATOR PARTS LIST PART NO. DESCRIPTION NOTES: 845-036 Plate 320-111 Lamp 305-057 Relay 120V 305-058 Socket 305-059 Relay 240V 703-108 Decal 465-045 Relay Bracket...
Page 20 E1200 W/ OPTIONAL CIRCUIT INDICATOR WIRING PAGE 1...
Page 21 E1200 W/ OPTIONAL CIRCUIT INDICATOR WIRING PAGE 2...
Page 23: Warranty
In the event a defect occurs in a E1200 Housing Unit within five years of receipt by the original customer, Esteam will, if satisfied on its examination that the failure is due to defective material or workmanship, repair or replace the E1200 Housing Unit, at no cost to the original customer, other than as maybe provided for in this warranty.
Page 24 PART II - REPLACEMENT PARTS (UNDER WARRANTY) Replacement warranty parts will be genuine Esteam parts, or parts of similar kind and quality. All replacement warranty parts are warranted to be free from defects in materials or workmanship from the date of the original unit purchase for the balance of the original warranty period namely: 90 days, 12 months, or the Lifetime, whichever is applicable;...
Page 25 (vii) No warranty is provided as to failure of any cosmetic item or finish, labeling, silk screening, decals, paint, trim or other similar decorative items. (viii) Brass, rubber and synthetic rubber parts (e.g. "O" rings, diaphragms, gaskets, seals, grommets) are considered expendable in normal use, and are therefore not included in any warranty by Esteam.
Page 26 Any improper use of chemicals shall void any Esteam warranty and thusly exclude any liability by Esteam. No dry cleaning chemical may be used in a E1200 Extractor; - as any such use may result in fire or pump/motor damage. A defoamer solution must be used by customer to limit foaming in the recovery tank.
Page 27: Pump-Out Cleaning Procedure
E1200 Pump out cleaning procedure...
Page 28 UNDO THIS UNION BY TURNING COUNTER CLOCK - WISE THIS 90 DEGREE FITTING SIMPLY POPS OFF THE PUMP WITH A SLIGHT TUG.
Page 29 YOU MAY NEED TO LOOSEN UNION WITH CHANEL LOCK PLYERS BY TURNING COUNTER CLOCK - WISE...
Page 30 SPIN UNION NUT COUNTER CLOCK – WISE TO SEPARATE FROM BALANCE OF FITTINGS...
Page 31 GIVE PLUMBING ASSEMBLY A SLIGHT TUG TO DISENGAGE FROM PUMP...
Page 32 PLUMBING ASSEMBLY REMOVED...
Page 33 PRESS IN RED CLIPS AND LIFT PUMP OFF RED STRAINER...
Page 34 PUMP REMOVED FROM STRAINER CAGE...
Page 35 S.S. SCREEN LIFTS OUT OF STRAINER CAGE TO BE CLEANED...
