Open House ChannelPlus H218 User Manual

ChannelPlus Enclosures

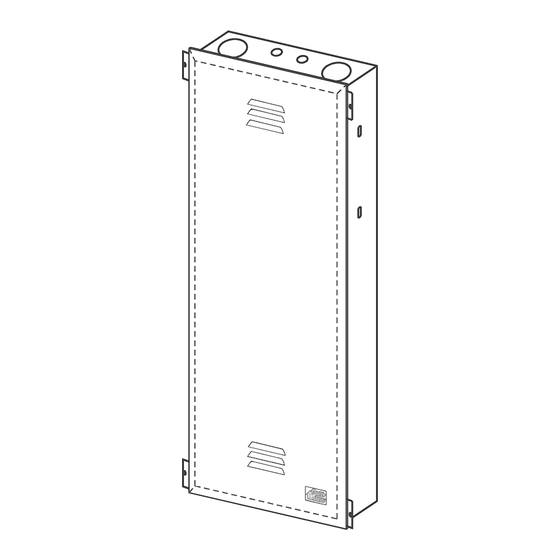

H218 18" enclosure
H236 36" enclosure
H290 AC outlet accessory

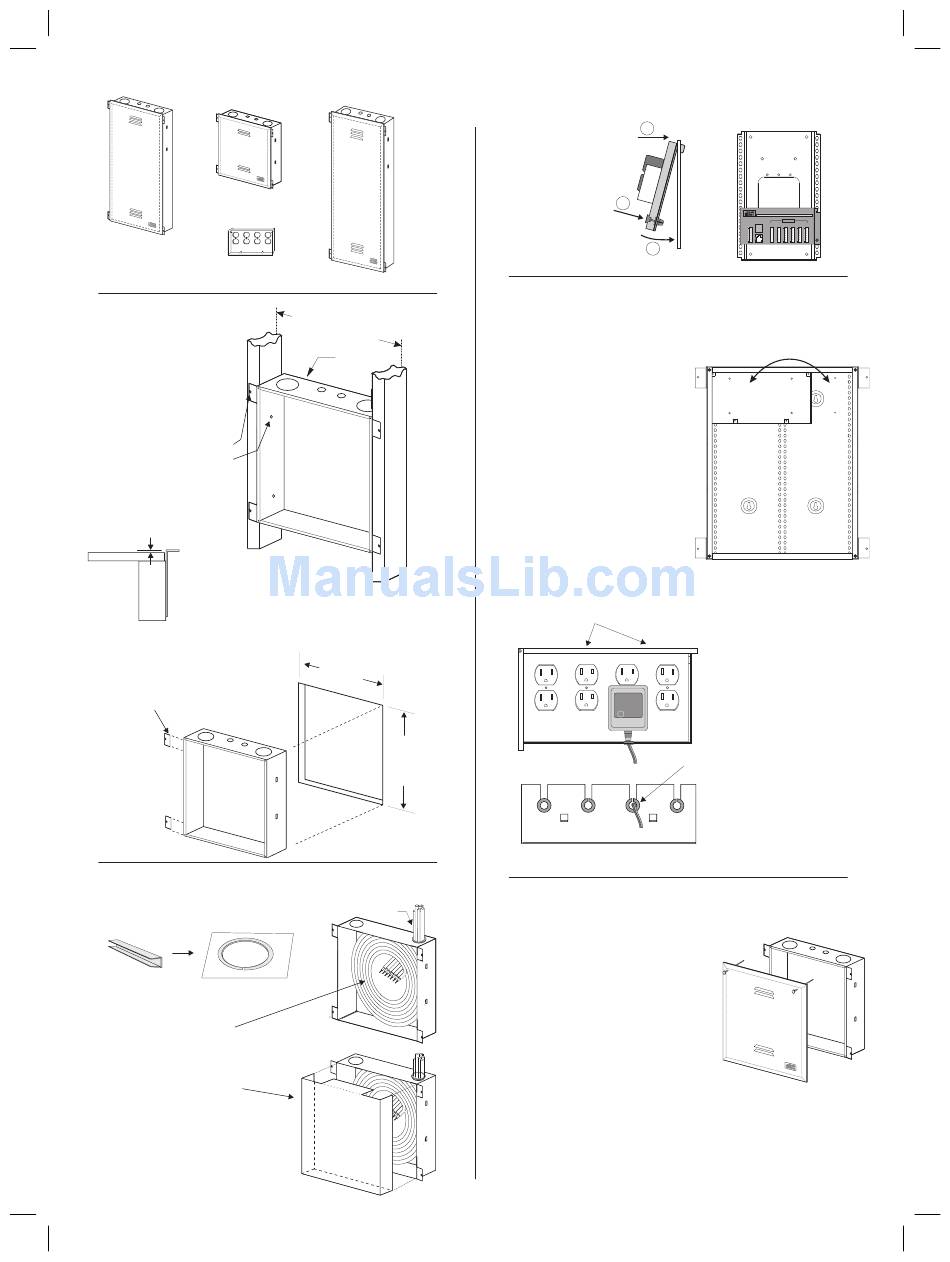

Mounting the enclosure
Use the mounting tabs when
mounting the enclosure between
the studs and using 1/2"
wallboard.
Attach enclosure using 4 screws.
Either from mounting tabs
or inside holes.
1/8"
Enclosure
Wallboard
When using other than 1/2"
Stud
wallboard, remove the mounting tabs
and mount the enclosure to protrude
1/8" beyond the wallboard surface.
Mounting in existing wallboard or
surface mounting ...
Remove the mounting tabs.
Grab the tabs with
pliers and rock back
and forth to remove.
Installing cables
Remove knockouts as needed
and line holes with grommets provided
Remove paint shield and save.
Route cabling into enclosure.
After cabling is routed, reverse
paint shield and return it to the
enclosure to protect cabling.
If H290 is installed, fold flaps on the
paint shield to bend the shield over
the H290 AC outlet accessory.
H254 54" enclosure
1 6 " O
n C e
n t e r
Enclosure
14 3/8"
1/8"
18 for H218
1/8"
36 for H236
1/8"
54 for H254
Grommet
OpenHouse modules attach from the top
1
1) Hook from the top
2) Swing into place
3) push button to lock
3
2
Mounting the H290 AC outlet accessory
The H290 accessory brings AC power
inside the H218, H236 or H254
enclosure. The H290 gives the
installer a clean, UL approved location
to mount power adaptors. Mount the
H290 to either the upper right or upper
left corner of the enclosure using the
four #6 screws provided. Installation
of AC outlets should be done only by a
qualified electrician.
1/2" knockouts for 120VAC
OEM
AC ADAPTOR
Part no.: 123-456
U
L
Installing the cover
An old electrician's trick ...
When hanging a heavy cabinet cover,
insert nails through the mounting holes
on the cover. Guide the nails into the
mating holes on the enclosure and let
the cover hang from the nails while you
attach the screws. (We've included two
of these sophisticated devices for your
assistance.)
Grounding the cabinet
When used with model H290 accessory, the grounding lug on the
H290 is used. No separate ground lug is provided on the H218,
H236 or H254. The user must install ground lugs as necessary.
Telephone Master Hub (4 lines x 6 phones) Telephone Master Hub (4 lines x 6 phones)
ChannelPlus model H616
From From Expansion Expansion Telephones Telephones
Telco Telco Ports Ports
R R RJ31X RJ31X
4
T T
R R
3 T T
2 R R
T T
Out Out
R R
1
T T
H290 installs in either of 2 locations
The H290 provides space for 4
standard duplex receptacles.
Wires should exit the H290 using
the grommets provided. The
grommets may be cut as shown.
