aquanique WP1300UV Manual

aquanique WP1300UV Manual

Submersible waterfall pump with uv 1300 gallons per hour

Advertisement

Quick Links

REMINDER
CALL 1-888-314-2588
BEFORE RETURNING TO STORE.

PACKAGE CONTENTS

Part
A
B
1-in. adapter with flow control
C
Pump barrier bag

WARNINGS AND CAUTIONS

WARNING
Risk of electrical shock. This pump is supplied with a grounding conductor and grounding–type
attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly
grounded, grounding-type receptacle.
Do not exceed the voltage shown on the pump.
Always disconnect pump from the power source before beginning any maintenance or work on the
pump.
Inspect cord for damage before installation and/or maintenance. Replace the entire pump assembly if
damage is found.
Do not remove the grounding pin from the power cord plug.
Risk of electrical shock: This pump has not been investigated for use in swimming pools or marine
areas.
CAUTION
This pump has been evaluated for use with fresh water only.
Use a proper power source as indicated on the pump label.
Keep the cord away from high temperatures or other heat sources.
Do not pump heated liquids.
Do not let the pump run dry. Pump must be completely submerged for proper operation and cooling.
Operate in fresh water only. Avoid heavily chlorinated water and water with high pH levels.
Do not lift the pump by its power cord.
Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.

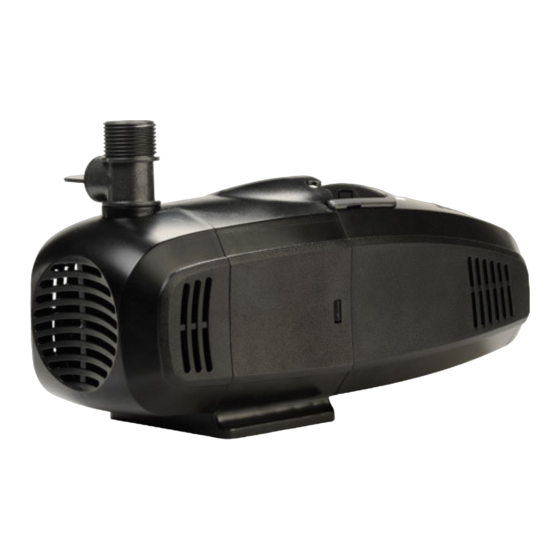

Submersible Waterfall Pump with UV
1300 Gallons Per Hour
Description
Pump
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday
Quantity
1
1
B
1
C
ITEM # WP1300UV
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP1300UV and is the answer not in the manual?

Questions and answers

Summary of Contents for aquanique WP1300UV

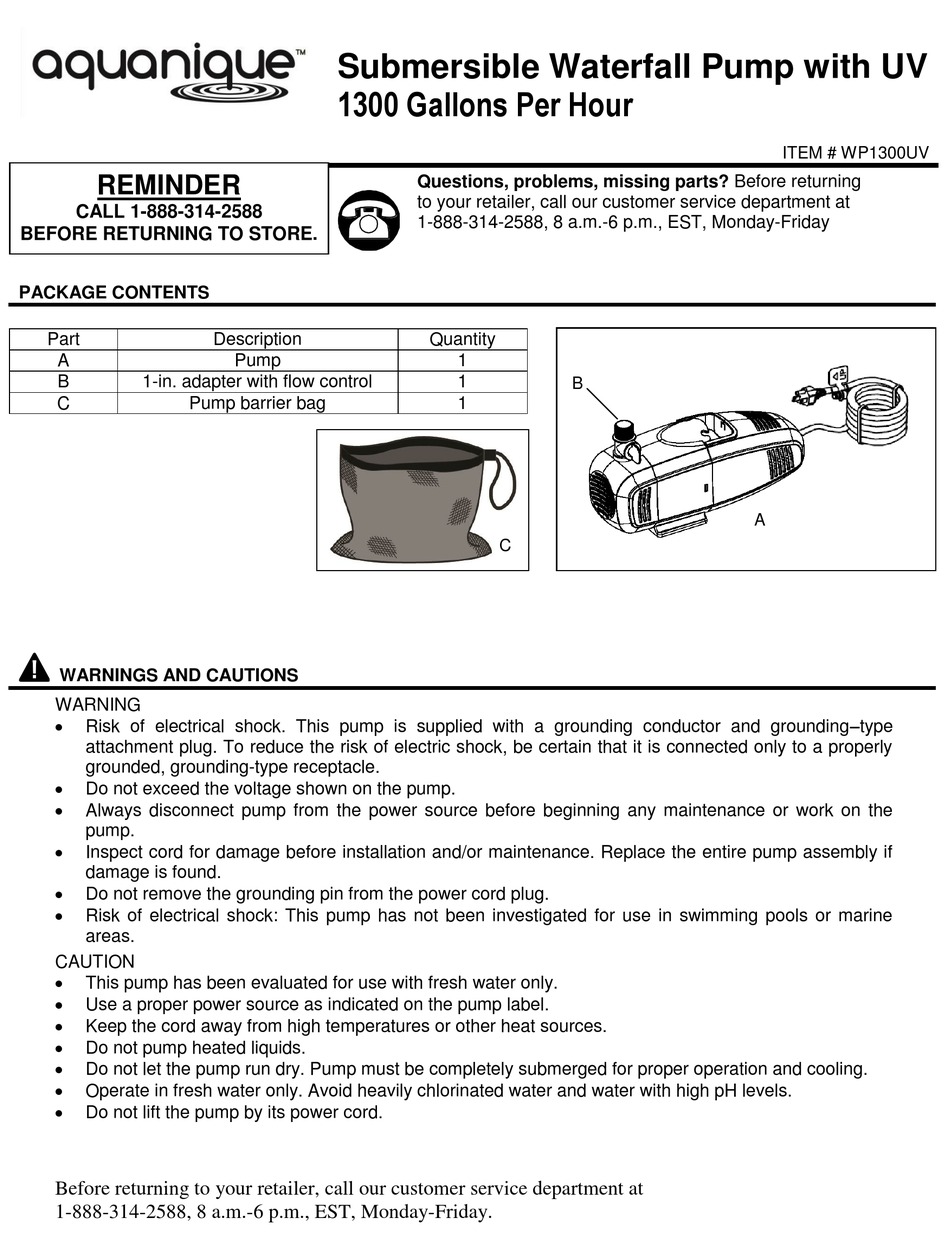

  • Page 1 Submersible Waterfall Pump with UV 1300 Gallons Per Hour ITEM # WP1300UV Questions, problems, missing parts? Before returning REMINDER to your retailer, call our customer service department at CALL 1-888-314-2588 1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday BEFORE RETURNING TO STORE.
  • Page 2 CAUTION  UV light may cause irritation to the skin and/or eyes. Avoid exposure.  DANGER – ULTRAVIOLET RADIATION – disconnect power before replacing lamp.  Prolonged or repeated exposure to UV light may have adverse physical effects including, severe damage to your skin and eyes.
  • Page 3 4. Place the pump into the water and connect to a proper power source. Fig. 4 GFCI Fig. 4 5. Note the indicator light on the back of the pump. This light indicates whether or not the UV light is on or off. Fig. 5 Indicator light Fig.
  • Page 4 2. Untie the drawstring on the pump barrier bag and then remove the pump from the pump barrier bag. Clean the pump barrier bag then Untie place the pump back inside the pump barrier bag and test the pump. drawsting Fig.
  • Page 5 Fig. 12 7. Remove the light cover from the pump by turning it counterclockwise and pulling it away from the pump. Fig. 13 Fig. 13 8. Note: In the unlikely event the UV bulb needs replacing, remove glass tube by turning the glass tube assembly counterclockwise and pulling away from the lamp base.
  • Page 6 CARE AND MAINTENANCE  Clean the pump regularly depending upon the environment in which it is operated. Clean the pump when it is visibly soiled or when a drop in performance is detected.  Before cleaning, always disconnect the pump from the power source. ...
  • Page 7 All aquanique™ electrical products are warranted to the user against defective material and workmanship, under normal working conditions for 1 year from the date of purchase. All aquanique™ liners are warranted to the user against defective workmanship, under normal working conditions for 20 years from the date of purchase.
  • Page 8 Disclaimer Any oral statements made about the product by the seller, the manufacturer, the representatives, or any other parties do not constitute warranties, should not be relied upon by the user, and are not part of the contract for sale. The seller’s and manufacturer’s only obligation, and buyer’s only remedy shall be for the manufacturer to either replace and/or repair at the manufacturer’s sole discretion, the product as described above.
