Summary of Contents for Carefree 1051i

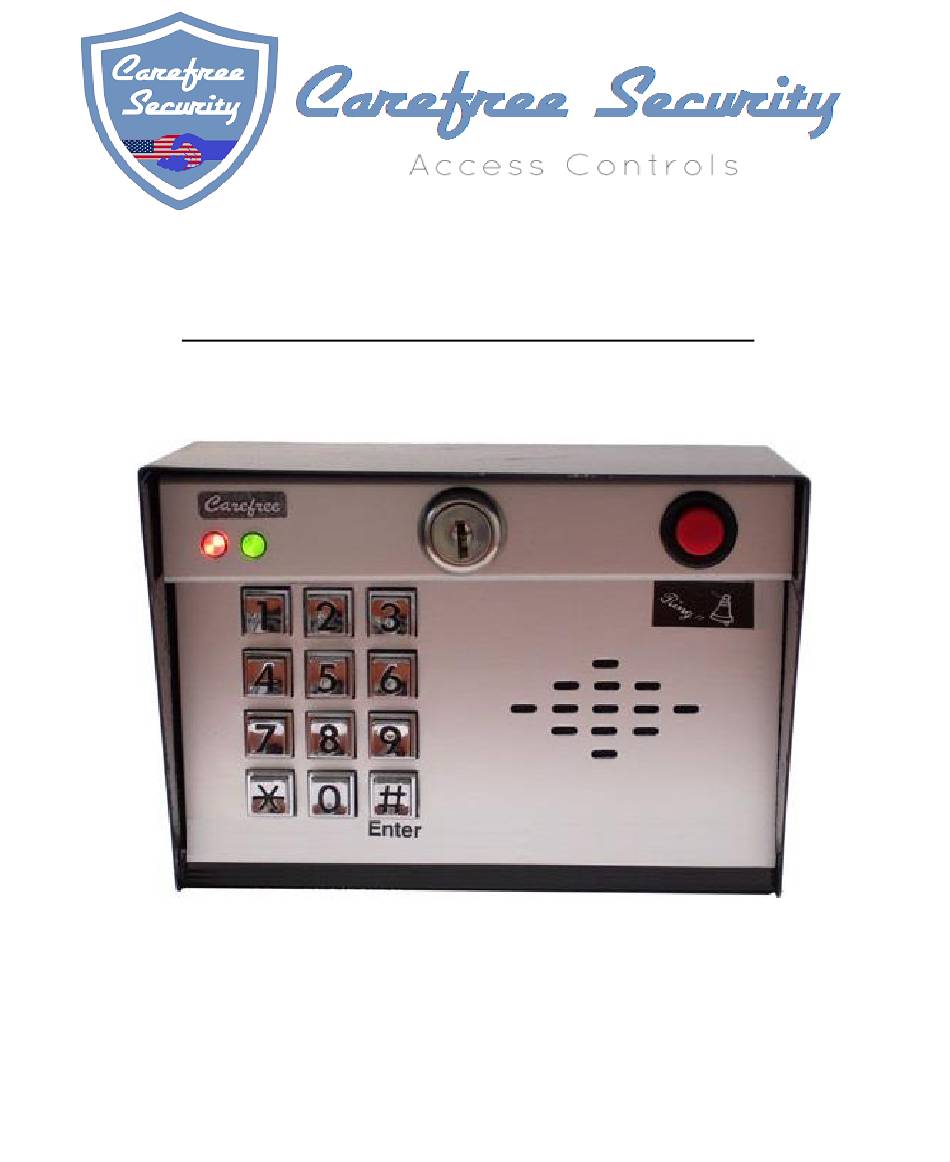

- Page 1 Heavy Duty – Commercial - Industrial Fully Sealed Digital Access Keypad Specially Designed for Gate Operators, Overhead Doors, Specialty Doors & Electric Door Locking Devices SINGLE OR UP TO 1000 PERSONAL CODE NUMBERS Installation and programming instructions 1051i Owner’s Manual...
- Page 2 Carefree-Security keypads are a digital keyless entry system designed for access control applications. The keypad is housed in a metal powder coated enclosure that can be mounted to a pedestal or directly to a wall. The keypad is a heavy duty metal die cast keyboard.
- Page 3 FEATURES: • Easily Programmable Keypad • Up to 1000 Personal Code Numbers • 2 to 6 digit entry code length • Microprocessor based memory • Lightning and Surge protection built in • 4 LED status indicators • Audio tone buzzer is shipped as a standard feature but not required. Units can be ordered without this feature •...
- Page 4 Warning All illustrations and operating instructions should be read before the unit is connected to power and operated. The installation and operating instructions should be retained for future reference. All operating and user instructions should be followed. The housing should be mounted to a wall or as recommended by the manufacturer. The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the unit.
- Page 5 Programming Instructions After each programming step you must wait for the Yellow LED to finish blinking. You can abort programming at any time by Pressing the * key. The Yellow LED will turn off. If an invalid code number is entered or access is denied, the keypad security lockout timer is activated and the Yellow LED will blink 6 times;...
- Page 6 Example to program a single code number: Press 1, 2, 3, 4, 5, 6 and the * key. The Yellow LED will turn on. Enter your code number - a two (2) to six (6) digit number, then Press the # key. The Yellow LED will blink one (1) time.
- Page 7 This Carefree-Security product is warranted against defects in material and workmanship for up to two (2) years from the date of shipment. Warranty expiration date is tied into the serial number which is wrapped around the internal box on the product, removal of this label will void the warranty. Carefree- Security, Inc., at its option either repairs or replaces defective products that have been returned to Carefree-Security, Inc., with freight prepaid back to...
- Page 8 Personal Code Number Chart Personal Code Number User Number Name To reset the keypad to the factory program number 1, 2, 3, 4, 5, 6: If the program number is not known, or you have made a mistake when entering your new program number, you must reset the keypad.
