Heavy Duty-Com mercia 1-1 ndustria I

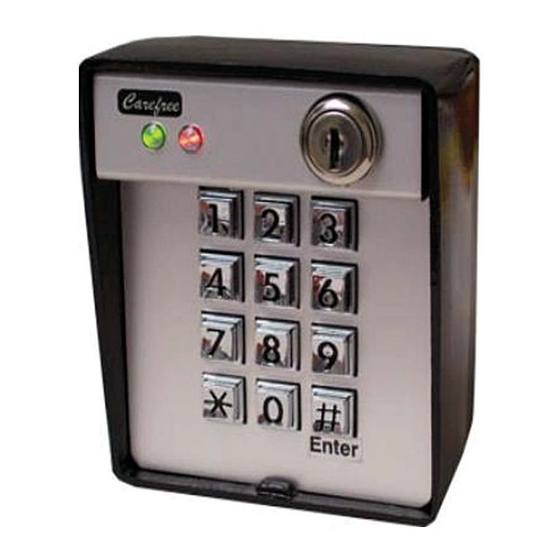

Fully Sealed Digital Access Keypad
Specially Designed for Gate Operators, Overhead Doors,
Specialty Doors & Electric Door Locking Device
SINGLE OR UP TO 1000 PERSONAL CODE NUMBERS
Installation and programming instructions
Owner's Manual
MODEL: 1050
Now standard 2 Relay's with automatic voltage
Detector 10 to 30 volts AC or DC
1
Advertisement
Table of Contents
Related Manuals for Carefree 1050
Summary of Contents for Carefree 1050
- Page 1 Specially Designed for Gate Operators, Overhead Doors, Specialty Doors & Electric Door Locking Device SINGLE OR UP TO 1000 PERSONAL CODE NUMBERS Installation and programming instructions Owner's Manual MODEL: 1050 Now standard 2 Relay's with automatic voltage Detector 10 to 30 volts AC or DC...
- Page 2 Carefree Security keypads are a digital keyless entry system designed for access control applications. The keypad is housed in a metal powder coated enclosure that can be mounted to a pedestal or directly to a wall. The keypad is available in two versions, heavy duty metal die cast keyboard or with a heavy duty plastic polymer keyboard.
- Page 3 Local, State and Federal regulations to ensure the safety and wellbeing of all those within the area of operation of this unit. Install this unit only on a gate or door operator with an automatic force reverse action. Typical Installation: Carefree Access Keypad Door Switch Alarm Shunt Carefree Controls...
-
Page 4: Programming Instructions
Programming Instructions For Model 1050 Series with 2 Relay General Information: 1. After each programming step you must wait for the yellow LED light to finish blinking. 2. You can abort programming at any time by pressing the key, the yellow LED light will turn off. - Page 5 To remove or delete a single personal code number: Step 1: To delete a code number, enter your program number or the factory program number 1, 2, 3, 4, 5, 6 and the key (the yellow LED will turn on) Step 2: Enter the personal code number to be deleted and the # key (the yellow LED will blink one “1”...
- Page 6 Two (2) Minutes Relay Model 303 Relay Model 303 Use RELAY No. 1 to Open Door or Gate Use Carefree Secure Relay Model 303 * Note Install Carefree Secure Relay Box Model 303 in above for C, N.O., N.C.
- Page 7 Protect the keypad from lighting & power surges: If you install a keypad that is in an area were lighting can damage a keypad: Make sure the keypad metal housing is grounded. Install a Model 306 Lighting & Surge Protector. There is no warranty if the keypad is damaged due to lighting static electricity or high voltage power surges.
- Page 8 Two (2) Year Limited Warranty This Carefree product is warranted against defects in material and workmanship for up to two (2) years from the date of shipment. Warranty expiration date is tied into the serial number which is wrapped around the internal box on the product, removal of this label will void the warranty.
