ECR International Dunkirk Q95M-200 Installation Manual

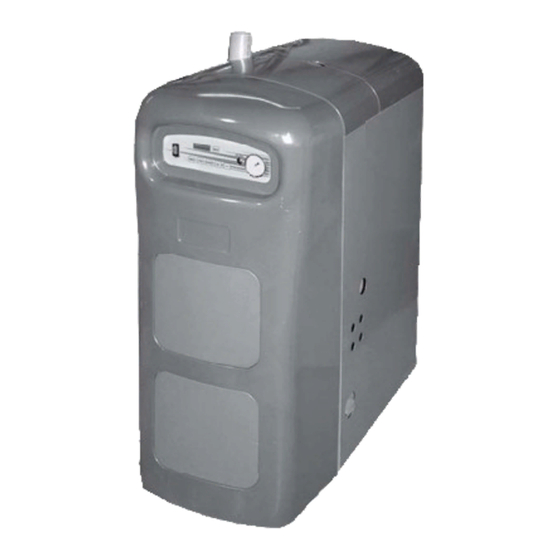

Gas-fired direct vent modulating hot water boiler
Hide thumbs Also See for Dunkirk Q95M-200:
Table of Contents

Advertisement

Quick Links

Download this manual
Q95M-200
GAS-FIRED DIRECT VENT
MODULATING HOT WATER BOILER
DUNKIRK BOILERS
An ISO 9001-2000 Certified Company
85 Middle Rd.
Dunkirk, NY 14048
P/N 240006103D, Rev. B [06/08]
www.dunkirk.com
