ECR International Dunkirk EXCELSIOR EXB Series Installation, Operation & Maintenance Manual
  1. Manuals
  2. Brands
  3. ECR International Manuals
  4. Boiler
  5. Dunkirk EXCELSIOR EXB Series
  6. Installation, operation & maintenance manual

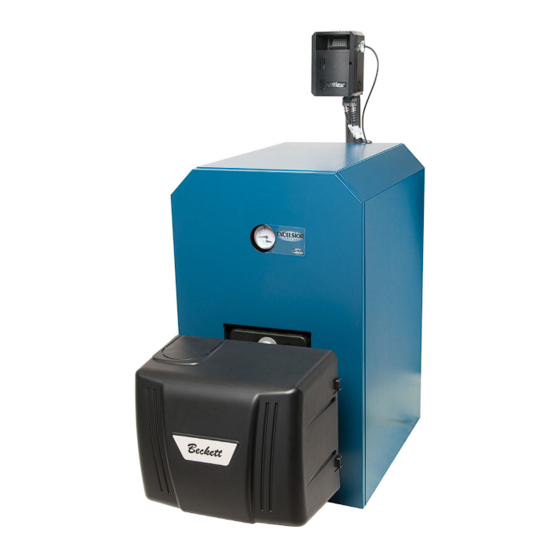

ECR International Dunkirk EXCELSIOR EXB Series Installation, Operation & Maintenance Manual

High efficiency oil fired hot water boiler
Hide thumbs

Advertisement

Quick Links

Download this manual
Models
EXB4075
EXB4095
EXB4110
EXB5100
EXB5115
EXB5135
EXB6130
EXB6145
EXB6165
EXB7165
EXB7180
EXB7190
EXCELSIOR
High Efficiency
Oil Fired Hot Water Boiler

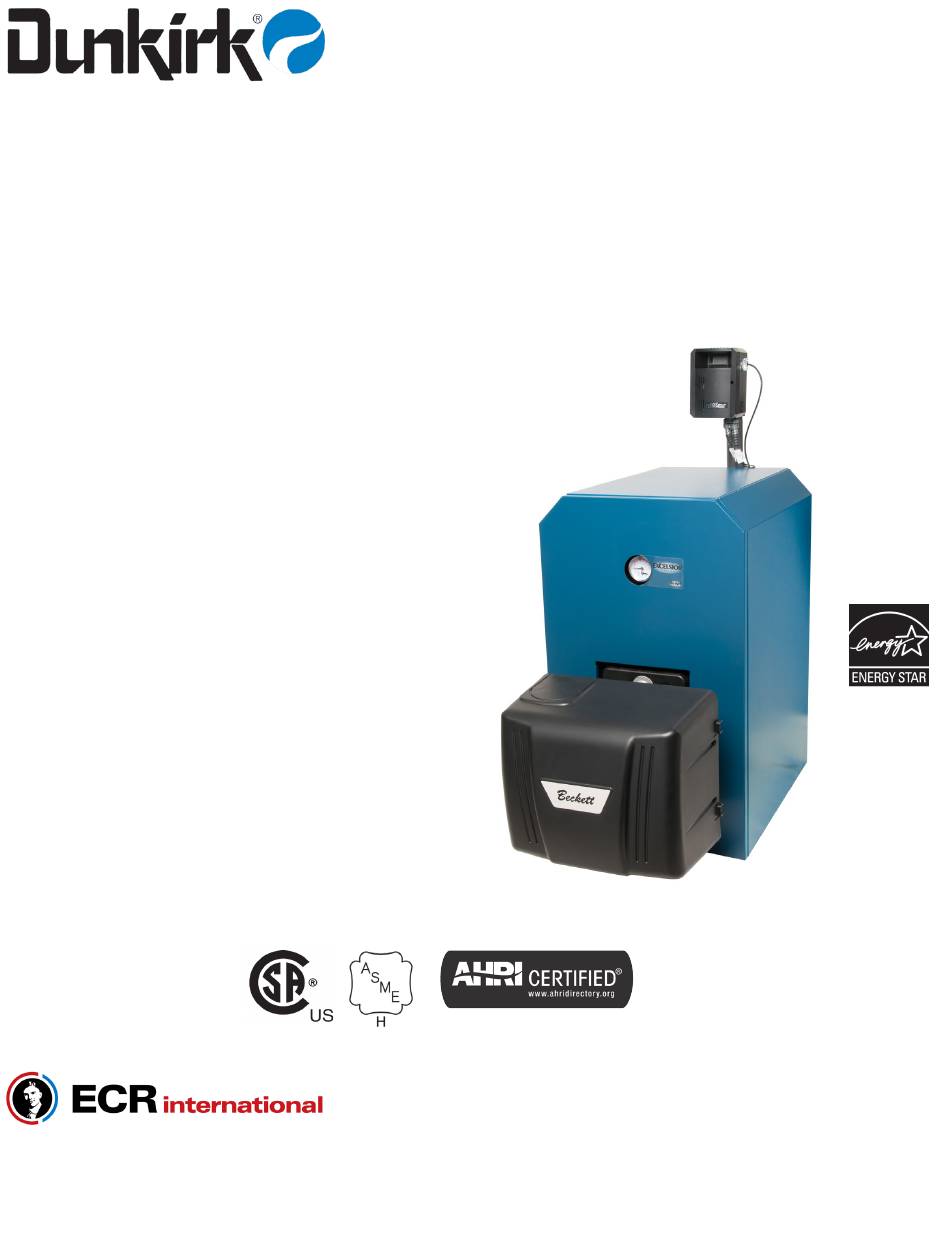

INSTALLATION, OPERATION &
MAINTENANCE MANUAL
Manufactured by:
ECR International Inc.
2201 Dwyer Avenue, Utica, NY 13501
Tel. 800 253 7900
www.ecrinternational.com
PN 240009348 REV. K [08/01/2018]
