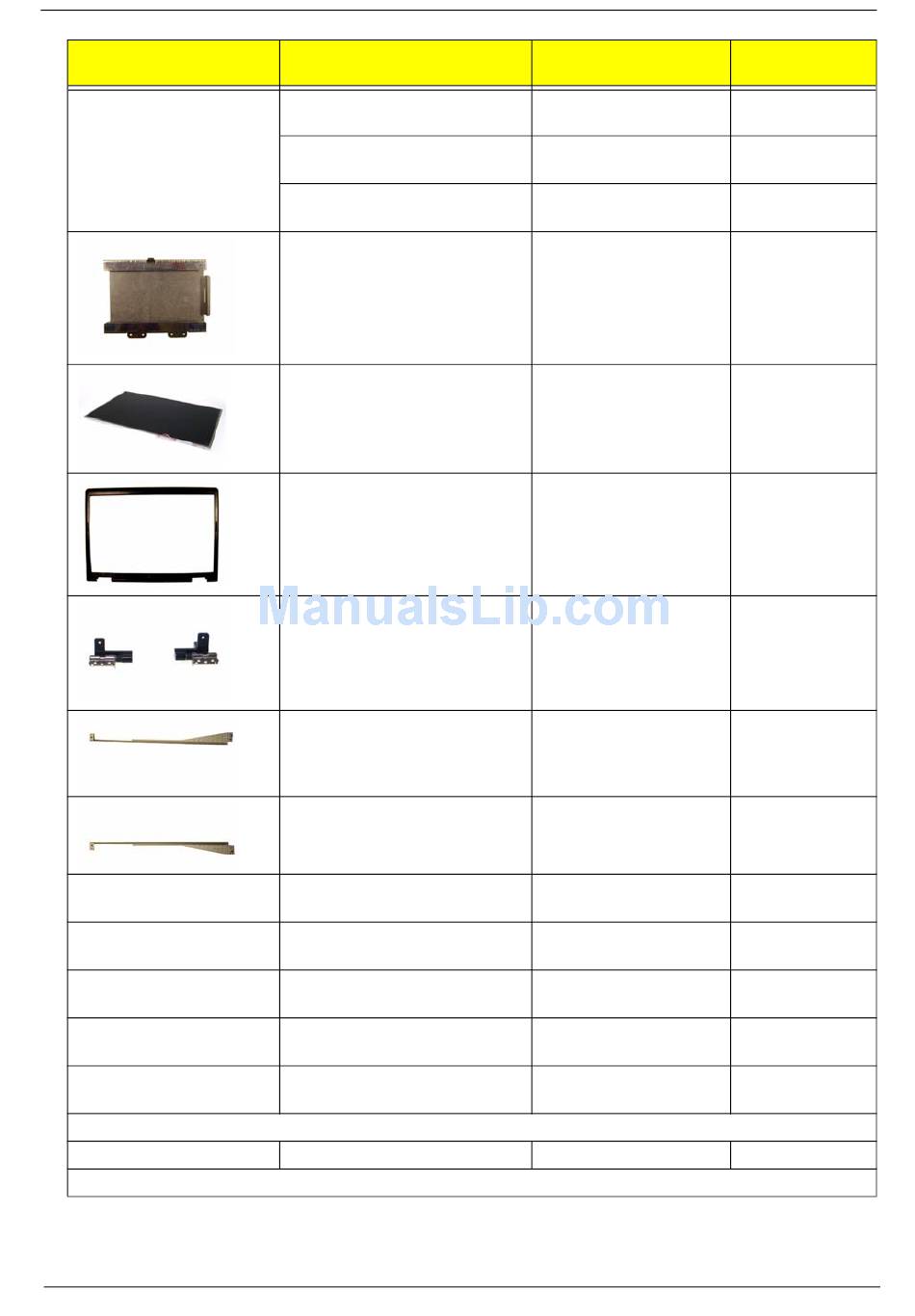

Acer 9410-2829 - Aspire Service Manual page 111

CATEGORY
N/A
N/A
N/A
N/A
N/A
N/A
SPEAKER
N/A
COMBO MODULE
Chapter 6
PART NAME
DVD DUAL BEZEL
DVD SUPER MULIA BEZEL
DVD SUPER MULIA BEZEL
HDD CHASSIS
"LCD PANEL 17.1"" W/LOGO"
"LCD BEZEL 17.1"" W/LOGO"
HINGE PACK LEFT/RIGHT
LCD BARCKET LEFT
LCD BRACKET RIGHT
CAMERA HOLDER
CAMERA LOWER CASE CAS
CAMERA HOLDER CAP
CAMERA LATCH
CAMERA LOWER CASE
SPEAKER LEFT/RIGHT
DESCRIPTION
ASSY DVD_DUAL
ODD BEZEL
ASSY S_MULTI ODD
BEZEL GBASE
ASSY ODD SLOT-IN
BEZEL
ASSY HDD CHASSIS
MYALL
"ASSY LCD 17.1""
PANEL-AS MYALL "
"ASSY LCD BEZEL
17.1"" MYALL "
"HINGE PACK 17""
LEFT/RIGHT"
"BRKT LCD 17.1"" L
MYALL "
"BRKT LCD 17.1"" R
MYALL "
HLDR CAMERA SIDE
RIM KIRKINI
CAS CAMERA L-
CASE KIRKINI
HLDR CAMERA CAP
KIRKINI
LATCH CAMERA
HINGH KIRKINI
ASSY CAMERA
LCASE KIRKINI
SPEAKER MYALL
ACER PART
NO.
42.TCBV1.012
42.TCBV1.013
42.TCBV1.014
33.TCBV1.003
60.ACKV1.005
60.TCBV1.004
6K.TCBV1.001
33.TCBV1.005
33.TCBV1.004
42.ADFV1.001
39.ADFV1.001
42.ADFV1.002
33.ADFV1.003
60.ADFV1.006
23.TCBV1.001
