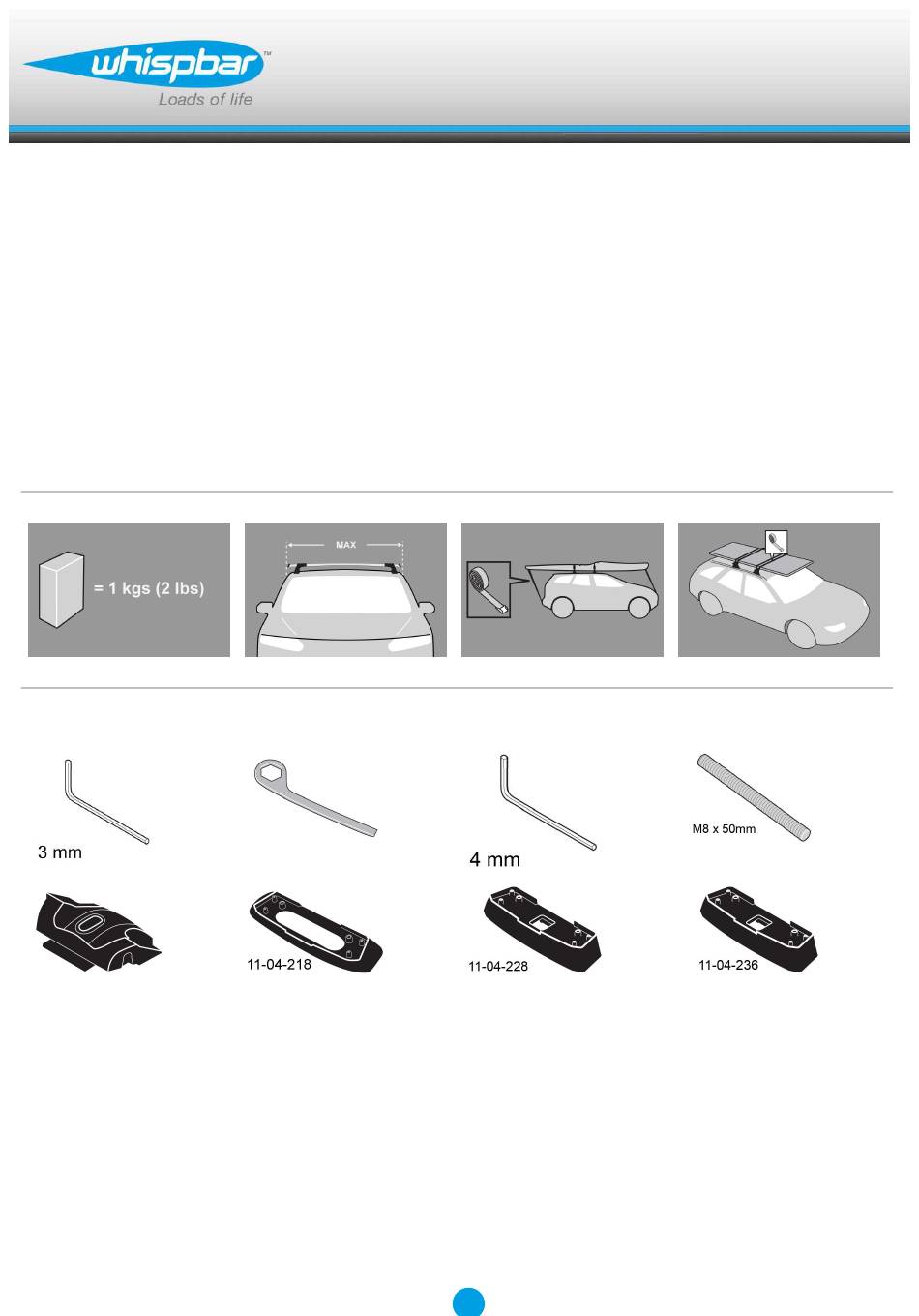

- Page 1 K536W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K536W...
- Page 3 Fitting Kit K536W MAX kgs (lbs) Great Wall X200 , 5dr SUV Jun 11-+ 75 kgs (165 lbs) 75 kgs (165 lbs) X200 , 5dr SUV Jun 11-+ 75 kgs (165 lbs) 75 kgs (165 lbs) X200 , 5dr SUV Jun 11-+...
-
Page 4: First Time Installation
Fitting Kit K536W This setup is for three crossbars. First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar... - Page 5 Fitting Kit K536W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K536W Set bars to length (revert to rear of these instructions). Please check the rear of this manual for information relating specifically to your vehicle. Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Remove plastic clamp block by gripping bar...
- Page 7 Fitting Kit K536W Select plastic internal block (from fitting kit) and insert into foot. Repeat for all legs. Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle.
- Page 8 Fitting Kit K536W Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Fitment Open or remove fixed-point covers. Remove M8 mounting bolt from fixed-point...
- Page 9 Fitting Kit K536W Using 5mm hex key, screw M8 grubscrew into fixed-point, leaving 12mm (1/2") visible. Install adaptor onto vehicle. Tighten with provided 10mm (3/8") spanner. Place M8 washer over grubscrew. Sort M6 grubscrews into lengths.
- Page 10 Fitting Kit K536W It is important to put the grubscrews in the correct position on the vehicle. A = M6 x 40mm (1 5/8") B = M6 x 60mm (2 3/8") C = M6 x 70mm (2 3/4") Screw M6 grubscrew into adaptor. Tighten using 3mm (1/8") hex key.
- Page 11 Fitting Kit K536W Place M6 washer over grubscrew. Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all six positions.
- Page 12 Fitting Kit K536W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 13: Maintenance
Fitting Kit K536W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 14 Fitting Kit K536W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 15 Fitting Kit K536W X200, 5dr SUV Jun 11-+ (AU) 730mm 1430mm 850mm 797mm 775mm 0 1/16ths" 28 3/4ths" 56 5/16ths" 33 7/16ths" 31 3/8ths" 30 1/2ths" X200, 5dr SUV Jun 11-+ (NZ) 730mm 1430mm 850mm 797mm 775mm 0 1/16ths" 28 3/4ths"...
-
Page 16: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 17 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
