Time and day
Set the day
Set the time
Program the
Skip a period
Select the
operating mode
Periods
Description

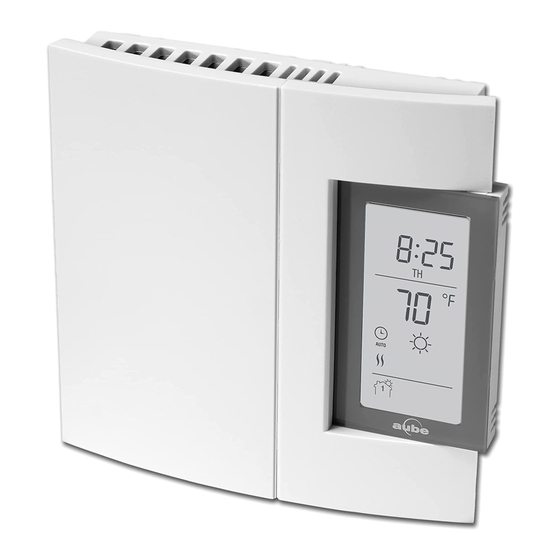

This programmable thermostat can be used to control an electric
heating system such as an electric baseboard heater, a radiant ceil-
ing, a radiant floor, a convector, etc.
The thermostat cannot be used under the following conditions:
•
The resistive load is greater than 16.7 A
•
The resistive load is less than 2 A
•
The system is driven by a contactor or relay (inductive load)
•
The system is a central heating system
SUPPLIED PARTS:
•
One (1) thermostat
•
Two (2) 6-32 screws
•
Two (2) solderless connectors
Installation
TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN
POWER PANEL TO AVOID ELECTRICAL SHOCK.
THE INSTALLATION MUST BE PERFORMED BY AN ELECTRI-
CIAN.
All cables and connections must conform to the local electrical
code.
Special CO/ALR solderless connectors must be used when con-
necting with aluminum conductors.
Install the thermostat onto an electrical box.
Install the thermostat about 5 feet high, on an inside wall facing
the heater.
Avoid locations where there are air drafts (such as the top of a
staircase or an air outlet), dead air spots (such as behind a
door), or direct sunlight.
Do not install the thermostat on a wall that conceals chimney or
stove pipes.
The thermostat wires are not polarized; either wire can be con-
nected to the load or to the power supply.

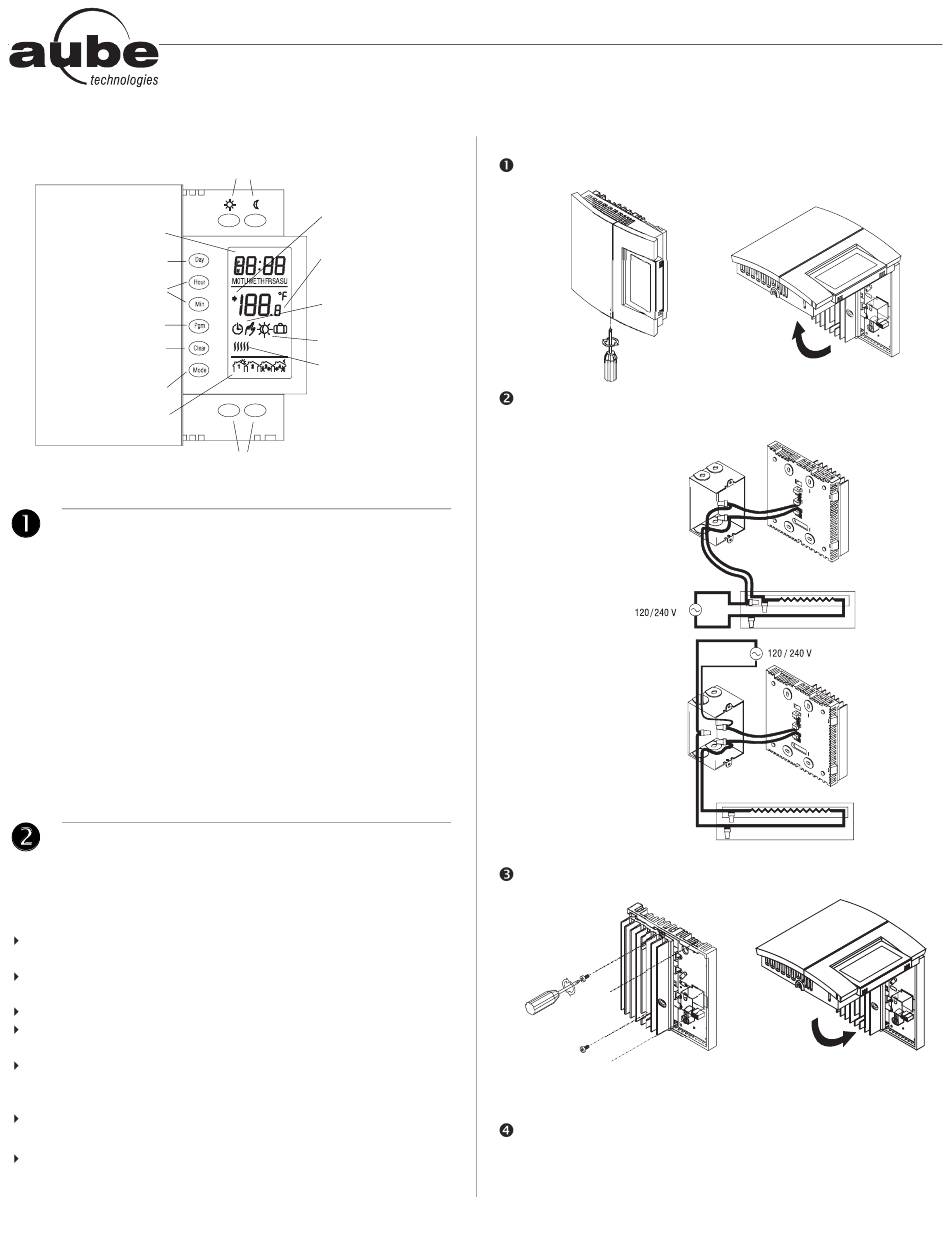

TH106
Temperature
preset buttons
Appears when the
setpoint is displayed
emperature
T
Operating
mode icons
Temperature
preset icons
Heating power
indicator
Temperature
adjustment
buttons
NOTE:
Always keep the thermostat's vents clean and unobstructed.
Connect the thermostat wires to the line wires and to the load
wires using solderless connectors for copper wires.
1.
2-wire installation
4-wire installation
2.
Push any excess wire back into the electrical box.
NOTE:
If necessary, before re-installing the front component, config-
ure the thermostat (see section 3).
Return power to heating system.
TH106
User Guide
Programmable Thermostat
400-106-001-D
12/8/05
1/3
