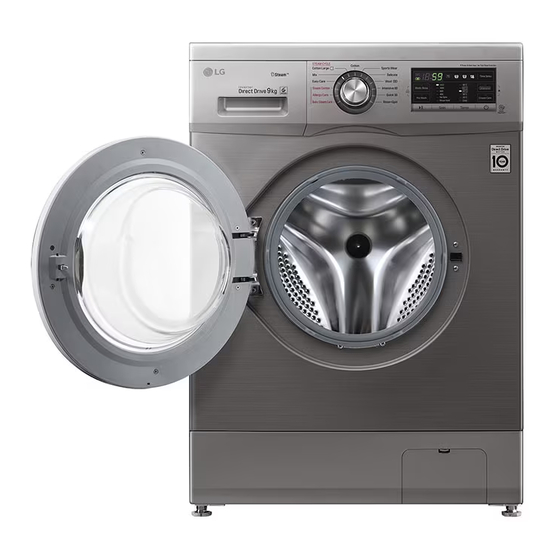

LG WD1409NPE Owner's Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. Washer
  5. WD1409NPE
  6. Owner's manual

LG WD1409NPE Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

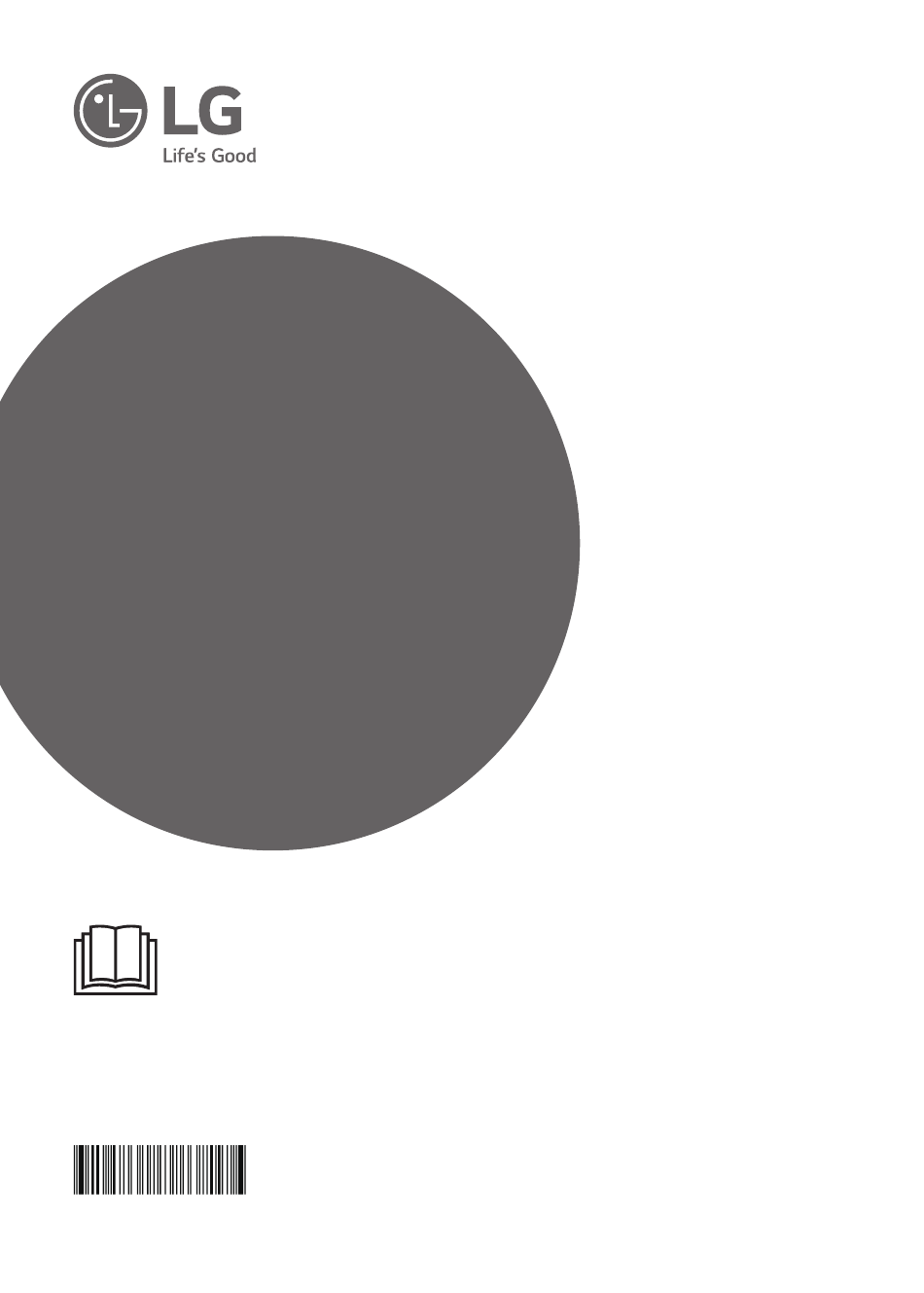

OWNER'S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully.
This will simplify installation and ensure that the product is installed
correctly and safely. Leave these instructions near the product after
installation for future reference.
WD1409NPW
WD1409NPE
MFL69040435
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WD1409NPE and is the answer not in the manual?

Questions and answers

Related Manuals for LG WD1409NPE

Summary of Contents for LG WD1409NPE

  • Page 1 OWNER’S MANUAL WASHING MACHINE Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. WD1409NPW WD1409NPE www.lg.com MFL69040435...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS This manual is produced for a group of products and may contain images or content different from the model you purchased. This manual is subject to revision by the manufacturer. SAFETY INSTRUCTIONS ........03 Important Safety Instructions ...............05 INSTALLATION ............08 Specifications ..................08 Accessories ..................08...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the product. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. This symbol is displayed to the indicate matters and operations that can cause risk.
  • Page 4 GROUNDING REQUIREMENTS WARNING For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric shock, or to prevent property damage, injury to persons, or death. • This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

  • Page 5: Important Safety Instructions

    • Never attempt to operate this appliance • Only an authorized repair person from if it is damaged, malfunctioning, partially an LG Electronics service centre should disassembled, or has missing or broken disassemble, repair, or modify the parts, including a damaged cord or plug.
  • Page 6 These • In case of a water leak, stop using the products contain poisonous materials. product and contact an LG Electronics service centre. Unplug the unit from the • Do not plug multiple products into...
  • Page 7 Disposal • This appliance must only be used for domestic household purposes • Before discarding an old appliance, and should not be used in mobile unplug it. Render the plug useless. applications. Cut off the cable directly behind the appliance to prevent misuse. •...

  • Page 8: Installation

    INSTALLATION Specifications Transit bolts (Must be removed before use) Power plug Drawer Control panel Drum Door Drain hose Drain plug Drain pump filter Cover cap (Location may vary depending on products) Adjustable feet • Power supply : 220‒240 V~, 50 Hz •...

  • Page 9: Installation Place Requirements

    Installation Place Requirements • Do not install your washing machine in rooms where freezing temperatures may occur. Frozen hoses may Location burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point. • Please ensure that when the washing machine is installed, it is easily accessible for an engineer in the event of a breakdown.

  • Page 10: Unpacking And Removing Shipping Bolts

    Unpacking and Removing Install the hole caps. Shipping Bolts (Transit bolts) • Locate the hole caps included in the accessory pack and install them in the shipping bolt holes. Lift the washing machine off the foam base. • After removing the carton and shipping material, lift the washing machine off the foam base.

  • Page 11: Using Non-Skid Pads (Optional)

    • It is most effective to install the non-skid pads • You can obtain rubber cups (p/no.4620ER4002B) from under the front legs. If it is difficult to place the an LG Service Centre. pads under the front legs, place them under the NOTE back legs.

  • Page 12: Leveling The Washing Machine

    • Timber or suspended type flooring may contribute to excessive vibration and unbalance. • Do Not install the washer on a raised platform, plinth or stand, unless it is manufactured and specified for its purpose by LG Electronics. Hose connector Rubber seal...
  • Page 13 Connecting Hose to Water Tap Push the inlet hose vertically upwards so that the rubber seal within the hose can adhere completely Connecting screw-type hose to tap with thread to the tap and then tighten it by screwing it to the right.
  • Page 14 Connecting Hose to Washing Machine Push the adapter onto the end of the tap so that the rubber seal forms a watertight connection. Make sure that there are no kinks in the hose and that Tighten the adapter ring plate and the four fixing they are not crushed.

  • Page 15: Installation Of Drain Hose

    Installation of Drain Hose Electrical Connections (In the UK Only) • The drain hose should not be placed higher than 100 cm above the floor. Water in the washing machine The wires in the mains lead are coloured in accordance may not drain or may drain slowly.

  • Page 16: Operation

    OPERATION Using the Washing Machine Choose the desired washing cycle. • Press the Cycle button repeatedly or turn the Before the first wash, select a cycle (Cotton 60°C, add cycle selector knob until the desired cycle is a half load of detergent), allow the washing machine selected.

  • Page 17: Sorting Iaundry

    Sorting Iaundry Caring before loading. • Combine large and small items in a load. Load Look for a care label on your clothes. large items first. • This will tell you about the fabric content of your • Large items should not be more than half the garment and how it should be washed.

  • Page 18: Adding Cleaning Products

    Adding Cleaning Products NOTE • Do not let the detergent harden. Detergent Dosage Doing so may lead to blockages, poor rinse performance or odour. • Detergent should be used according to the instruction of the detergent manufacturer and selected according •...
  • Page 19 Using tablet • Do not leave the fabric softener in the detergent drawer for more than 2 days (Fabric softener may Open the door and put tablets into the drum. harden). • Softener will automatically be added during the last rinse cycle.

  • Page 20: Control Panel

    Control Panel Power button Display • Press the Power button to turn the washing • The display shows the settings, estimated machine on. time remaining, options, and status messages. When the product is turned on, the default • To cancel the Time Delay function, the Power settings in the display will illuminate.

  • Page 21: Programme Table

    Programme Table Washing Programme Proper Maximum Programme Description Fabric Type Temp. Load Provides better performance by 40°C Cotton Coloured fast garments (shirts, combining various drum motions. (Cold to 95°C) nightdresses, pajamas, etc) Rated Provides optimised washing and normally soiled cotton load capacity 60°C Cotton Eco...
  • Page 22 Proper Maximum Programme Description Fabric Type Temp. Load Coloured laundry which is lightly This cycle provides fast washing soiled fast. 20°C Speed 14 time for small loads and lightly soiled (20°C to 2.0 kg CAUTION : Use less than 20g of clothes.
  • Page 23 Extra Options Turbo Rinse Medic Crease Time Programme Pre Wash Rinse+ Intensive Favorite Clean Hold Rinse Care Delay ● ● ● ● ● ● ● ● ● Cotton ● ● ● ● ● ● ● ● Cotton Eco ● ● ●...
  • Page 24 Operating Data Programme Max RPM Cotton 1400 Cotton Eco 1400 Easy Care 1000 1400 Hygiene 1400 Silent Wash 1000 Baby Care 1000 Duvet 1000 Sports Wear Dark Wash 1400 Speed 14 Wool+ Stain Care 1400...

  • Page 25: Option Cycle

    Option Cycle Pre Wash If the laundry is heavily soiled, the Pre Wash cycle is Time Delay recommended. You can set a time delay so that the washing machine Press the Power button. will start automatically and finish after a specified time interval.
  • Page 26 Wash Spin Turbo Clean • Spin speed level can be selected by pressing the Spin button repeatedly. Wash cycle in under 1 hour with energy and water • Spin Only saving. (based on half loads) Press the Power button. Intensive Press the Spin button to select RPM.
  • Page 27 Child Lock ( Beep On / Off Select this function to lock the buttons on the control Press the Power button. assembly to prevent tampering. Press the Start/Pause button. Locking the control panel Press and hold the Crease Care and Pre Wash Press and hold the Child Lock (Spin) button for 3 button simultaneously for 3 seconds to set the seconds.

  • Page 28: Using Smart Function (Optional)

    Installation of the application a more detailed guide on how to use the Tag On function. • Search "LG Smart Laundry" on the Google Play Store • Depending on the smart phone manufacturer and from your smart phone. Android OS version, the NFC activation process may differ.

  • Page 29: Maintenance

    MAINTENANCE Care and Cleaning of the Interior WARNING • Unplug the washing machine before cleaning to • Use a towel or soft cloth to wipe around the washing avoid the risk of electric shock. Failure to follow machine door opening and door glass. this warning may result in serious injury, fire, •...

  • Page 30: Cleaning The Drain Pump Filter

    Cleaning the Drain Pump Filter After cleaning, refit the drain cap by turning it clockwise and then insert the drain plug. • The drain filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of your washing machine.

  • Page 31: Cleaning The Dispenser Drawer

    Cleaning the Dispenser Drawer Tub Clean (Optional) Detergent and fabric softener may build up in the Tub Clean is a special cycle to clean the inside of the dispenser drawer. Remove the drawer and inserts and washing machine. check for buildup once or twice a month. A higher water level is used in this cycle at higher spin speed.

  • Page 32: Caution On Freezing During Winter

    Caution on Freezing During • After closing the tap, disconnect the cold inlet hose from the tap, and remove water while keeping the Winter hose facing downwards. • When frozen, the product does not operate normally. Make sure to install the product where it will not freeze during winter.
  • Page 33 How to Handle Freezing • When water is removed completely from the drum, close the hose plug used for removal of residual • Make sure to empty the drum, pour warm water of water, select Rinse and Spin, and press the Start/ 50–60°C up to the rubber part inside the drum, close Pause button.

  • Page 34: Using The Smart Diagnosis™ Function

    Use this function if you need an accurate diagnosis using the information transmitted for analysis. by an LG Electronics service centre when the product NOTE malfunctions or fails. Use this function only to contact •...

  • Page 35: Troubleshooting

    TROUBLESHOOTING • Your washing machine is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your washing machine does not function properly or does not function at all, check the following before you call for service: Diagnosing Problems Symptoms Reason...
  • Page 36 Symptoms Reason Solution Electrical power cord may not be plugged in or connection may be • Make sure plug fits tightly in wall outlet. loose. • Reset circuit breaker or replace fuse. Do Washing machine does House fuse blown, circuit breaker not increase fuse capacity.

  • Page 37: Error Messages

    Error Messages Symptoms Reason Solution Water supply is not adequate in • Check another tap in the house. area. Water supply taps are not • Fully open tap. completely open. Water inlet hose(s) are kinked. • Straighten hose(s). The filter of the inlet hose(s) are •...
  • Page 38 Symptoms Reason Solution • Close the door completely. Ensure door is not open. If ‘ ’ is not released, call for service. • Unplug the power plug and call for service. • Close the water tap. Water overfills due to the faulty •...
  • Page 39 Memo...
