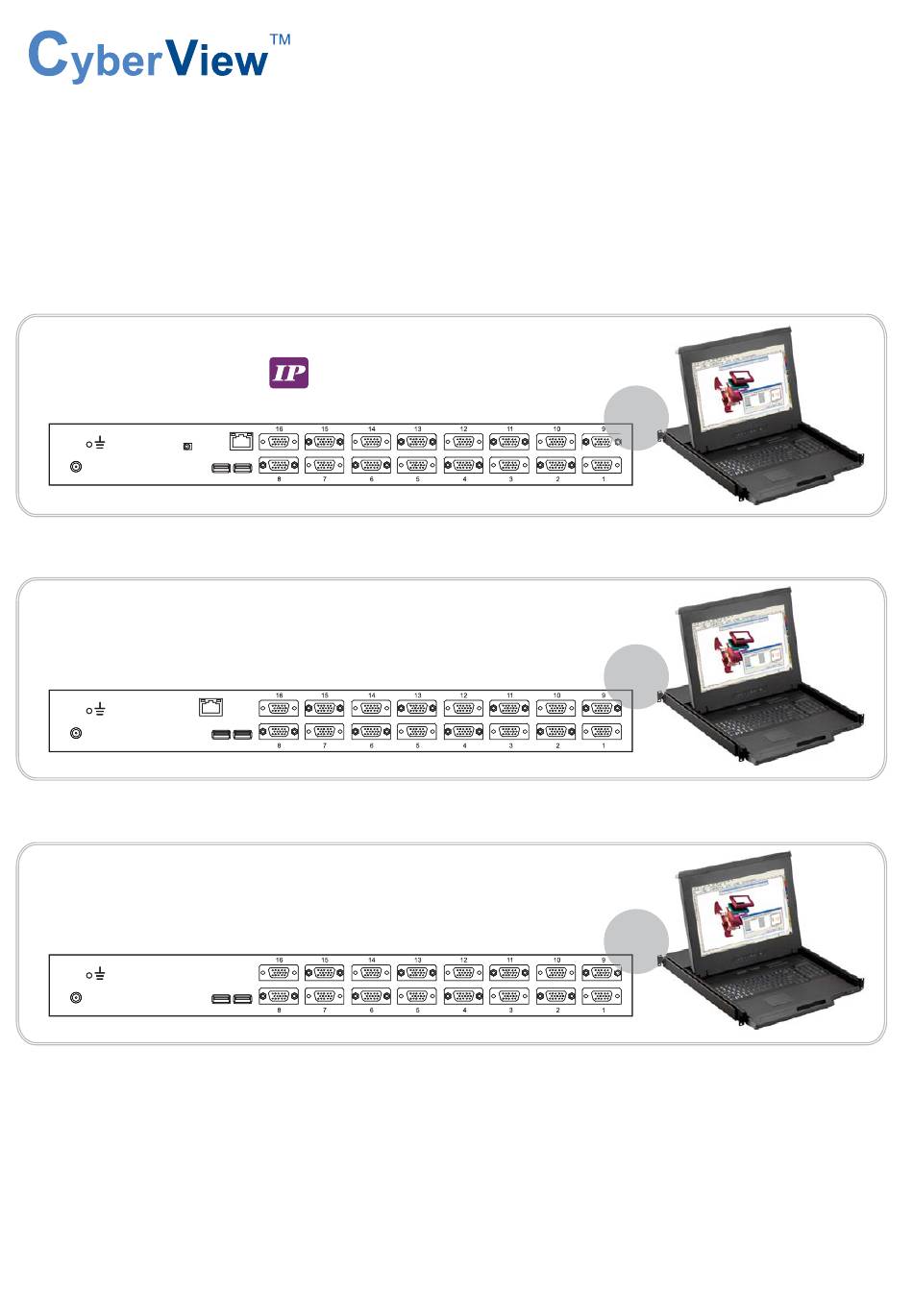

- Page 1 dedicated KVM switch and rackmount screen technology User Manual - KVM Rear Kit Version for LCD Console Drawer -IP802H USB Hub DB-15 -IP1602H back -802H USB Hub DB-15 2-console KVM -1602H back -801H USB Hub DB-15 KVM -1601H back Designed and manufactured by Austin Hughes UM-CV-751-USBKVM-KIT-Q215V3 www.austin-hughes.com...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part 1 > USB Hub DB-15 2-console KVM -IP802H -IP1602H Package contents KVM port connection IP console connection IP console setting Important Preconfi guration for IP console P.4 - 5 Built-in USB hub usage & connection Specifi cations <... -
Page 5: Part 1 > Usb Hub
< Part 1 > USB Hub DB-15 < 1.1 > Package Contents USB Hub DB-15 IP KVM -IP802H -IP1602H KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -IP802H Flash 12VDC... -
Page 6: Kvm Port Connection
< 1.2 > KVM port connection USB Hub DB-15 IP KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 USB KVM port Drawer KVM Rear Kit CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers... -
Page 7: Ip Console Setting
< 1.4 > IP console setting USB Hub DB-15 IP KVM After the cable connection, please take the following steps to confi gure the IP KVM : 1. Download IPKVMsetup.exe from the link: www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe 2. Double click IPKVMsetup.exe to confi gure the IP KVM by device setup as below. 3. -
Page 8: Important Preconfi Guration For Ip Console
< 1.5 > Important Preconfi guration for IP console USB Hub DB-15 IP KVM You must complete the following tasks after the IP console setting is performed. ( 1 ) TARGET SERVER SETUP **Servers connected to KVM Resolution The IP KVM remote console recognizes several varieties of video display formats with resolutions up to 1600 x 1200 @60Hz. - Page 9 < 1.5 > Important Preconfi guration for IP console USB Hub DB-15 IP KVM ( 2 ) REMOTE CLIENT COMPUTER SETUP The remote client computer must have a web browser ( such as Microsoft Internet Explorer, Mozilla Firefox, and Netscape Navigator ) and a Java Virtual Machine ( version 1.4 or higher ) installed. Enable Java on the web browser.
-
Page 10: Built-In Usb Hub Usage & Connection
< 1.6 > Built-in USB Hub Usage & Connection USB Hub DB-15 IP KVM 2 x USB 2.0 ( USB hub for device connection ) Flash Disk Hard disk storage Keyboard / Mouse Scanner Printer Camera UM-CV-751-USBKVM-KIT-Q215V3 www.austin-hughes.com... -
Page 11: Specifi Cations
< 1.7 > Specifi cations USB Hub DB-15 IP KVM -IP802H -IP1602H KVM Port ▀ Number of ports: 8 or 16 Connector: DB-15 combo connector Connectivity: Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet Local Console LCD console drawer version ( up to 1920 x 1080 / 1920 x 1200 ) ▀... -
Page 12: Part 2 > Usb Hub Db-15 2-Console Kvm
Part 2. USB Hub DB-15 2-console KVM < 2.1 > Package Contents USB Hub DB-15 2-console KVM -802H / -1602H • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 •... -
Page 13: Kvm Port Connection
< 2.2 > KVM port connection USB Hub DB-15 2-console KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 USB KVM port Drawer KVM Rear Kit CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers... - Page 14 How to use a receiver to connect a remote console USB Hub DB-15 2-console KVM Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Please refer to P.18 Drawer KVM Rear Kit Monitor Remote...
-
Page 15: Built-In Usb Hub Usage & Connection
< 2.4 > Built-in USB Hub Usage & Connection USB Hub DB-15 2-console KVM 2 x USB 2.0 ( USB hub for device connection ) Flash Disk Hard disk storage Keyboard / Mouse Scanner Printer Camera P.11 UM-CV-751-USBKVM-KIT-Q215V3 www.austin-hughes.com... -
Page 16: Specifi Cations
< 2.5 > Specifi cations USB Hub DB-15 2-console KVM -802H -1602H KVM Port ▀ Number of ports: 8 or 16 Connector: DB-15 combo connector Connectivity: Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet Local Console LCD console drawer version ( up to 1920 x 1080 / 1920 x 1200 ) ▀... -
Page 17: Part 3. Usb Hub Db-15 Kvm
Part 3. USB Hub DB-15 KVM < 3.1 > Package Contents USB Hub DB-15 KVM -801H / -1601H KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -801H 12VDC 2 x USB 2.0... -
Page 18: Kvm Port Connection
< 3.2 > KVM port connection USB Hub DB-15 KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 USB KVM port Drawer KVM Rear Kit CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers P.14... -
Page 19: Built-In Usb Hub Usage & Connection
< 3.3 > Built-in USB Hub Usage & Connection USB Hub DB-15 KVM 2 x USB 2.0 ( USB hub for device connection ) Flash Disk Hard disk storage Keyboard / Mouse Scanner Printer Camera P.15 UM-CV-751-USBKVM-KIT-Q215V3 www.austin-hughes.com... -
Page 20: Specifi Cations
< 3.4 > Specifi cations USB Hub DB-15 KVM -801H -1601H ▀ KVM Port Number of ports: 8 or 16 Connector: DB-15 combo connector Connectivity: Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet Local Console LCD console drawer version ( up to 1920 x 1080 / 1920 x 1200 ) ▀... -
Page 21: Part 4. Usage
Part 4. Usage USB Hub DB-15 KVM Usage 4.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications USB Hub DB-15 KVM 8 ports Bank no. -
Page 22: Password
4.2 Password USB Hub DB-15 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 23: Kvm Osd
4.3 KVM OSD USB Hub DB-15 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port... -
Page 24: Kvm Hotkey & Remote Console Hotkey
4.4 KVM Hotkey & Remote Console Hotkey USB Hub DB-15 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port... - Page 25 4.5 Options : DC Power USB Hub DB-15 KVM Usage Model 110 ~ 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...
-
Page 26: Resolution Support Information
< 4.6 > Resolution Support Information USB Hub DB-15 KVM Usage IP Console Remote Console Resolution Frequency ( Hz ) Resolution Frequency ( Hz ) 1600 x 1200 1600 x 1200 1280 x 1024 1440 x 900 1280 x 960 1280 x 1024 1152 x 864 1280 x 960... - Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-USBKVM-KIT-Q215V3 www.austin-hughes.com...
