- Page 1 K422W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 8C...

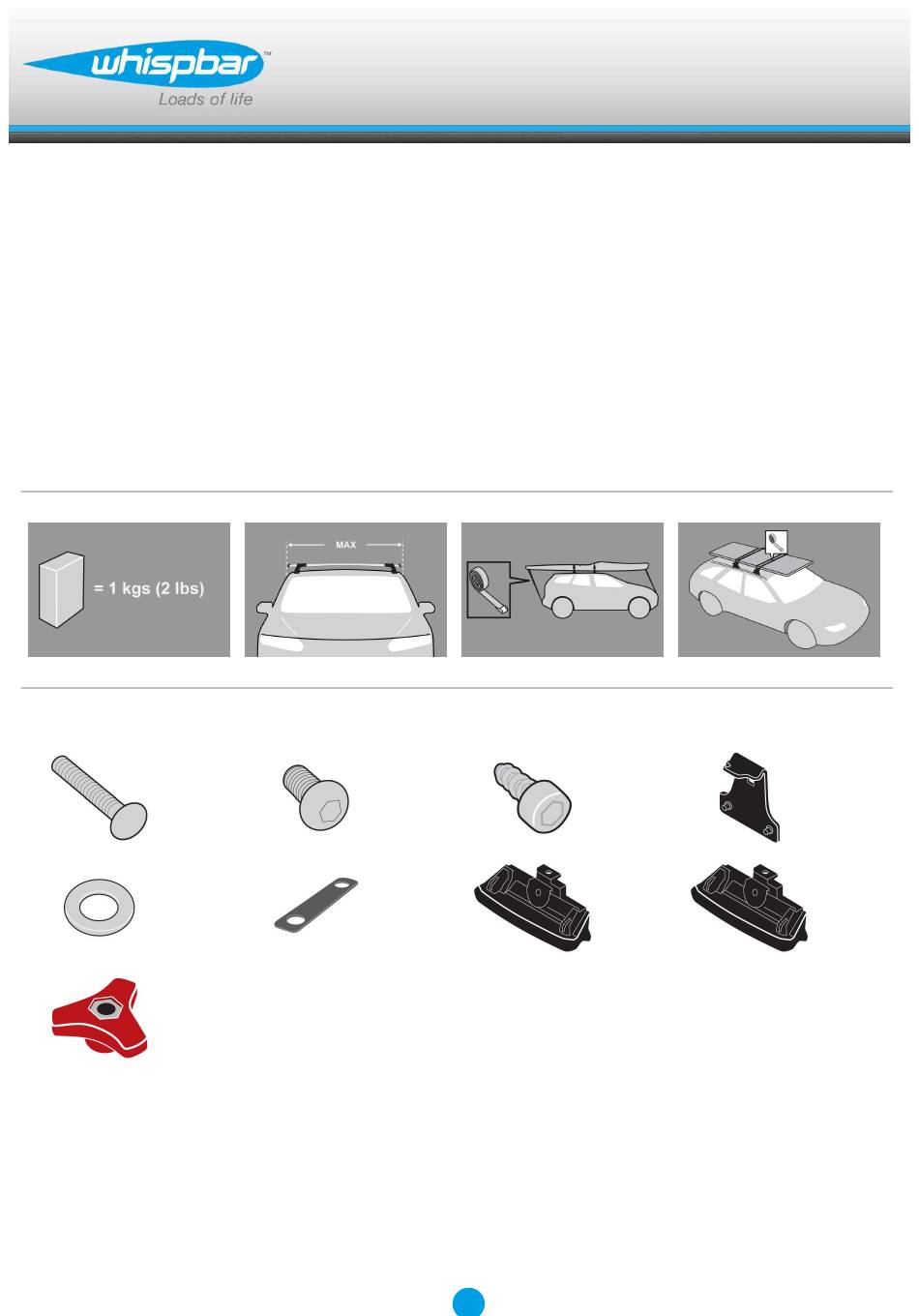

- Page 2 Fitting Kit K422W MAX kgs (lbs)
-
Page 3: First Time Installation
Fitting Kit K422W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K422W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 5 Fitting Kit K422W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist.

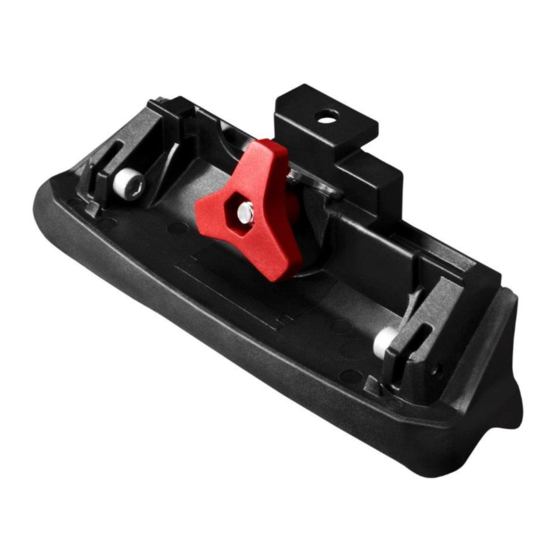

- Page 6 Fitting Kit K422W Detach foot from leg. Store loose parts in a safe place. Repeat for all legs. Select four feet assemblies and match the left and right assemblies to the left and right roof rack legs. Assemble foot from kit into leg by pressing it down.
- Page 7 Fitting Kit K422W Use two M5 x 12 mm self tapping screws to secure the assembly onto the leg. Do not over tighten. Fitment Locate two holes at each position along the inside of the roof rails. Place crossbars approximately above these holes on roof rails.
- Page 8 Fitting Kit K422W Ensure the two pins of the clamp engages correctly with the holes in the roof rail. Place one hand on the leg and apply downward pressure. Slide clamp through opening in leg. Thread the coach bolt through the clamp and the leg.
- Page 9 Fitting Kit K422W Use keys to fit and lock covers Check crossbar is securely attached to the vehicle. CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K422W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K422W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K422W...
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
