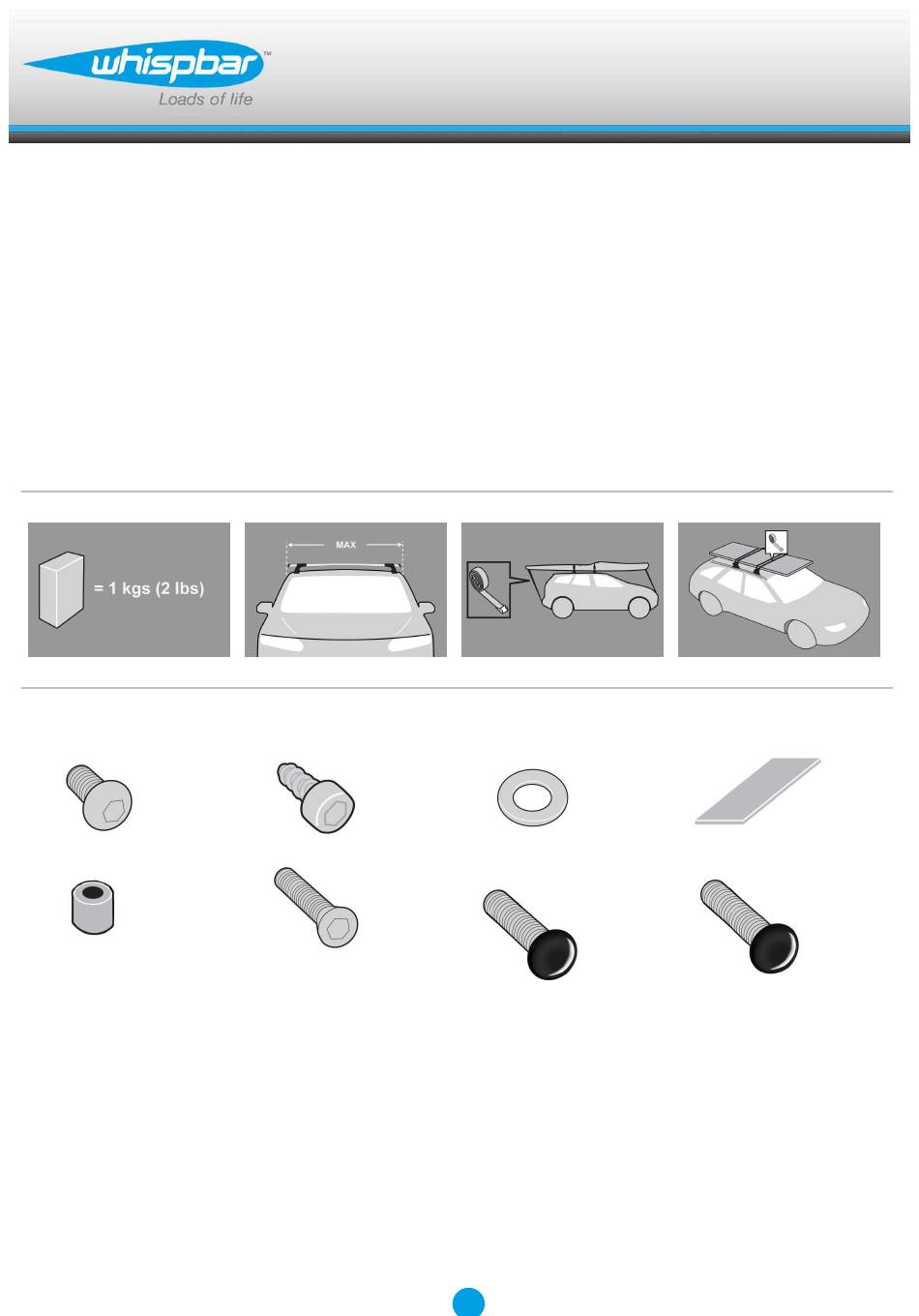

- Page 1 K423W Fitting Kit Fitting Instructions for Basic Carrier x 12 Revision No: 11E...
- Page 2 Fitting Kit K423W...
- Page 3 Fitting Kit K423W MAX kgs (lbs) Nissan X-Trail Lowline, 5dr SUV 01-07 75 kgs (165 lbs) 75 kgs (165 lbs) X-Trail, 5dr SUV 01-06 75 kgs (165 lbs) 75 kgs (165 lbs) X-Trail, 5dr SUV 04-04 75 kgs (165 lbs)
- Page 4 Fitting Kit K423W X-Trail Lowline, 5dr SUV 01-07 (ZA) -140mm 590mm 875mm 840mm -5 -1/2ths" 23 1/4ths" 34 7/16ths" 33 1/16ths" X-Trail, 5dr SUV 01-06 (EU) -140mm 590mm 875mm 840mm -5 -1/2ths" 23 1/4ths" 34 7/16ths" 33 1/16ths" X-Trail, 5dr SUV 04-04 (CN)
-
Page 5: First Time Installation
Fitting Kit K423W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K423W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Clamps onto flush roof rail. Pins locate on inside of rail.
- Page 7 Fitting Kit K423W Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist.
- Page 8 Fitting Kit K423W Detach foot from leg. Store loose parts in a safe place. Repeat for all legs. Foot Part Number: X-Trail 07-10, 10-13 = 11-02-236A left = 11-02-237A right X-Trail 01-07 = 11-02-238A left = 11-02-239A right Select four feet assemblies and match the left and right assemblies to the left and right roof rack legs.
- Page 9 Fitting Kit K423W Use two M5 x 12 mm self tapping screws to secure the assembly onto the leg. Do not over tighten. Open or remove fixed-point covers. From the kit select the mounting plates and fit the M6 x 25mm countersunk bolts...
- Page 10 Fitting Kit K423W Ensure edge of rail aligns with edge of slot. Apply protective strip as shown. Trim if required. Use fixed-point cover to check spacer height as shown.
- Page 11 Fitting Kit K423W Place washer at base of spacer to adjust height if required. Refit fixed-point cover. Repeat for all four positions. Fixed-point cover may require trimming to accommodate load plate. Fitment Place crossbar on vehicle. Ensure back edge of foot sits flush with the...
- Page 12 Fitting Kit K423W Place one hand on the leg and apply downward pressure. Ensure the clamp engages correctly on inside of roof rail. Slide clamp through opening in leg. Coach bolt length: X-Trail 07-10, 10-13 = 35 mm (1 3/8") X-Trail 01-07 = 30 mm (1 1/8")
- Page 13 Fitting Kit K423W Tighten the plastic knob. Do not over tighten. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all four positions. Use keys to fit and lock covers Check crossbar is securely attached to the...
- Page 14 Fitting Kit K423W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 15: Maintenance
Fitting Kit K423W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 16 Fitting Kit K423W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 17: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 18 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
