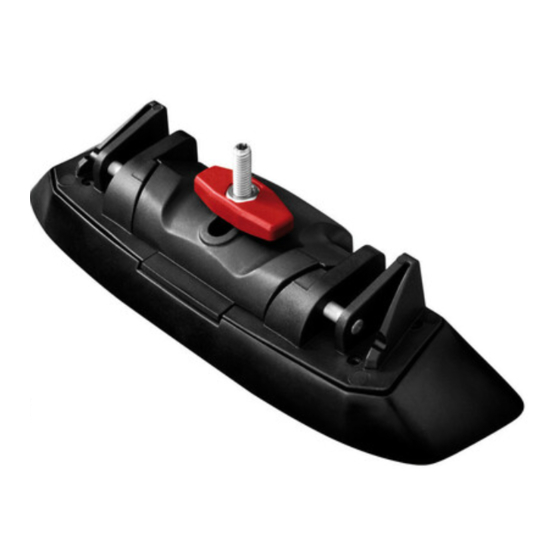

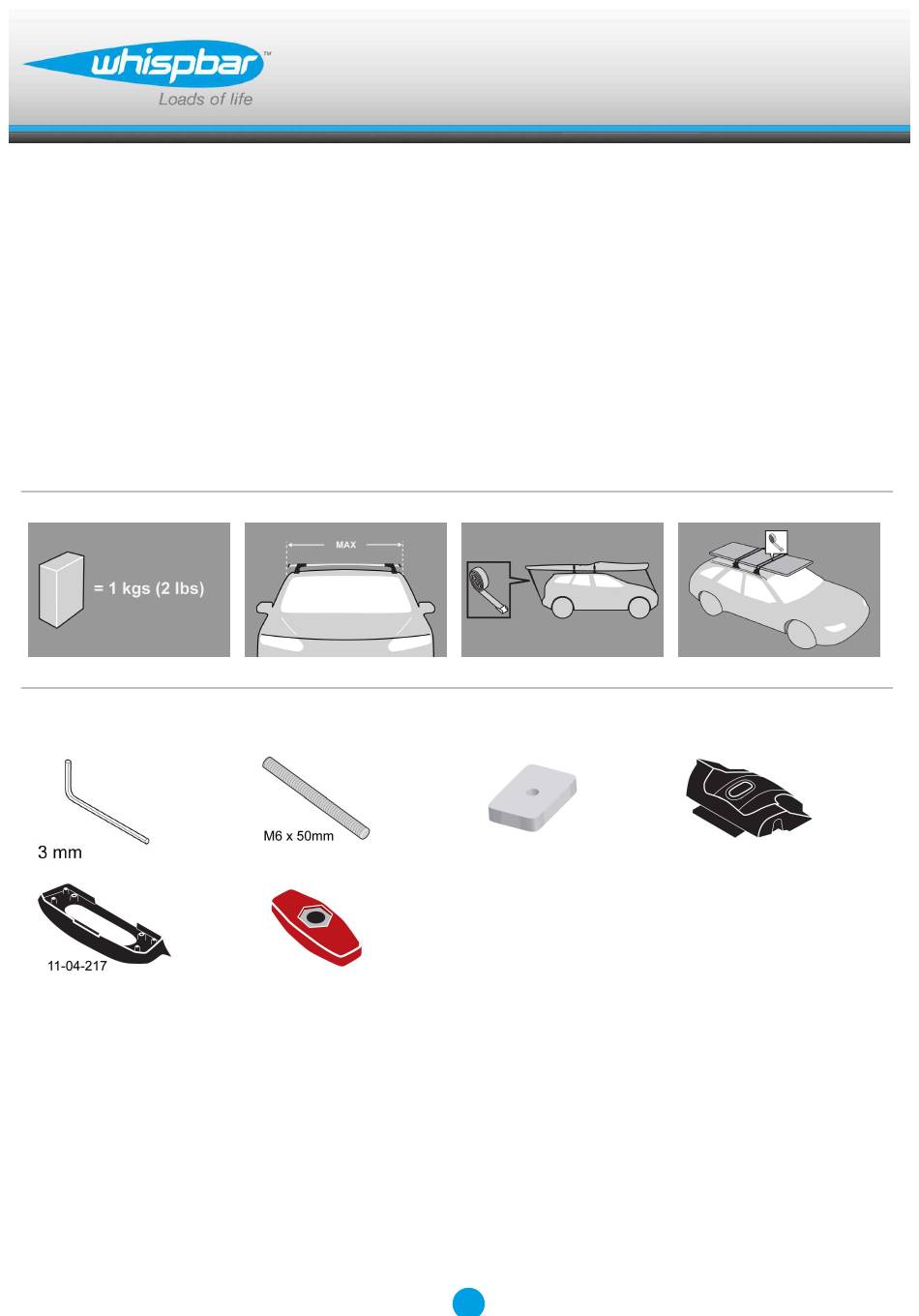

- Page 1 K434W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 6C...
- Page 2 Fitting Kit K434W MAX kgs (lbs) Ford Focus , 5dr Estate 04-08 75 kgs (165 lbs) 75 kgs (165 lbs) Focus , 5dr Estate 04-08 75 kgs (165 lbs) 75 kgs (165 lbs) Focus , 5dr Wagon 04-08 75 kgs (165 lbs)
-
Page 3: First Time Installation
Fitting Kit K434W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K434W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 5 Fitting Kit K434W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 6 Fitting Kit K434W Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Repeat for all legs. Fitment Slide metal T-nuts into tracks on vehicle.
- Page 7 Fitting Kit K434W Place crossbar foot over grubscrews. Adjust crossbar in or out to suit vehicle. Refer to the crossbar instructions for crossbar adjustment. Tighten the plastic knob. The side with the nut showing should be facing up. In the fully tightened position, the knobs should be parallel with the vehicle.
- Page 8 Fitting Kit K434W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 9: Maintenance
Fitting Kit K434W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 10 Fitting Kit K434W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 11 Fitting Kit K434W Focus, 5dr Estate 04-08 (ZA) 860mm 830mm 33 7/8ths" 32 11/16ths" Focus, 5dr Estate 04-08 (EU) 860mm 830mm 33 7/8ths" 32 11/16ths" Focus, 5dr Wagon 04-08 (NZ) 860mm 830mm 33 7/8ths" 32 11/16ths" Galaxy, 5dr MPV 06-09 (EU)
-
Page 12: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 13 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
