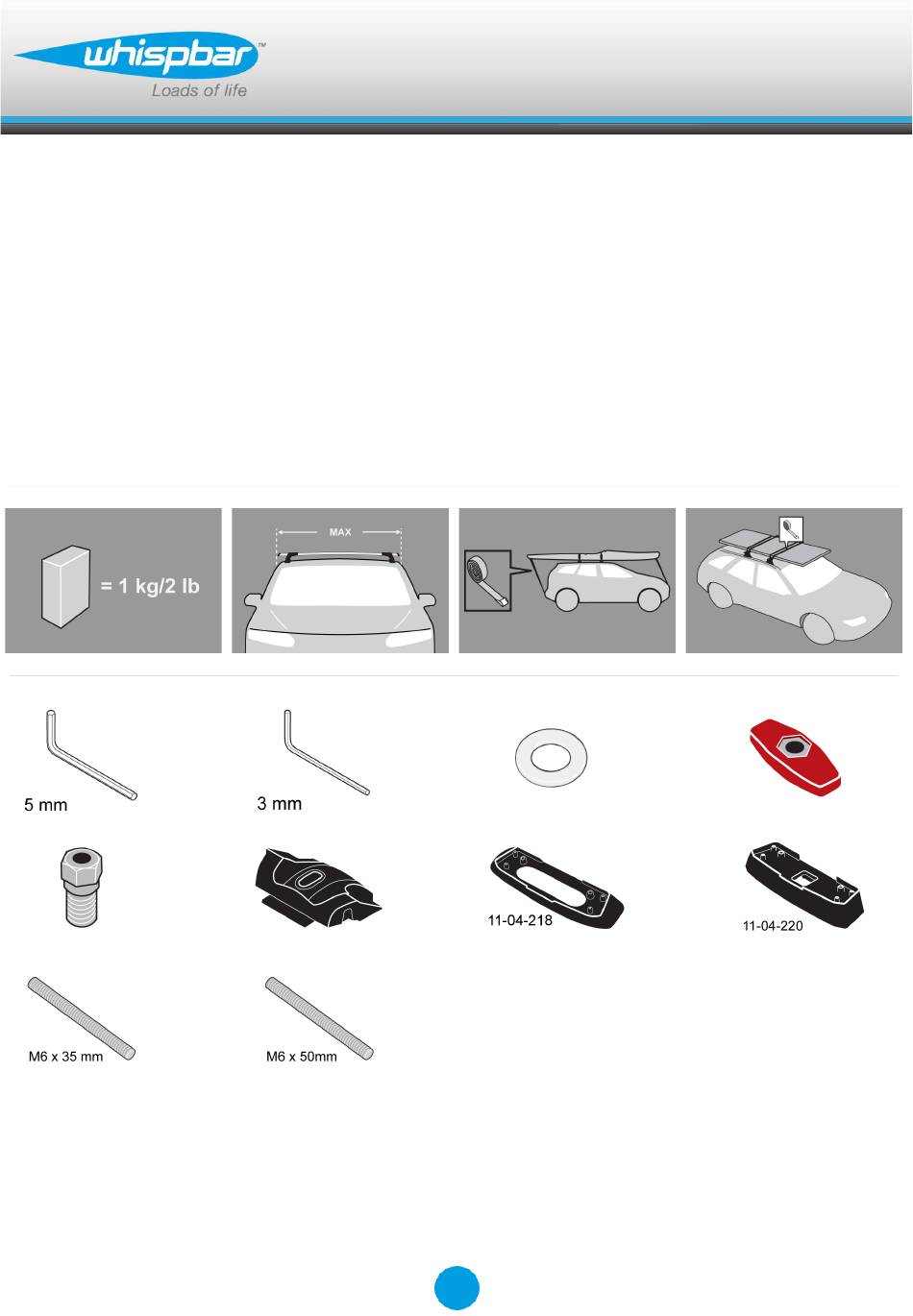

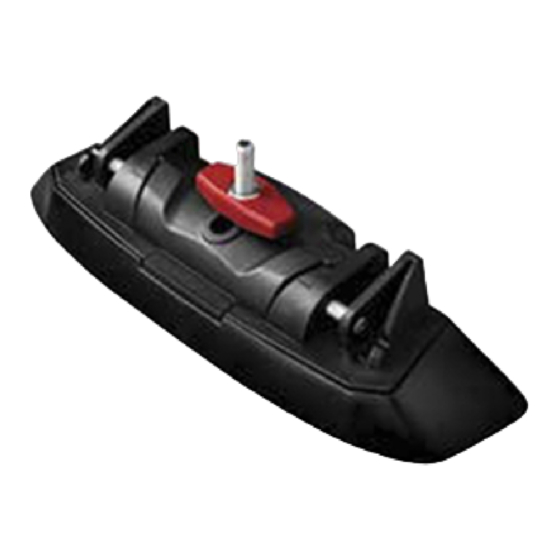

- Page 1 K447 Fitting Kit GB Fitting Instruction for Accessory Revision No:...
- Page 2 Fitting Kit K447 MAX kgs MAX kgs W/P WHD W/P WHD Volkswagen Caddy Maxi, 5dr Van 08-+ Caddy Maxi, 5dr Van 08-+ Caddy Maxi, 5dr Van 08-+ Caddy Maxi, 5dr Van 08-+...
-
Page 3: First Time Installation
Fitting Kit K447 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K447 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 5 Fitting Kit K447 Tighten adjusting screw to 5 Nm (3.7 ft lb). Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 6 Fitting Kit K447 Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number:...
- Page 7 Fitting Kit K447 Fitment Remove fixed-point cover screws with 5mm (1/4") Hex Key. Fit the adaptor (A) to grubscrew (B). Use the following grubscrew lengths for each position: A = M6 x 35mm (1 3/8") B = M6 x 50mm (2")
- Page 8 Fitting Kit K447 Screw adaptor with grubscrew assembly into roof. Tighten firmly. Repeat for all four positions. Place crossbar foot over clamp. Tighten the red plastic knob. In the fully tightened position, the knobs should be parallel with the vehicle.
- Page 9 Fitting Kit K447 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
- Page 10 Fitting Kit K447 Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
- Page 11 Fitting Kit K447 A loaded roof rack system can alter the performance of your vehicle. Be especially aware of the effects of side winds, changing of direction, and braking performance. Avoid rapid acceleration and deceleration. Drive carefully. Note that the total height of the vehicle increases when upright loads are carried.
- Page 12 Fitting Kit K447 Volkswagen Caddy Maxi, 5dr Van 08-+ (AU) 100mm 860mm 1460mm 818mm 790mm 782mm 3 15/16ths" 33 7/8" 57 1/2" 32 3/16ths" 31 1/8" 30 13/16ths" Volkswagen Caddy Maxi, 5dr Van 08-+ (EU) 100mm 860mm 1460mm 818mm 790mm 782mm 3 15/16ths"...
