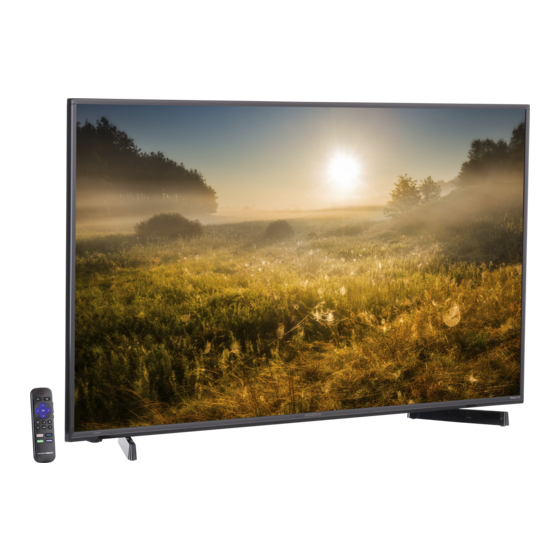

49" FHD 1080p, 60Hz, LED Roku TV
NS-49DR420NA18
Before using your new product, please read these instructions to prevent any damage.
Illustrations in this guide are provided for
reference only and may differ from actual
product appearance. Product design and
specification may be changed without notice.
USER GUIDE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Insignia NS-49DR420NA18
Summary of Contents for Insignia NS-49DR420NA18
- Page 1 USER GUIDE 49" FHD 1080p, 60Hz, LED Roku TV NS-49DR420NA18 Illustrations in this guide are provided for reference only and may differ from actual product appearance. Product design and specification may be changed without notice. Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents Contents CHILD SAFETY ............. . . 4 Important Safety Instructions . - Page 3 Contents Installing remote control batteries ......... . 36 Aiming the remote control.
-
Page 4: Child Safety
CHILD SAFETY PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES Manufacturers, retailers, and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. As you enjoy your television, please note that all televisions - new and old - must be supported on proper stands or installed according to the manufacturer's recommendations. -
Page 5: Important Safety Instructions
Important Safety Instructions 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use CAUTION caution when moving the cart/apparatus combination to RISK OF ELECTRIC SHOCK avoid injury from tip-over. -
Page 6: Caution
NS-49DR420NA18 Handling the LCD panel Outdoor antenna grounding • Your TV’s screen is made of glass. Do not drop your If an outside antenna or cable system is connected to TV or hit, jolt, or press hard against the LCD panel. If your TV, make sure that the antenna or cable system is the screen breaks, be careful of broken glass. - Page 7 End of life directives Non-active pixels Your TV may contain materials that are regulated for The LCD panel contains almost 3 million thin film environmental reasons. Your TV also contains transistors, which provide exceptionally sharp video materials that can be recycled and reused. To help quality.
-
Page 8: Welcome
NS-49DR420NA18 49" FHD 1080p, 60Hz, LED Roku TV Welcome Congratulations on the purchase of your new TV! Discover the joy of endless entertainment. After it's set up, you'll be able to access a world of streaming content channels that may include Netflix, YouTube, Crackle, CNET and literally thousands more. - Page 9 49" FHD 1080p, 60Hz, LED Roku TV 6 Send your personal media to the big screen • Send personal photos, videos, and music from your compatible smartphone or tablet to the TV screen in just a few taps. Plus, with certain channels, such as Netflix and YouTube, send movies, shows, sport highlights, and more directly to your TV.
-
Page 10: Installing The Stands Or Wall-Mount Bracket
NS-49DR420NA18 Installing the stands or wall-mount bracket • If you want to place your TV on a table or in an entertainment center, go to Installing the stands. • If you want to mount your TV on a wall, go to Installing a wall-mount bracket. - Page 11 49" FHD 1080p, 60Hz, LED Roku TV 2 Align the screw holes on the TV stands with the holes on the bottom of your TV, then secure each stand to your TV with the provided screws. Screw type Screw length # of screws 16 mm www.insigniaproducts.com...
-
Page 12: Installing A Wall-Mount Bracket
NS-49DR420NA18 Installing a wall-mount bracket Warnings • Your TV has four VESA mounting holes on the back. If you attach a wall-mount bracket to the back of your TV, the bracket must be securely attached, using all four holes. If you do not use all four mounting holes, your TV may fall and cause property damage or personal injury. - Page 13 49" FHD 1080p, 60Hz, LED Roku TV 3 Attach the wall-mount bracket to your TV using the mounting holes on the back of your TV. See the instructions that came with the wall-mount bracket for information about how to correctly hang your TV. Notes •...
-
Page 14: Tv Components
NS-49DR420NA18 TV components Front features Your TV has built-in controls for adjusting basic settings and several sets of jacks for connecting devices to your TV. This section contains information about: • Package contents • Front features • Side jacks • Back jacks •... -
Page 15: Side Jacks
49" FHD 1080p, 60Hz, LED Roku TV Side jacks Item Description Connect a USB flash drive to this jack to view compatible photos and video and listen to music files. For 1 USB more information, see Connecting a USB flash drive on page 29. -
Page 16: Back Jacks
NS-49DR420NA18 Back jacks # Item Description Connect the power cord into this jack and into a power outlet. For more information, 1 AC IN Connecting power page 35. Connect a digital soundbar, speaker system, or home theater system to this jack to... -
Page 17: Remote Control
49" FHD 1080p, 60Hz, LED Roku TV Remote control Button Description —Moves the highlight up or down one item. —Moves the highlight left, if a < hint appears. • When watching TV, displays your channel list. • When playing most streaming videos, skips backward in the video. - Page 18 NS-49DR420NA18 Button Description Button Description Dedicated buttons show the logo of a featured Turns the volume down one setting with each press. streaming content provider. Pressing a button turns Press and hold to turn the volume down rapidly. A your TV on (if your TV is not already on), and if your TV...
-
Page 19: What Connection Should I Use
49" FHD 1080p, 60Hz, LED Roku TV What connection should I Connection type and Cable connector use? jack Your TV has several connection types for connecting Digital audio devices to your TV. optical output For the best video quality, you should connect a device to the best available connection. -
Page 20: Connecting A Cable Or Satellite Box
NS-49DR420NA18 Connecting a cable or satellite box Many cable or satellite TV boxes have more than one connection type. To get the best video, you should use the best connection type available. For more information, see What connection should I use? on page 19. -
Page 21: Av (Good)
49" FHD 1080p, 60Hz, LED Roku TV AV (good) Notes Cables are often color-coded to match color-coded jacks. Cable wall Cable or jack satellite box On your TV AV cable Audio cable connector connectors AV jack Analog audio jacks Back of TV AV cable 1 Make sure that your TV’s power cord is unplugged and all connected devices are turned off. -
Page 22: Coaxial (Good)
NS-49DR420NA18 Coaxial (good) Cable or Side of TV satellite box On your TV Coaxial cable connector Coaxial cable ANT/CABLE IN jack Cable wall jack 1 Make sure that your TV’s power cord is unplugged and all connected devices are turned off. -
Page 23: Connecting An Antenna Or Cable Tv (No Box)
49" FHD 1080p, 60Hz, LED Roku TV Connecting an antenna or cable TV (no box) Antenna or cable TV Side of TV (no box) On your TV Coaxial cable connector Coaxial cable ANT/CABLE IN jack 1 Make sure that your TV’s power cord is unplugged and all connected devices are turned off. 2 Connect a coaxial cable (not provided) to the ANT/CABLE IN jack on the side of your TV and to the antenna or cable TV wall jack. -
Page 24: Connecting A Dvd Or Blu-Ray Player
NS-49DR420NA18 Connecting a DVD or Blu-ray player Many DVD or Blu-ray players have more than one connection type. To get the best video, you should use the best connection type available. For more information, see What connection should I use? on page 19. -
Page 25: Av (Good)
49" FHD 1080p, 60Hz, LED Roku TV AV (good) Note Cables are often color-coded to match color-coded jacks. DVD or Blu-ray player On your TV AV cable Audio cable connector connectors AV jack Analog audio jacks Back of TV AV cable 1 Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off. -
Page 26: Connecting A Game Console
NS-49DR420NA18 Connecting a game console Many game consoles have more than one connection type. To get the best video, you should use the best connection type available. For more information, see What connection should I use? on page 19. You can connect a game console using: •... -
Page 27: Av (Good)
49" FHD 1080p, 60Hz, LED Roku TV AV (good) Note Cables are often color-coded to match color-coded jacks. Game console On your TV AV cable Audio cable connector connectors AV jack Analog Back of TV audio jacks Console-specific AV cable 1 Make sure that your TV’s power cord is unplugged and the game console is turned off. -
Page 28: Connecting A Computer
NS-49DR420NA18 Connecting a computer You can use an HDMI® jack on your TV to connect to a computer. Note For better picture quality, we recommend that you use cables designated as High Speed HDMI® cables. Computer Side of TV On your TV HDMI®... -
Page 29: Connecting A Usb Flash Drive
49" FHD 1080p, 60Hz, LED Roku TV Connecting a USB flash drive When you connect a USB flash drive to the USB jack on your TV, you can view photos and videos or listen to music stored on the drive or you can use the Live TV Pause feature to pause live TV for up to 90 minutes. Side of TV USB flash drive... -
Page 30: Connecting Headphones
NS-49DR420NA18 Connecting headphones When you connect headphones, your TV speakers are muted and sound only plays through the headphones. Warning Loud noise can damage your hearing. When using headphones, use the lowest volume setting on your headphones that still lets you hear the sound. -
Page 31: Connecting External Speakers Or A Soundbar
49" FHD 1080p, 60Hz, LED Roku TV Connecting external speakers or a soundbar When you connect external speakers or a soundbar, sound plays through your TV speakers and the external speakers or soundbar. You can connect external speakers or a soundbar using: •... -
Page 32: Digital Audio Using The Hdmi 1/Arc Jack
NS-49DR420NA18 Digital audio using the HDMI 1/ARC jack Your TV can send sound to an ARC device, like an AV receiver, to create a home theater that uses two or more speakers. When you connect external speakers or a soundbar, sound plays through your TV speakers and the external speakers or soundbar. -
Page 33: Analog Audio
49" FHD 1080p, 60Hz, LED Roku TV Analog audio When you connect an analog speaker system or soundbar to the jack, sound plays through the TV speakers are muted. Analog speaker system Side of TV On your TV Soundbar Audio cable connector jack Audio cable... -
Page 34: Connecting A Home Theater System With Multiple Devices
NS-49DR420NA18 Connecting a home theater system with multiple devices You can connect an AV receiver and your devices to create a home theater. Cable or satellite box DVD or Blu-ray player AV receiver Antenna or cable TV connected directly to the wall jack The connections you make depend on the video and audio jacks available on your devices. -
Page 35: Connecting Power
49" FHD 1080p, 60Hz, LED Roku TV Connecting power You should connect devices before you connect the power cord. When you are adding devices, make sure that the power cable is unplugged from the power outlet. 1 Connect the AC power cord to the power connector on the back of your TV. 2 Connect the other end of the cord to a power outlet. -
Page 36: Installing Remote Control Batteries
NS-49DR420NA18 Installing remote control batteries Open the back of your TV remote control and insert two AAA batteries, observing the proper orientation. Reattach the back cover. Remote control on page explains how to use the remote control in each of your TV’s operating modes. -
Page 37: Setting Up Your Tv
49" FHD 1080p, 60Hz, LED Roku TV Setting up your TV When you turn on your TV for the first time, Guided Setup starts. During Guided Setup: • Your TV automatically detects your wireless network, so have your network name and password handy and follow the easy on-screen instructions. -
Page 38: Troubleshooting
For the latest answers to Frequently Asked Questions, visit General Support & FAQs under the Support and Service section of the Insignia TV support website (www.insigniaproducts.com) and the Support section of the Roku website (www.roku.com). Video and audio... - Page 39 49" FHD 1080p, 60Hz, LED Roku TV Symptom Possible cause Try this... • Try another channel. The station may be experiencing Broadcast TV may be problems. experiencing problems • If you are using an antenna and the signal strength is low, or may not be set up adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.
- Page 40 NS-49DR420NA18 Symptom Possible cause Try this... • Make sure that the antenna or cable TV is connected correctly and securely. See Connecting a cable or satellite box page Connecting an antenna or cable TV (no box) Cables may not be page 23.
-
Page 41: Remote Control
49" FHD 1080p, 60Hz, LED Roku TV Symptom Possible cause Try this... Light in the viewing area • Make sure that the room is not too bright. Light reflecting off may be interfering the screen can make the picture difficult to see. Poor picture A connected camera or •... -
Page 42: General
NS-49DR420NA18 General Symptom Possible cause Try this... • Make sure that the power cord is correctly connected to both your TV power connector and power outlet. See Connecting power on page 35. You should see an LED in the front of your Power cord may not be TV panel when a button on the remote is pressed. -
Page 43: Roku
49" FHD 1080p, 60Hz, LED Roku TV Symptom Possible cause Try this... • You may have Set up for store mode when you set up your TV. Store use mode is for retail environments only. In Store use mode, some of your TV’s features are missing or limited. If you Some features The wrong TV mode may selected Set up for store use and you want to change to Set... -
Page 44: Cec-Compatible Devices
NS-49DR420NA18 CEC-compatible devices Symptom Possible cause Try this... • Make sure that the HDMI® cable is connected securely to your Cables may not be TV and the device. connected correctly • Make sure that the device is connected to your TV with an HDMI®... - Page 45 49" FHD 1080p, 60Hz, LED Roku TV Symptom Possible cause Try this... Connected device may • Make sure that the device is a CEC device. See the not be a CEC device documentation that came with the device. The device does •...
-
Page 46: Specifications
NS-49DR420NA18 Specifications Outputs Headphone Specifications are subject to change without notice. Analog audio Digital audio 1 (optical) Dimensions and weight WiFi Yes (built-in) 25.2 × 43.3 × 3.3 (63.9 × 109.9 × 8.5 cm) Ethernet Without stand (H × W × D) 26.2 lbs (11.9 kg) -
Page 47: Legal Notices
After your Roku Account is created, you can link your Insignia Roku INSIGNIA ROKU TV FOR THE FIRST TIME. TV to your account. By using the Insignia Roku TV, you agree to the Overview following disclaimer. For the avoidance of doubt, the content disclaimer set forth herein shall refer to all content and channels This End User License Agreement (“EULA”) between you and Roku,... - Page 48 NS-49DR420NA18 Changes to This EULA Software Updates Roku may amend this EULA at any time in its discretion. Such in its sole discretion, ROKU MAY PROVIDE UPDATES TO YOUR amendments shall be effective immediately upon posting of the TELEVISION VIA the internet, including BUG FIXES AND...
- Page 49 800-778-7879. For If You desire to contact Insignia, please send your correspondence Claims between You and Roku of $75,000 or less, you will by mail to be responsible for the initial arbitration filing fee, up to the...
- Page 50 NS-49DR420NA18 FCC Statement Dolby License Notice and Trademark Acknowledgement Note: This equipment has been tested and found to comply with Manufactured under license from Dolby the limits for a class B digital Device, pursuant to part 15 of the FCC Laboratories.
-
Page 51: One-Year Limited Warranty
Insignia repair center or store personnel, HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE Insignia will (at its sole option): (1) repair the Product with new or LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU rebuilt parts;... - Page 52 For product inquiries or accessibility assistance, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2017 Best Buy. All rights reserved.
