Insignia NS-49DR420NA18 Quick Setup Manual

INCLUDED ACCESSORIES
1
Remote control and two AAA batteries
+ +
A
A
TV stands
ST4 screws
(16 mm length)
(4 pcs.)
Power cord
FEATURES
WHAT YOU NEED
(not included)
Phillips screwdriver
Wireless router* Internet connection*
(needed for streaming) (needed for streaming)
*Subscription or other payment may
be required to access certain content.
FIND YOUR USER GUIDE ONLINE!
1. Go to www.insigniaproducts.com.
2. Use the search bar to find NS-49DR420NA18.
3. Select Support & Downloads.
4. Next to User Guide, select the language you want.
STOP
Do not plug your power cord in until all other
devices have been connected.
Before using your new product, please read these
instructions to prevent any damage.
START HERE
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and Phillips screwdriver
Place your TV face-down on a cushioned, B Align the screw holes on the TV stands with the holes on the bottom of your TV, then secure each stand to your
clean surface. TV with the provided screws.
B
Remote control sensor
Power indicator
AC IN
Note: Images do not necessarily represent the exact design of your television.
ST4 screws (16 mm length) (4 pcs.)
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device, such as a DVD or Blu-ray disc player, game console, or tablet?
WHICH CABLES
DO YOU HAVE?
HDMI
(BEST)
Best video quality
AV
(GOOD)
COAXIAL
(GOOD)
CONNECTING AUDIO DEVICES
How do I connect my TV to external speakers?
3
USING DIGITAL AUDIO OR ANALOG AUDIO
DIGITAL
OUTPUT
(OPTICAL)
Quick Setup Guide |

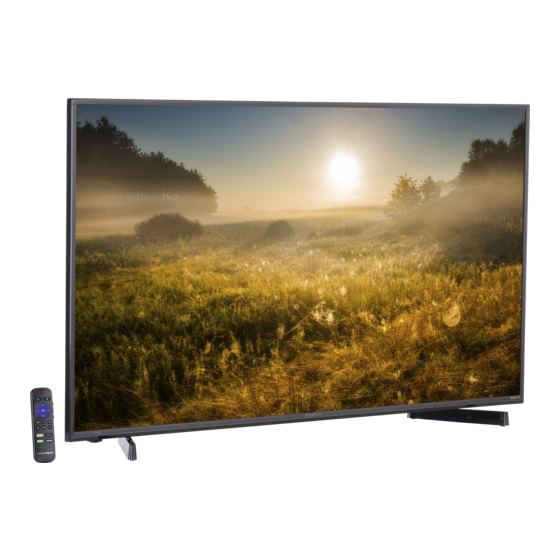

49" 1080p, 60Hz • LED Roku TV
WALL MOUNT
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
OR A Carefully place your TV face-down on a cushioned, clean surface.
B See the instructions that came with your wall mount for
more information about how to correctly mount your TV.
A
B
Your TV has four VESA mounting holes on the back. If you attach a wall-mount
bracket to the back of your TV, the bracket must be securely attached, using
all four holes. If you do not use all four mounting holes, your TV may fall and
cause property damage or personal injury. See the documentation that came
with your wall-mount for complete mounting instructions.
Multi-purpose jacks: You can plug any device that uses HDMI into any
HDMI jack. However, certain devices must be connected to the ARC jack.
See the instructions that came with your ARC device for more information.
AUDIO/VIDEO OUT
ANALOG AUDIO
OR
OPTICAL
INPUT
Note: See the instructions that came
with your speakers or soundbar for
DIGITAL AUDIO
more information.
NS-49DR420NA18
CABLE
SOUNDBAR
